Ingersoll Rand product

Air Impact Wrenches

Covers any application from light production to heavy-duty maintenance and repair
Pistol, straight or T-handle configuration
Excellent power-to-weight ratio
Robust metal housing to protect against breakage and corrosion

Enquire now

Product Overview

Ingersoll Rand offers a wide range of air impact wrenches that delivers the flexibility required even in the most unique and demanding applications. The impact wrenches are designed with durability in mind, and the innovative ergonomic designs and excellence in manufacturing all add up to the longest-lasting, hardest-hitting impact wrench offering.

Square drive sizes from 1/4" to 2 1/2"
Max. torque up to 33900 Nm
Free speed up to 15000 RPM

Product resources

Air Impact Wrenches Brochure

Series	Max. torque Nm	Max. torque lbf.ft	Square drive size	Configuration	Max. free speed RPM	Free speed sound level dB(A) (pressure/power)	Average air consumption cfm	Weight kg
2955	6100	4499	1 1/2"	D-Handle	3300	114.3	-	16

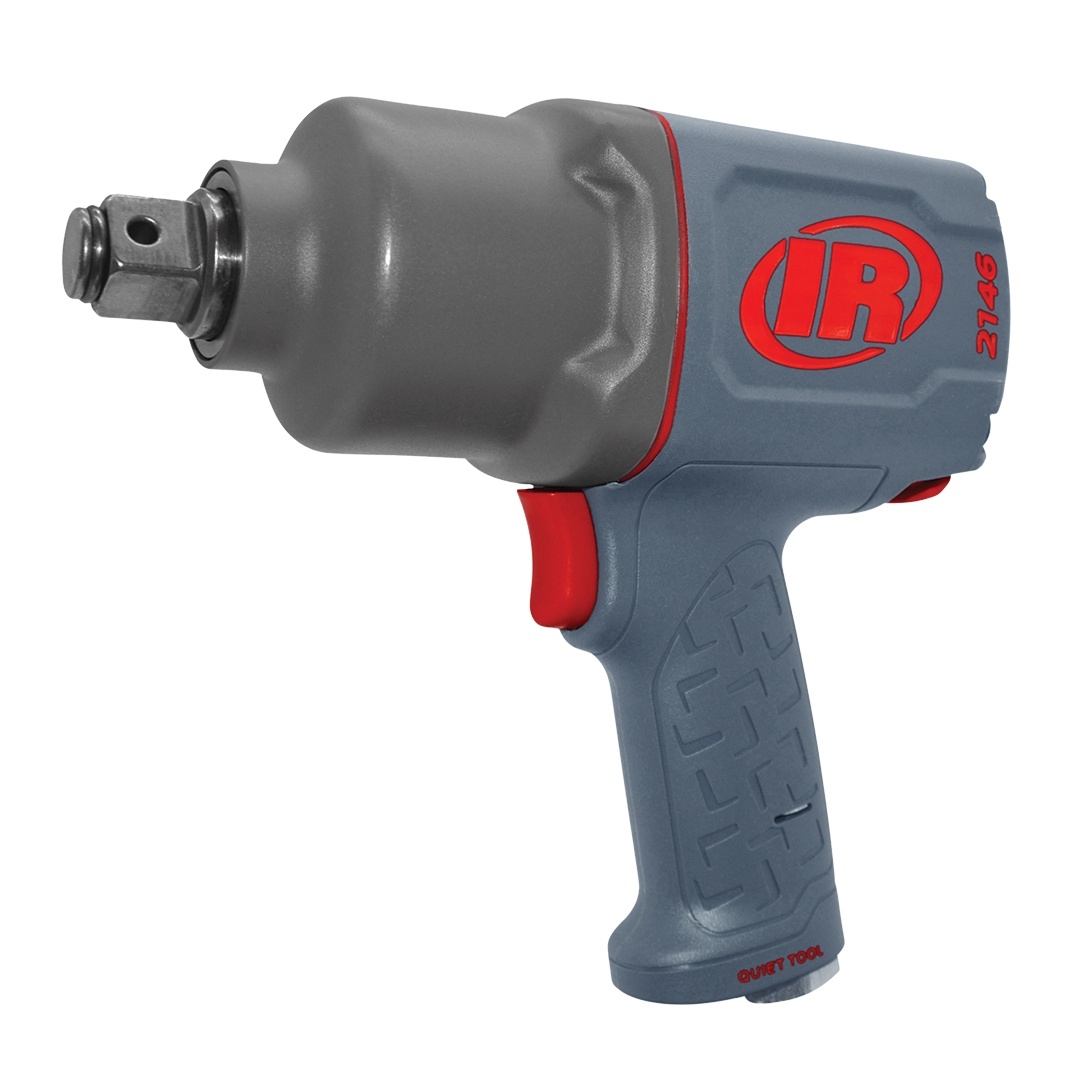

2146MAX	2700	1991	3/4" & 1"	Pistol	5500	-	14	4.6

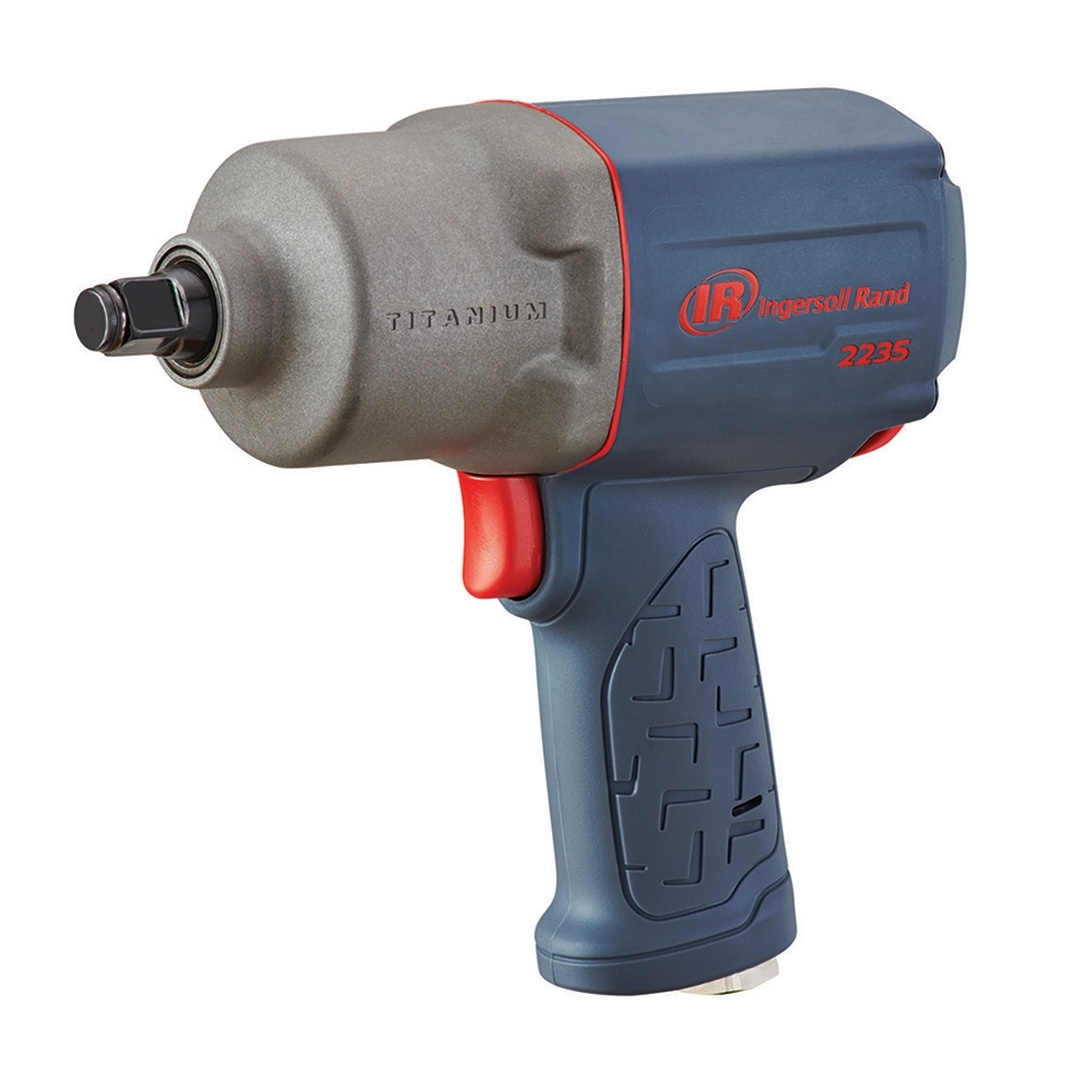

2235QTIMAX	1760	1300	1/2"	Pistol	8500	-	-	2.1
285B	2000	1475	1"	D-Handle	5250	103.4/114.4	11	12.61
2145 & 2155QIMAX	1830	1350	3/4" & 1"	Pistol	7000	91.1	32	3.4
3900	6779	5000	1 & 1 1/2"	D-Handle	6000	103.4/114.4	95	15.7
261 & 271	1627	1200	3/4" & 1"	Pistol	5500	100.3/111.1	9.5	12.4
231GXP	610	450	1/2"	Pistol	8000	99/110	4.2	2.63
2850MAX	2850	2100	1"	D-Handle	5500	-	-	9.8

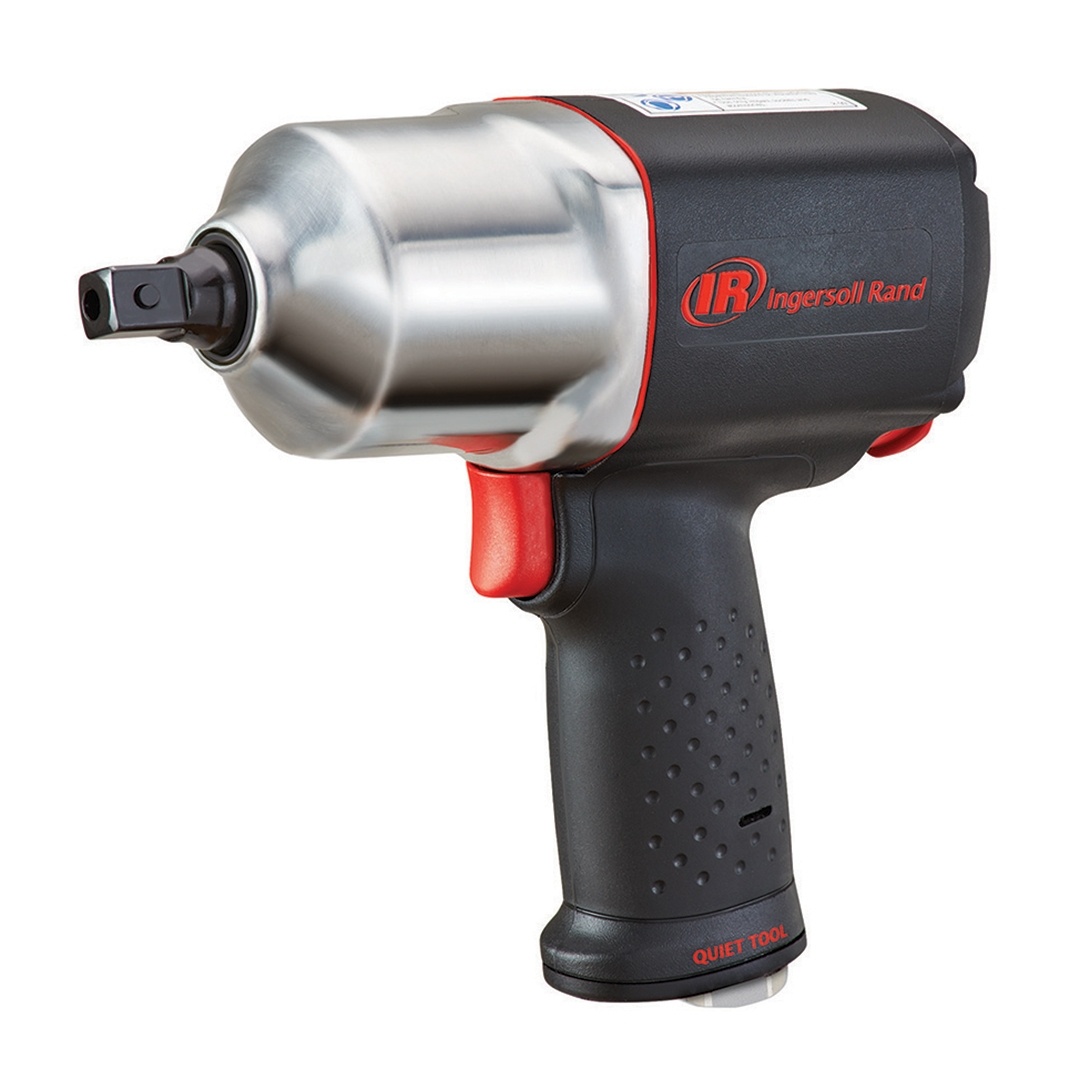

2135QXPA	1057	780	1/2"	Pistol	11000	86/97	5	1.9
2115QTIMAX	450	332	3/8" & 1/2"	Pistol	15000	89.7/100.7	113	2.2
36QMAX	870	640	3/8" & 1/2"	Pistol	8000	87.6/98.6	24	2.4
2925	2304	1700	3/4" & 1"	D-Handle & Pistol	6500	99.6/110.6	60	6.89
2175MAX	2715	2000	1"	Pistol	4500	103.6/114.6	14.2	9.1
295A	2000	1475	1"	Pistol	5250	101.1/112.1	11	11.43
2161 & 2171XP	1695	1250	3/4" & 1"	Pistol	6000	98/111	46	5.4
2015 & 2025MAX	244	180	3/8" & 1/2"	Right Angle, Low Profile	9000	94.1/105.1	3.5	1.54
2135QTL-2	1058	780	1/2"	Pistol	11000	87.2/98.2	5	1.9
259	1424	1050	3/4"	Pistol	6000	96.5/107.5	8	4
216B	271	200	3/8"	Straight	8500	94.8/105.8	3	1.27
212	205	150	3/8"	Pistol	13000	96/107	2.5	1.3
2130XP	745	550	1/2"	Pistol	9500	96.9/109.6	4.4	1.9
280	2169	1600	1"	Pistol	6000	109.1/122.2	10	9.98
5980	27120	20000	1 1/2" & 2 1/2"	T-Handle	830	-	138	39.9
2235QTIMAX-G	1220	900	1/2"	Pistol	8000	91.9/102.9	6	2.1
2934	2034	1500	1"	D-Handle	6600	-	-	16.2
236	610	450	1/2"	Pistol	7400	90.3/101.3	4.3	2.4
ATEX 3900	6779	5000	1" & 1 1/2"	D-Handle	-	99/110	95	15.7
588A1	67800	50000	2 1/2"	T-Handle	355	-	155	97.5
1712B2	1898	1350	1"	D-Handle	6000	107.7/118.7	-	8.28

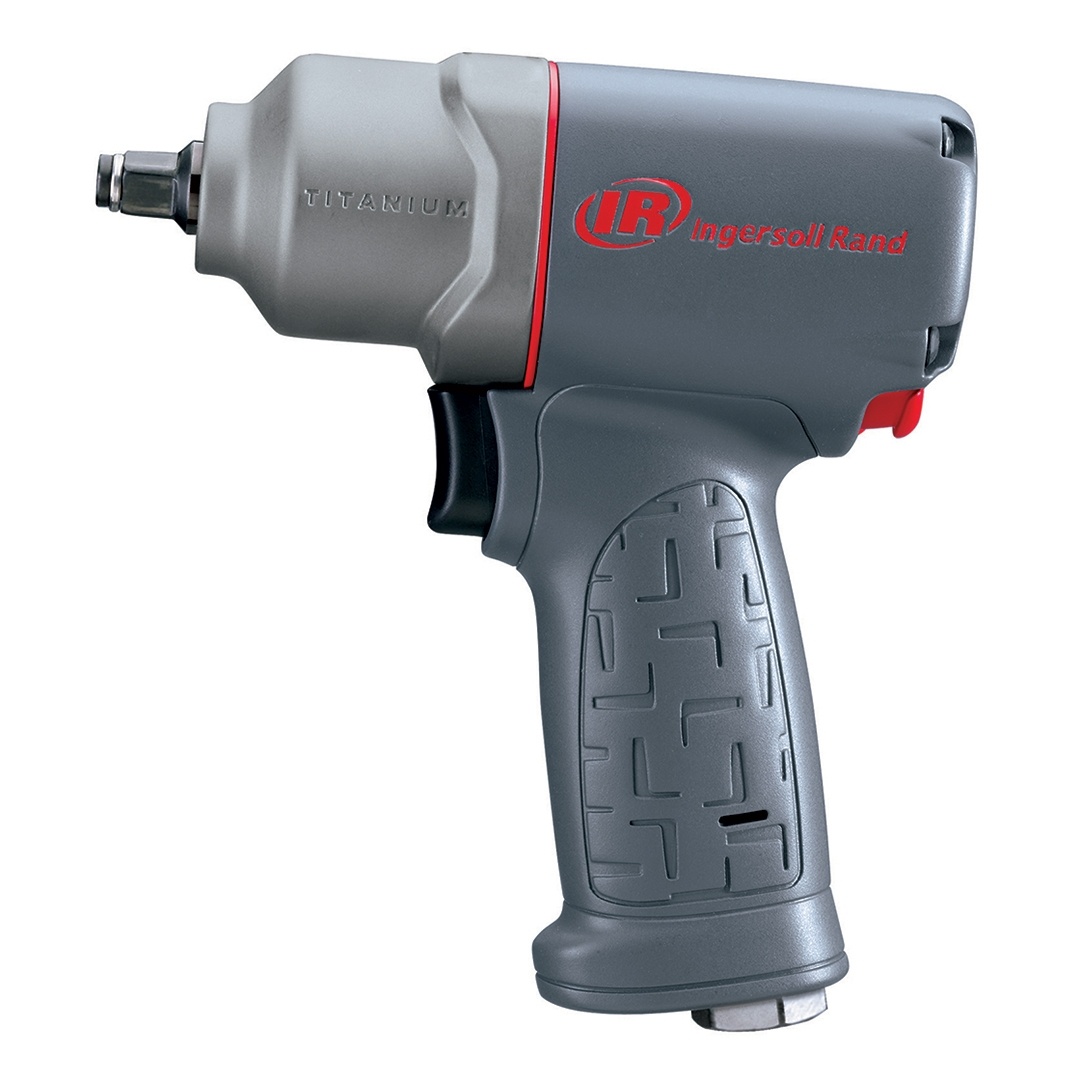

2115QXPA	407	300	3/8"	Pistol	15000	89.7/100.7	4	1.1
2906P1	678	500	1/2"	Pistol	5000	-	23	2.72
MINI	75	55	1/4" & 3/8"	Pistol	14500	83.5/94.5	13.5	0.73
2920	746	550	3/4"	D-Handle	5000	88.8/99.8	36	5.98
ATEX 2925	2169	1600	3/4"	Pistol	-	95.9/106.9	60	5.44
ATEX 2130	813	600	1/2"	Pistol	-	-	4.8	2
211	205	150	3/8"	Straight	13000	94.6/105.6	2.5	1.09
2902P1	244	180	3/8"	Pistol	10000	76.7/87.7	15	1.25
LA158	136	100	3/8"	Pistol	10000	-	-	1.25
