Ingersoll Rand product
Air Ratchets
- Ideal for tightening and loosening threaded fasteners
- Offers greater access in confined work areas
Product Overview
Ingersoll Rand’s line of ratchet wrenches is smaller in size and more powerful than competitive models. These models are specifically engineered with enhanced ergonomics, making your job easier and more productive.
- Square drives sizes from 1/4 to 1/2"
- Max. torque up to 103 Nm (76 ft-lb)
- Free speed up to 300 RPM
Product resources
Technical specifications
| Series | Max. torque Nm | Max. torque ft-lb | Square drive size | Switch type | Free speed RPM | Free speed sound level dB(A) | Average air consumption cfm | Weight kg |
|---|---|---|---|---|---|---|---|---|

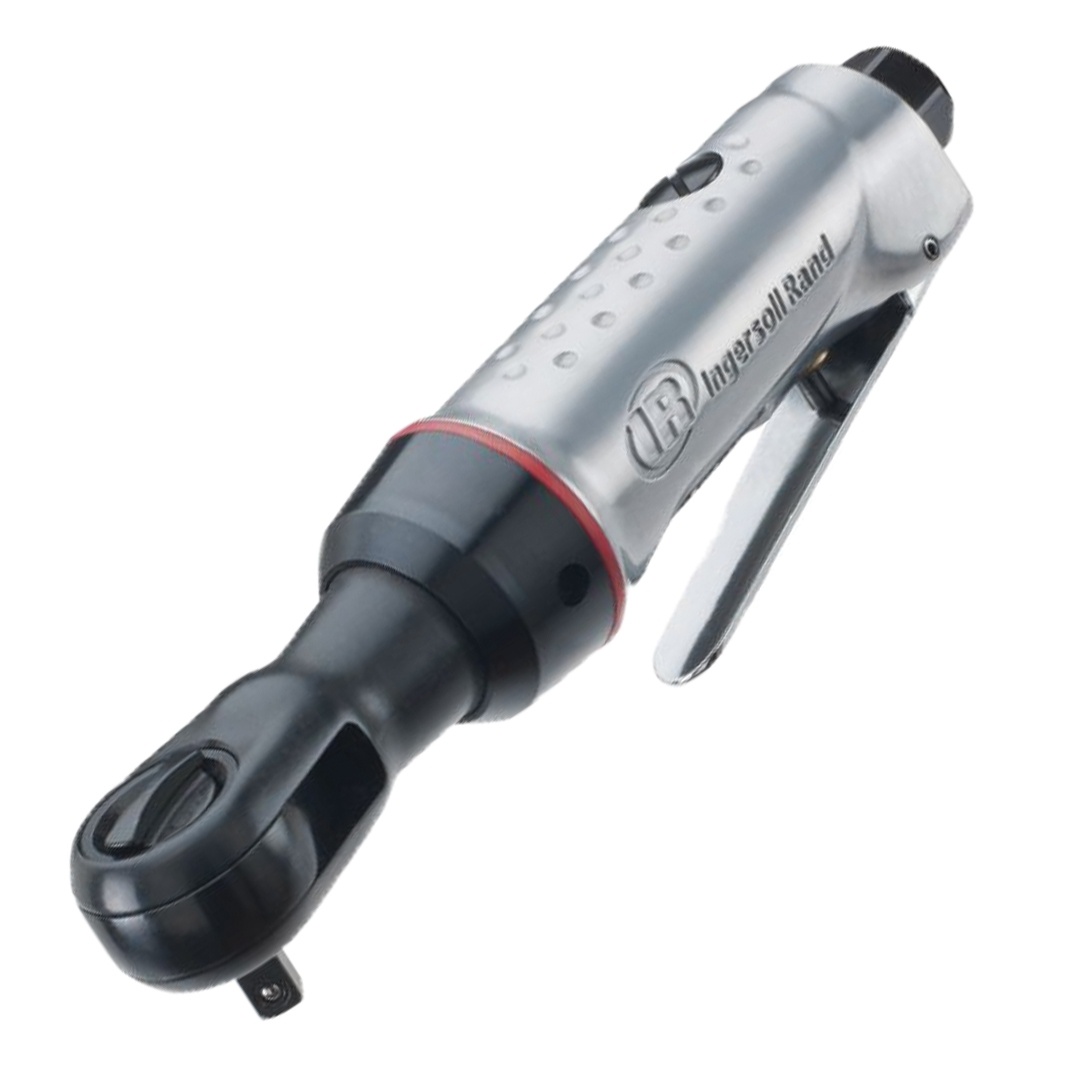

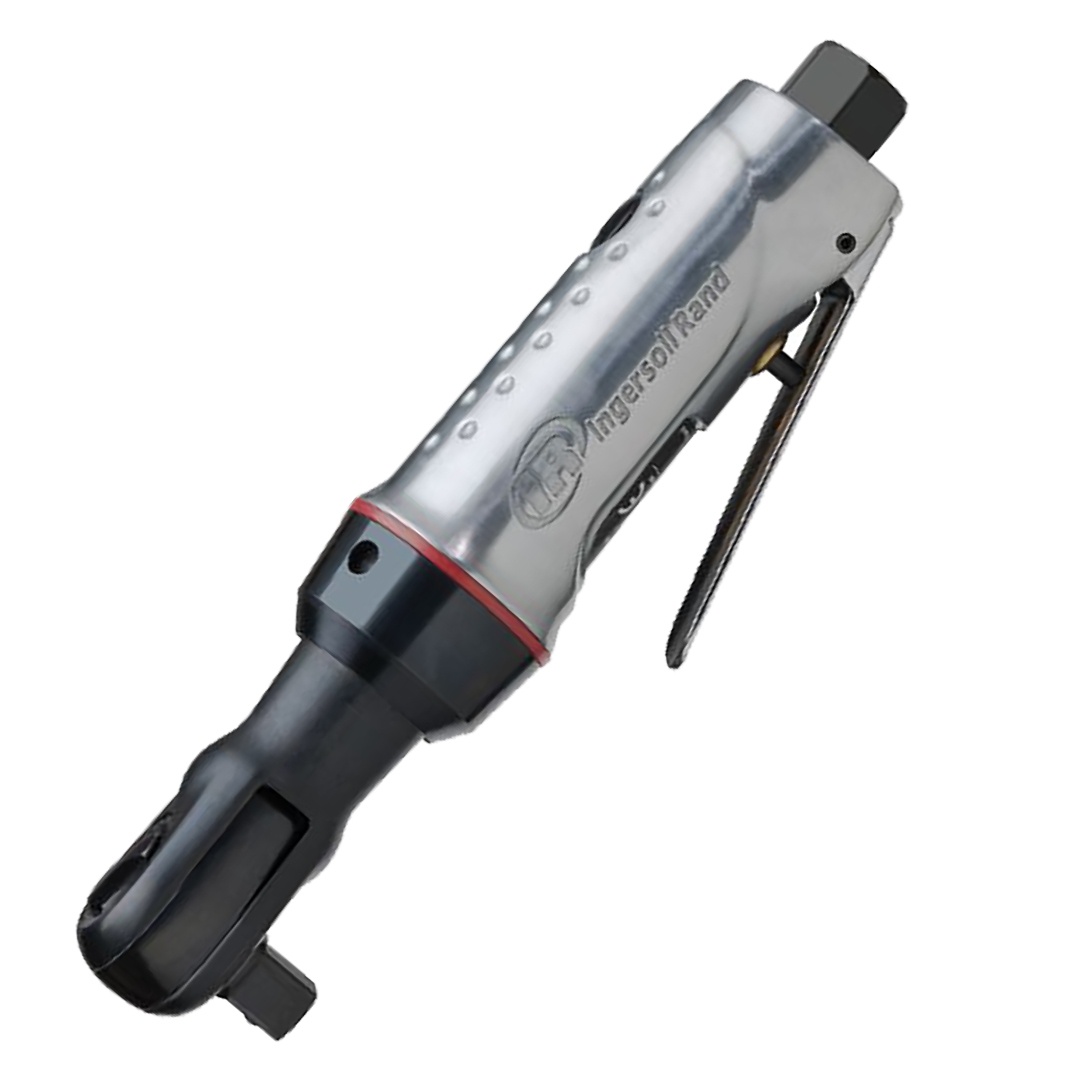

| 105 | 34 | 25 | 1/4" & 3/8" | Lever actuation, variable speed | 250 | 81.8 | 3 | 0.71 |

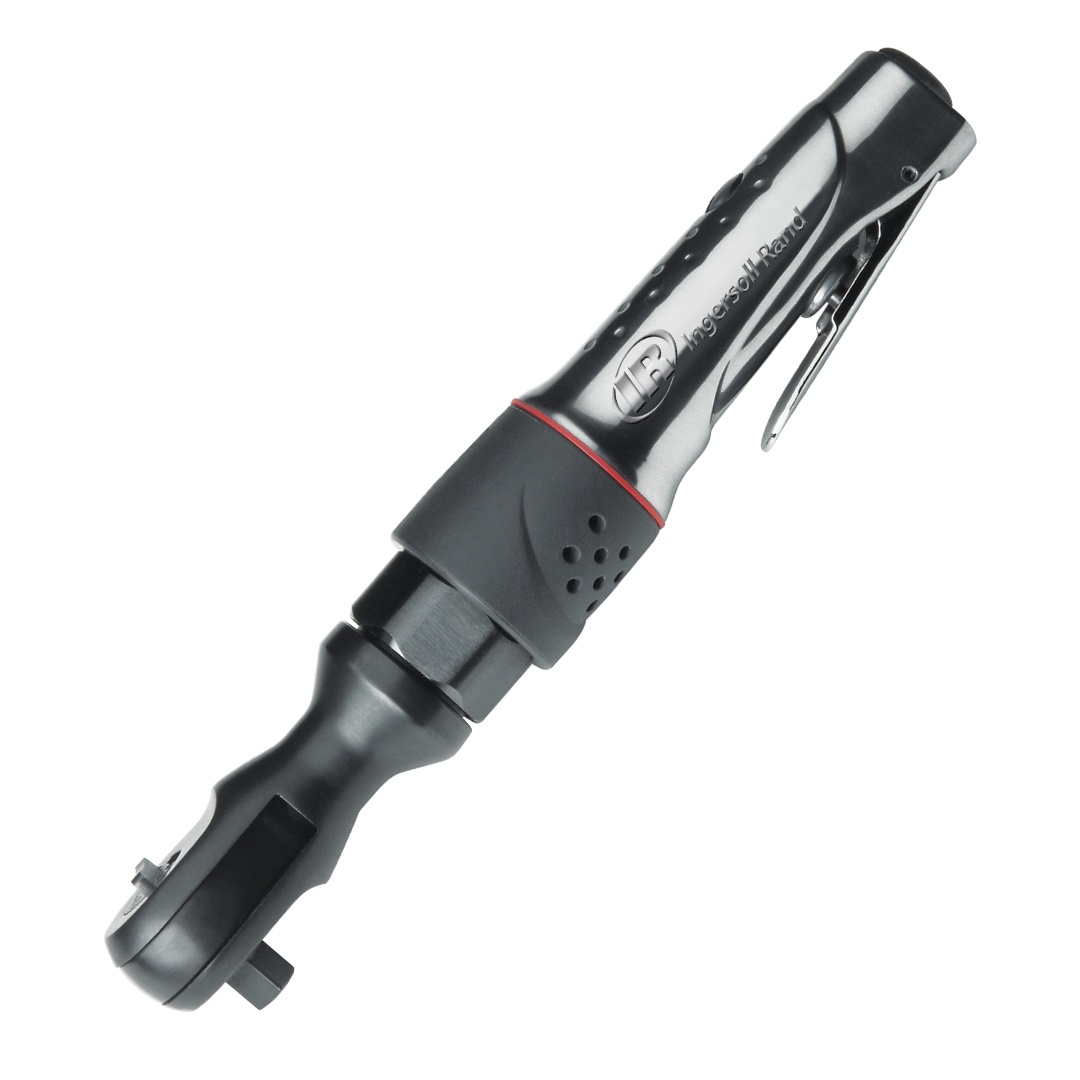

| 107 & 1077XPA | 73 | 54 | 3/8" & 1/2" | Lever actuation, variable speed | 160 | 94.4 | 4 | 1.25 |

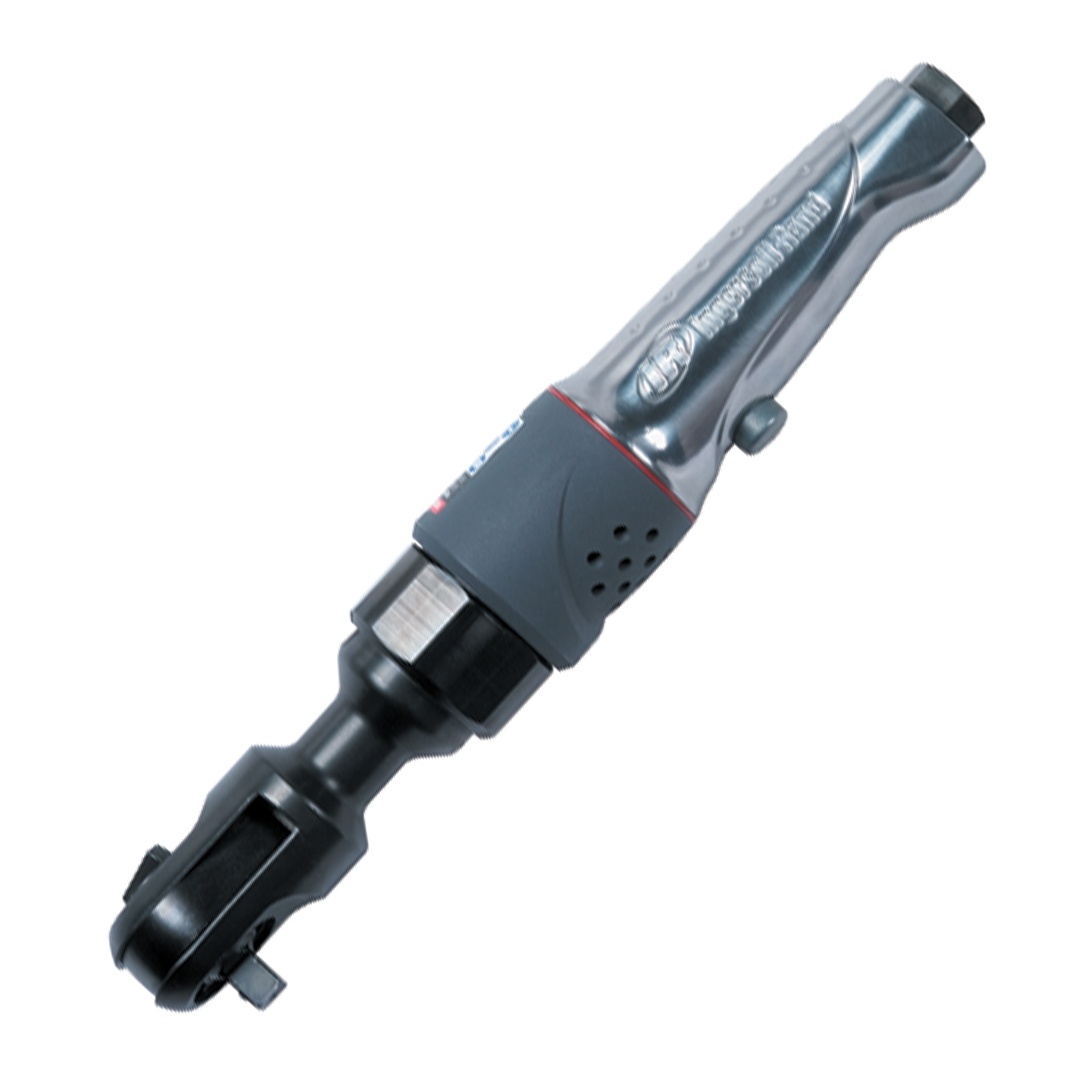

| 109 & 1099XPA | 103 | 76 | 3/8" & 1/2" | Button actuation, variable speed | 220 | 92.4 | 4 | 1.5 |

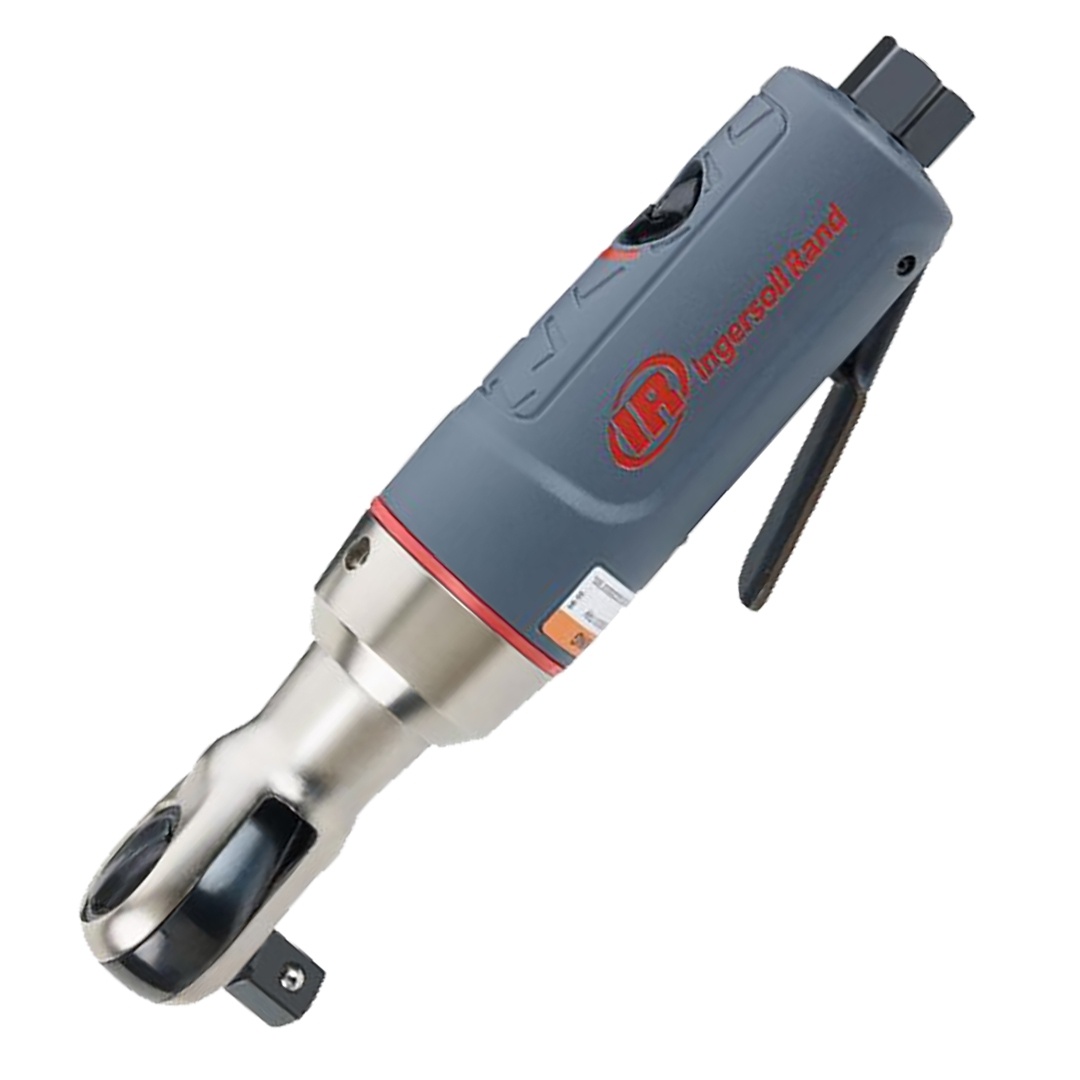

| 1105MAX | 41 | 30 | 1/4" & 3/8" | Lever actuation, variable speed | 300 | 88.9 | 3.5 | 0.65 |

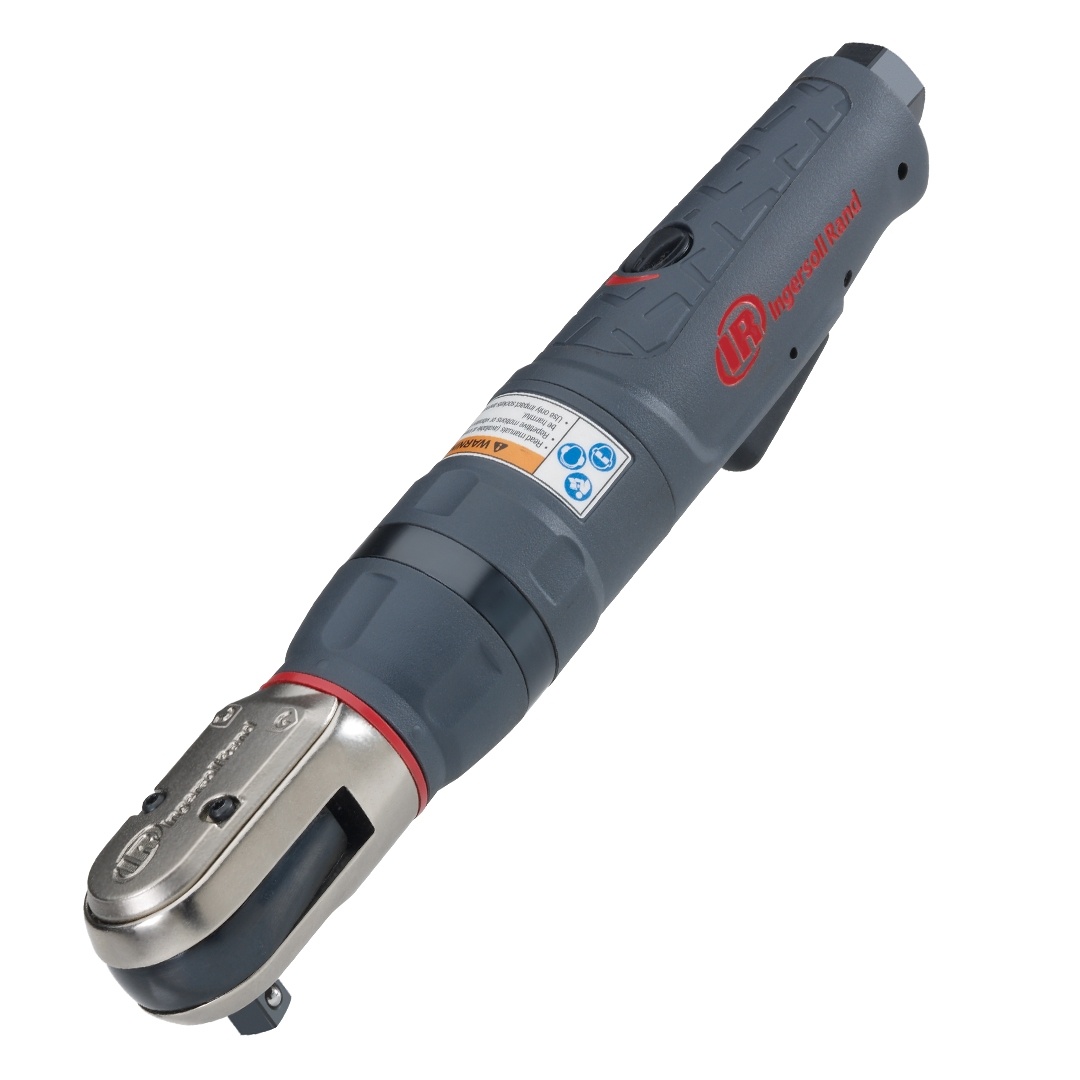

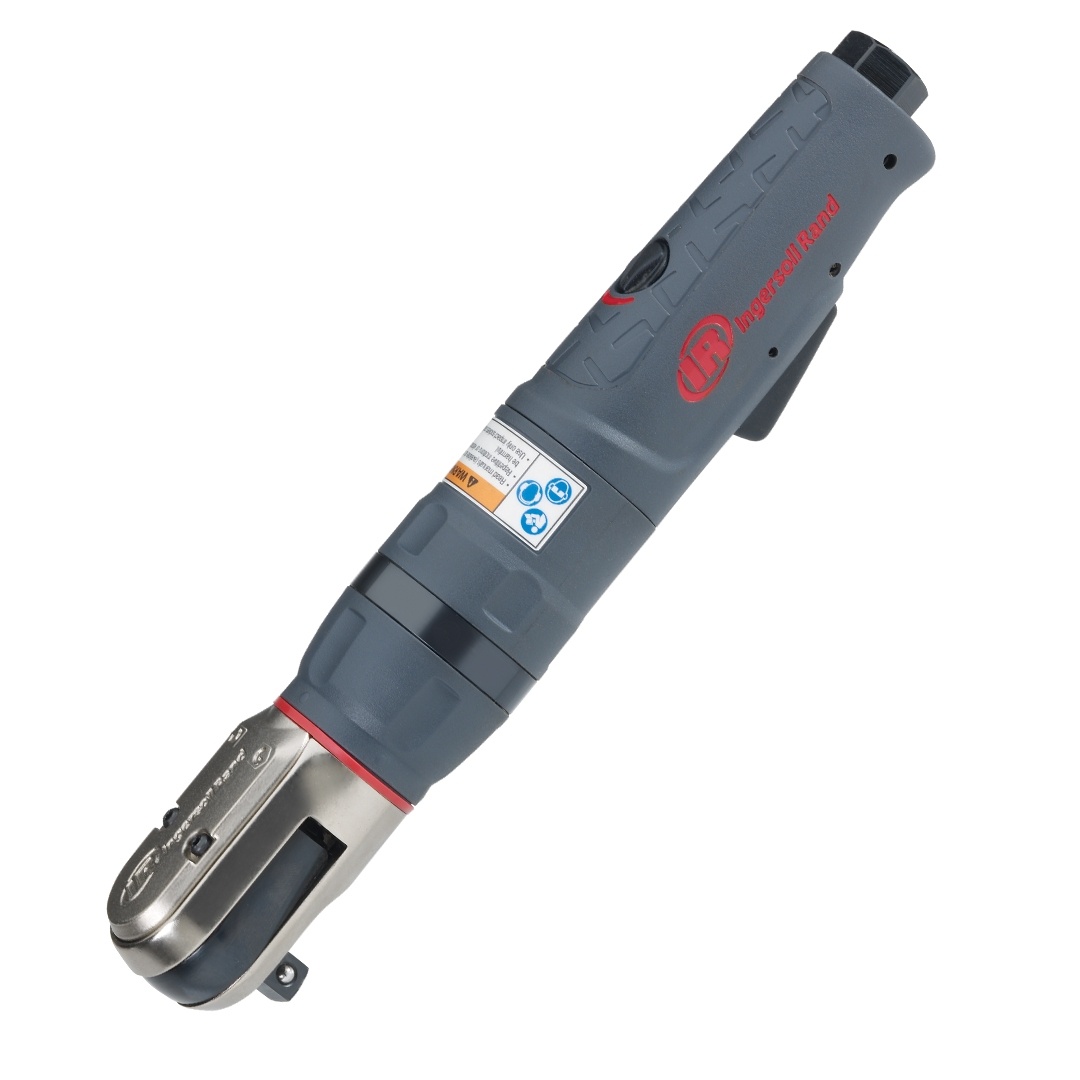

| 1207MAX | 88 | 65 | 3/8" & 1/2" | Lever actuation, variable speed | 220 | 85 | 4 | 1.42 |
