Hi-Force product
CT Range

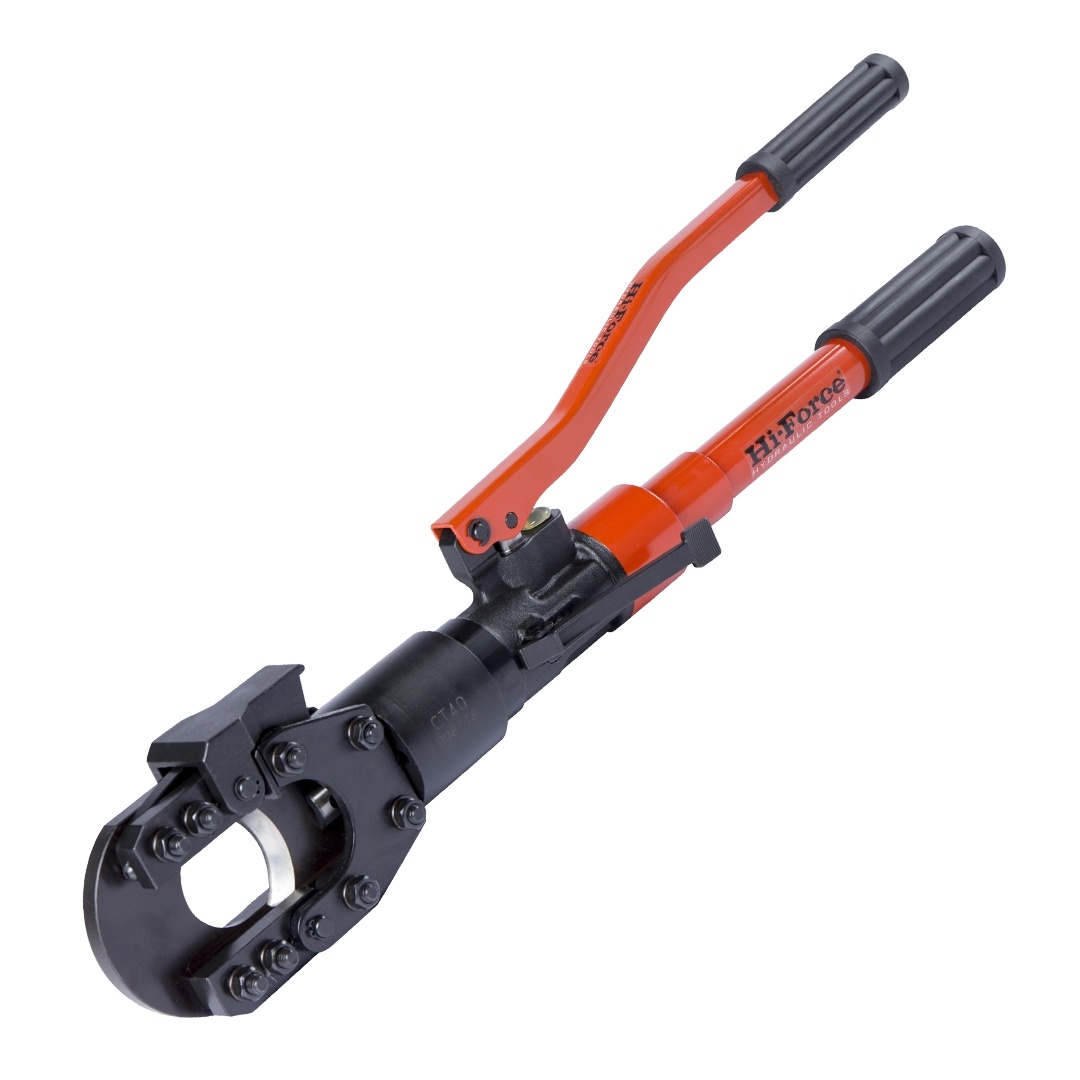

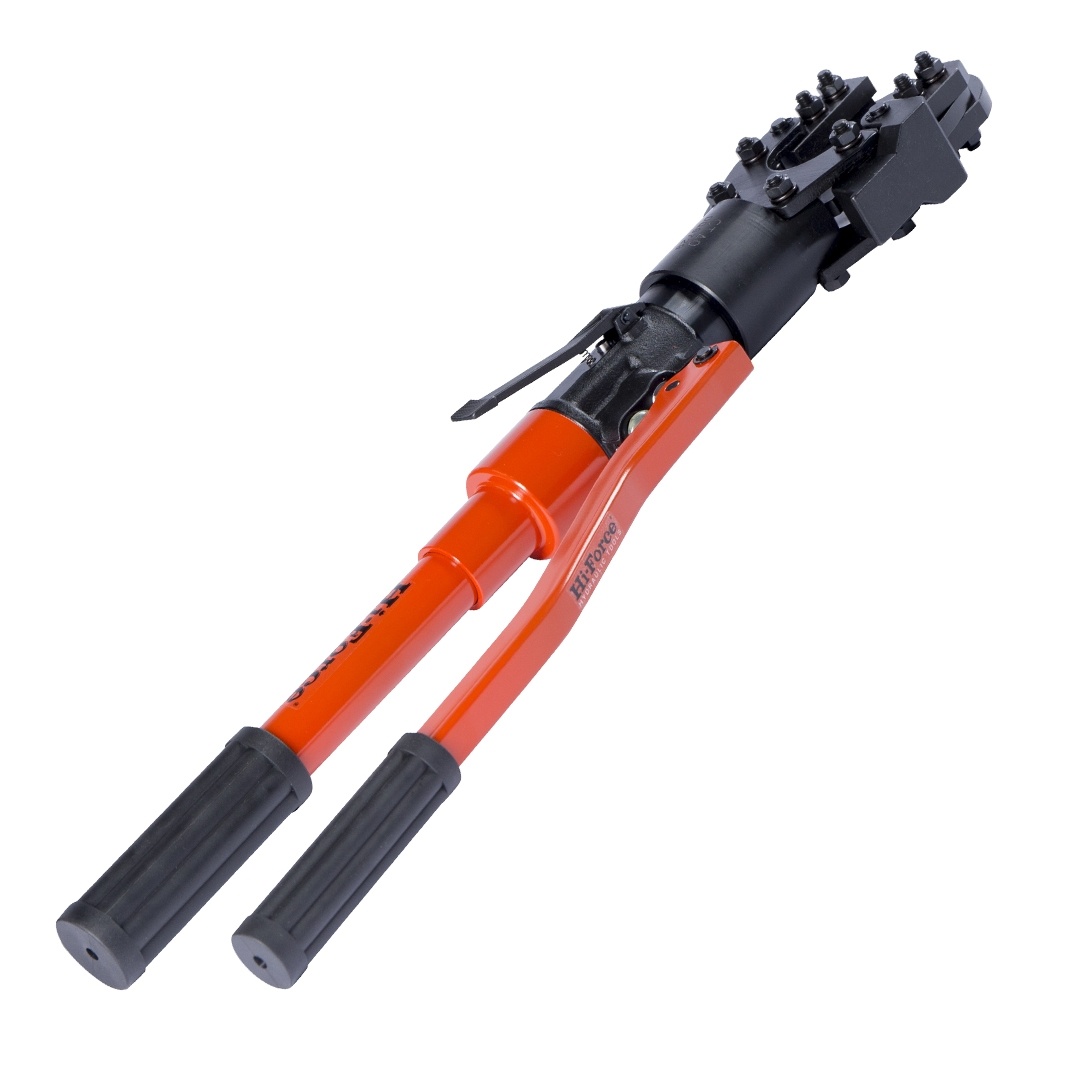

Self-Contained Hydraulic Cutters
- High quality tool steel cutting blades
- Incorporates an integral hydraulic pump for easy operation
- Ergonomic grip handles for reduced operator effort
- Suitable for cutting steel wire rope, round bar, wire strands and cable
Product Overview
The CT self-contained cutters from Hi-Force are extremely versatile and built to handle industrial-grade materials in heavy engineering, construction, mining, manufacturing and many other industries.
- Cutting capacity up to 40 mm diameter
- Cuts a wide variety of materials
- Compact and lightweight
Product resources
Technical specifications
| Model Number | Cutting Force tonnes | Weight kg | ||||
|---|---|---|---|---|---|---|
| CT20 | 5 | 2.8 | ||||
| CT40 | 7 | 6.0 | ||||
Material
| Material | Description | Maximum diameter cutting capacity in mm | |
|---|---|---|---|
| CT20 | CT40 | ||
| Steel Wire Rope | 6x7 Hempcore | 16 | 20 |
| 6x12 Hempcore | 20 | 25 | |
| 6x19 Hempcore | 20 | 25 | |
| Round Bar | Soft copper bar | 20 | 25 |
| Soft aluminium bar | 20 | 25 | |
| Soft steel bar (below SS41) | 16 | 16 | |
| Wire Strands | Bare copper strands | 20 | 40 |
| Bare aluminium strands | 20 | 40 | |
| Cable | Armoured underground cable | 20 | 40 |
Dimension
Dimensions (mm)
| Model number | A | B | C | D |
|---|---|---|---|---|
| CT20 | 390 | 145 | 76 | 40 |
| CT40 | 560 | 155 | 103 | 65 |
