Aircat product

Cut-Off Tools

Cuts 3/8" rolled steel or 18 gauge steel sheet
Available in several styles including a reversible and a flex head model
Features multi-patented exhaust muffler technology that significantly reduces noise levels

Enquire now

Product Overview

AIRCAT® cut-off tools provide the power required for all your industrial and heavy-duty automotive needs while ensuring a safe and quiet operation. These tools are built with impact-resistant bodies, superior interior mechanics and ergonomic handles that let you work effortlessly and comfortably for hours.

Collet/wheel size up to 4"
0.5 to 1 HP motor
Up to 18,000 RPM free speed

Product resources

Cut-Off Tools Catalogue Pages

Model number	Free Speed RPM	Cutting Capacity	Collet or Wheel size (in)	Motor (hp)	Gears	Exhaust	Air Cons. CFM	Rec. Hose Size (in)	Air Inlet (in)	Vibration m/sec2	Noise dBA	Weight (kg)
6275-A	14,000	3/4" Rolled Steel / 18 Gauge	4	1	Direct Drive	Rear	6	3/8	1/4 NPT	4.6	86.0	1.70

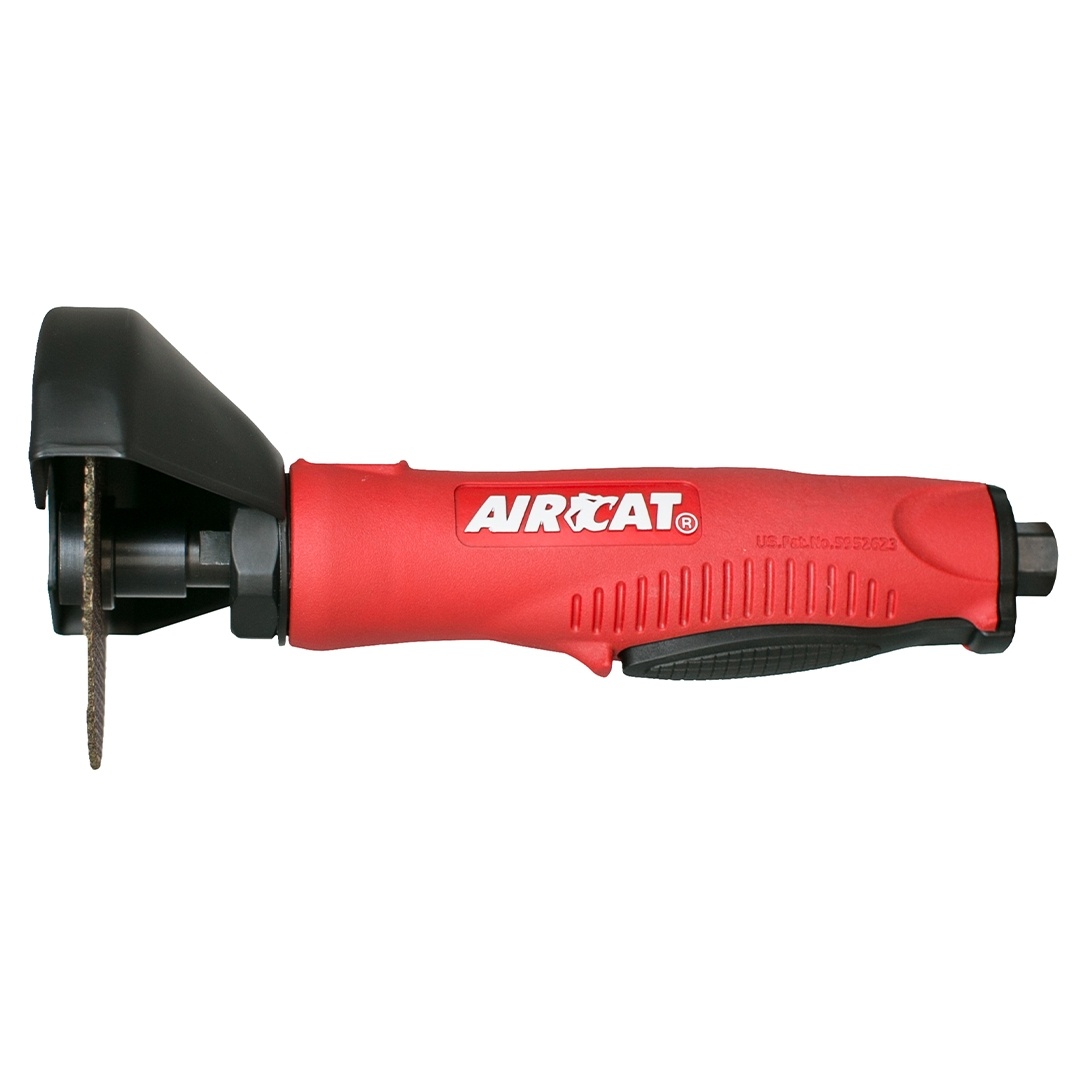

6560	14,000	3/4" Rolled Steel / 18 Gauge	4	1	Single Reduction	Rear	4.2	3/8	1/4 NPT	2.57	89	0.82

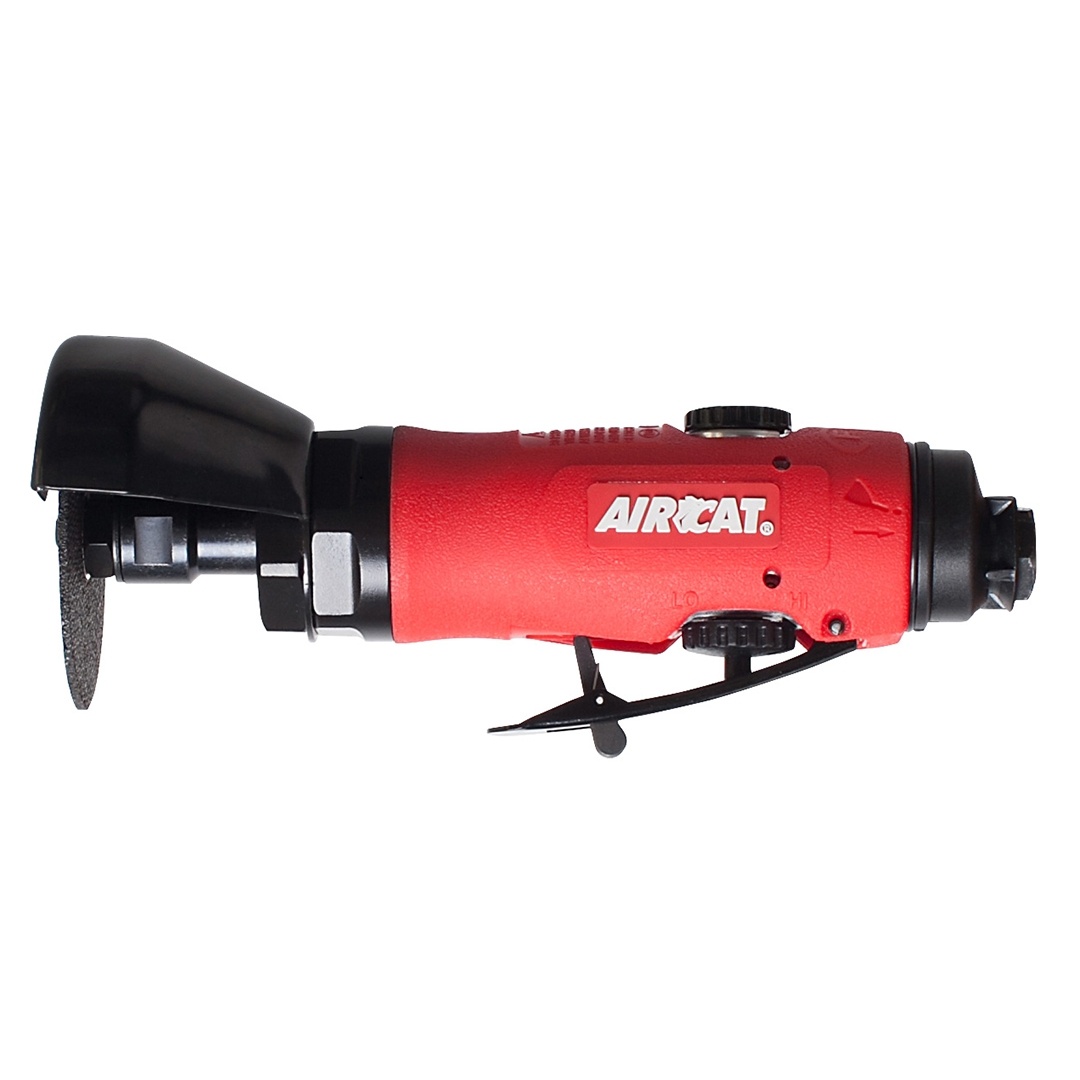

6520	18,000	3/4" Rolled Steel / 18 Gauge	3	1/2	Single Reduction	Rear	6	3/8	1/4 NPT	1.8	88.0	0.82

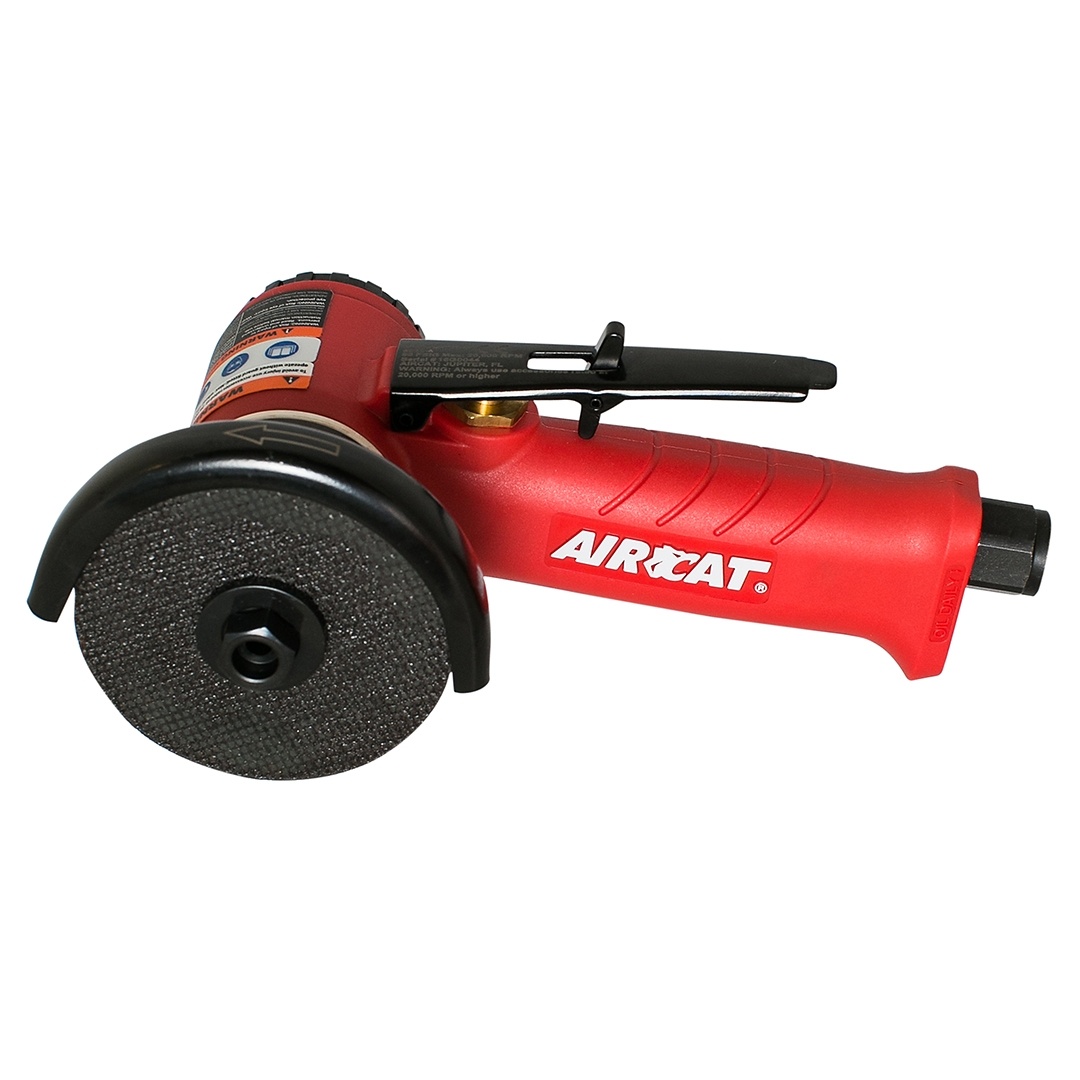

6525-A	18,000	3/4" Rolled Steel / 18 Gauge	3	1/2	Direct Drive	Rear	6	3/8	1/4 NPT	3.1	85.0	1.00

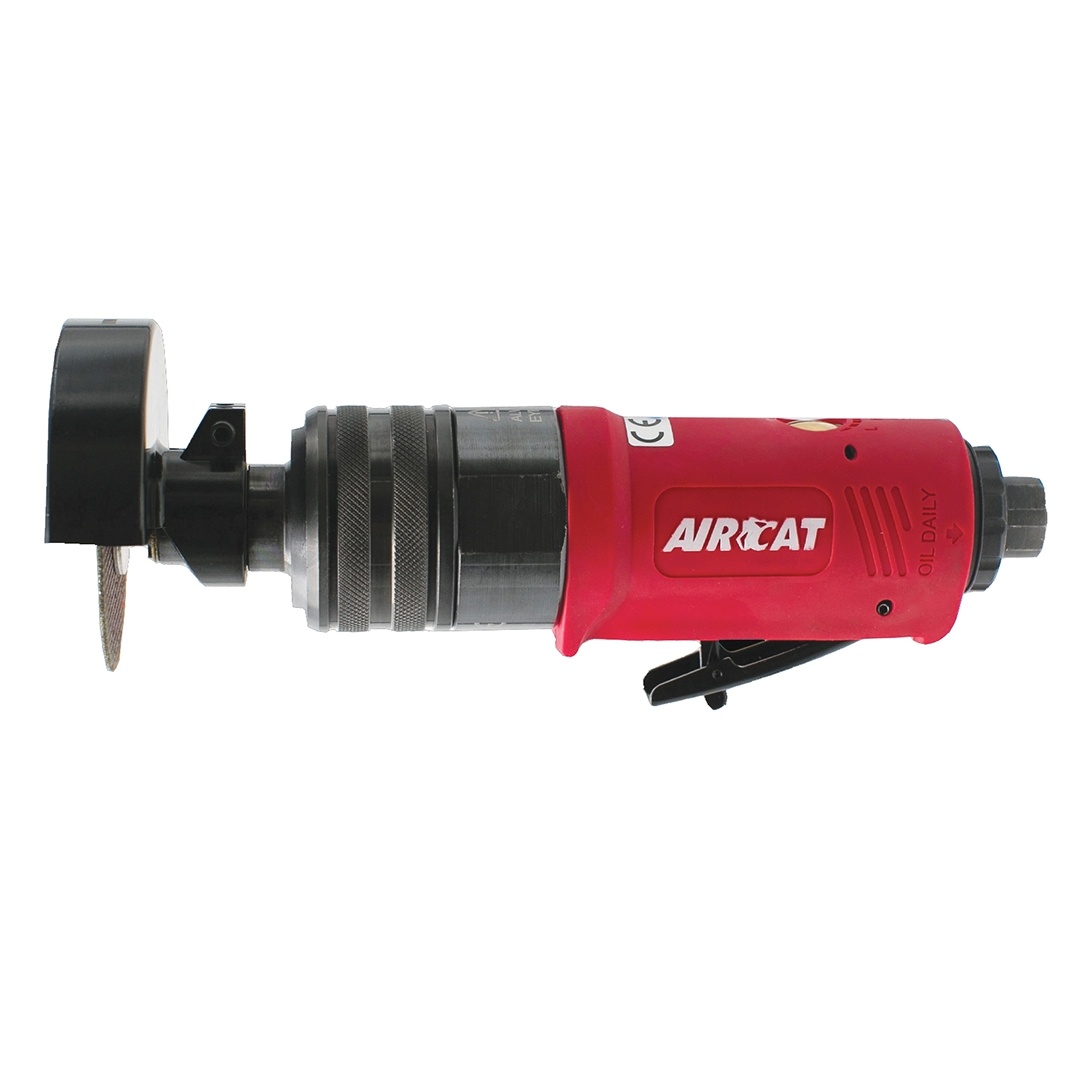

6530	18,000	3/4" Rolled Steel / 18 Gauge	3	1/2	Direct Drive	Rear	6	3/8	1/4 NPT	1.9	90	1.00

Dimensions (mm)

Model number	Length	Width	Height
6275-A	393.7	109.22	53.34
6560	241.3	114.3	114.3
6520	241.3	83.82	78.74
6525-A	201.93	109.22	88.9
6530	223.52	82.55	82.55

Services and support

Whether it is choosing the right tool for the job, improving technical and operational knowledge or product maintenance and warranty, HES is here to help.

Tell me more
