Guide Rollers

For longer displacement paths and/or permanent loads with additional lateral loads
Can be used on suitable tracks such as (crane) rails and/or beams
The number and arrangement of the guide rollers is individual and is determined by the customer

Enquire now

Product Overview

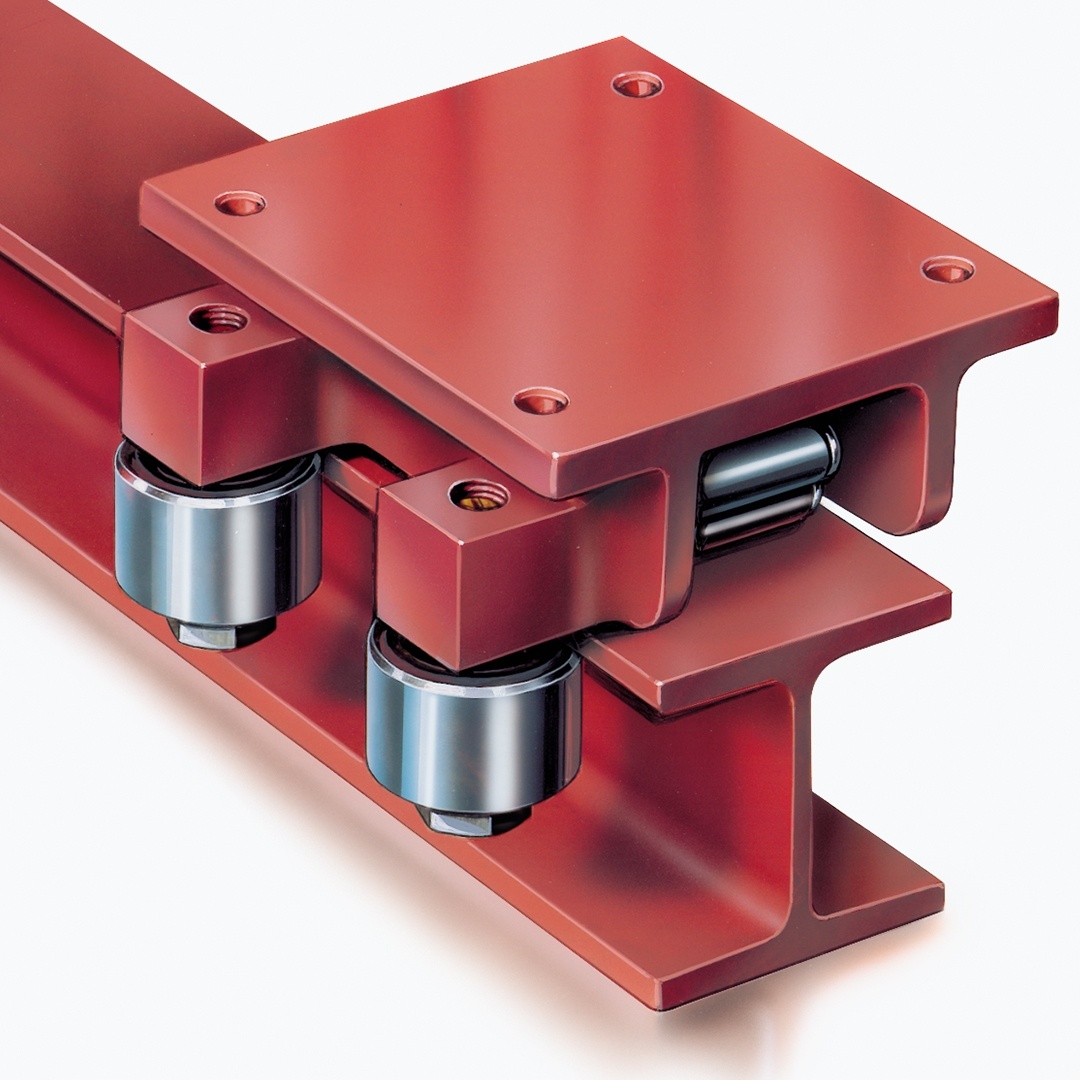

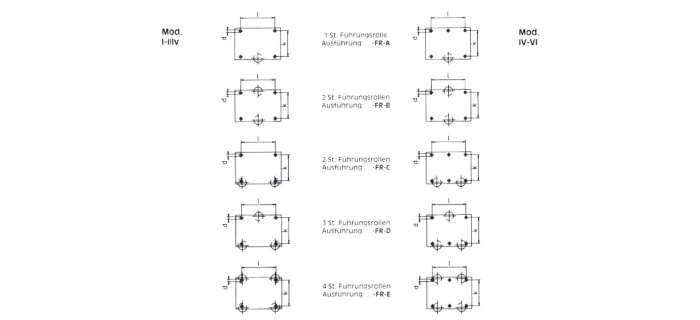

Particularly recommended arrangements of the guide rollers:

If you have little knowledge of the parallelism of the profile (beam / rail), use only one profile and select the roller carriages on this profile in the FR-E arrangement
For precisely laid profiles, equip the roller carriages with the FR-C arrangement on both profiles

Robust, low-maintenance welded construction to maintain the direction of travel
Made to measure according to customer requirements depending on the road profile
Minimum requirements for the roller carriage model: hardened center bar; Roll material 50 CrV4 is recommended

Product resources

Borkey Guide rollers Catalogue Page

Model	a	b	c	Ø d	e	f	g	h	k	XMin	XMax	Permissible radial force per guideroller (kN)
I	210	175	76	60	40	36	130	128	16	35	80	10
II	220	190	87	60	40	32	140	135	16	42	90	10
III	270	210	104	60	40	32	180	152	16	50	110	10
IIIV	320	220	115	60	40	32	230	163	16	55	115	10
IV	380	270	145	125	60	50	160	195	—	45	150	100
V	530	300	165	125	60	50	280	215	—	50	160	100
VV	500	350	190	170	60	50	340	240	—	50	170	150
VI	900	380	200	170	60	50	550	250	—	50	170	150

Note: All dimensions in mm

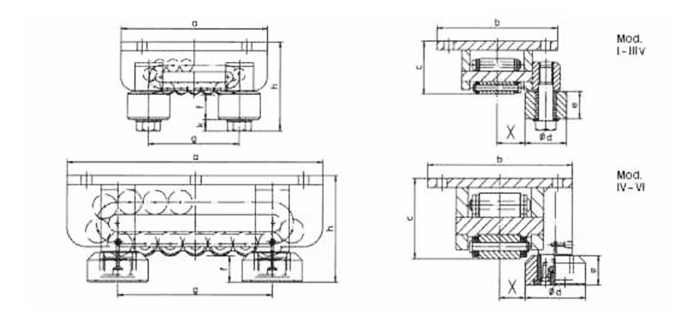

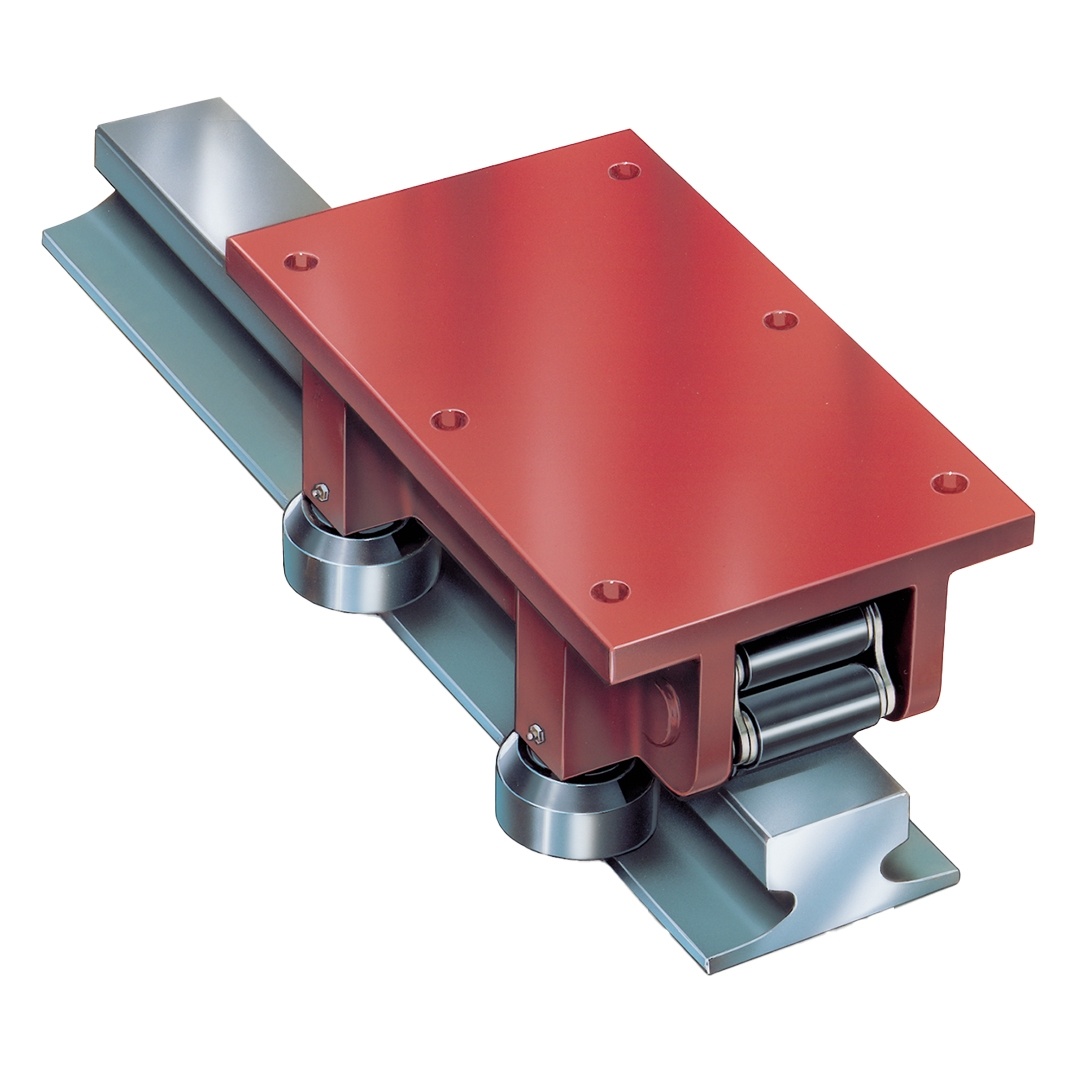

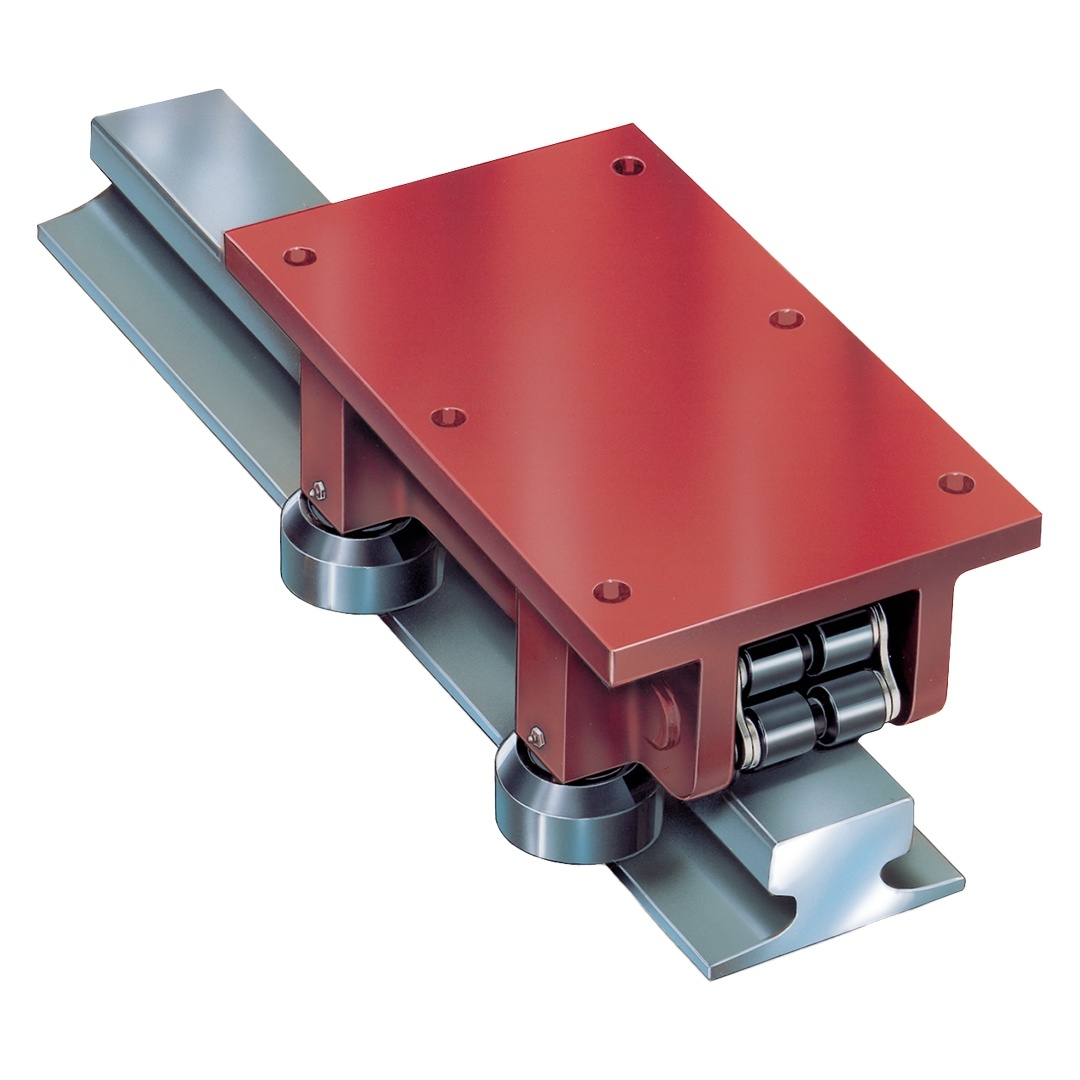

Borkey Guide rollers AH FR AS H FR AM H FR

Bokey Guide Rollers A H FR AS H FR AM H FR

Dimensions (mm)

Size	I	II	III	IIIV	IV	V	VV	VI	Size
Ø d	14	14	18	18	22	22	26	33	Ø d
k	140	155	175	180	220	240	280	300	k
l	150	150	190	240	280	410	480	720	l
