Aircat product
Hammers
- High performance and low weight
- Includes quick change chisel retainer for added safety and reliability
Product Overview
The air hammers from AIRCAT® are designed for both light and heavy-duty applications, driving out shackle pins and cutting large bolts, nuts, and fasteners. These pneumatic tools feature a multi-patented silencing system and internal vibration damping that reduces vibration levels to 4.2 m/s2 as well as a patented ergonomic AIRCAT design grip that provides unmatched comfort to users.
- 3000 blows per minute for fast cutting action
- Piston stroke up to 3 3/4"
- Air consumption up to 6 CFM
Product resources
Technical specifications
| Modelnumber | FreeSpeed(BPM/Strokes) | Piston Stroke (in) | Shank Size (in.) | Retainer | Valve | Air Cons. (CFM) | Rec. Hose Size (in) | Air Inlet (in) | Vibration m/sec2 | Noise dbA | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|

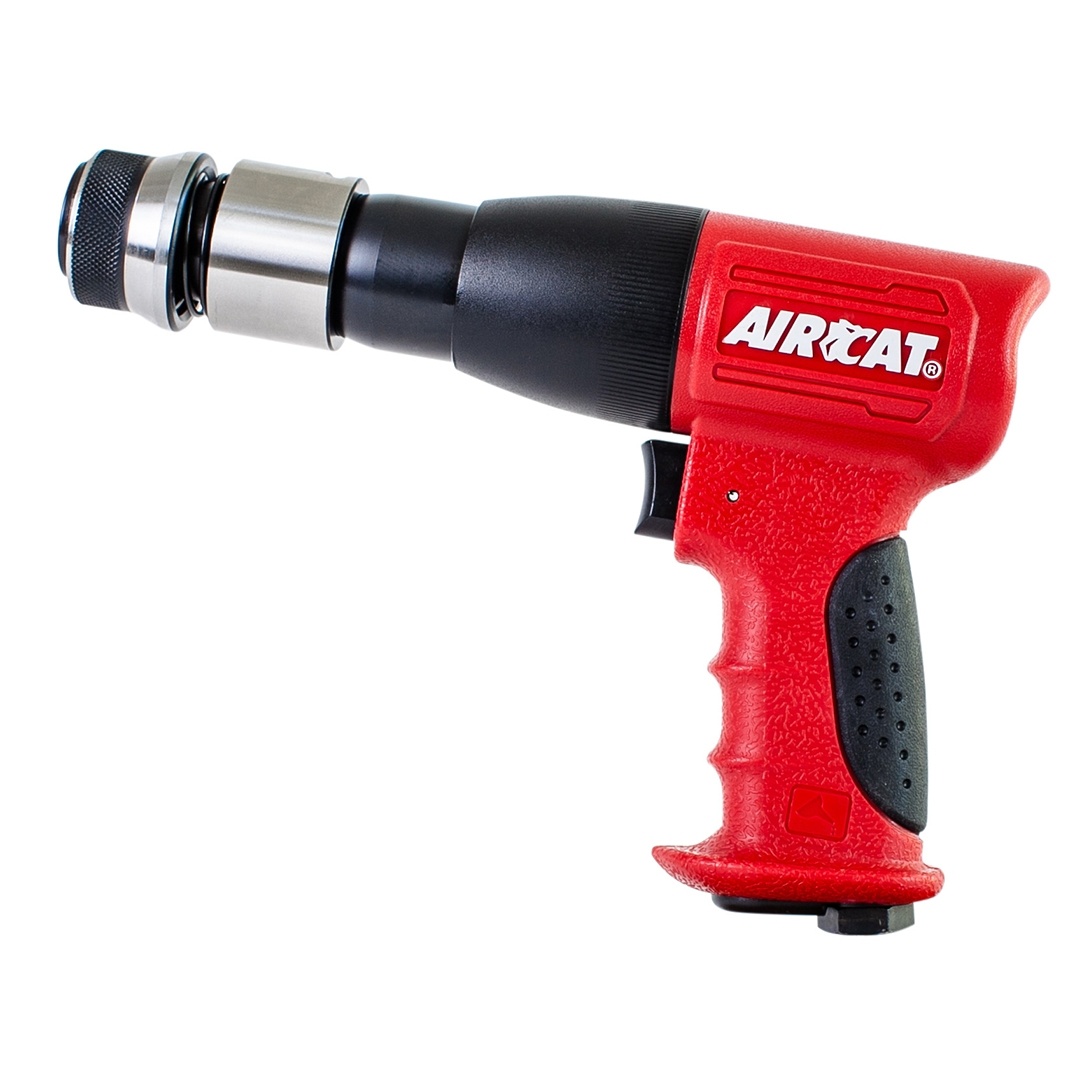

| 5100-A-T | 3,000 | 2-5/8" | 0.401 | Safety-lock | Plate | 6 | 3/8 | 1/4 NPT | 4.2 | 88 | 1.5 |
| 5100-A | 3,000 | 2-5/8" | 0.401 | Safety-lock | Plate | 6 | 3/8 | 1/4 NPT | 4.2 | 88 | 1.5 |

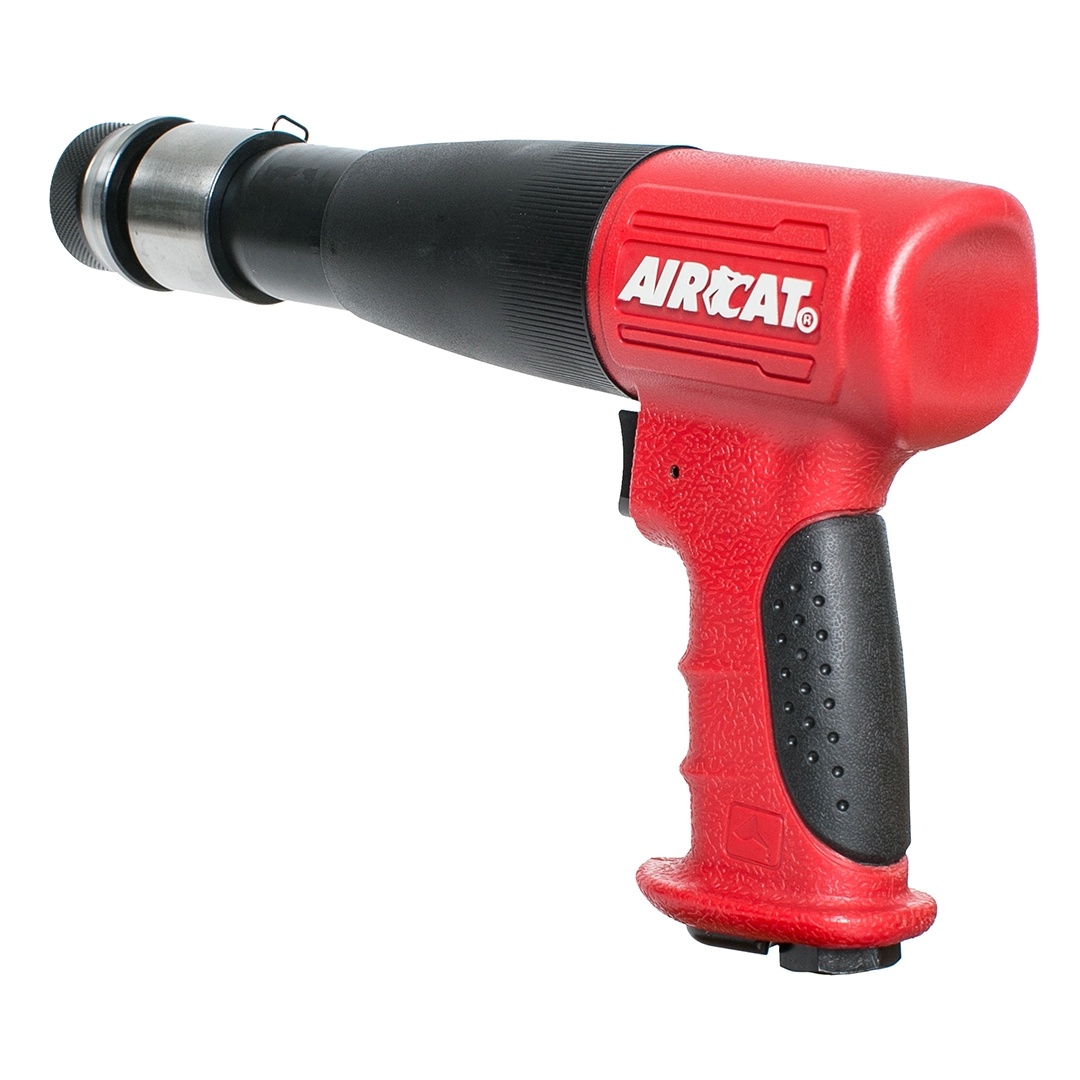

| 5200-A-T | 2,100 | 3-3/4" | 0.401 | Safety-lock | Plate | 6 | 3/8 | 1/4 NPT | 4.2 | 101 | 2.0 |
| 5300-A-T | 1,760 | 2-11/16" | 0.498 | Quick Change | Plate | 6 | 3/8 | 1/4 NPT | 17.4 | 95.7 | 2.1 |
| 5300-A | 1,760 | 2-11/16" | 0.498 | Quick Change | Plate | 6 | 3/8 | 1/4 NPT | 17.4 | 95.7 | 2.1 |

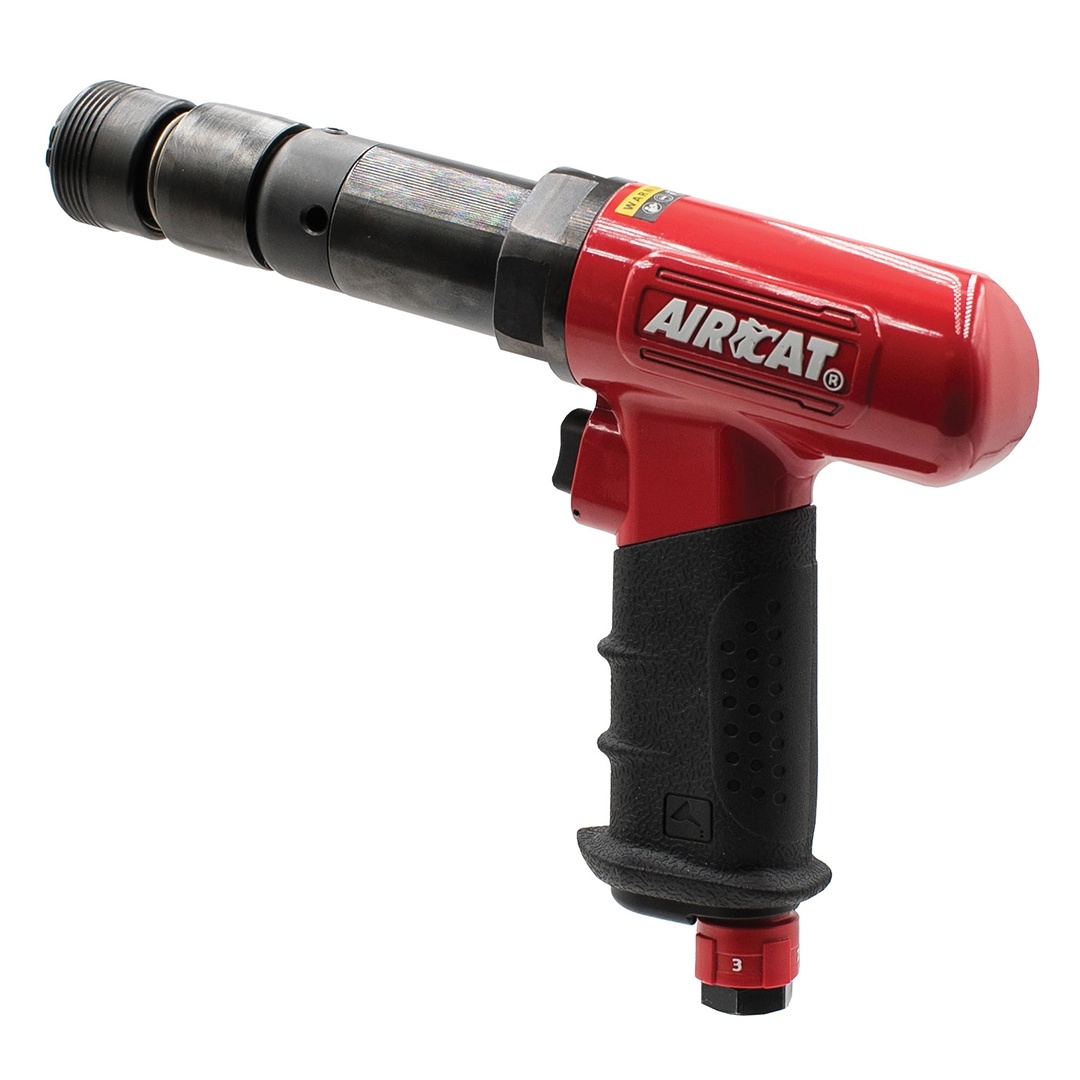

| 5250-A-T | 2,500 | 3" | 0.401 | Quick Change | Plate | 4.2 | 44263 | 1/4 NPT | 19.5 | 98.6 | 2.4 |
Dimension
Dimensions (mm)
| Model number | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| 5100-A-T | 193.0 | 55.9 | 172.7 |
| 5100-A | 195.6 | 55.9 | 172.7 |
| 5200-A-T | 279.4 | 53.3 | 170.2 |
| 5300-A-T | 227.3 | 61.0 | 160.0 |
| 5300-A | 227.3 | 61.0 | 160.0 |
| 5250-A-T | 235.0 | 136.7 | 198.1 |
