HAS Range

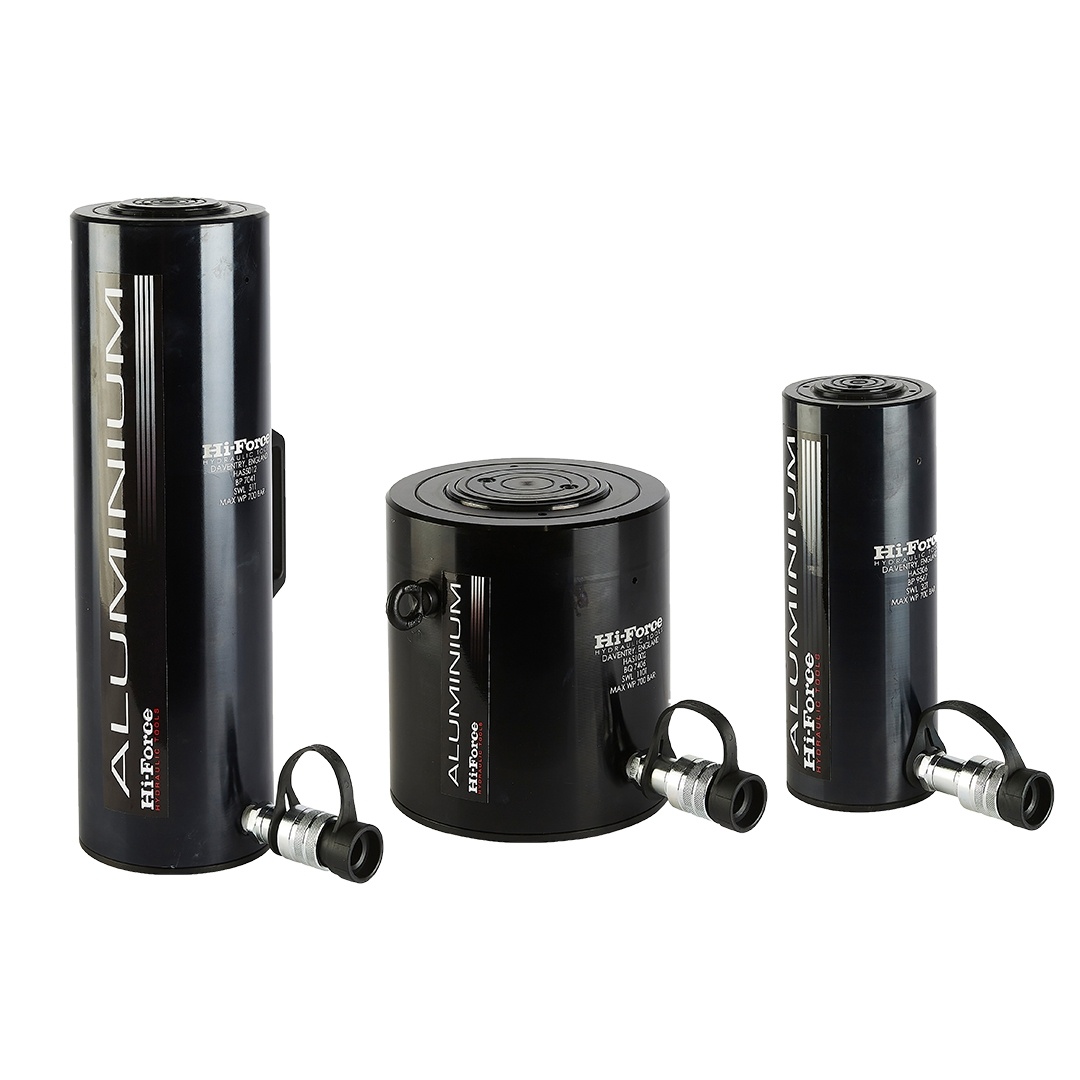

Single acting lightweight aluminium cylinders

Spring assisted return
Steel base plate to protect cylinder body
Optional piston rod saddles
Customised and special design cylinders are available on request

Enquire now

Product Overview

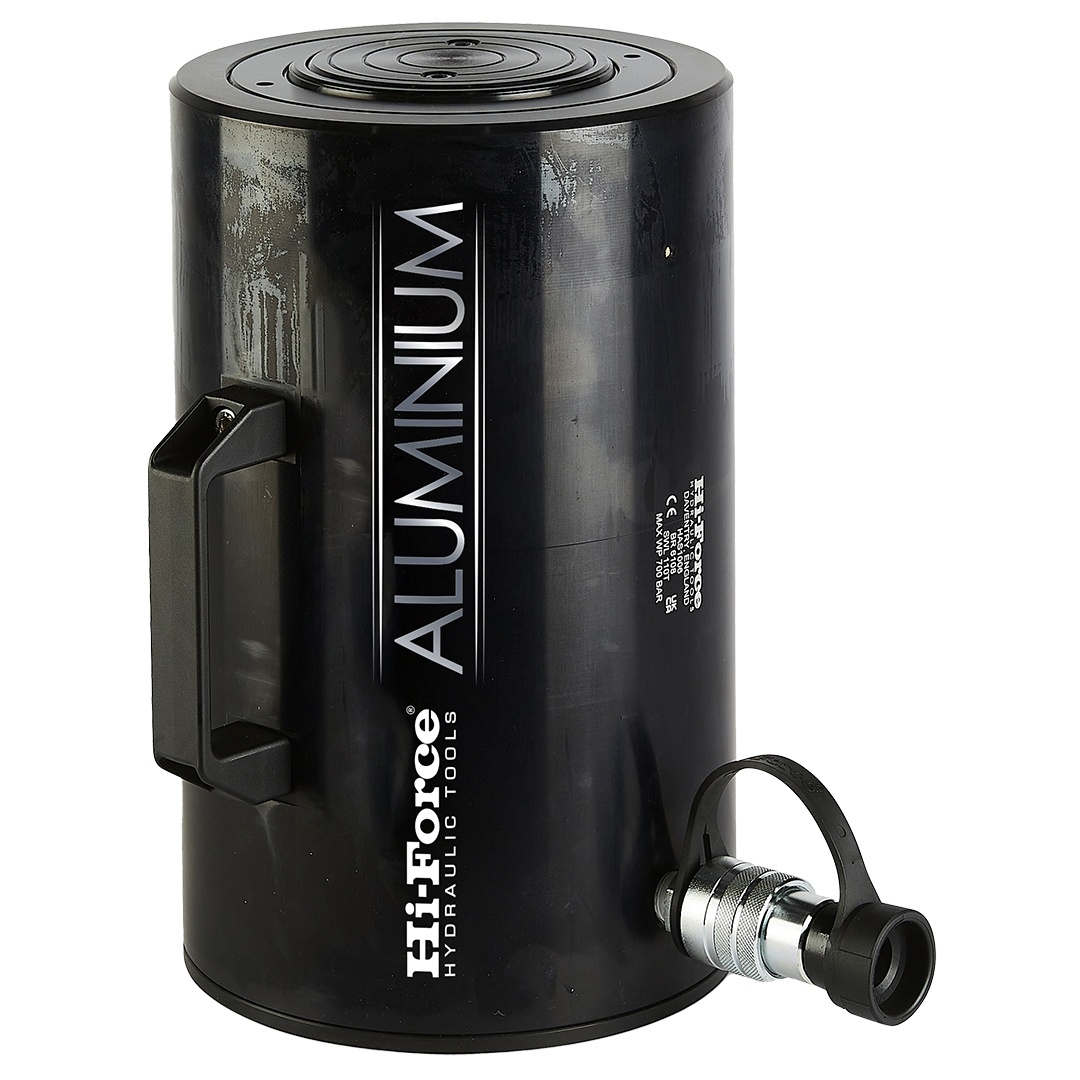

The HAS range of single acting, lightweight, aluminium cylinders is specifically designed for applications where weight and ease of positioning are features of prime importance. With an average weight of approximately 50% of comparable capacity steel construction cylinders, all models are supplied with a hard anodised, wear resistant, piston rod and cylinder body and a steel cylinder base protection plate.

Capacities from 32 to 110 tonnes
Stroke lengths from 51 to 305 mm
Working pressure 700 bar

Product resources

HAS Catalogue Page

HAS302 Spare Parts Sheet

HAS306 Spare Parts Sheet

HAS502 Spare Parts Sheet

HAS3012 Spare Parts Sheet

HAS506 Spare Parts Sheet

HAS5012 Spare Parts Sheet

HAS1002 Spare Parts Sheet

HAS1006 Spare Parts Sheet

HAS10012 Spare Parts Sheet

Hydraulic Cylinders Operating Manual

Model Number	Capacity tonnes	Stroke mm	Oil cap. cm3	Cyl. eff. area cm2	Weight kg	Handles
HAS302	32	51	225	44.2	4.0	-
HAS306	32	152	672	44.2	6.0	-
HAS3012	32	305	1348	44.2	8.0	1
HAS502	51	51	1136	70.9	8.0	1
HAS506	51	152	1077	70.9	11.0	1
HAS5012	51	305	2162	70.9	16.0	1
HAS1002	110	51	785	153.9	19.0	2
HAS1006	110	152	2340	153.9	23.0	2
HAS10012	110	305	4695	153.9	34.0	2

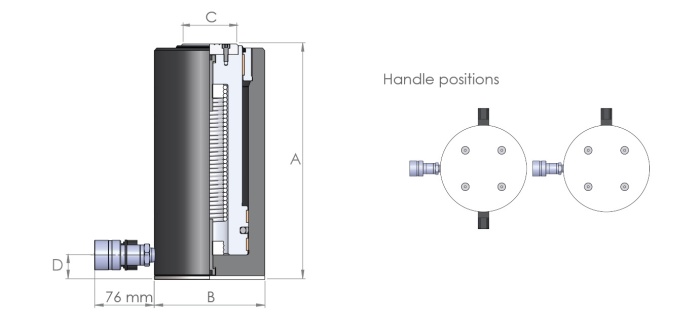

Dimensions (mm)

Model number	A	B	C	D
HAS302	181	105	50	25
HAS306	282	105	50	25
HAS3012	435	105	50	25
HAS502	186	135	70	30
HAS506	287	135	70	30
HAS5012	440	135	70	30
HAS1002	216	195	100	41
HAS1006	317	195	100	41
HAS10012	470	195	100	41
