Hi-Force product

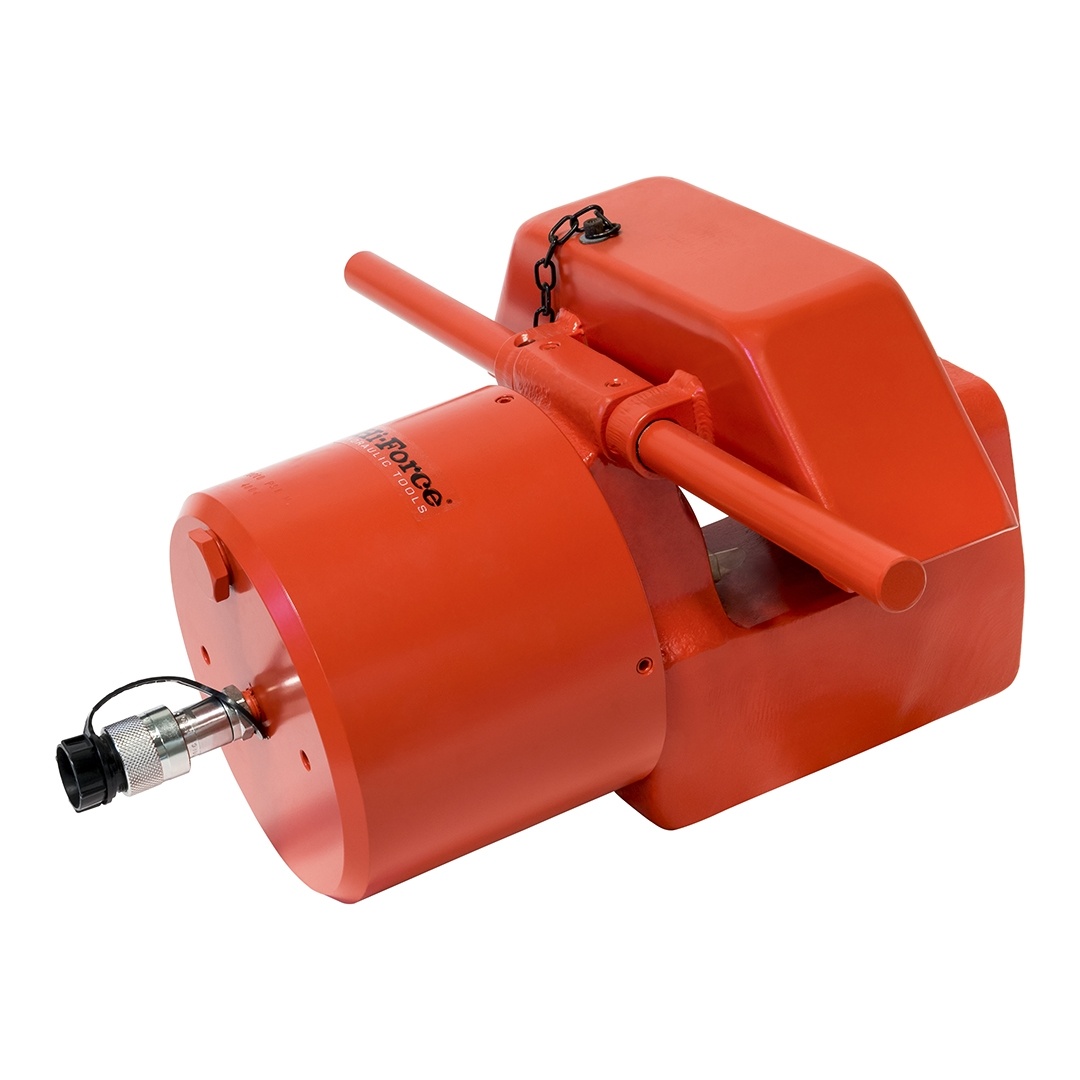

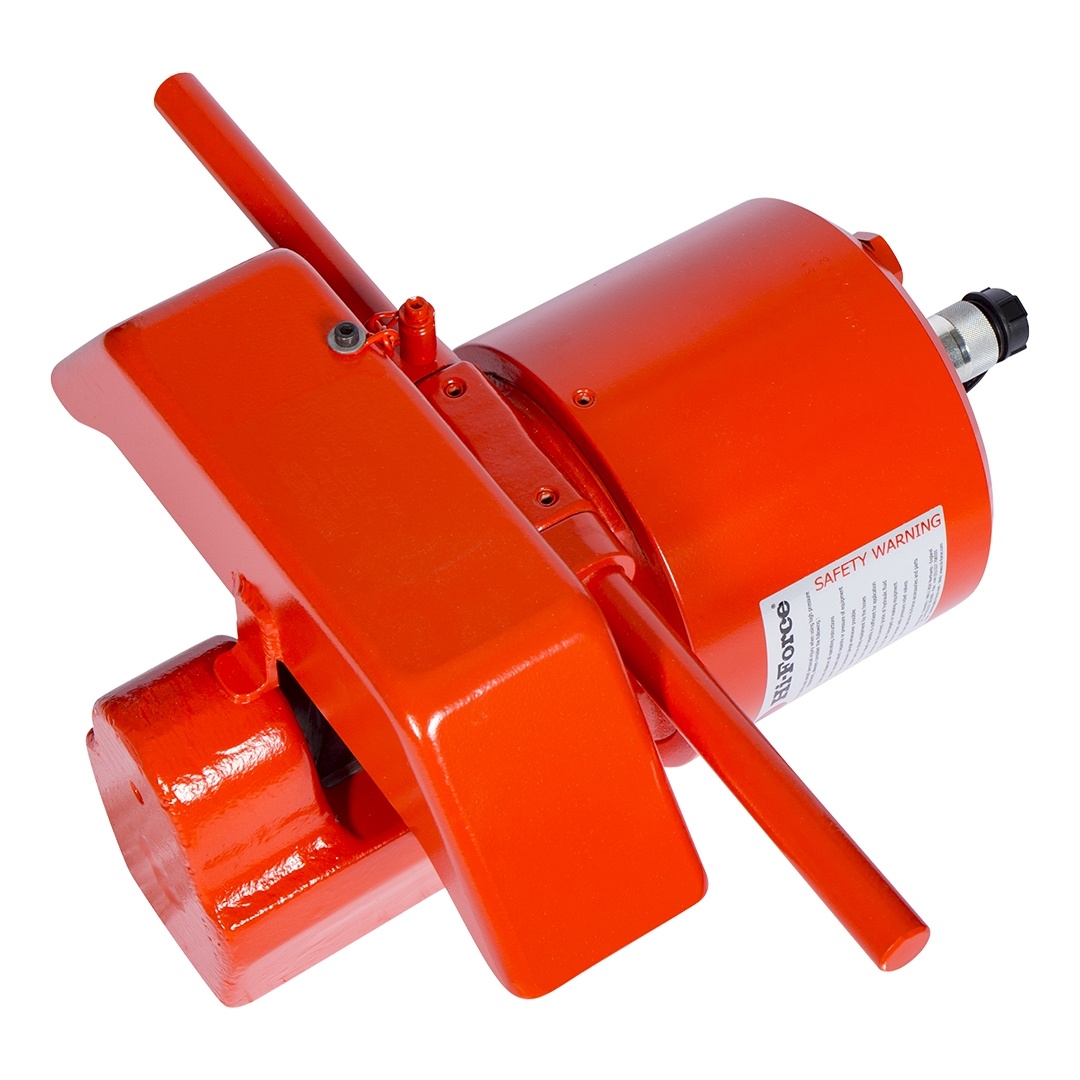

HCC Range
Chain Cutters
- Single acting spring assisted return hydraulic piston
- High grade steel construction
- Swivel locking safety guard allows easy access for material to be cut
- Specially toughened high tensile steel blades and jaws
Product Overview
The HCC range of hydraulic cutters is specifically designed and manufactured for cutting grade 100 and 47 HRC high tensile steel chains and reinforcing bars. The easily replaceable cutter blades are manufactured from specially toughened high tensile steel and the choice of models available offer maximum cutting capacities up to 50 mm diameter.
- Cutting capacities up to 50 mm diameter
- Smooth guillotine cutting action
- Working pressure 700 bar
Product resources
Technical specifications
| Model Number | Output tonnes | Cutting Capacity Ø mm | Max. allowed | Oil Capacity cm3 | Weight kg | |
|---|---|---|---|---|---|---|
| Chain Grade | Steel Hardness | |||||
| HCC26-100 | 70 | 26 | 100 | 47 HRC | 276 | 23 |
| HCC34-100 | 100 | 34 | 100 | 47 HRC | 492 | 40 |
| HCC46-100 | 140 | 46 | 100 | 47 HRC | 980 | 72 |
| HCC50-100 | 145 | 50 | 100 | 47 HRC | 1100 | 77 |
Dimension
Dimensions (mm)
| Model Number | |||
|---|---|---|---|
| A | B | C | |
| HCC26-100 | 440 | 180 | 180 |
| HCC34-100 | 410 | 460 | 250 |
| HCC46-100 | 565 | 635 | 345 |
| HCC50-100 | 565 | 635 | 360 |
