Hi-Force product
HFS Range
Hydraulic Flange Spreader Kits
- Single acting, spring assisted return for fast and safe operation
- Capable of opening flanges up to 2 x 92 mm thick
- Suitable for fitment on flanges with maximum bolt size of 1 5/8" (41 mm)
- Spreading range from 61 to 224 mm
Product Overview

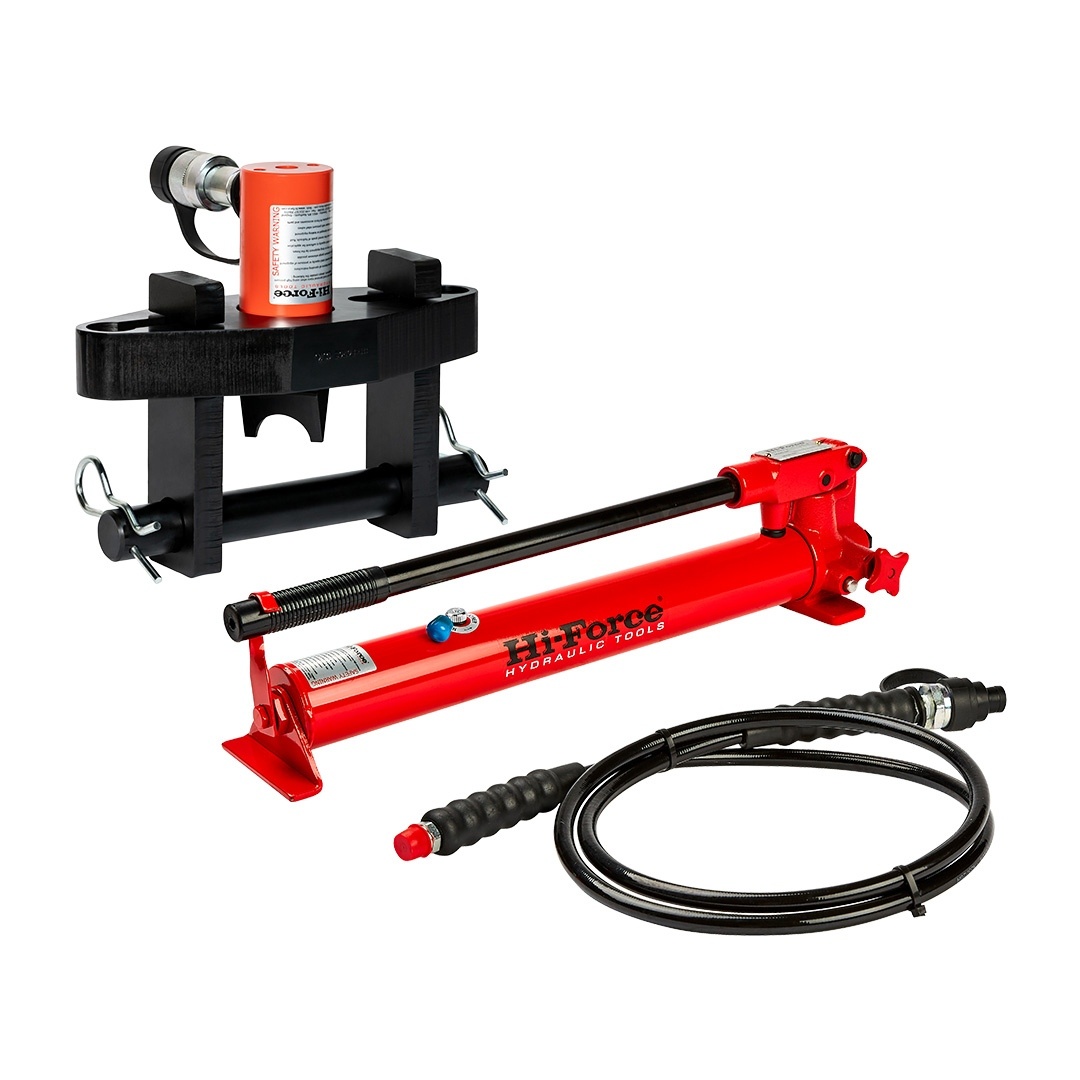

HFS-H, HFS and HFS-TK hydraulic flange spreader kits offer a choice of either single spreader complete with pump and accessories (HFS) or a twin spreader arrangement incorporating two flange spreaders operated from a single pump with a T-piece and twin hose connection (HFS-TK).
- Capacities from 4.5 to 10 tonnes per spreader
- Complete with manual hydraulic pump
- Working pressure 700 bar
Product resources
Technical specifications
| Model Number | Capacity Tonnes | Stroke mm | Oil Capacity cm3 | Max. Flange Thickness mm | Stud Size mm | Standard Wedge mm | Weight kg |
|---|---|---|---|---|---|---|---|
| HFS50 | 4.5 | 75 | 48 | 2 x 57 | 19 - 29 | 3 - 29 | 22.5 |
| HFS100 | 10 | 56 | 81 | 2 x 92 | 32 - 41 | 3 - 29 | 29.1 |
| HFS50-TK | 2 x 4.5 | 75 | 2 x 48 | 2 x 57 | 19 - 29 | 3 - 29 | 27.5 |
| HFS100-TK | 2 x 10 | 56 | 2 x 81 | 2 x 92 | 32 - 41 | 3 - 29 | 35.7 |

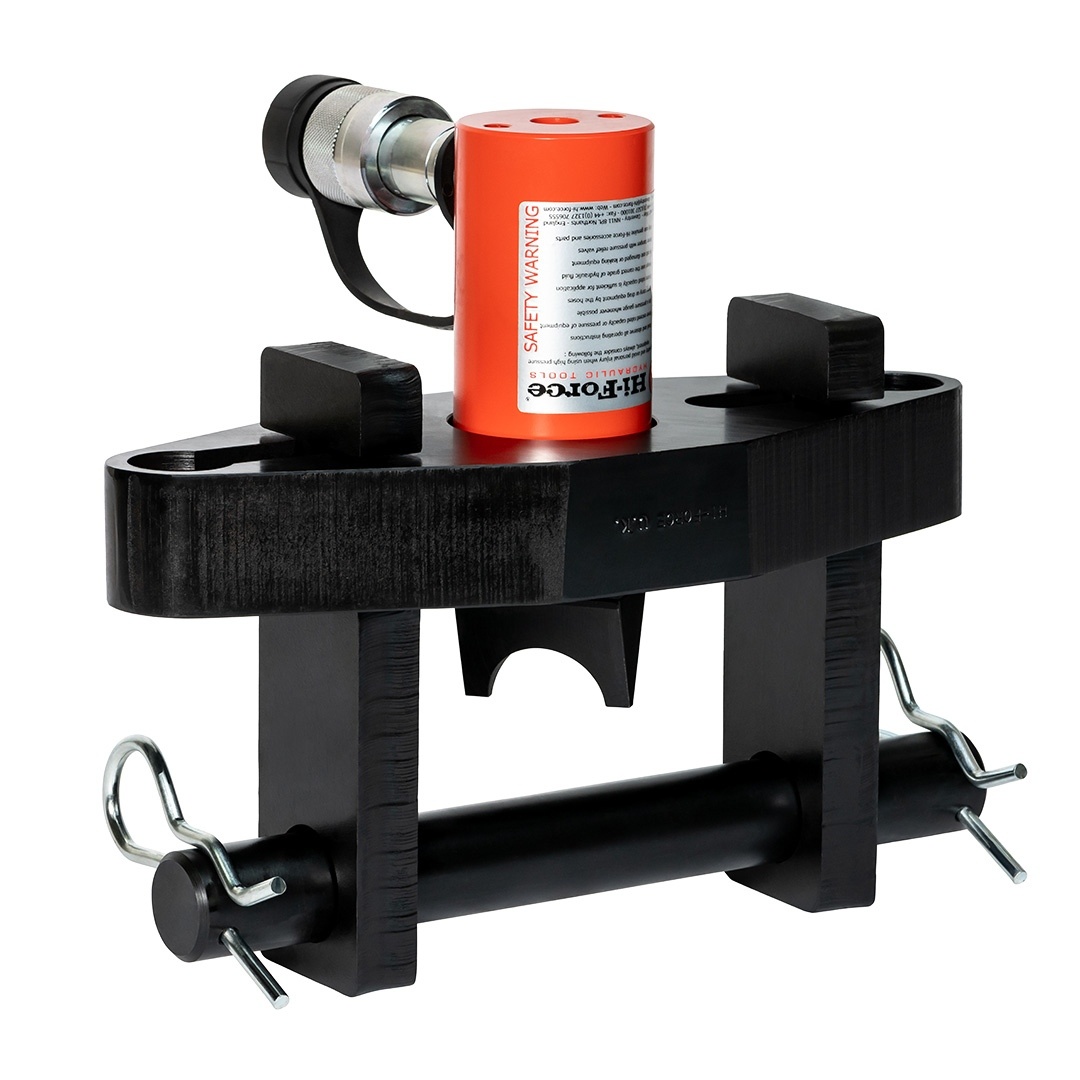

HFS-H
| Model Number | Capacity Tonnes | Stroke mm | Oil Capacity cm3 | Max Flange Thickness mm | Stud Size mm | Standard Wedge mm | Weight kg |
|---|---|---|---|---|---|---|---|
| HFS50H | 4.5 | 75 | 48 | 2 x 57 | 19 - 29 | 3 - 29 | 5.0 |
| HFS100H | 10 | 56 | 81 | 2 x 92 | 32 - 41 | 3 - 29 | 11.6 |
Dimension
Dimensions (mm)
| Model Number | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C min | C max | D | E | F | G | H | I | J | |
| HFS50H | 765 | 210 | 61 | 155 | 10 | 192 | 69 | 129 | 25 | 206 | 18 |
| HFS100H | 108 | 290 | 61 | 224 | 30 | 165 | 89 | 178 | 38 | 273 | 31 |
| HFS50 | 76 | 210 | 61 | 155 | 10 | 192 | 69 | 129 | 25 | 206 | 18 |
| HFS100 | 108 | 290 | 61 | 224 | 30 | 165 | 89 | 178 | 38 | 273 | 31 |
| HFS50-TK | 76 | 210 | 61 | 155 | 10 | 192 | 69 | 129 | 25 | 206 | 18 |
| HFS100-TK | 108 | 290 | 61 | 224 | 30 | 165 | 89 | 178 | 38 | 273 | 31 |
