Ingersoll Rand product

Hoists

Easy to operate and offers increased safety even in the most challenging lifting, pulling and positioning applications
Used in key industries such as offshore, oil exploration, chemicals, refining, shipbuilding, mining, tunneling and steel mills

Product Overview

Ingersoll Rand manual and powered hoists provide outstanding control, reliability, long life and safety to any load handling operation. The hoists are engineered for the long haul to minimise maintenance and downtime and are available in a wide array of options and accessories.

Lifting capacities ranging from 125 kg through to 100 tons
Option of air, electric, hydraulic or manual hoists

Product resources

Air Hoists Brochure

Electric Hoists Brochure

Manual Hoists Brochure

Subsea Hydraulic Hoists Brochure

Liftchain Air & Hydraulic Hoists Brochure

Herculink Air & Electric Hoists Brochure

Series	Lifting capacity	Speed at rated load down m/min	Speed at rated load up m/min	Headroom range	Weight kg
ARO 7700 & 7790	125 - 2000 kg	Up to 83.8	Up to 33.5	431.8 - 569 mm 17" - 22.4"	36.7
ARO 7700 & 7790 Spark Resistant	125 - 2000 kg	Up to 83.8	Up to 33.5	431.8 - 569 mm 17" - 22.4"	36.7
Liftchain Miner	1.5 - 12 t	-	Up to 6.2	608 - 1148 mm	179
Liftchain	1.5 - 100 t	-	-	409 - 2455 mm 16.1" - 96.7"	2200
CLK	125 - 1100 kg	Up to 13.7	Up to 13.1	292.1 - 323.9 mm 11.5" - 12.75"	17.2
HLK	1000 - 6000 kg	Up to 11.3	Up to 7.9	469.9 - 919.5 mm 18.5" - 36.2"	112.5
MLK	250 - 1000 kg	Up to 35.66	Up to 30.78	457.2 mm 18"	27.7
Hercu-Link	12.5 - 100 t	-	-	-	-

Series	Capacity range	Headroom range	Hoist lift speed/min	Hoist lower speed/min	Weight kg

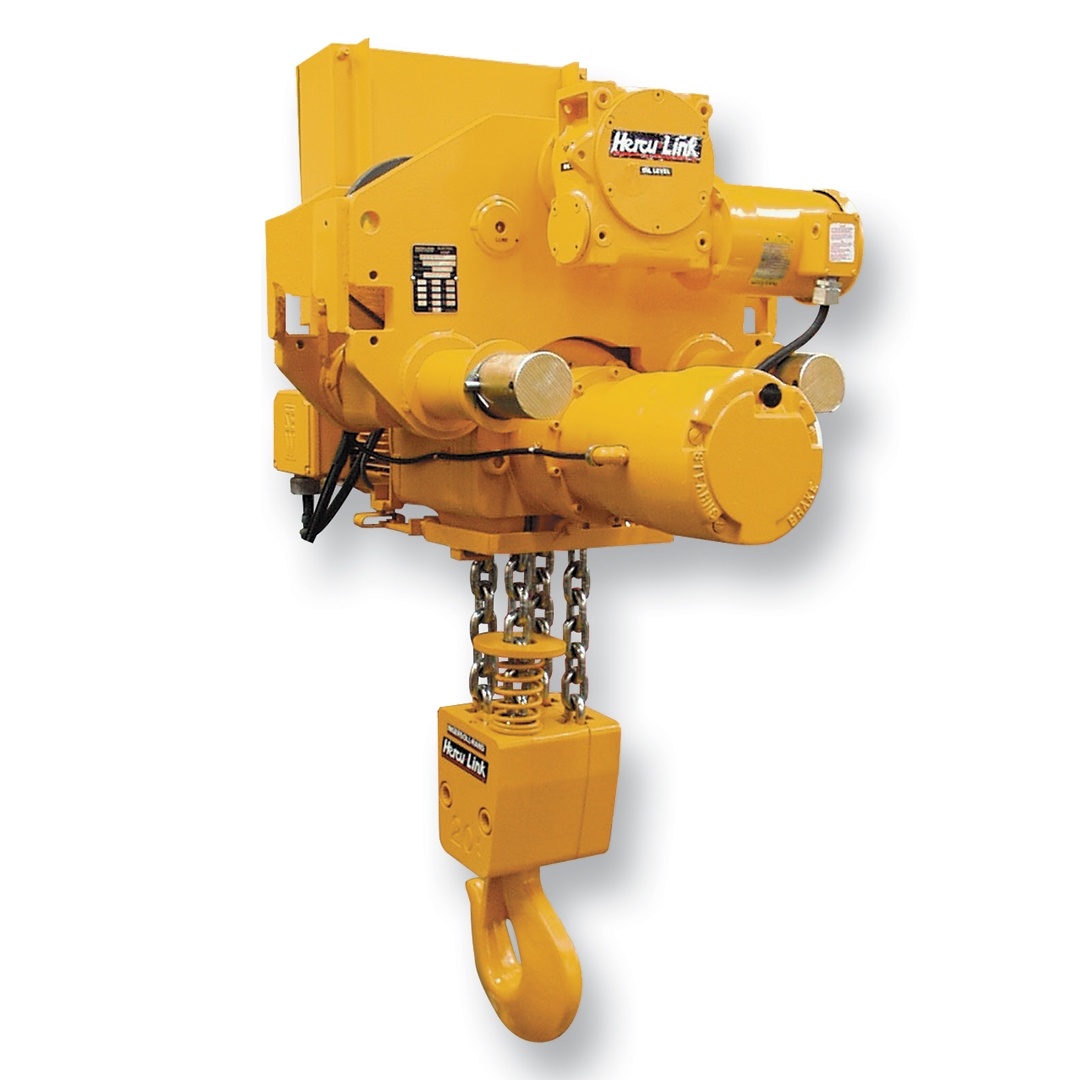

Hercu-Link	5000 - 50000 kg 11000 - 110,000 lbs	775 - 1480 mm 30.5" - 58.25"	Up to 5.2 m	Up to 5.8 m	6502
ELK	1/8 - 5 ton 275 - 11000 lbs	381 - 874 mm 15" - 34.4"	Up to 19.5 m	-	117
ULE2	909 - 21818 kg 2000 - 48000 lbs	177.8 - 457.2 mm 7" - 18"	Up to 3.1 m	Up to 3.1 m	1201.8

Series	Capacity range	Headroom range	Max hoisting speed/min	Max lowering speed/min	Max. lift height m	Weight kg
Sub-sea	6 - 50 ton	-	Up to 2.8 m	Up to 3 m	24 - 52 m	940
Liftchain	6 - 100 ton	735 - 2455 mm 28.9" - 96.7"	-	-	-	3245

Series	Capacity range tons	Pull to lift rated load	Weight kg
KMX	0.5 - 20	23.2 - 37.5 kg 51.3 - 82.7 lbs	481.9
KM Kinetic	0.25 - 20	19 - 37.5 kg 41.8 - 79.4 lbs	481.9
KL Kinetic	0.75 - 9	48.3 - 88.1 kg 21.9 - 40 lbs	46.5
Sidekick	0.5 - 0.75	-	3.6
ULM2/S Ultra-Lo	0.25 - 25	7.7 - 47.3 kg 17 - 104 lbs	886.4
P Ratchet Puller	0.45 - 0.9	45.5 - 47.7 kg 100 - 105 lbs	4.8
SMB Silver	0.5 - 5	25 - 45.5 kg 55 - 100 lbs	41
SLB Silver	0.75 - 6	18.6 - 27.3 kg 41 - 60 lbs	31.4
