HP Range - High Flow
Manually Operated High Flow Pumps
- Oil reservoir capacity 10 litres
- Factory set safety relief valve
- Changeover pressure 28 bar
- Low handle effort characteristics
Product Overview

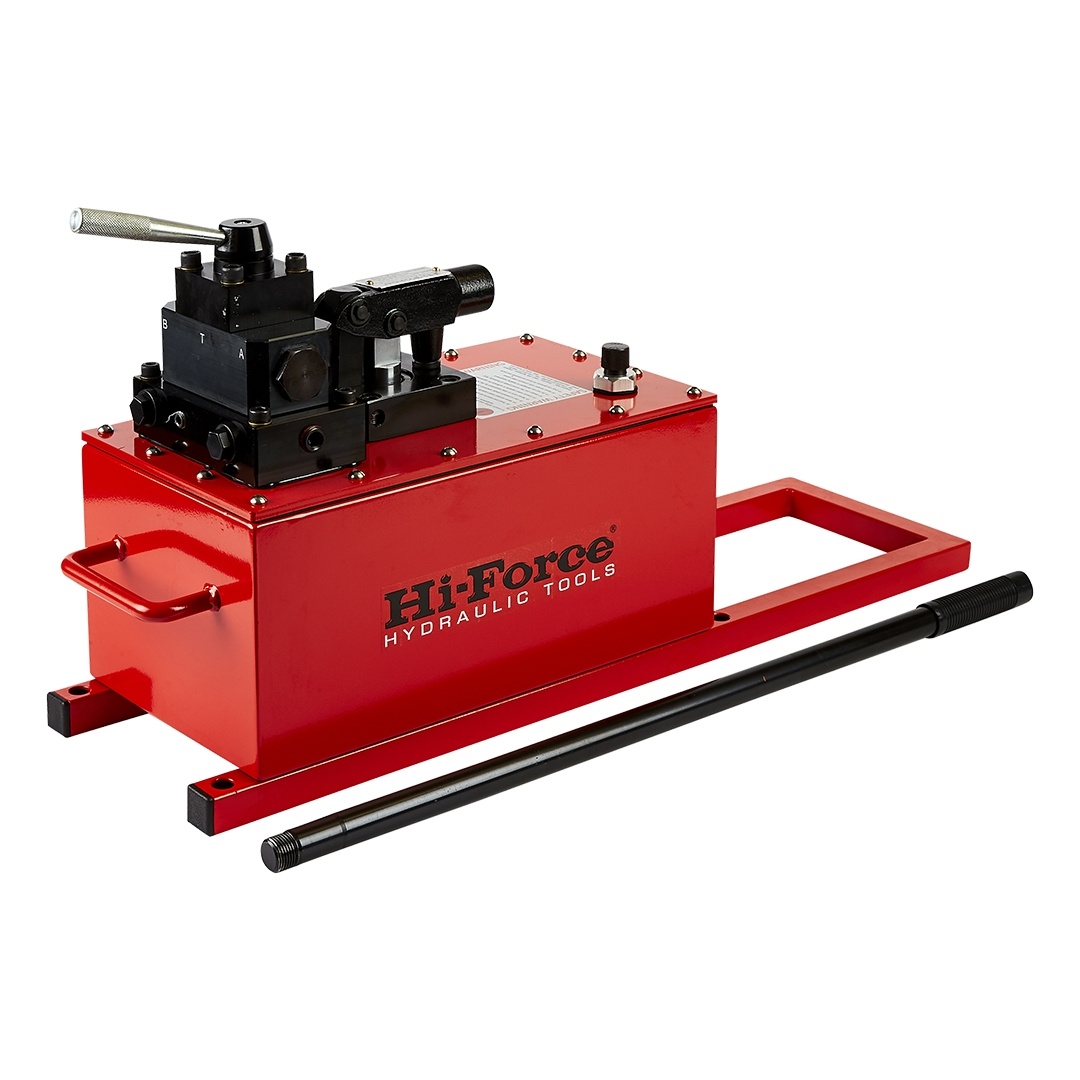

The HP245 range of high flow, two speed, manually operated pumps is ideally suited for applications where high tonnage cylinders are to be used on sites, without any available electric or compressed air power supply. Both models are suitable for working pressures up to 700 bar and the very high, low pressure displacement (113 cm³ per stroke), enables fast piston extension (and retraction) under no load.
- Heavy duty steel construction
- Working pressure 700 bar
- 2 stage with semi automatic changeover
Product resources
Technical specifications
| Model Number | Valve Type | Displacement Per Stroke cm3 | Usable Oil Cap. Litres | Handle Effort kg | Weight kg | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1st stage | 2nd stage | |||||||||||||||||||
| Two stage hand operated pump for single acting cylinders and tools | ||||||||||||||||||||
| HP245 | 2-way | 113 | 4 | 10 | 40 | 29.5 | ||||||||||||||
| Two stage hand operated pump for double acting cylinders and tools | ||||||||||||||||||||
| HP245D | 4-way | 113 | 4 | 10 | 40 | 31.0 | ||||||||||||||
Dimension
Dimensions (mm)
| Model number | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HP245 | 420 | 180 | 124 | 15 | 1050 | 200 | 63 | 47 | 700 | 390 | 205 | 173 | 270 |
| HP245D | 420 | 180 | 124 | 15 | 1050 | 200 | 63 | 47 | 700 | 390 | 205 | 173 | 270 |
