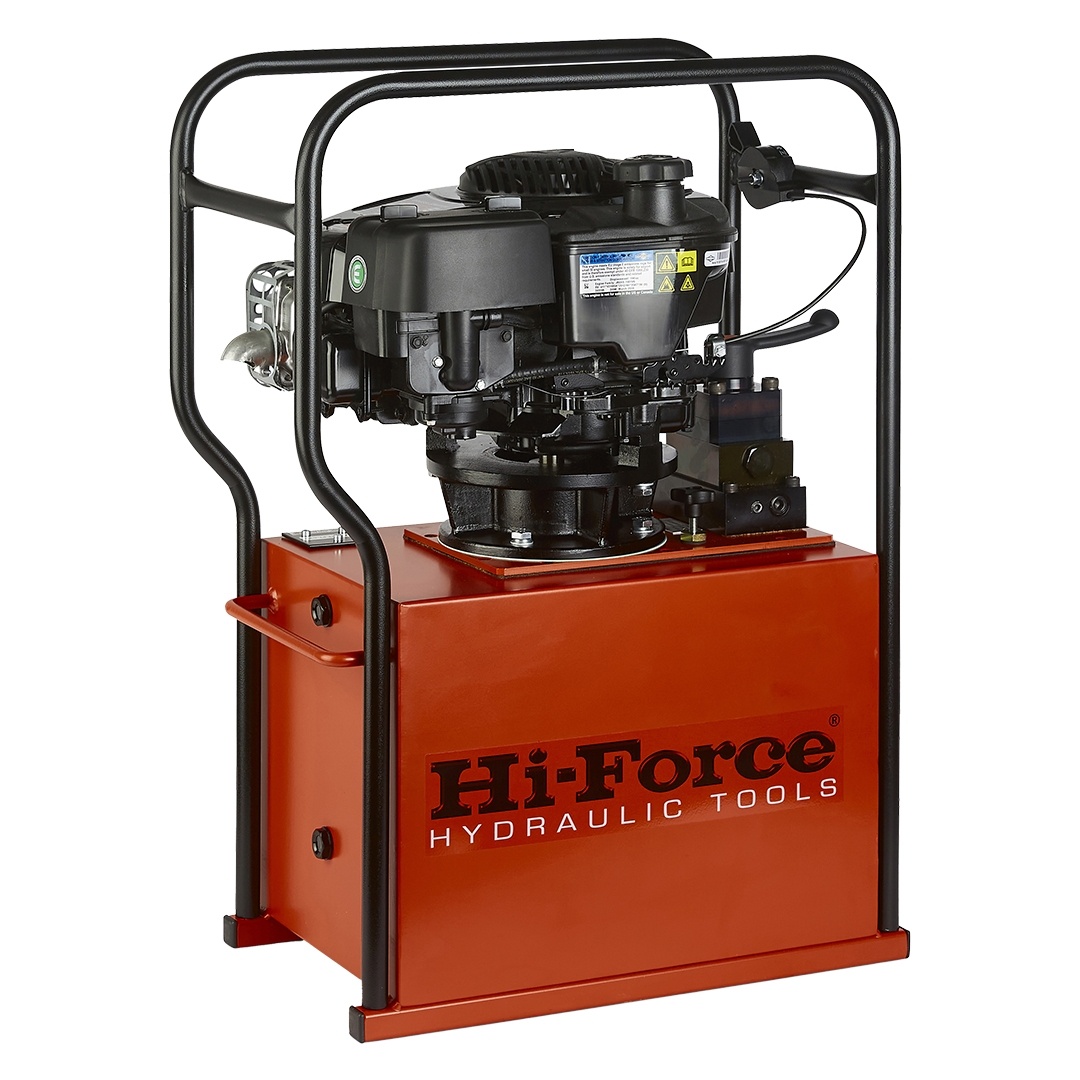

HPP Range
Petrol Engine Driven Two Stage High Flow General Duty Pumps
- Externally adjustable pressure relief valve
- Manual valve with load holding feature fitted as standard
- Roll bar protection frame included
Product Overview
The HPP range of two stage petrol engine driven hydraulic pumps is ideally suited for applications in locations where there is no electricity or compressed air supply available. The range has similar reservoir and valve options (excluding solenoid valves) as electric and air powered pumps.
- Working pressure 700 bar
- Two stage operation
- Choice of 25, 40 or 60 litre oil reservoir
Product resources
Technical specifications
| Model Number | Valve Type | Oil Capacity litres | Maximum flow rate litres/min | Weight kg | |
|---|---|---|---|---|---|
| 1st stage | 2nd stage | ||||
| HPP21012 | P-T Plate | 25 | 10 | 1.3 | 70.5 |
| HPP21014 | P-T Plate | 40 | 10 | 1.3 | 85.5 |
| HPP21016 | P-T Plate | 60 | 10 | 1.3 | 113.5 |
| HPP21022 | 2-way | 25 | 10 | 1.3 | 71.0 |
| HPP21024 | 2-way | 40 | 10 | 1.3 | 86.0 |
| HPP21026 | 2-way | 60 | 10 | 1.3 | 114.0 |
| HPP21032 | 3-way | 25 | 10 | 1.3 | 71.0 |
| HPP21034 | 3-way | 40 | 10 | 1.3 | 86.0 |
| HPP21036 | 3-way | 60 | 10 | 1.3 | 114.0 |
| HPP21042 | 4-way | 25 | 10 | 1.3 | 71.0 |
| HPP21044 | 4-way | 40 | 10 | 1.3 | 86.0 |
| HPP21046 | 4-way | 60 | 10 | 1.3 | 114.0 |
Wheel Trolley
| Model Number | Description |
|---|---|
| PPA40WT | Wheel trolley for all pumps with 40 litre oil reservoir |
| PPA60WT | Wheel trolley for all pumps with 60 litre oil reservoir |
Note: All 40L and 60L HPP pumps can be supplied with a factory fitted wheel trolley. Just suffix pump model number with 'WT'.
Dimension
Dimensions (mm)
| Model number | A | B | C |
|---|---|---|---|
| HPP21012 | 570 | 306 | 686 |
| HPP21014 | 570 | 306 | 795 |
| HPP21016 | 583 | 406 | 816 |
| HPP21022 | 570 | 306 | 686 |
| HPP21024 | 570 | 306 | 795 |
| HPP21026 | 583 | 406 | 816 |
| HPP21032 | 570 | 306 | 686 |
| HPP21034 | 570 | 306 | 795 |
| HPP21036 | 583 | 406 | 816 |
| HPP21042 | 570 | 306 | 686 |
| HPP21044 | 570 | 306 | 795 |
| HPP21046 | 583 | 406 | 816 |
