HSG Range

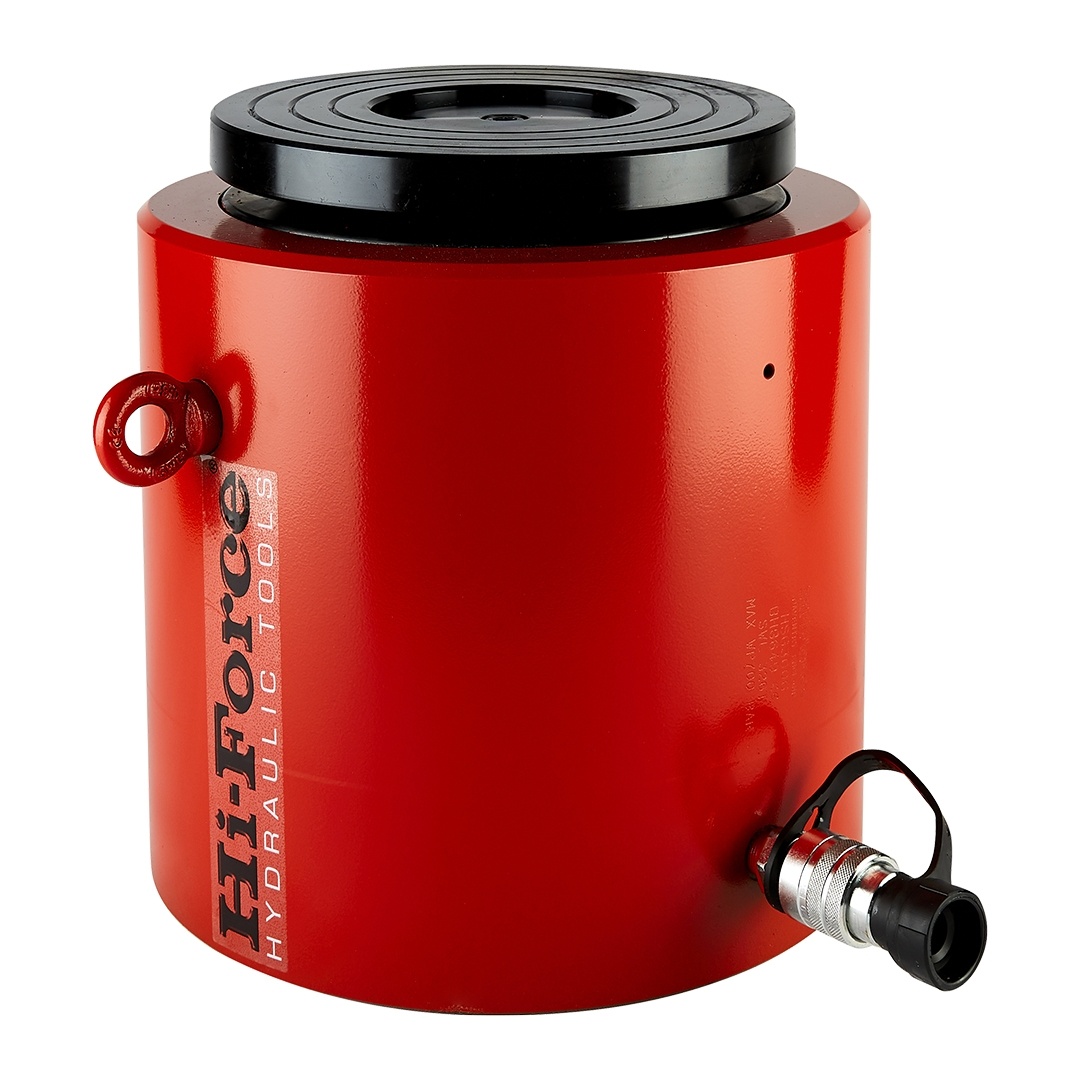

Single Acting Load return construction cylinders
- Single acting, load return
- Nitrocarburised cylinder body and piston rod
- Overstroke restrictor port
- Low friction bearing surfaces
Product Overview

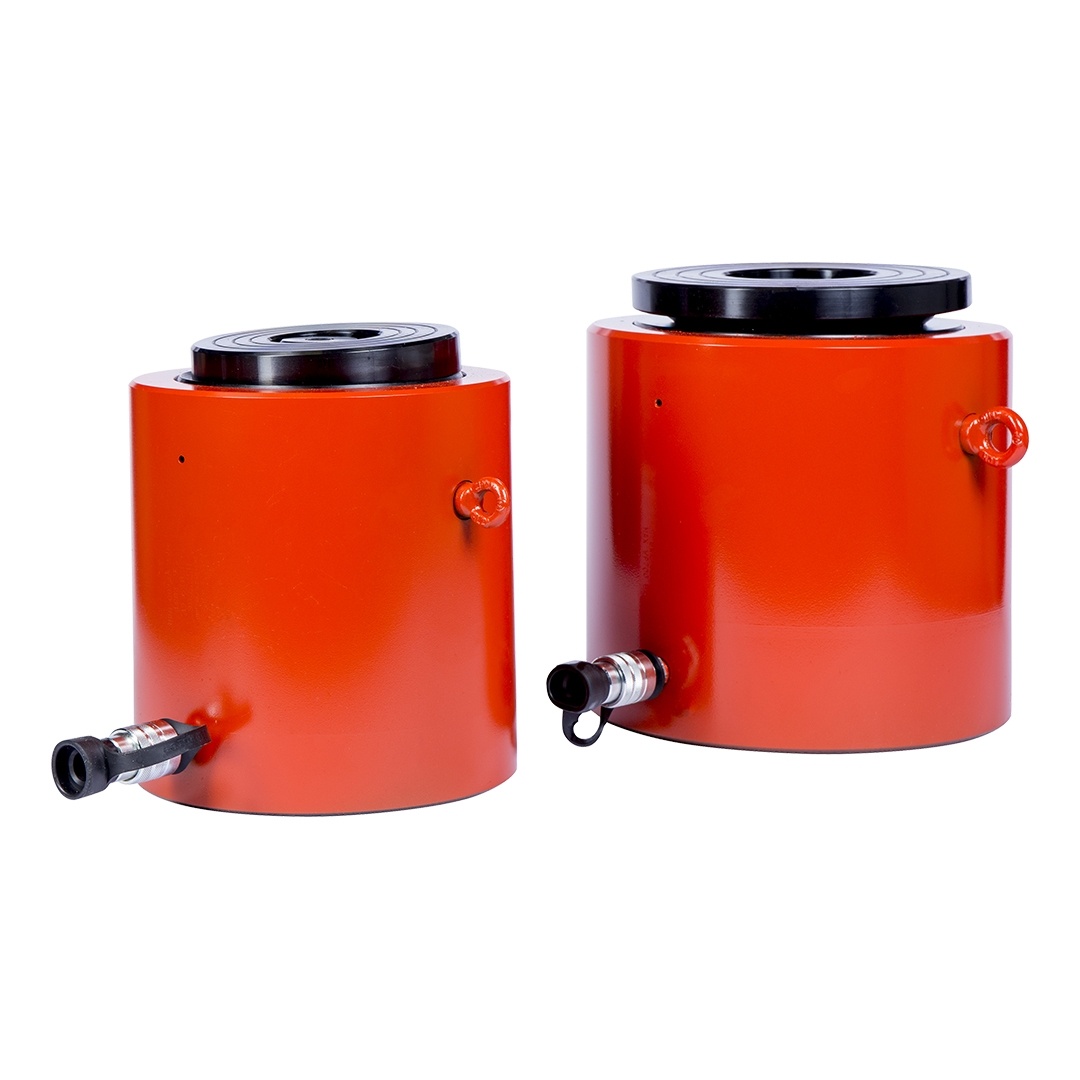

The HSG range of single acting load return construction cylinders is ideally suited for construction, civil engineering, heavy fabrication and maintenance applications. All models are supplied with a tilting saddle fitted as standard and have an overstroke restrictor port to prevent over extension of the piston. Standard range models are featured here however additional capacities and stroke options are available on request.
- Capacities from 152 to 326 tonnes
- Stroke length 152 mm
- Working pressure 700 bar
Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Oil cap. litres | Cyl. eff. area cm2 | Weight kg |
|---|---|---|---|---|---|
| HSG1506 | 152 | 152 | 3.21 | 214.3 | 77.5 |
| HSG2006 | 203 | 152 | 4.34 | 285.1 | 107.7 |
| HSG3006 | 326 | 152 | 6.99 | 457.7 | 175.2 |
Dimension
Dimensions (mm)
| Model number | A | B | C | D | E |
|---|---|---|---|---|---|
| HSG1506 | 293 | 216 | 165.1 | 135 | 45 |
| HSG2006 | 296 | 254 | 190.5 | 135 | 45 |
| HSG3006 | 326 | 312 | 241.3 | 150 | 50 |
