HSS Range
Single acting multi-purpose cylinders
- Single assisted return
- Nitrocarburised piston rod, low friction bearing surfaces
- Anti-extrusion seals
- Piston rod thread on all models up to 30 tonnes
Product Overview

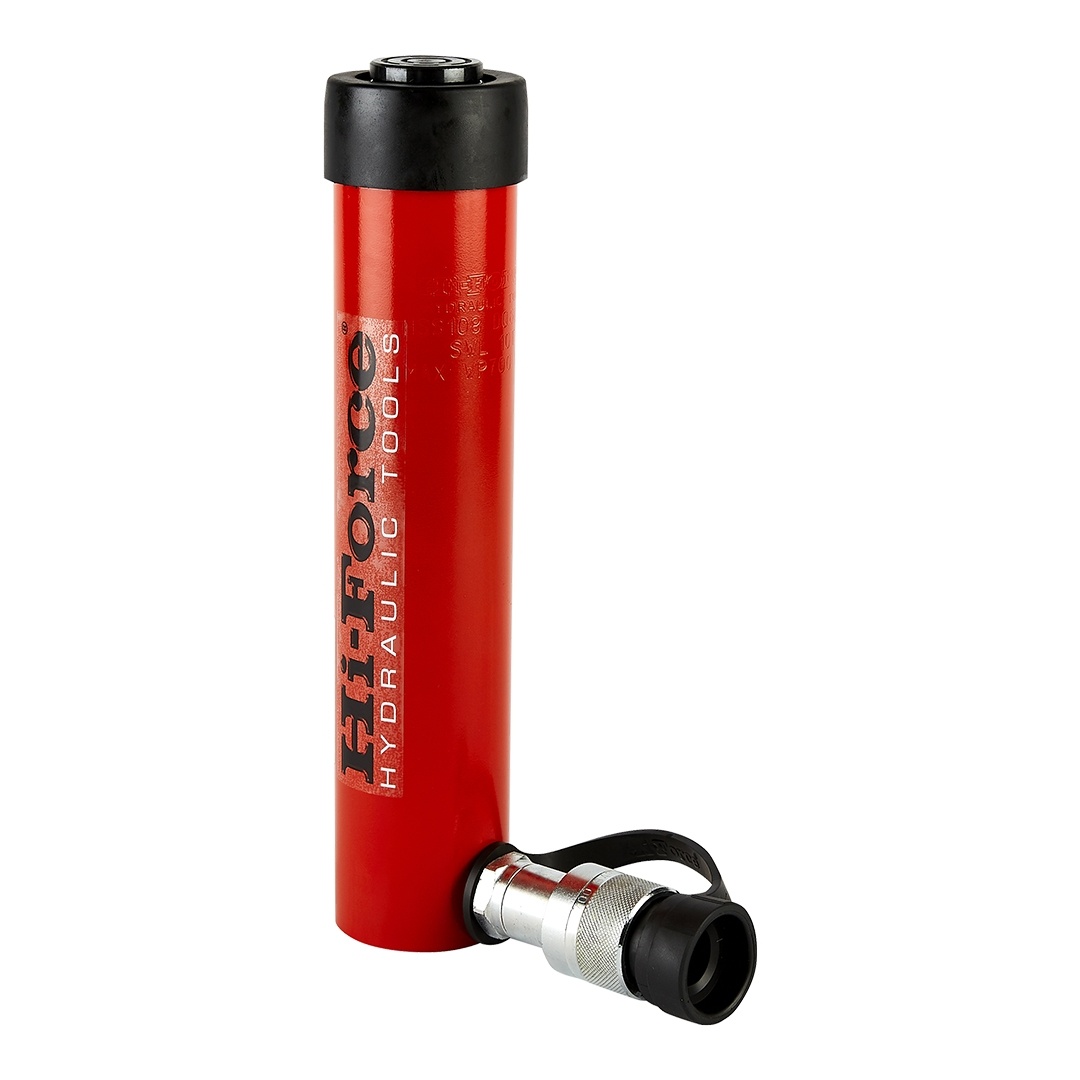

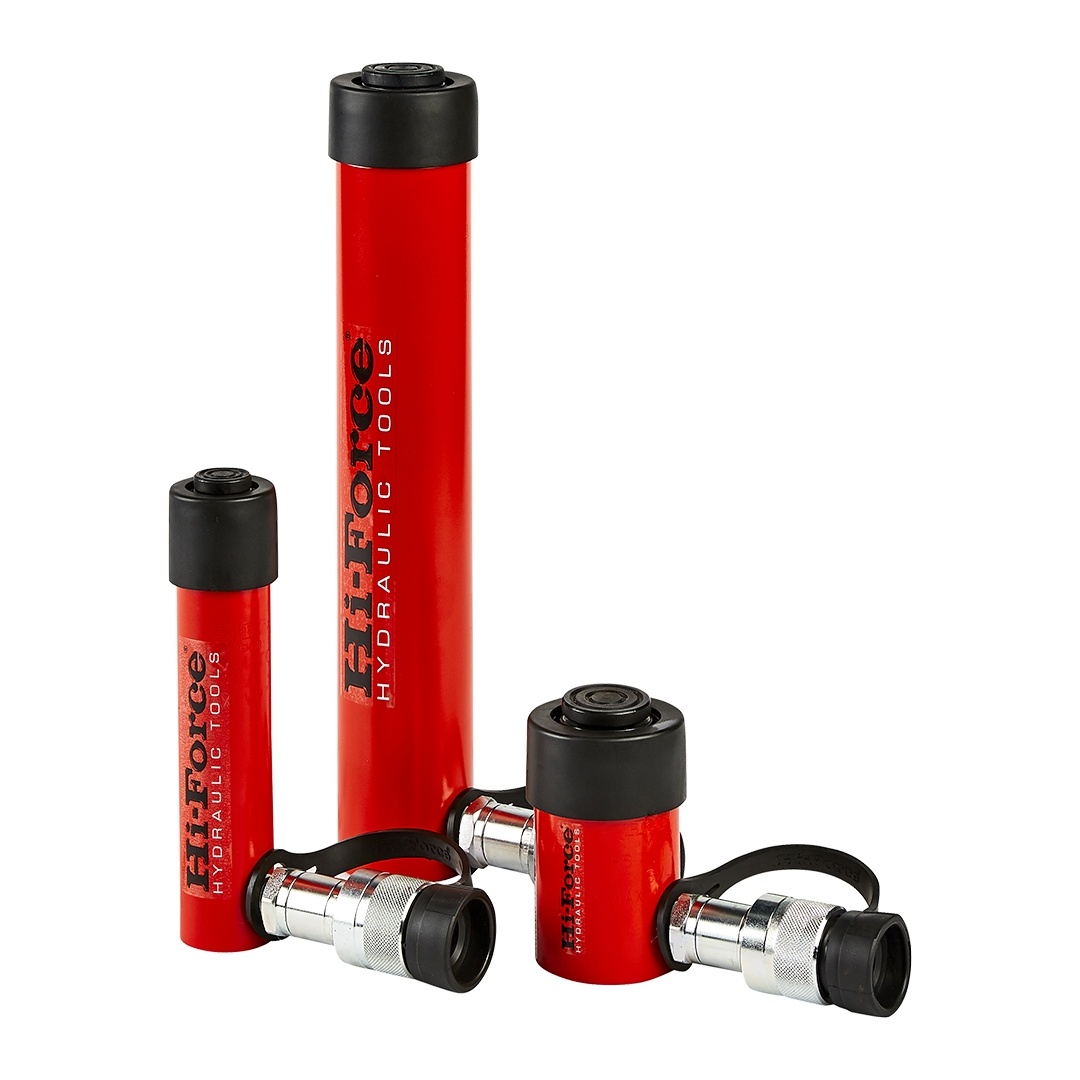

The HSS single acting multi-purpose cylinder range offers the widest choice of stroke lengths and lifting capacities available, and provides an excellent choice for maintenance, production, fabrication and construction applications. All models are provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing, making the HSS range the most versatile and adaptable multi-purpose cylinders available. Major user industries include power generation, railways, steelworks, mining, shipyards and oil & gas.
- Capacities from 4.5 to 109 tonnes
- Stroke lengths from 25 to 457 mm
- Working pressure 700 bar
Product resources
More Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Oil cap. cm3 | Cyl. eff. area cm2 | Weight kg |
|---|---|---|---|---|---|
| HSS51 | 4.5 | 25 | 16 | 6.4 | 1.0 |
| HSS52 | 4.5 | 50 | 32 | 6.4 | 1.2 |
| HSS53 | 4.5 | 75 | 48 | 6.4 | 1.4 |
| HSS54 | 4.5 | 100 | 64 | 6.4 | 1.5 |
| HSS55 | 4.5 | 125 | 80 | 6.4 | 1.8 |
| HSS57 | 4.5 | 176 | 113 | 6.4 | 2.0 |
| HSS59 | 4.5 | 227 | 146 | 6.4 | 2.4 |
| HSS101 | 10 | 25 | 36 | 14.4 | 1.8 |
| HSS102 | 10 | 56 | 81 | 14.4 | 2.4 |
| HSS104 | 10 | 100 | 144 | 14.4 | 3.0 |
| HSS106 | 10 | 150 | 217 | 14.4 | 4.2 |
| HSS108 | 10 | 206 | 297 | 14.4 | 5.0 |
| HSS1010 | 10 | 250 | 361 | 14.4 | 5.4 |
| HSS1012 | 10 | 305 | 440 | 14.4 | 6.2 |
| HSS152 | 14.5 | 50 | 101 | 20.3 | 3.4 |
| HSS154 | 14.5 | 100 | 203 | 20.3 | 5.0 |
| HSS156 | 14.5 | 150 | 304 | 20.3 | 6.6 |
| HSS1510 | 14.5 | 250 | 507 | 20.3 | 8.8 |
| HSS252 | 25 | 51 | 178 | 34.9 | 6.5 |
| HSS254 | 25 | 102 | 356 | 34.9 | 8.0 |
| HSS256 | 25 | 150 | 524 | 34.9 | 9.6 |
| HSS258 | 25 | 203 | 709 | 34.9 | 11.2 |
| HSS2510 | 25 | 250 | 874 | 34.9 | 12.6 |
| HSS2514 | 25 | 356 | 1242 | 34.9 | 16.8 |
| HSS2518 | 25 | 457 | 1597 | 34.9 | 21.4 |
| HSS308 | 29 | 205 | 860 | 41.9 | 18.6 |
| HSS502 | 50 | 51 | 364 | 71.3 | 13.0 |
| HSS504 | 50 | 102 | 728 | 71.3 | 16.8 |
| HSS506 | 50 | 152 | 1084 | 71.3 | 20.0 |
| HSS508 | 50 | 203 | 1448 | 71.3 | 23.2 |
| HSS5013 | 50 | 330 | 2354 | 71.3 | 33.6 |
| HSS756 | 73 | 152 | 1561 | 102.7 | 31.0 |
| HSS1004 | 109 | 102 | 1565 | 153.4 | 41.6 |
| HSS1006 | 109 | 153 | 2347 | 153.4 | 49.8 |
| HSS10010 | 109 | 254 | 3896 | 153.4 | 65.5 |
Dimension
Dimensions (mm)
| Model Number | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| HSS51 | 107 | 38 | 24 | 1 1/2"-16un | 28 | M6 | 25 | 19 |
| HSS52 | 132 | 38 | 24 | 1 1/2"-16un | 28 | M6 | 25 | 19 |
| HSS53 | 157 | 38 | 24 | 1 1/2"-16un | 28 | M6 | 25 | 19 |
| HSS54 | 182 | 38 | 24 | 1 1/2"-16un | 28 | M6 | 25 | 19 |
| HSS55 | 207 | 38 | 24 | 1 1/2"-16un | 28 | M6 | 25 | 19 |
| HSS57 | 258 | 38 | 24 | 1 1/2"-16un | 28 | M6 | 25 | 19 |
| HSS59 | 308 | 38 | 24 | 1 1/2"-16un | 28 | M6 | 25 | 19 |
| HSS101 | 100 | 57 | 35 | 2 1/4"-14un | 27 | M8 | 40 | 19 |
| HSS102 | 131 | 57 | 35 | 2 1/4"-14un | 27 | M8 | 40 | 19 |
| HSS104 | 175 | 57 | 35 | 2 1/4"-14un | 27 | M8 | 40 | 19 |
| HSS106 | 225 | 57 | 35 | 2 1/4"-14un | 27 | M8 | 40 | 19 |
| HSS108 | 281 | 57 | 35 | 2 1/4"-14un | 27 | M8 | 40 | 19 |
| HSS1010 | 325 | 57 | 35 | 2 1/4"-14un | 27 | M8 | 40 | 19 |
| HSS1012 | 379 | 57 | 35 | 2 1/4"-14un | 27 | M8 | 40 | 19 |
| HSS152 | 154 | 70 | 41 | 2 3/4"-16un | 39 | M10 | 48 | 19 |
| HSS154 | 204 | 70 | 41 | 2 3/4"-16un | 39 | M10 | 48 | 19 |
| HSS156 | 254 | 70 | 41 | 2 3/4"-16un | 39 | M10 | 48 | 19 |
| HSS1510 | 354 | 70 | 41 | 2 3/4"-16un | 39 | M10 | 48 | 19 |
| HSS252 | 174 | 86 | 54 | 3 5/16"-12un | 49 | M12 | 60 | 25 |
| HSS254 | 225 | 86 | 54 | 3 5/16"-12un | 49 | M12 | 60 | 25 |
| HSS256 | 273 | 86 | 54 | 3 5/16"-12un | 49 | M12 | 60 | 25 |
| HSS258 | 324 | 86 | 54 | 3 5/16"-12un | 49 | M12 | 60 | 25 |
| HSS2510 | 374 | 86 | 54 | 3 5/16"-12un | 49 | M12 | 60 | 25 |
| HSS2514 | 480 | 86 | 54 | 3 5/16"-12un | 49 | M12 | 60 | 25 |
| HSS2518 | 611 | 86 | 54 | 3 5/16"-12un | 49 | M12 | 60 | 25 |
| HSS308 | 374 | 102 | 57 | 3 5/16"-12un | 50 | - | - | 50 |
| HSS502 | 150 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 20 |
| HSS504 | 201 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 20 |
| HSS506 | 251 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 20 |
| HSS508 | 302 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 20 |
| HSS5013 | 429 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 20 |
| HSS756 | 272 | 146 | 95 | 5 3/4"-12un | 45 | M12 | 115 | 32 |
| HSS1004 | 223 | 185 | 114 | 6 7/8"-12un | 50 | M12 | 146 | 32 |
| HSS1006 | 274 | 185 | 114 | 6 7/8"-12un | 50 | M12 | 146 | 32 |
| HSS10010 | 375 | 185 | 114 | 6 7/8"-12un | 50 | M12 | 146 | 32 |
