HTWP Range

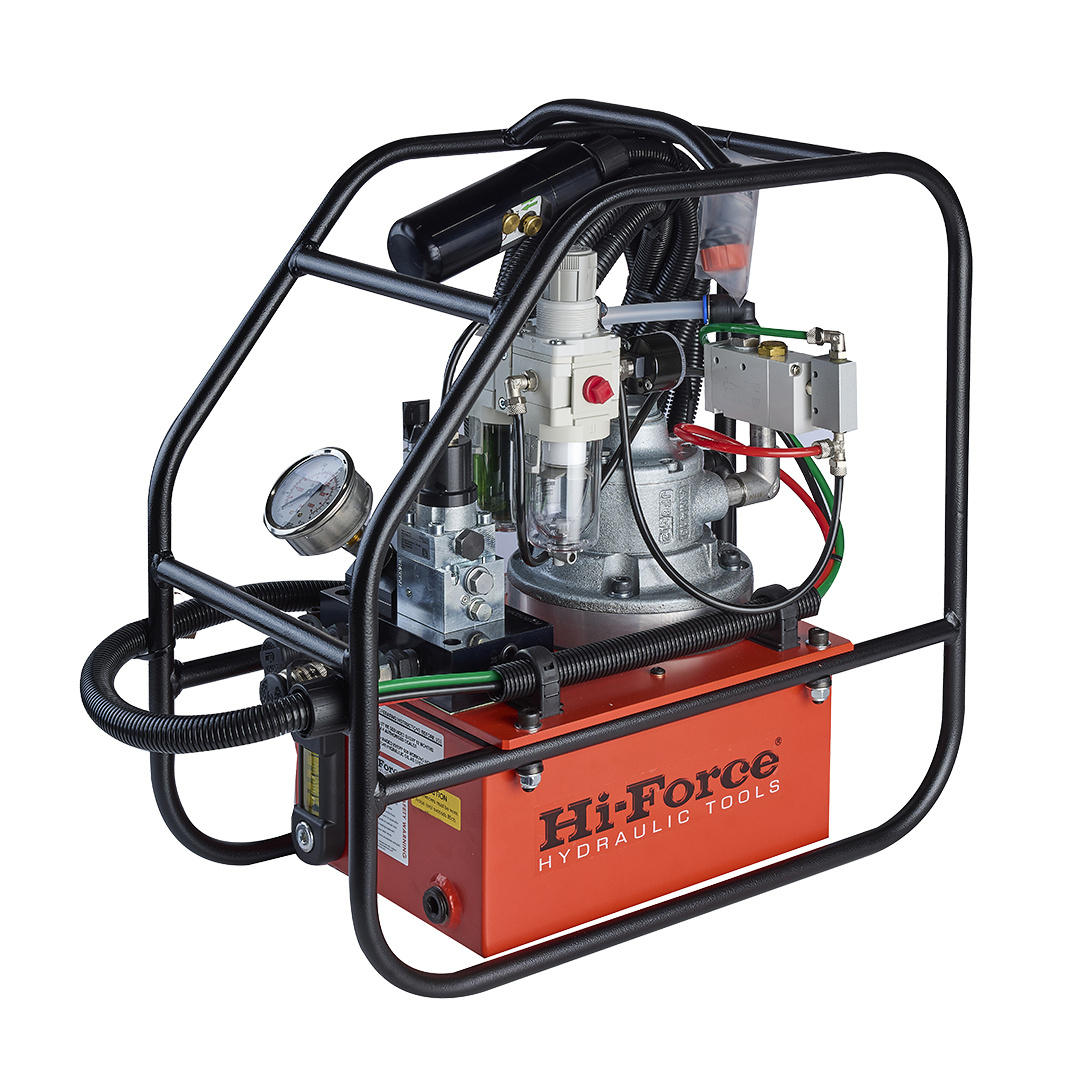

Torque Wrench Pumps - Standard Line
- 110, 120, 220 and 230 volt single phase electric motor with auto retract function
- Integral oil cooling system in air driven models
- Externally adjustable torque setting valve
- Reservoir oil sight level gauge
Product Overview
Hi-Force HTWP hydraulic torque wrench pumps are compatible for use with all Hi-Force hydraulic torque wrenches. All models are 700 bar maximum working pressure, fitted with an easily accessible and adjustable torque setting pressure relief valve, and are available as air driven or electric driven pump units.
- Working pressure 700 bar
- Two stage operation
- Air or electric driven options
Product resources
Technical specifications
| Model Number | Power Supply | Motor Rating kW | Flow rate l/min | Changeover Pressure bar | Weight kg | |
|---|---|---|---|---|---|---|
| low pressure | high pressure | |||||
| HTWP2140P | 7 bar | 1.50 | 6.1 | 0.51 | 60 | 28.0 |
| HTWP2141AR | 110 volt | 0.75 | 3.7 | 0.34 | 60 | 34.0 |
| HTWP2141ARH | 120 volt | 0.75 | 4.4 | 0.4 | 60 | 34.0 |
| HTWP2142AR | 230 volt | 0.75 | 3.7 | 0.34 | 60 | 34.0 |
| HTWP2142ARH | 220 volt | 0.75 | 4.4 | 0.4 | 60 | 34.0 |
Note: Pumps with suffix 'H' in the model number are supplied with 60Hz electric motor.
Dimension
Dimensions (mm)
| Model Number | |||
|---|---|---|---|
| A | B | C | |
| HTWP2140P | 486 | 241 | 446 |
| HTWP2141AR | 486 | 241 | 446 |
| HTWP2141ARH | 486 | 241 | 446 |
| HTWP2142AR | 486 | 241 | 446 |
| HTWP2142ARH | 486 | 241 | 446 |
