Product Overview

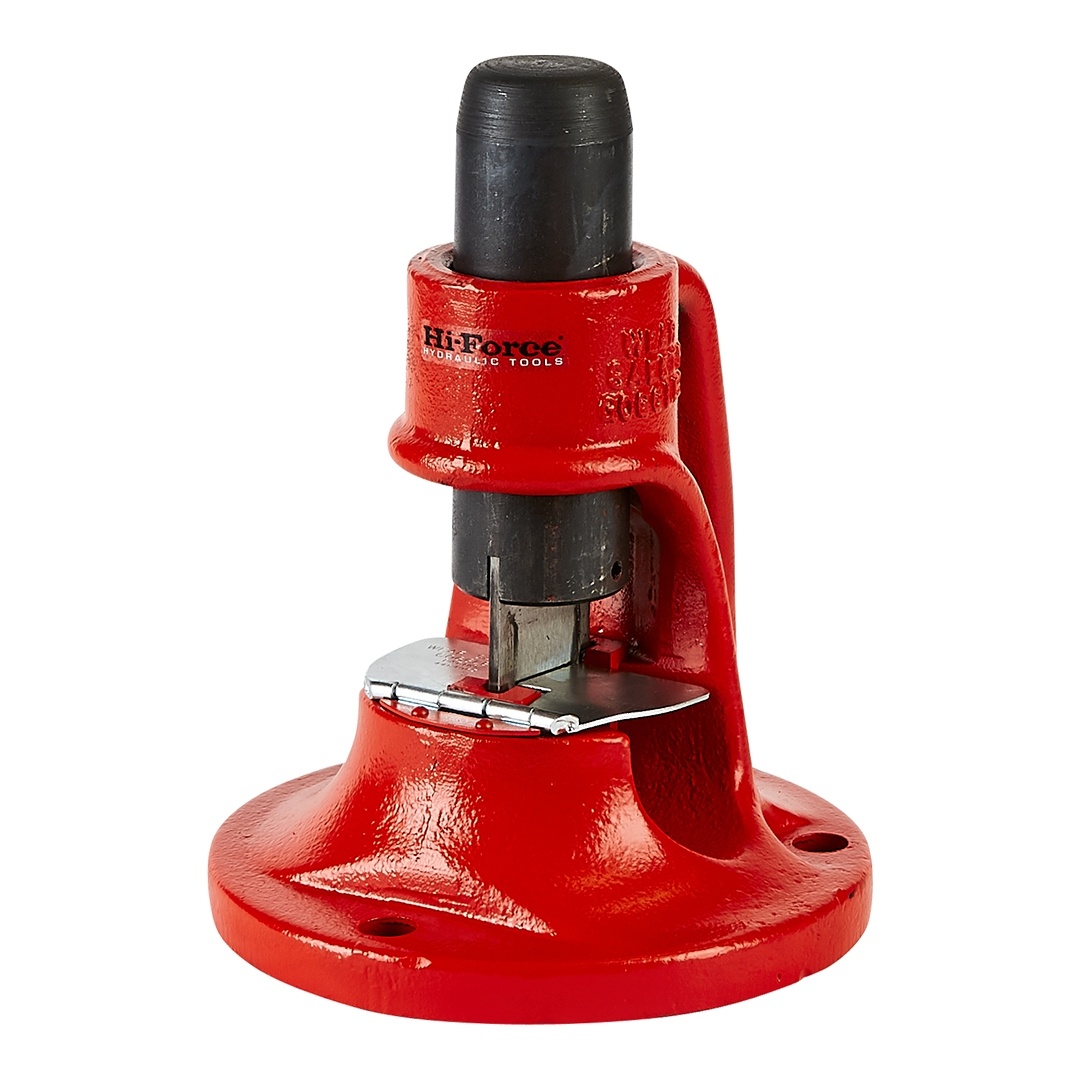

The Hi-Force HWC range of highly cost effective hammer blow cutters is manufactured from high quality, shock resistant, ductile iron and is fitted with replaceable cutting blades made from tool steel. The cutting blades are retained in the housing at the moment of impact, ensuring absolute safety. These cutters offer a considerable time saving over conventional axe, chisel and hacksaw methods.
- Highly cost efficient impact design
- Cutting capacity up to 38 mm diameter
- Portable and lightweight
Product resources
Technical specifications
| Model Number | Wire Rope Ø mm | Electric Cable | Weight kg | |
|---|---|---|---|---|
| mcm | mm2 | |||
| HWC90 | 19 | 250 | 127 | 3.2 |
| HWC91 | 27 | 300 | 152 | 7.0 |
| HWC92 | 38 | 750 | 380 | 13.0 |
Dimension
Dimensions (mm)
| Model Number | |||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| HWC90 | 225 | 140 | 88 | N/A | N/A |
| HWC91 | 245 | 154 | 160 | 148 | 14 |
| HWC92 | 285 | 195 | 195 | 164 | 18 |
