Product Overview

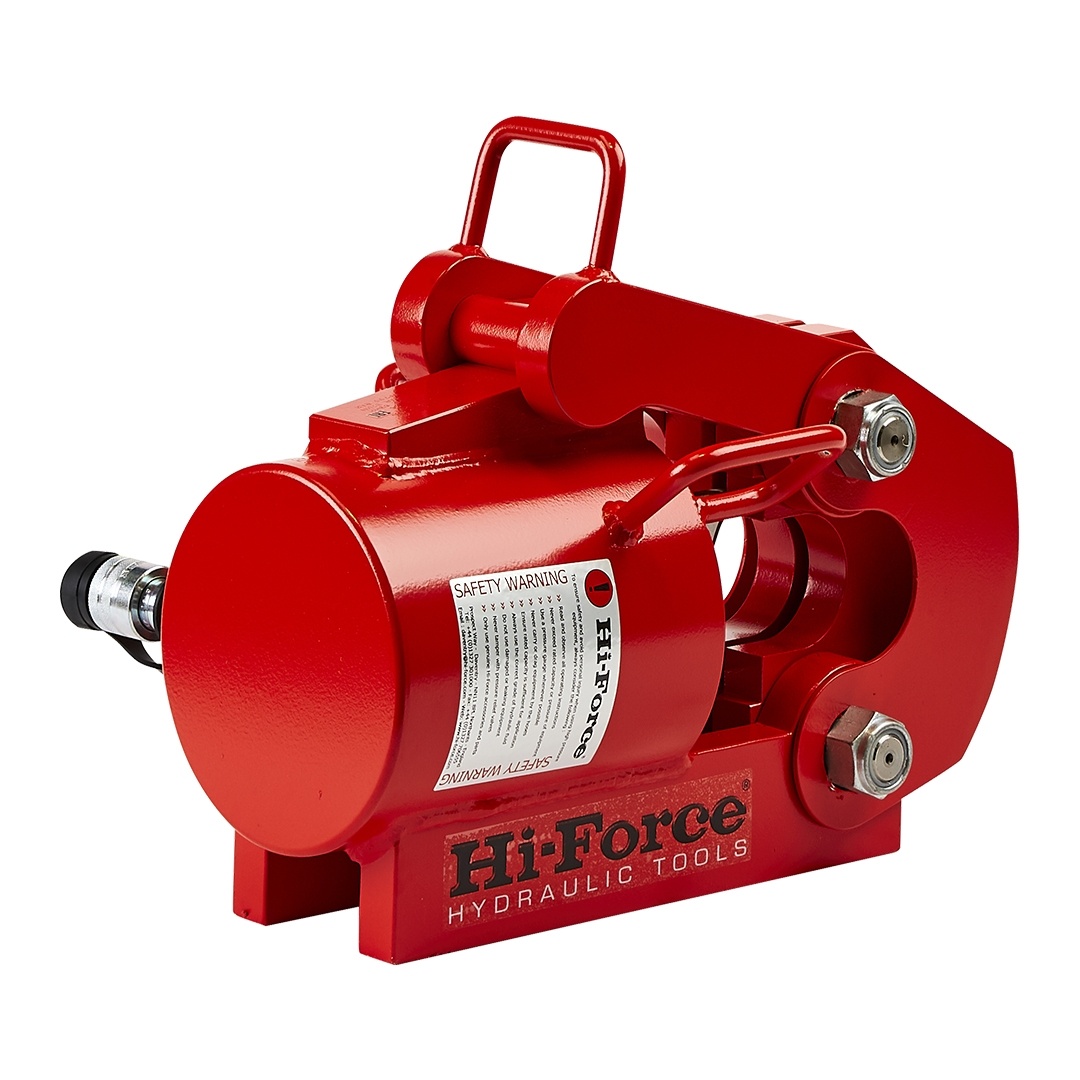

The HWRC range of hydraulic cutters is specifically designed and manufactured for cutting high tensile locked coil wire rope and solid steel bar. Maximum cutting capacities up to 114 mm diameter wire rope and up to 40 mm diameter 28 tonnes tensile solid steel bar. All models incorporate a double acting hydraulic cylinder, suitable for working pressures up to 700 bar and an open jaw design cutting head for easy access to the material to be cut.
- Double acting design
- Smooth guillotine cutting action
- Working pressure 700 bar
Product resources
Technical specifications
| Model Number | Output tonnes | Cutting Capacity mm | Oil Capacity cm3 | Weight kg | ||
|---|---|---|---|---|---|---|
| Wire Rope Ø | Cable | Reinforcing Bar | ||||
| HWRC1115 | 36 | 38 | 38 | 20 | 350 | 30 |
| HWRC1125 | 80 | 63 | 63 | 32 | 900 | 60 |
| HWRC1136 | 80 | 90 | 90 | 32 | 1200 | 70 |
| HWRC1145 | 120 | 114 | 114 | 40 | 2400 | 95 |
Dimension
Dimensions (mm)
| Model Number | |||
|---|---|---|---|
| A | B | C | |
| HWRC1115 | 400 | 155 | 270 |
| HWRC1125 | 450 | 200 | 390 |
| HWRC1136 | 515 | 200 | 390 |
| HWRC1145 | 570 | 280 | 445 |
