Aircat product

Impact Wrenches

Ergonomically engineered handle design relieves stress and fatigue on the operator’s hands, wrists and arms
Significantly reduced noise levels compared to industry average

Enquire now

Product Overview

AIRCAT® offers pneumatic impact wrenches that are designed using state-of-the-art technology and precisely meet the needs of the user while delivering great quality at an affordable cost.

Provides up to 3128 Nm max. torque and up to 3400 Nm loosening torque
Covers square drives from 3/8" to 1"
Free speed up to 9,000 RPM

Product resources

Impact Wrenches Catalogue Pages

Model number	Max Torque (Nm)	Loosening Torque (Nm)	Bolt Capacity (in)	Square Drive (in)	Free Speed RPM	Impacts Per Minute	AIR Cons. (CFM)	Rec. Hose Size (in)	Air Inlet (in)	Vibration m/sec2	Noise dBA	Weight (kg)
1057-TH	680	952	1/2	1/2	9,000	1600	6	3/8	1/4 NPT	9.9	89.0	1.27
1077-TH	680	952	1/2	3/8	9,000	1600	6	3/8	1/4 NPT	9.9	89.0	1.27
1056-XL	748	1020	9/16	1/2	9,000	1650	8	3/8	1/4 NPT	9.9	85.0	1.14
1058-VXL	748	1020	9/16	1/2	9,000	1700	8	3/8	1/4 NPT	4.3	85.0	1.27
1059-VXL	748	1020	9/16	3/8	9,000	1700	8	3/8	1/4 NPT	4.3	82.0	1.27
1076-XL	748	1020	9/16	3/8	9,000	1650	8	3/8	1/4 NPT	9.9	85.0	1.14
1431	1088	1360	1/2	1/2	9,000	1600	8	3/8	1/4 NPT	8.5	102.0	2.59
1450	1088	1360	9/16	1/2	9,000	1200	8	3/8	1/4 NPT	13.5	89.6	2.23
1150	1224	1761	9/16	1/2	9,000	1400	8	3/8	1/4 NPT	8.1	86.0	2.05

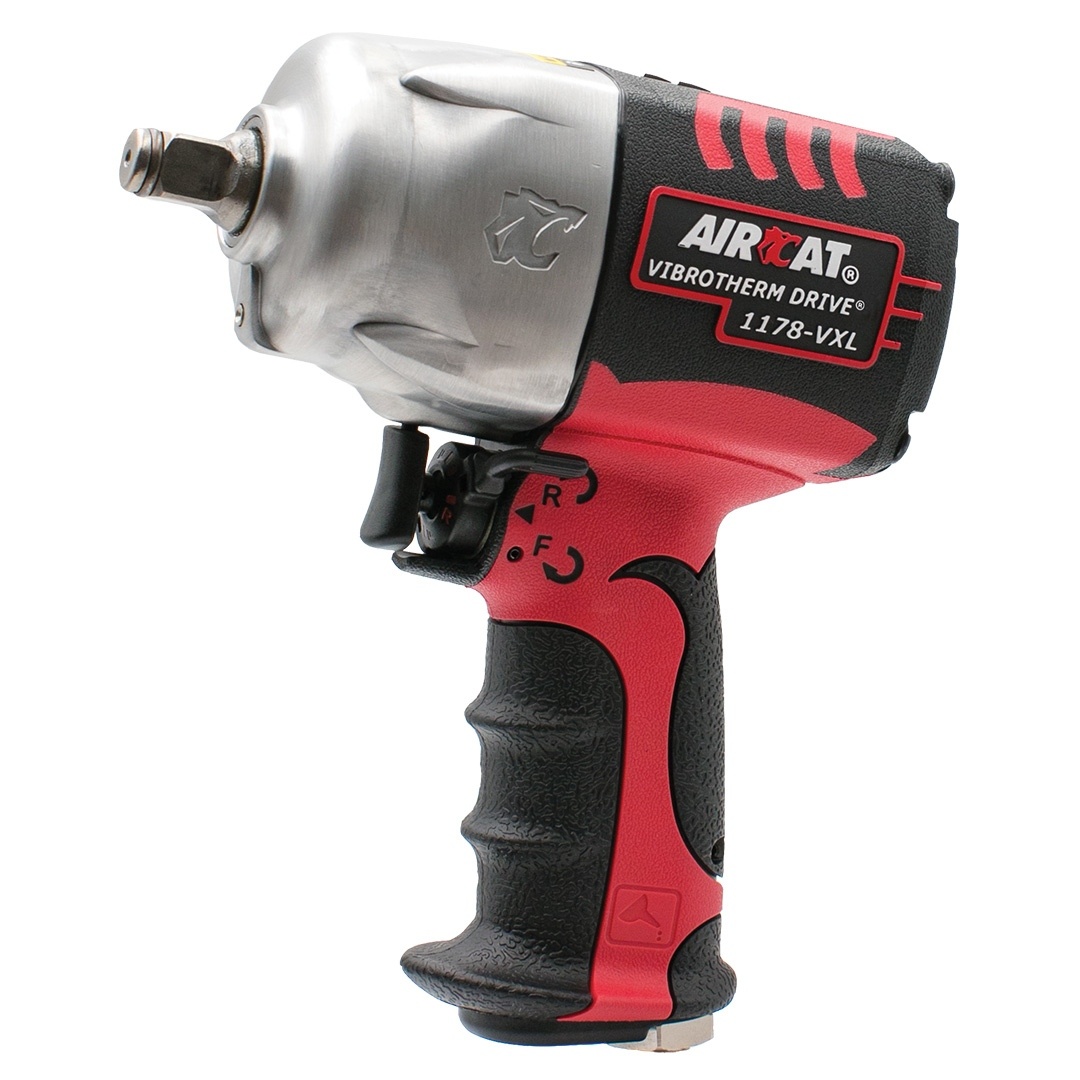

1178-VXL	1292	1768	9/16	1/2	7,500	1400	8	3/8	1/4 NPT	7.7	86.0	2.05
1125	1360	1700	9/16	1/2	8,500	1600	8	3/8	1/4	4.2	87.0	1.73
1600-TH-A	1904	2176	7/8	3/4	4,500	900	10	1/2	3/8 NPT	7.4	86.0	3.68
1600-TH-A1	1904	2176	1.25	1	4,500	1100	10	1/2	3/8 NPT	7.4	86.0	3.75
1777	1904	2176	1	3/4	6,500	1600	8	1/2	3/8 NPT	14.6	90.8	3.41
1778-VXL	1972	2312	1	3/4	5,400	1300	8	1/2	3/8 NPT	6.5	86.0	3.36
1992-1	2448	2720	1-1/4	1	5,000	1600	12	1/2	1/2 NPT	9.6	109.0	10.55
1992	2448	2720	1-1/4	1	5,000	1600	12	1/2	1/2 NPT	9.6	109.0	11.82
1900-A	2584	2992	1-1/4	1 x 8	5,500	1600	12	1/2	1/2 NPT	12.1	103.4	13.00
1900-A-1	2584	2992	1-1/4	1	5,500	1600	12	1/2	1/2 NPT	12.1	103.4	11.50
1890-P	2720	3400	1.25	1	4,200	1200	6	1/2	1/2 NPT	12.6	102.0	10.91
1870-P	2856	3128	1.25	1	7,500	1900	10	1/2	1/2 NPT	8.6	96.0	5.89
1870-P-6	2856	3128	1.25	1	7,500	1900	10	1/2	1/2 NPT	8.6	96.0	6.73
1991	2856	3128	1-1/4	1 x 6	6,000	1600	8	1/2	1/2 NPT	8.6	98.0	9.41
1991-1	2856	3128	1-1/4	1	6,000	1600	8	1/2	1/2 NPT	8.6	98.0	7.59
1993-1-VXL	2856	3128	1-1/4	1	6,000	950	10	1/2	1/2 NPT	12.7	108.0	8.41

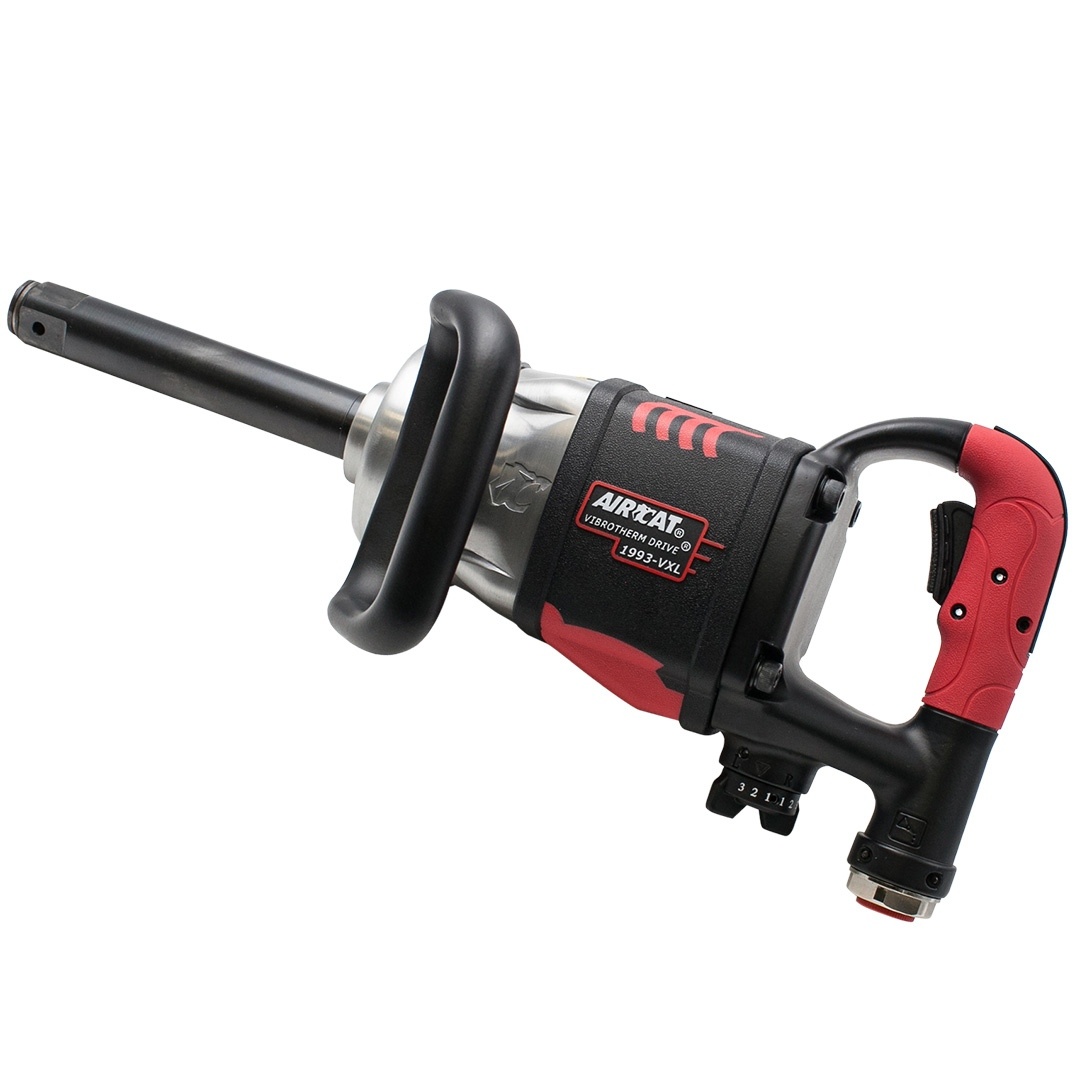

1993-VXL	2856	3128	1-1/4	1 X 7	6,000	950	10	1/2	1/2 NPT	12.7	108.0	9.18
1994	3128	3400	1-1/4	1 x 8	4,500	1100	16	1/2	1/2 NPT	9.6	109.0	15.91

Dimensions (mm)

Model number	Length	Width	Height
1057-TH	98	53.34	167.64
1077-TH	98	53.34	167.64
1056-XL	108	60.96	167.64
1058-VXL	112	64.77	177.8
1059-VXL	112	64.77	177.8
1076-XL	108	60.96	167.64
1431	183	71.12	198.12
1450	178	60.96	193.04
1150	191	68.58	187.96
1178-VXL	163	72.39	194.31
1125	180	71.63	187.96
1600-TH-A	235	83.82	208.28
1600-TH-A1	241	83.82	208.28
1777	206	78.74	208.28
1778-VXL	188	91.44	213.36
1992-1	394	215.9	184.15
1992	559	215.9	184.15
1900-A	533	213.36	193.04
1900-A-1	356	215.9	203.2
1890-P	279	127	266.7
1870-P	272	185.42	248.92
1870-P-6	406	185.42	248.92
1991	483	120.65	152.4
1991-1	328	120.65	152.4
1993-1-VXL	340	121.92	203.2
1993-VXL	475	121.92	203.2
1994	660	218.44	182.88
