Universal Tool product

Industrial Impact Wrenches

Handle design, configuration and weight choices ensure great balance and provide the best operator comfort possible
Twin hammer mechanism is less sensitive to air pressure and ideal for use where air supply fluctuations are prevalent

Enquire now

Product Overview

The UT line of high-performance impact wrenches is the widest range of industrial impact wrenches available. With a hard-hitting twin hammer design which offers easy low cost maintenance and good performance on soft and hard joints, the UT impact wrenches are up to any job and cover the needs for heavy assembly processes, off-road vehicle maintenance, steel erection, heavy plant maintenance, petrochemical as well as intermittent MRO uses.

Square drive sizes from 1/2" to 1"
Max. torque capacities from 1054 to 3796 Nm
Speeds up to 9000 RPM

Product resources

Industrial Impact Wrenches Catalogue Pages

Model Number	Max. torque (Nm)	Max. torque (ft.lb)	Square Drive (in)	Air inlet (in)	Speed(RPM)	Air Cons.(CFM)	Rec. Hose Size(ID-in)	Weight (kg)

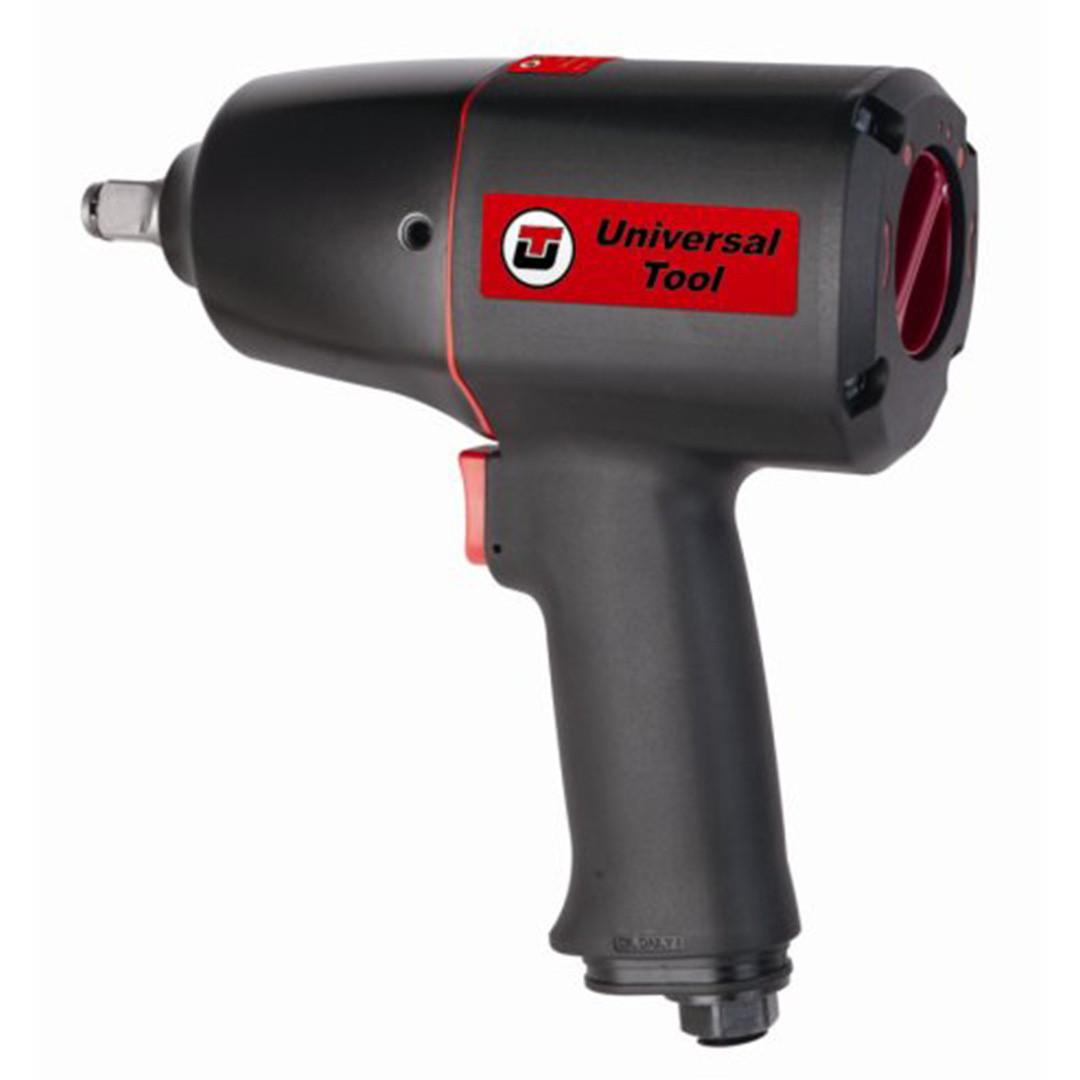

UT8138	1054	780	1/2"	1/4"	8000	4.2	3/8"	2.5

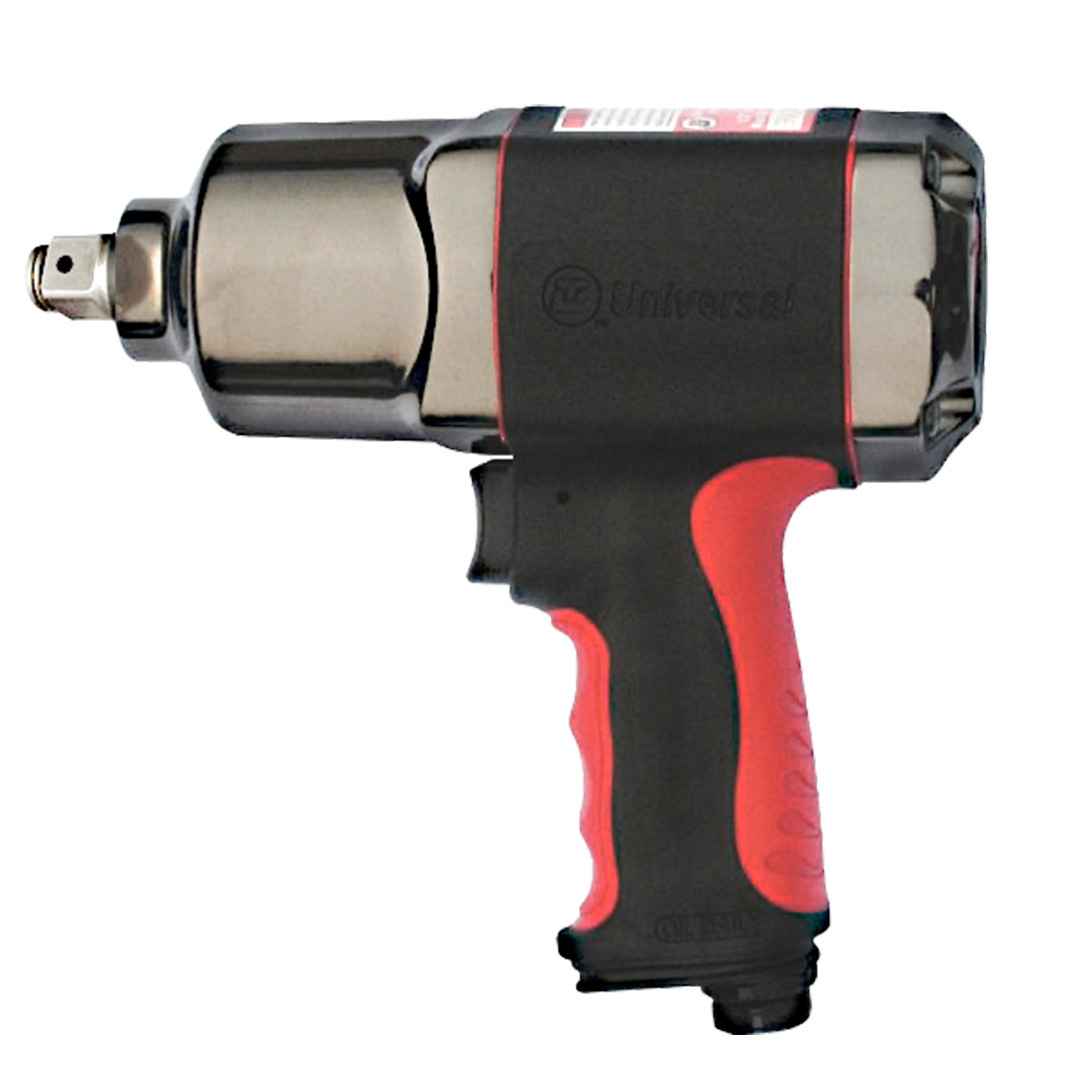

UT8326	1085	800	3/4"	3/8"	4000	6.3	1/2"	4.4

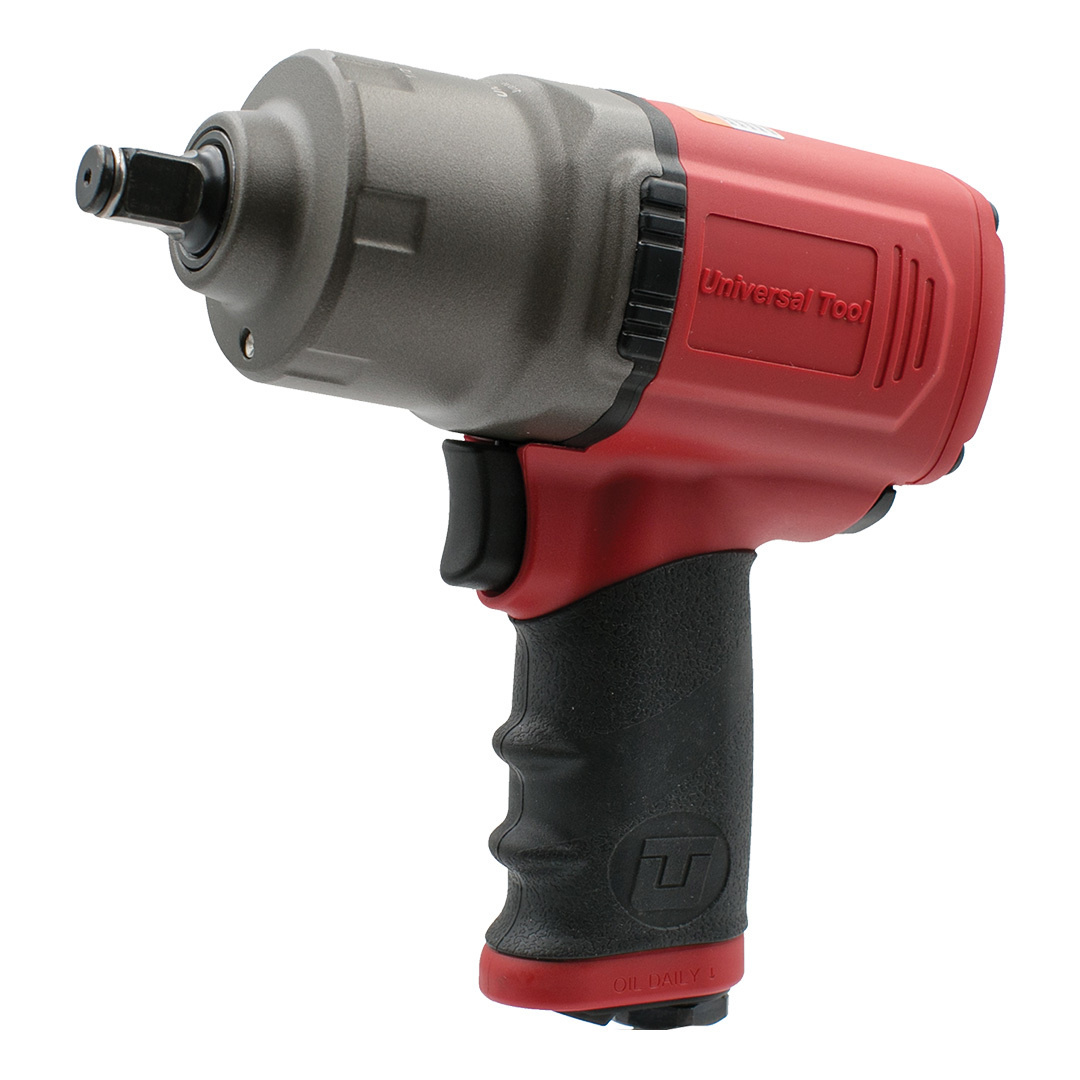

UT8165R	1613	1190	1/2"	1/4"	9000	8	3/8"	1.99
UT8340C-2	1763	1300	3/4"	3/8"	6500	10	1/2"	4.53
UT8365C	2440	1800	3/4"	3/8"	8500	8	1/2"	3.39
UT8470C	2576	1900	1"	3/8"	4000	11	1/2"	9.06
UT8642C	3796	2800	1"	1/2"	3600	11	1/2"	10.7

Dimensions (mm)

Model Number	Length	Height	Width
UT8138	230	76	197
UT8326	272	92	236
UT8165R	210	76	197
UT8340C-2	211	196	114
UT8365C	254	95	229
UT8470C	305	248	254
UT8642C	396
