Börkey product

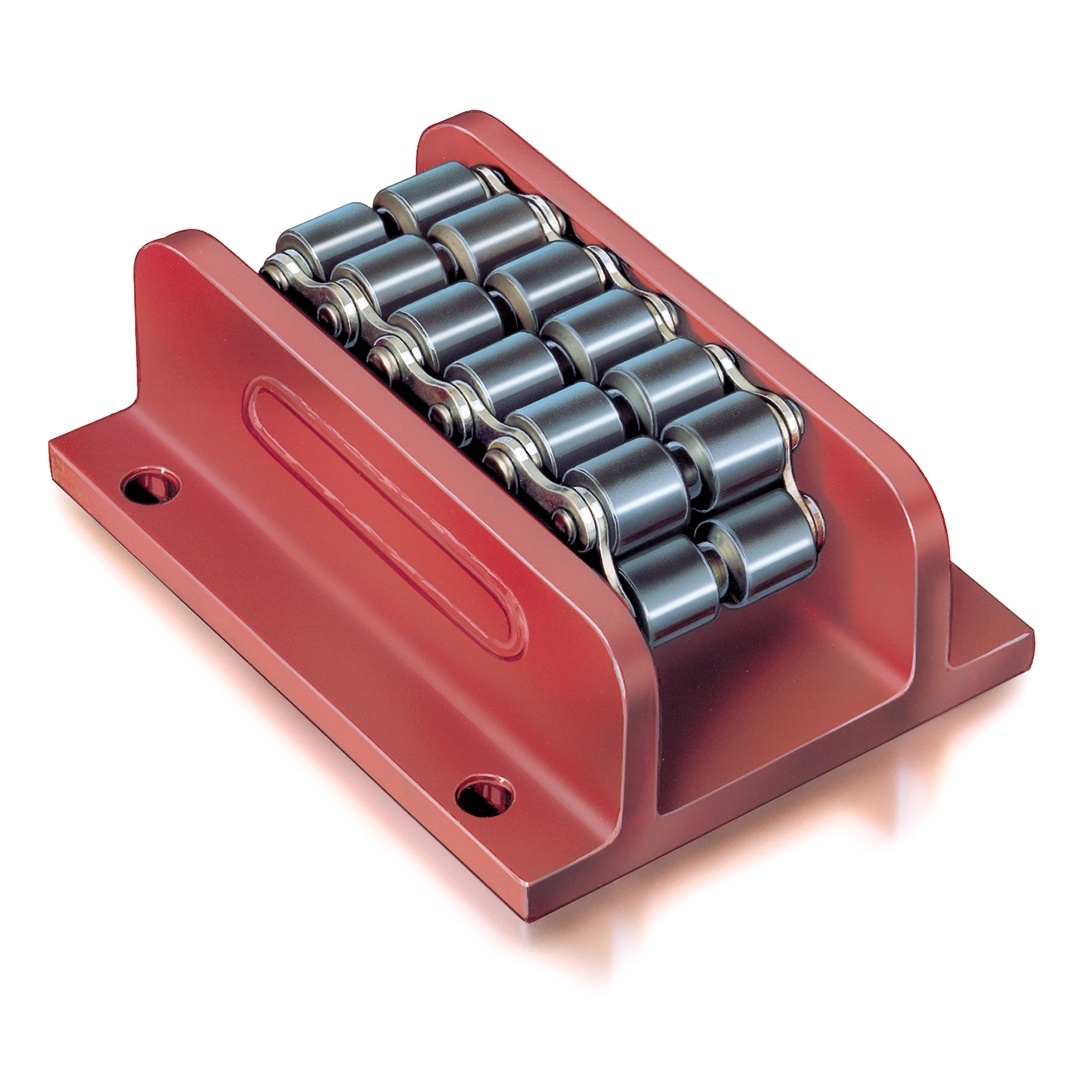

Model AM-H

For longer distances and/or continuous movement with continuous load through medium (M) chain guide
Particularly stable construction through continuous cover plate
Particularly wear-resistant due to chain guide (no lateral starting of the chain, thus no wear of the bolt heads)
Can be bolted to the load

Product Overview

Movement of heavy loads for longer distances or for a long time e.g. for movements as a machine component, heavy duty telescope, guidance, in the machine engineering industry.

Extra robust construction
Low level construction with higher carrying capacity, exchangeable with models AS and A due to same outer dimensions
More stability achieved, if load is firmly bolted to roller skates

Product resources

Model AM-H Catalogue Page

Supporting rolls	Roll number	Capacity max kN	Weight kg
5	15	125	8.8
4	13	170	11.5
4	13	330	19.0
6	17	420	28.5
4	13	530	50.0
6	17	690	89.5
8	21	880	104.0
9	23	1250	156.0
13	31	1650	237.0

Dimensions (mm)

Size	a	b	c	Ød	e	f	g	h	Øi	k	l
I	210	100	175	18	51	6	13	76	14	140	75
II	220	113	190	24	60	10	14	87	14	155	75
III	270	130	210	30	68	10	14	104	18	175	95
IIIV	320	140	220	30	68	10	18	115	18	180	120
IV	380	168	270	42	76	19	19	145	22	220	140
V	530	182	300	50	86	19	19	165	22	240	205
VL	580	182	300	50	86	19	23	170	26	250	250
Vv	650	205	350	50	100	20	28	190	26	280	240
VI	900	205	380	50	100	20	38	200	33	300	360
