Börkey product

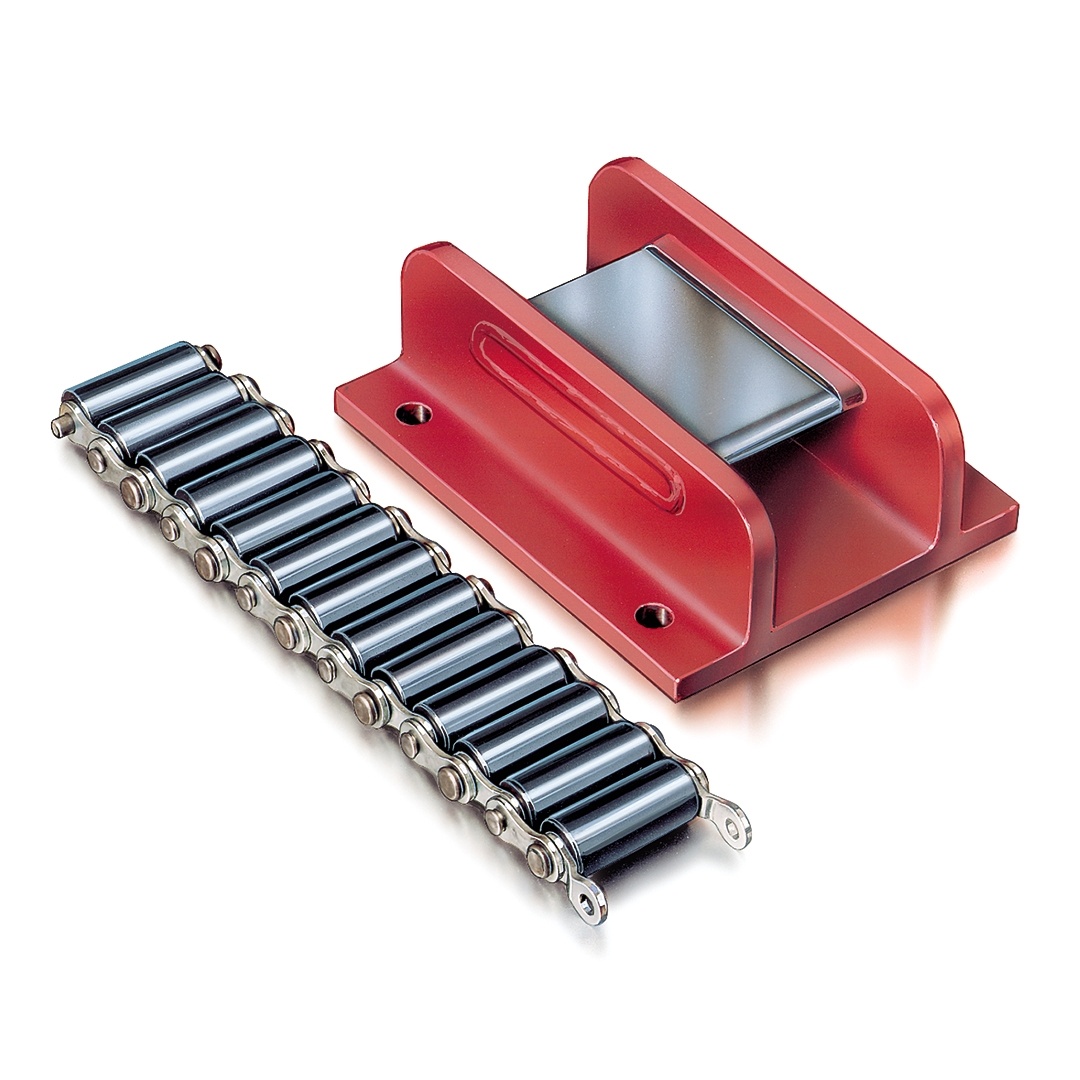

Model AS-H

For longer distances and/or permanent loads on suitable tracks, crane rails or steel beams
Particularly stable construction through continuous cover plate
Particularly wear-resistant due to chain guide (no lateral starting of the chain, thus no wear of the bolt heads)
Can be bolted to the load

Product Overview

Movement of heavy loads for longer distances or for progressive shifting of scaffolding and shuttering in bridge construction. Also used for hangar doors (hardened shelters), as crawler tracks, in nuclear power stations, in institutes for nuclear research, on oil rigs, in the ship building industry and for tunnel constructions.

Extra robust construction
Low level construction with higher carrying capacity, exchangeable with models AM and A due to same outer dimensions
More stability achieved, if load is firmly bolted to roller skates

Product resources

Model AS-H Catalogue Page

Supporting rolls	Roll number	Capacity max kN	Weight kg
4	13	400	19.6
6	17	500	29.5
4	13	650	51.7
6	17	850	93.0
8	21	1000	109.0
9	23	1500	162.0
13	31	2000	266.0

Dimensions (mm)

Size	a	b	c	Ød	e	f	g	h	Øi	k	l
III	270	130	210	30	68	10	14	104	18	175	95
IIIV	320	140	220	30	68	10	18	115	18	180	120
IV	380	168	270	42	76	19	19	145	22	220	140
V	530	182	300	50	86	19	19	165	22	240	205
VL	580	182	300	50	86	19	23	170	26	250	250
Vv	650	205	350	50	100	20	28	190	26	280	240
VI	900	205	380	50	100	20	38	200	33	300	360
