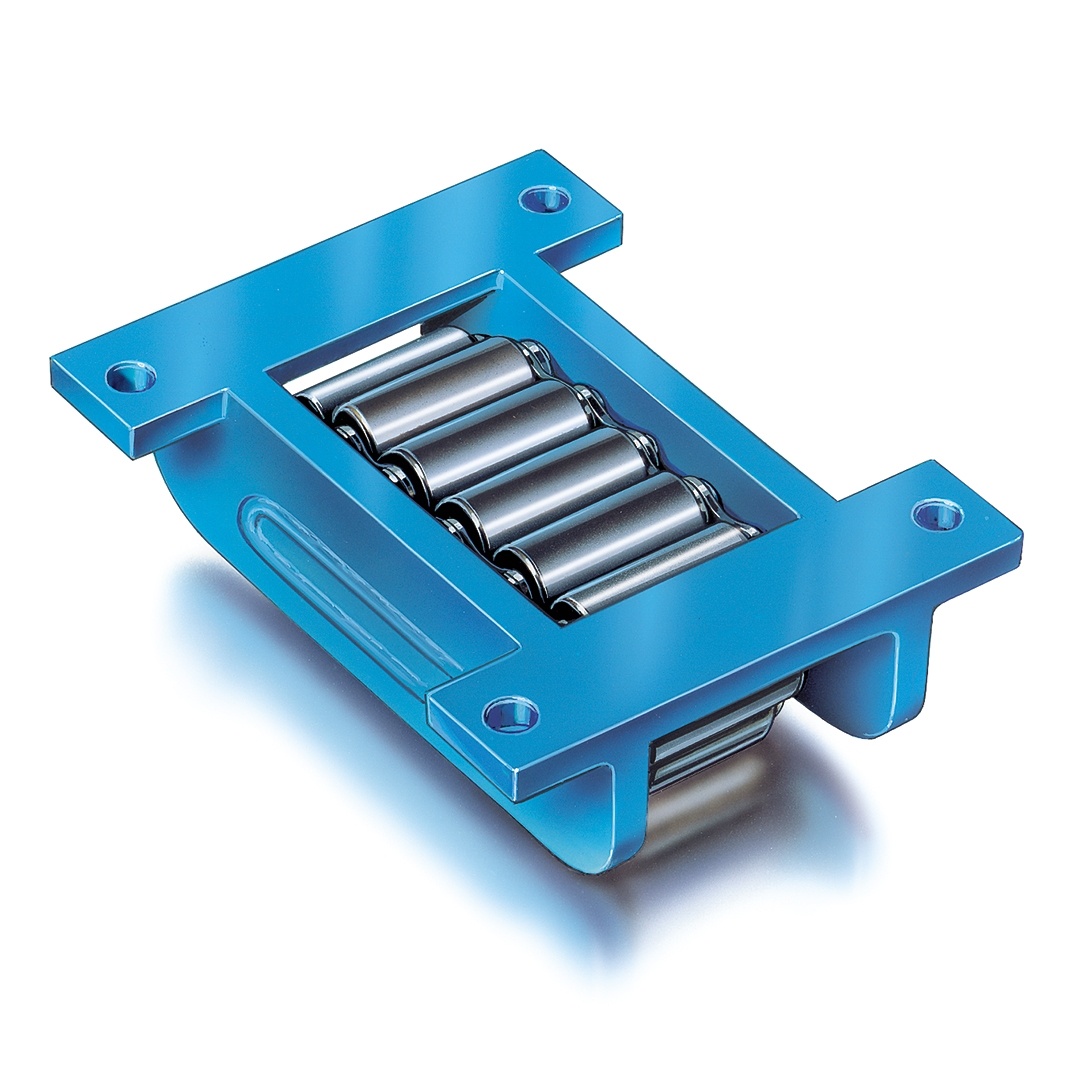

Börkey product

Model B

For short distances
movement of medium loads, eg. feed scaffolding and concrete formwork on construction sites
can be bolted to the load at the lowest height

Product Overview

If the rollers are being used to their maximum carrying capacity or with lengthy intervals between use, choose models with a hardened center plate (=model B-H). In case of possible overload, choose chain roller material 50CrV4 maximum speed: 5m/min.

The rolling resistance depends on the track. For smaller models I-IIIv 7-5%, for larger models 5-3% of the total load. Can be arranged with guide rollers.

Stable, solid basic construction
Low level is achieved by recessing the mounting plates into side walls
Recommended if the risk of short-term overload beyond the specified bearing capacity of the roller skates can not be excluded or is probable

Product resources

Model B Catalogue Page

Supporting rolls	Roll number	Capacity max kN	Weight kg
5	15	100	6.2
4	13	150	8.4
4	13	300	14.1
4	13	600	36.5
6	17	800	66.4

Dimensions (mm)

Size	a	b	c	Ød	e	f	g	h	Øi	k	l
I	210	100	175	18	51	6	13	63	14	140	170
II	220	113	190	24	60	10	14	73	14	155	180
III	270	130	210	30	68	10	14	90	18	175	220
IV	380	168	270	42	76	19	19	126	22	220	320
V	530	182	300	50	86	19	19	146	22	240	470
