Börkey product

Model S/P

For robust use, e.g. on construction sites
Used as a machine element
For moving loads with speeds up to max. 100 m/min
With higher demands on load capacity and robustness
When a higher safety factor and insensitivity are required

Product Overview

Maintenance-free construction, which is used particularly in machine factories, on construction sites and when handling heavy goods. Can be combined to form fixed, steering and steerable castors. Durable material, less susceptible to knocks and bumps can also be delivered in wheel flange design ( see series SA/P, SB/P ).

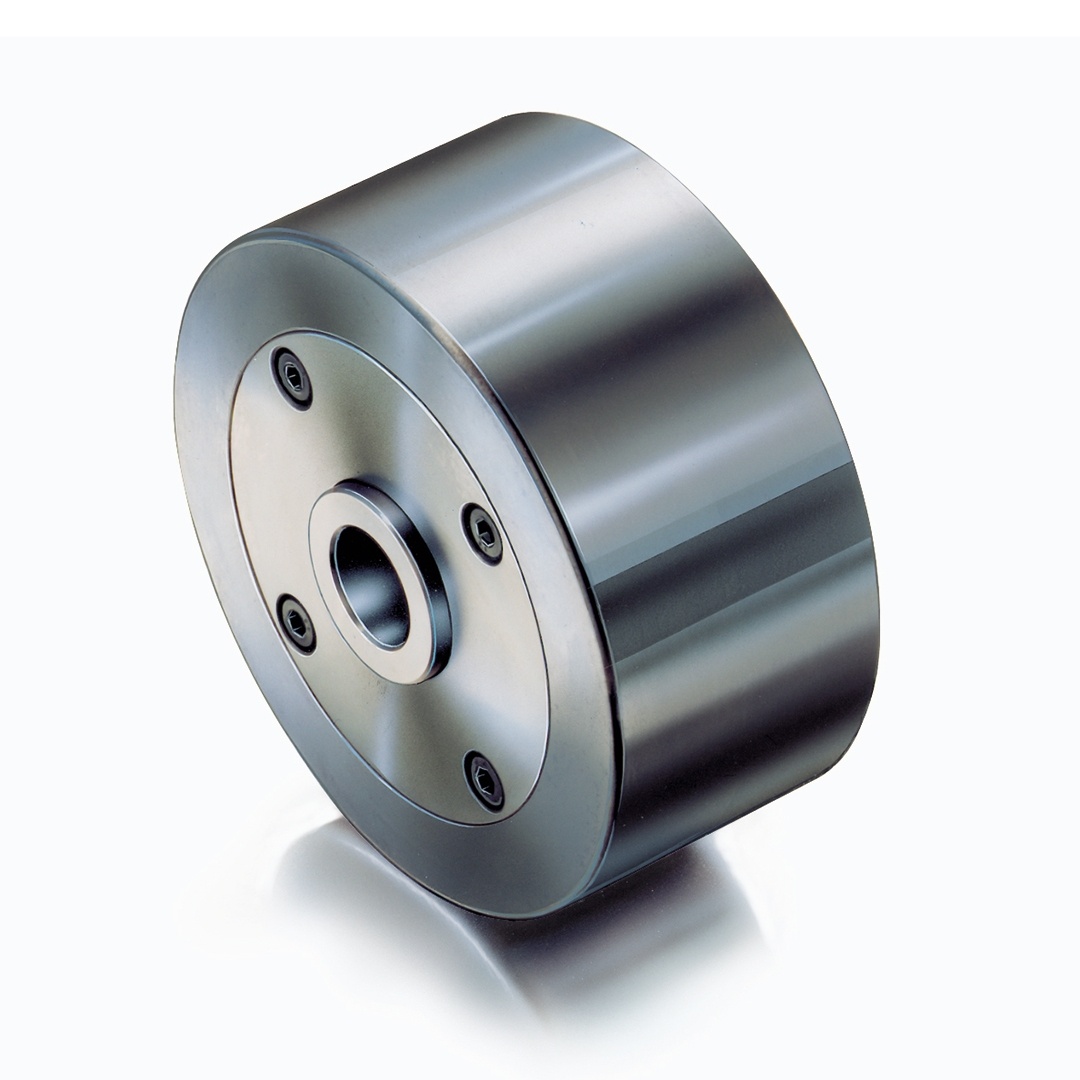

Solid steel construction with spherical roller bearings
Body tempered to 35 - 38 HRc with convex tread
Available with different suspensions as fixed, steering and rotating castors

Product resources

Model S/P Catalogue Page

Model	Suitable for this: Suspensions of the series			Load capacity (kN)	Weight (kg)
Steel
150 p.p	SF	SL	SD	50	9.9
175 p.p	SF	SL	SD	50	13.8
200 p.p	SF	SL	SD	60	18.3
225 p.p	SF			60	23.5
250 p.p	SF			80	29.5
275 p.p	SF			80	36.5
300 p.p	SF			80	44.6

Dimensions (mm)

Model	a	b	Ø d1	Ø d2	Ø d3
Steel
150 p.p	80	90	150	30	50
175 p.p	80	90	175	30	50
200 p.p	80	90	200	30	50
225 p.p	80	90	225	30	50
250 p.p	80	90	250	30	50
275 p.p	80	90	275	30	50
300 p.p	80	90	300	30	50
