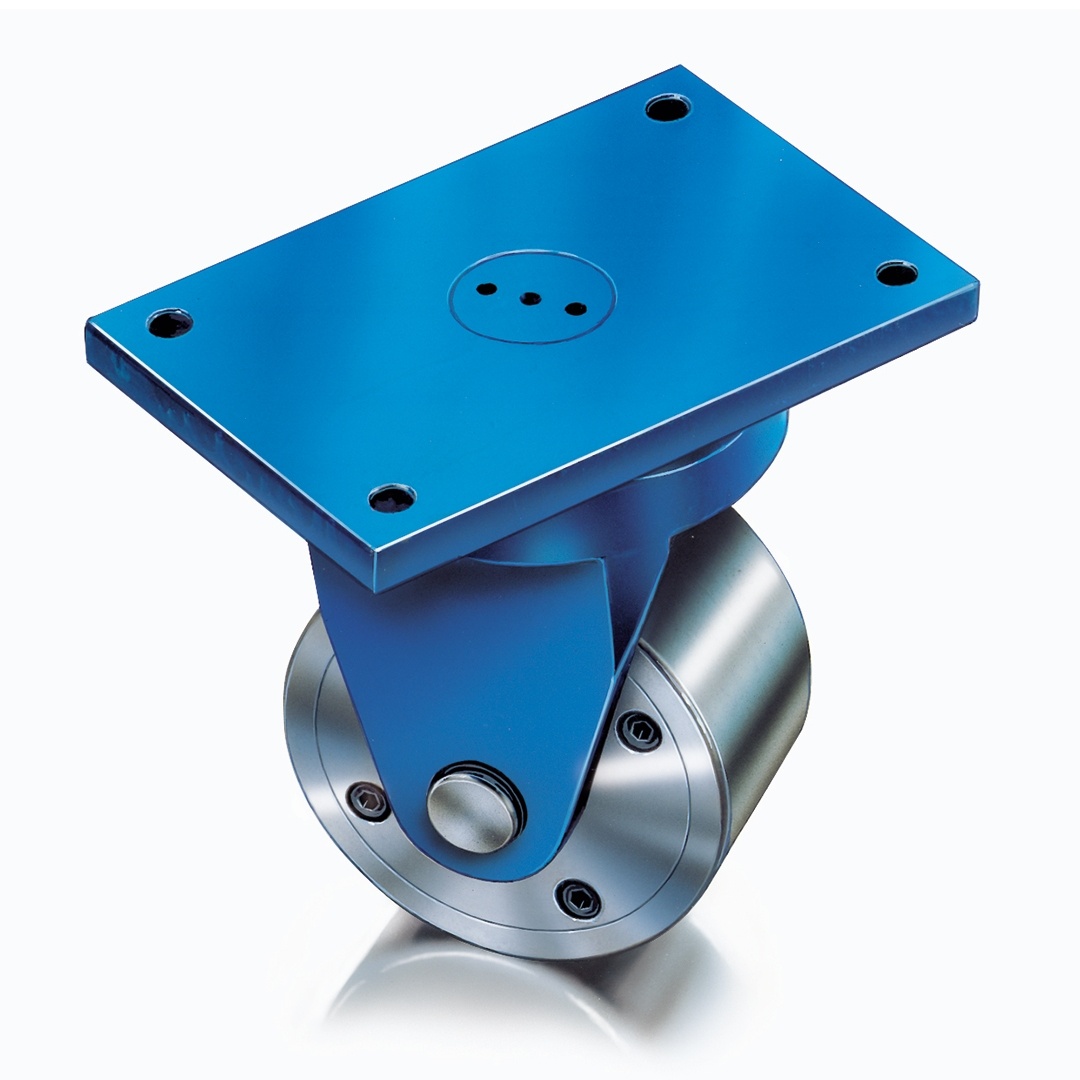

Product Overview
- For moving loads with speeds up to
max. 100 m/min - For rotary movements that have to be guided on the wheel
- Frequent use on construction sites
- Solid all-steel construction of the rotating suspension
- Can be combined with other suspensions
Product resources
Series SD-S, SD-K
| Size | Fitting to model | Capacity (kN) | Weight (kg) | ||
|---|---|---|---|---|---|
| S | K | S | K | ||
| SF150 | SF | 30 | 20 | 21.4 | 15.4 |
| SF175 | SF | 30 | 20 | 26.2 | 16.9 |
| SF200 | SF | 30 | 30 | 31.6 | 18.5 |
| SF225 | SF | 30 | 30 | 40.4 | 22.9 |
| SF250 | SF | 35 | 35 | 47.3 | 24.7 |
| SF275 | SF | 35 | 35 | 55.2 | 26.5 |
Series SD-S/P
| Size | Fitting to model | Capacity (kN) | Weight (kg) |
|---|---|---|---|
| S | |||
| SF150 | SF | 50 | 21.6 |
| SF175 | SF | 50 | 26.4 |
| SF200 | SF | 50 | 31.8 |
Dimension
Dimensions (mm)
| Model SD-S, SD-K | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | a | b | c | ∅d1 | ∅e | f | g | h | j | k | |
| Steel | Plastic | ||||||||||
| SF150S | SF150K | 220 | 150 | 190 | 150 | 14 | 115 | 15 | 210 | 80 | 120 |
| SF175S | SF175K | 220 | 150 | 190 | 175 | 14 | 115 | 15 | 235 | 80 | 120 |
| SF200S | SF200K | 220 | 150 | 190 | 200 | 14 | 115 | 15 | 260 | 80 | 120 |
| SF225S | SF225K | 270 | 210 | 210 | 225 | 18 | 150 | 15 | 285 | 80 | 120 |
| SF250S | SF200K | 270 | 210 | 210 | 250 | 18 | 115 | 15 | 310 | 80 | 120 |
| SF275S | SF200K | 270 | 210 | 210 | 275 | 18 | 115 | 15 | 335 | 80 | 120 |
| Model SD-S/P | |||||||||||
| Size | a | b | c | ∅d1 | ∅e | f | g | h | j | k | |
| Steel | |||||||||||
| SF150S | 270 | 170 | 220 | 150 | 18 | 130 | 20 | 220 | 80 | 130 | |
| SF175S | 270 | 170 | 220 | 175 | 18 | 130 | 20 | 245 | 80 | 130 | |
| SF200S | 270 | 170 | 220 | 200 | 18 | 130 | 20 | 285 | 80 | 130 | |
