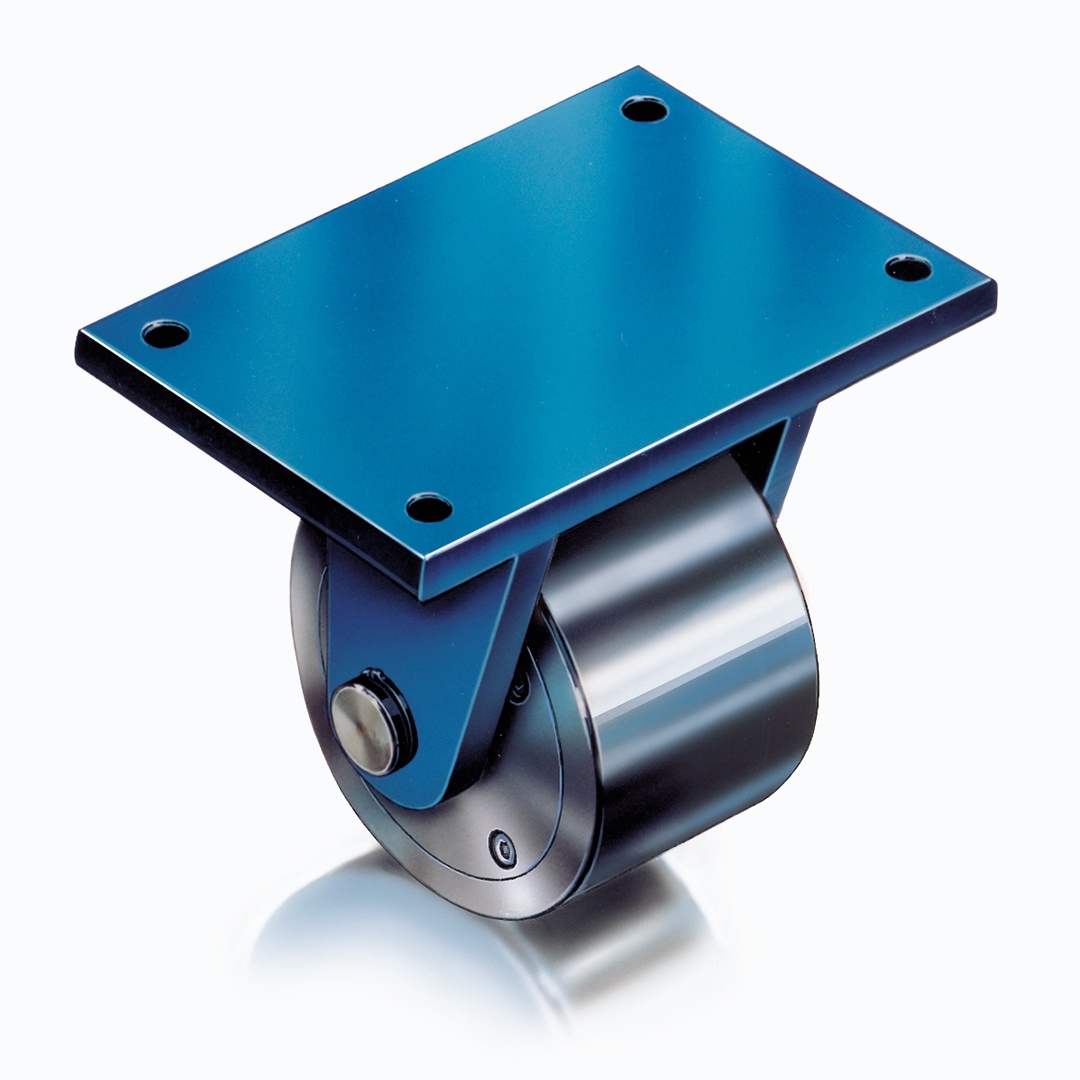

Börkey product

Model SF-S, K, S/P

For moving loads with speeds up to max. 100 m/min
Flanged wheels for use on profiles, see series SF – SA(B), SA(B)/P

Enquire now

Product Overview

Test according to DIN 4422 at the material testing office passed for SF 150 S + SF 150 K

Solid all-steel construction of the fixed suspension
Drilling pattern can be designed according to customer requirements
Can be combined with other suspensions

Product resources

Model SF-S-K-S/P Catalogue Page

Size		a	b	c	∅d1	∅e	f	G	H	j	k	Suitable for this series		Load capacity (kN)		Weight(kg)
Steel	Plastic													S	K	S	K
SF 150 S	SF 150K	220	150	190	150	14	115	15	180	80	120	SL	SD	30	20	16.7	10.7
SF 175 p	SF 175K	220	150	190	175	14	115	15	210	80	120	SL	SD	30	20	21:4	12.1
SF 200 S	SF 200K	220	150	190	200	14	115	15	235	80	120	SL	SD	30	30	26.7	13.6
SF 225 S	SF 225K	220	150	190	225	14	115	15	260	80	120			30	30	32.7	15.2
SF 250 S	SF 250K	270	210	210	250	18	150	15	285	80	120			35	35	41.9	19.3
SF 275 p	SF 275K	270	210	210	275	18	150	15	310	80	120			35	35	49.7	21.0
SF 300 S	SF 300K	270	210	210	300	18	150	15	335	80	120			35	35	58.6	22.9

Note: All dimensions in mm

Size	a	b	c	∅d1	∅e	f	G	H	j	k	Suitable for this series		Load capacity (kN)	Weight(kg)
Steel														S
SF 150 S	220	170	180	150	18	130	20	195	80	130	SL	SD	50	16.9
SF 175 p	220	170	180	175	18	130	20	220	80	130	SL	SD	50	21:6
SF 200 S	220	170	180	200	18	130	20	245	80	130	SL	SD	60	26.9	13.6
SF 225 S	220	170	180	225	18	130	20	285	80	130			60	32.9	15.2
SF 250 S	270	210	210	250	18	160	20	310	80	130			80	42.1	19.3
SF 275 p	270	210	210	275	18	160	20	320	80	130			80	49.9	21.0
SF 300 S	270	210	210	300	18	160	20	345	80	130			80	58.8	22.9

Note: All dimensions in mm
