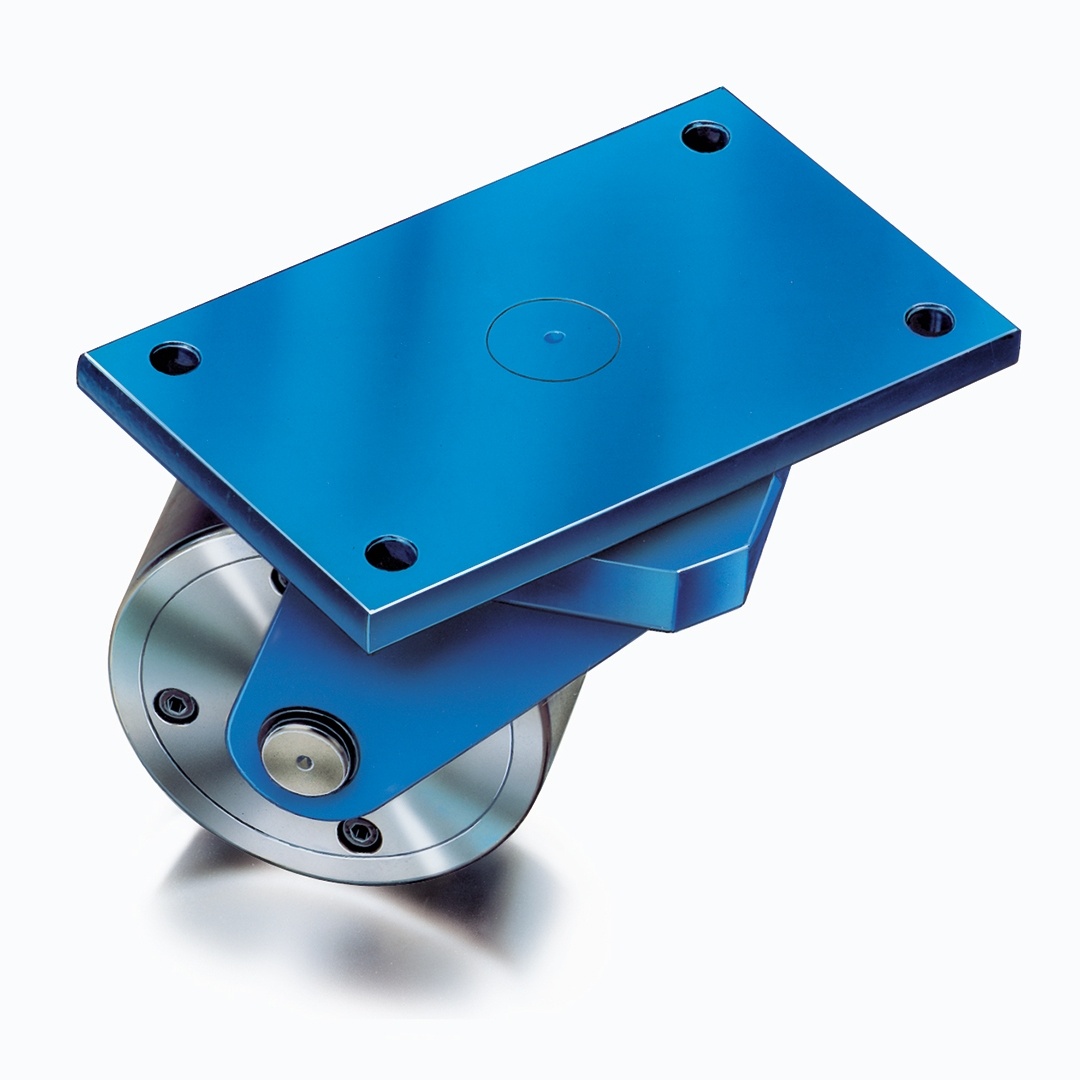

Product Overview
- For moving loads with speeds up to max. 100 m/min
- For rotary movements
- Solid all-steel construction of the self-steering suspension
- Can be combined with other suspensions
- Test according to DIN 4422 at the Material Testing Office passed for SL 150 S + SL 150 K
Product resources
Technical specifications
| Series SL-S, SL-K & SL-S/P | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Suitable for this series | Load capacity (kN) | Weight (kg) | ||||||||
| Steel | Plastic | S | K | S | K | ||||||
| SF150S | SF150K | SF | 30 | 20 | 22.7 | 16.7 | |||||
| SF175P | SF175K | SF | 30 | 20 | 27.5 | 18.2 | |||||
| SF200S | SF200K | SF | 30 | 30 | 32.9 | 19.8 | |||||
Dimension
Dimensions (mm)
| Series SL-S, SL-K & SL-S/P | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | a | b | c | ∅d1 | ∅e | f | g | h | j | ||
| Steel | Plastic | ||||||||||
| SF150S | SF150K | 270 | 150 | 210 | 150 | 18 | 115 | 15 | 210 | 80 | 75 |
| SF175P | SF175K | 270 | 150 | 210 | 175 | 18 | 115 | 15 | 235 | 80 | 75 |
| SF200S | SF200K | 270 | 150 | 210 | 200 | 18 | 115 | 15 | 260 | 80 | 75 |
