Ingersoll Rand product

Nutrunners

Options of automatic shut-off clutch, cushion clutch or stall
Designed to withstand high-duty cycle applications and the robust air motors makes it more reliable

Enquire now

Product Overview

Ingersoll Rand’s broad product line of nutrunners, designed for operator comfort, offers a wide torque coverage and provides accuracy, speed, and reliability in any operation.

Torque range from 0.4 to 225 Nm (3.5 to 166 in-lb)
1/4", 3/8" and 1/2" spindle type
Free speed up to 1270 RPM

Product resources

Q2, 1 and 41 Series Brochure

Series	Torque range Nm	Torque range in-lb	Actuation	Spindle type	Free speed RPM	Sound level dB(A)	Weight kg
1 Series	0.4 - 5.2	3.5 - 46	Lever	1/4"	1100	73	0.8
41 Series	2.6 - 14.7	23 - 130	Lever	3/8"	600	79	1.8
Q2 Angle Shut-Off	0.4 - 11.5	3.5 - 101.5	Lever	1/4"	1270	75	1.04
Q2 Angle Stall	11.6	102.3	Lever	1/4" & 3/8"	1270	75	0.7
QA4 Fixtured Inline Shut-off	6 - 46	4.4 - 33.9	Remote	3/8"	1050	79.3	1.5
QA4 Angle Shut-off	5 - 55	3.7 - 40.6	Lever	3/8" & 1/2"	1025	79.3	2.04

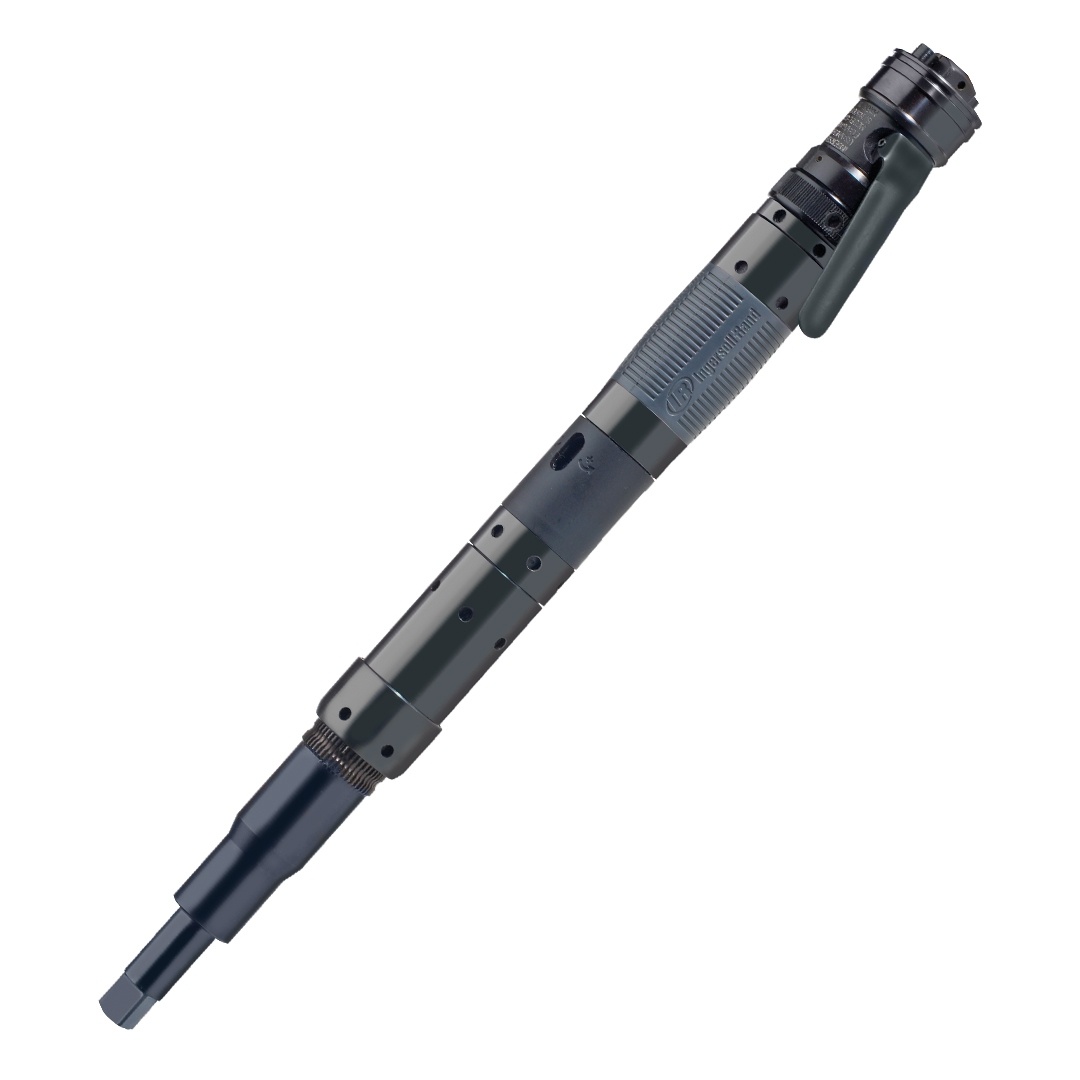

QA4 Inline Shut-off	6 - 46	4.4 - 33.9	Lever	1/4" & 3/8"	1050	79.3	1.5
QA6 Fixtured Inline Shut-off	12 - 55	8.9 - 40.6	Remote	3/8" & 1/2"	700	82.5	2.62
QA6 Angle Shut-off	15 - 90	11.1 - 66.4	Lever	3/8" & 1/2"	580	82.5	2.3
QA6 Inline Shut-off	12 - 55	8.9 - 40.6	Lever	3/8" & 1/2"	720	82.5	2.3
QA8 Fixtured Inline Shut-Off	20 - 180	14.8 - 132.8	Remote	3/8" & 1/2"	540	87	3.64
QA8 Fixtured Inline Stall	80 - 90	59 - 64	Remote	1/2"	230	87	3.42

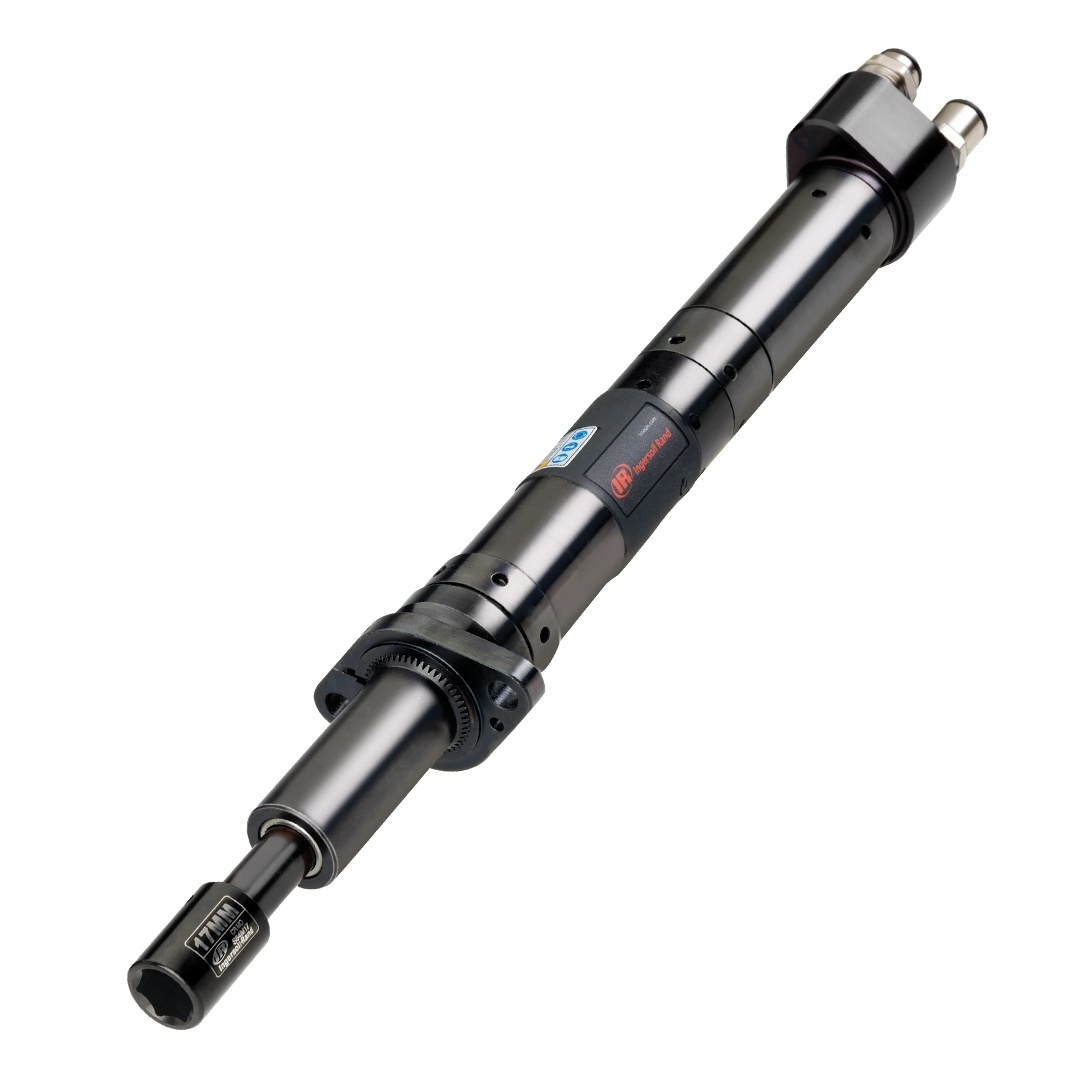

QA8 Angle Shut-off	20 - 225	14.8 - 166	Lever	3/8" & 1/2"	570	87	4.02
QA8 Inline Shut-off	20 - 180	14.8 - 132.8	Lever	3/8" & 1/2"	600	87	3.4
