Universal Tool product

Percussion Tools

Suitable for surface preparation applications, foundry, plant maintenance and general contractor work
A range of accessory items are available to enhance the performance and functionality of the percussion tools

Enquire now

Product Overview

The percussion tools from Universal Tool feature a complete line of air and chipping hammers, air saws, chisel and needle scalers.

Delivers up to 4600 blows per minute
Durable steel, aluminium or composite construction

Product resources

Percussion tools - Hammers Catalogue Pages

Percussion tools - Engraving Pens Catalogue Pages

Percussion tools - Reciprocating Saws Catalogue Pages

Percussion tools - Scalers Catalogue Pages

Model number	Blows per Minute	Stroke (in.)	Bore (in.)	Bushing	Vibration m/sec²	Hose ID (in.)	Air Inlet (in.)	Weight (kg)
UT8654R	1700	4.25	1-1/8"	.680 Round	6.7	1/2"	3/8"	9.5
UT8654H	1700	4.25	1-1/8"	.580 Hex	6.7	1/2"	3/8"	9.5
UT8653R	2100	3.75	1-1/8"	.680 Round	6.7	1/2"	3/8"	9.1
UT8653H	2100	3.75	1-1/8"	.580 Hex	6.7	1/2"	3/8"	9.5
UT8652R	2300	3.0"	1-1/8"	.680 Round	6.7	1/2"	3/8"	8.2
UT8652H	2300	3.0"	1-1/8"	.580 Hex	6.7	1/2"	3/8"	8.8
UT8651R	2450	2.5"	1-1/8"	.680 Round	6.7	1/2"	3/8"	8.2

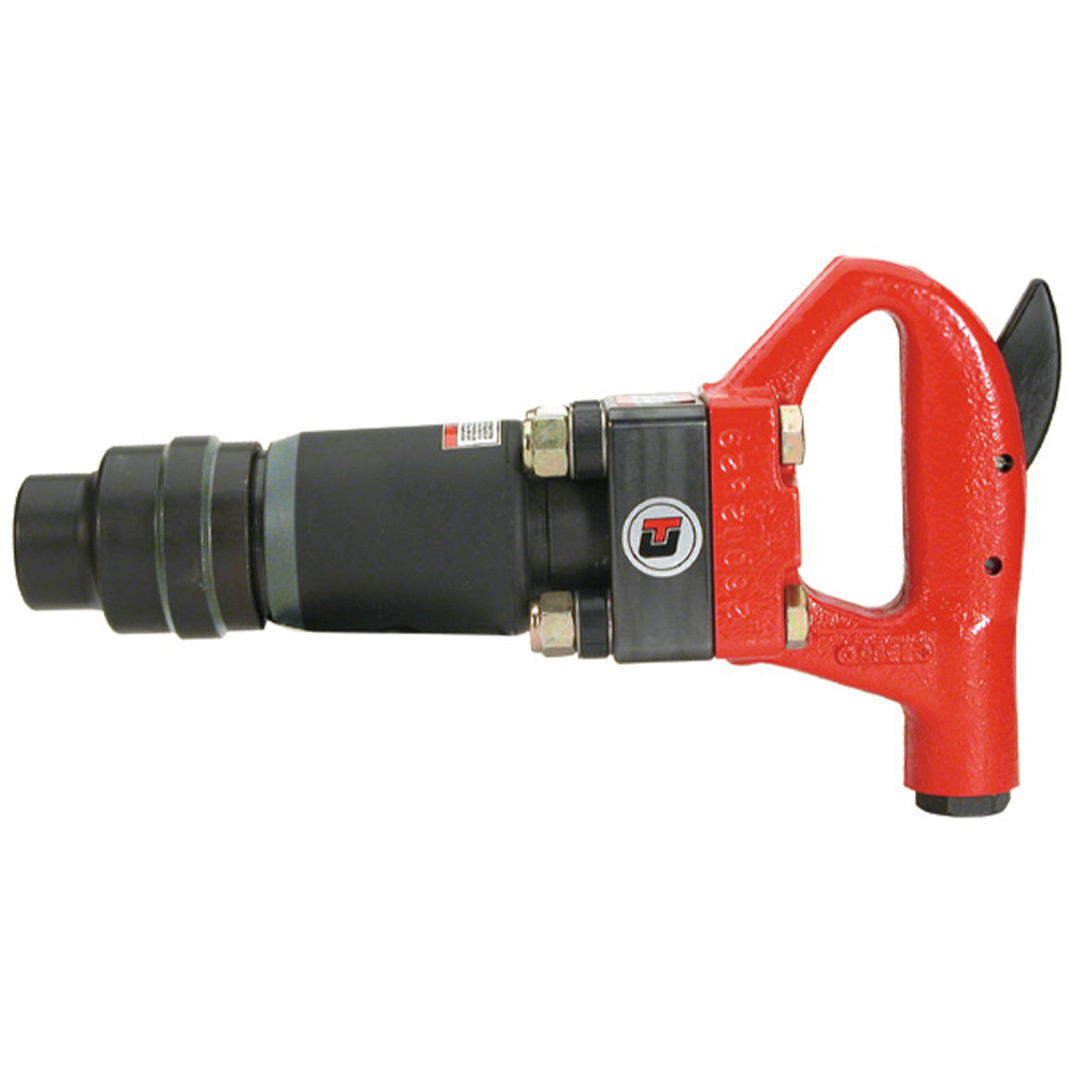

UT8651H	2450	2.5"	1-1/8"	.580 Hex	6.7	1/2"	3/8"	8.5

Model number	Length	Height	Width
UT8654R	502.92	173	132
UT8654H	502.92	173	132
UT8653R	502.92	132	173
UT8653H	222.25	476	114
UT8652R	502.92	132	173
UT8652H	482.6	132	165
UT8651R	502.92	173	132
UT8651H	222.25	127	425

Model number	Blows per Minute	Stroke (in.)	Bore (in.)	Bushing	Vibration m/sec²	Hose ID (in.)	Air Inlet (in.)	Weight (kg)
UT8664	1740	3-1/16"	1/2"	0.401"	5.8	3/8"	1/4"	1.4
UT8665-TC	2000	3-7/8'	1/2"	0.401"	21.25	3/8"	1/4"	2.0

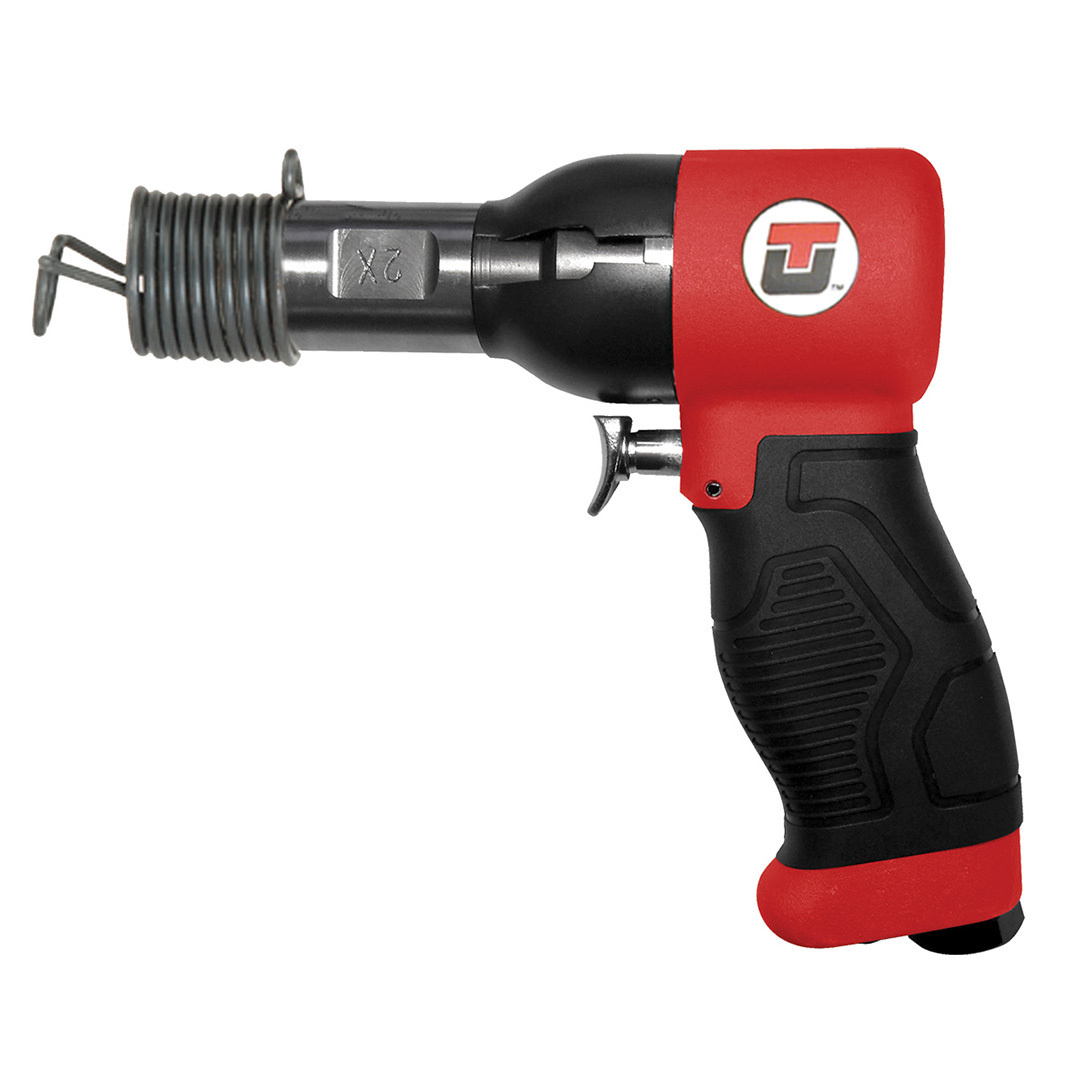

UT8663-TC	2160	2-7/8"	1/2"	0.401"	25.9	3/8"	1/4"	1.8
UT8663	2160	2-7/8"	1/2"	0.401"	5.6	3/8"	1/4"	1.3
UT8662-TC	2600	2-1/4"	1/2"	0.401"	13.65	3/8"	1/4"	1.2
UT9925	3700	2-1/2"	3/4"	0.401"	18.9	3/8"	1/4"	2.0
UT9925BK	3701	2-1/2"	3/4"	0.401"	18.9	3/8"	1/4"	3.0

Model number	Length	Height	Width
UT8664	213.36	53	152
UT8665-TC	304.8	76	178
UT8663-TC	304.8	76	178
UT8663	203.2	53	152
UT8662-TC	152.4	152	61
UT9925	215.9	51	127
UT9925BK	216.9	52	128

Model number	Needle Capacity	Blows per Minute	Bore / Stroke (in.)	Bushing	Vibration m/sec²	Hose ID (in.)	Air Inlet (in.)	Weight (kg)
UT53NG	28 x 3 mm	2700	-		18.6	3/8"	1/4"	5.3
UT002PGT	19 x 3 mm	3000	-		8.7	3/8"	1/4"	3.4
UT001T	12 x 3 mm	3700	-		8.5	3/8"	1/4"	1.98

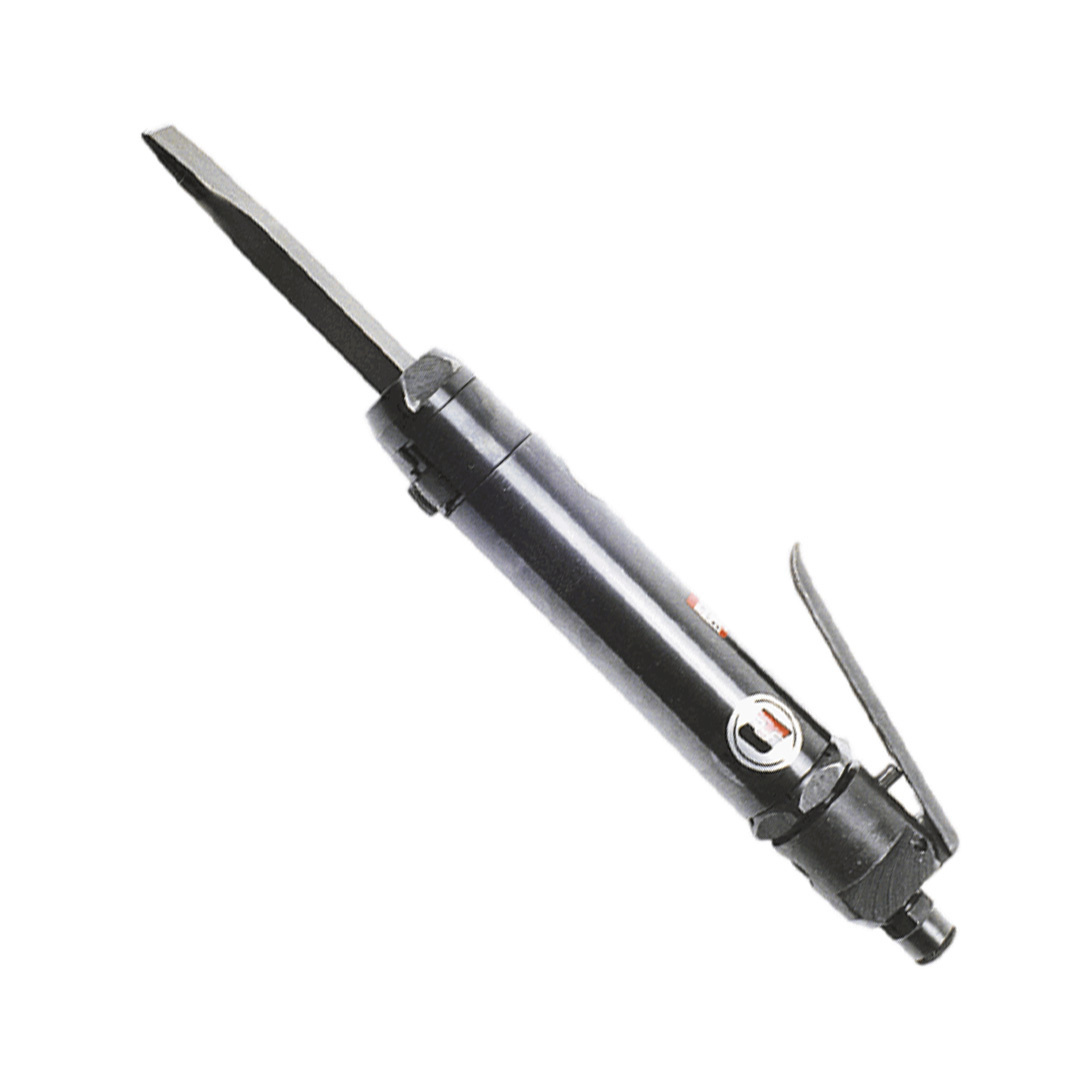

UT8630		4600	1" / 1-1/8"	1/2" Sq.	12.2	3/8"	1/4"	2.3

Model number	Length	Height	Width
UT53NG	546	86	215
UT002PGT	385	70	193
UT001T	387	45	83
UT8630	312.42	58	135

Model number	Capacity in steel (mm)	Capacity in aluminium (mm)	Strokes per Minute	Vibration m/sec²	Hose ID (in.)	Air Inlet (in.)	Weight (kg)
UT9155	5	6	5000	3.9	3/8"	1/4"	1.4
UT5922LV	-	2	10000	1.2	3/8"	1/4"	0.8

Model number	Length	Height	Width
UT9155	353	57	173
UT5922LV	286	45	82

Model number	Vibration m/sec²	Hose ID (in.)	Air Inlet (in.)	Weight (kg)
UT176RLW	< 2.5	3/8"	1/4"	0.7

Dimensions (mm)

Model number	Length	Height	Width
UT176RLW	217	54	132
