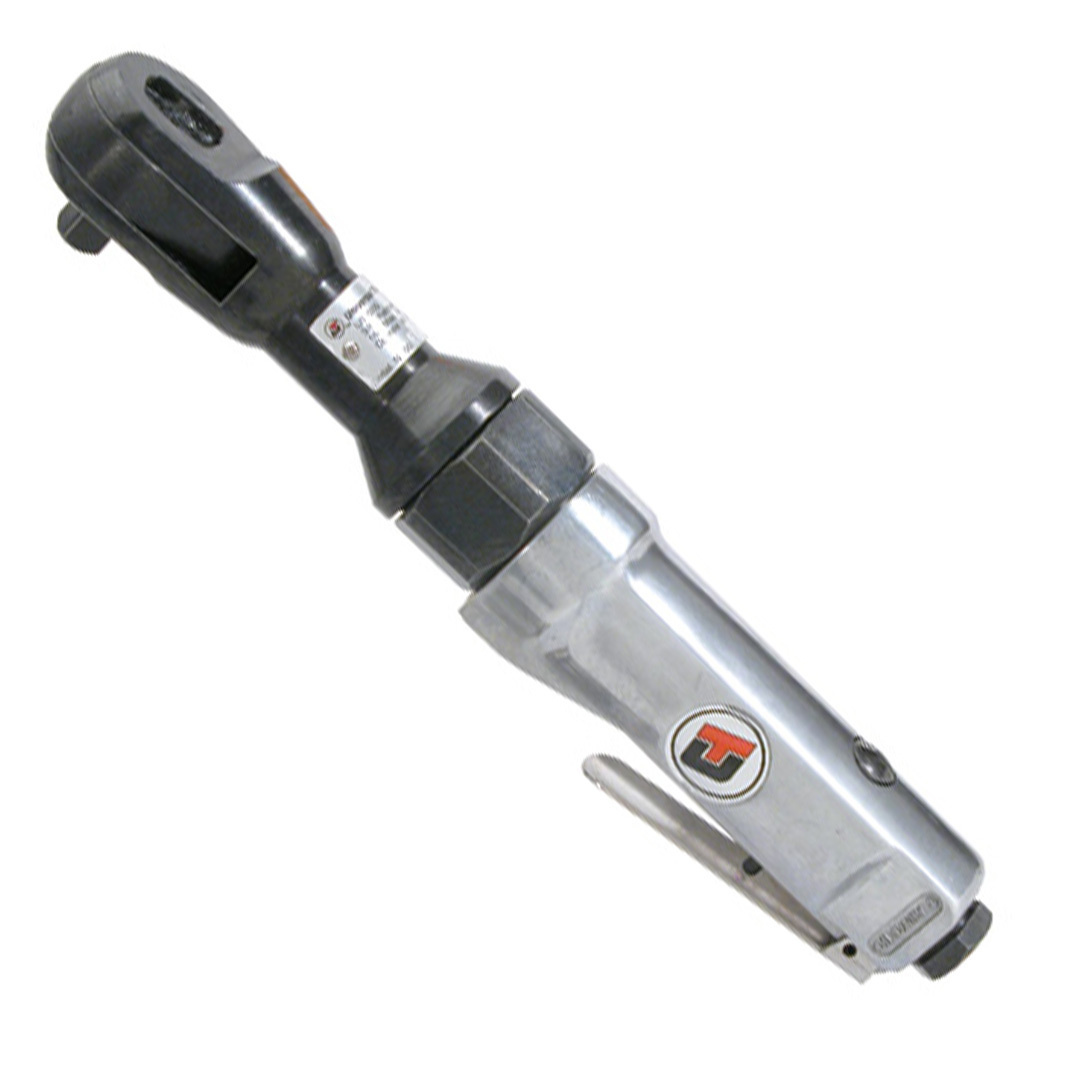

Universal Tool product
Ratchet Wrenches
- Lightweight with ergonomic grip offers ultimate operator comfort and reduced vibration
- Suitable for high-volume continuous assembly processes and aerospace applications as well as heavy duty and intermittent maintenance needs
Product Overview
The ratchet wrenches series from UT has been developed to offer square drives from 3/8" to 1/2" and covers heavy duty and intermittent MRO and vehicle service on higher torque fasteners and limited space applications.
- Torque range from 10 to 50 Nm
- Powerful 0.4 hp motor provides high torque
- Average air consumption 4 cfm
Product resources
Technical specifications
| Model number | Torque Range (ft.lb) | Motor (hp) | Speed (RPM) | Anvil (in) | Avg. Air Cons. (CFM) | Rec. Hose (ID- In) | Air Inlet (NPT) | Exhaust | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| UT2005-1 | 13-68 | 0.4 | 160 | 3/8" | 4 | 3/8" | 1/4" | Front | 1.4 |
| UT2005H-1 | 13-68 | 0.4 | 160 | 3/8" | 4 | 3/8" | 1/4" | Front | 1.4 |
Dimension
Dimensions (mm)
| Model number | Length | Height | Width |
|---|---|---|---|
| UT2005-1 | 295 | 64 | 71 |
| UT2005H-1 | 295 | 64 | 71 |
