Aircat product
Ratchets
- Ergonomic handle grip increases operator comfort
- Patented quiet tuned exhaust allows discharged air to pass without developing back pressure, thus retaining more power while significantly reducing noise
Product Overview
The air ratchets lineup from AIRCAT® offers a choice of lengths, drive sizes, and torque capabilities to meet your needs, making the range the broadest in the industry. Each tool is designed from high-grade materials with additional support bearings and superior internal mechanics and features an extra-large ratchet head for access to hard-to-reach fasteners.
- Maximum torque capacities up to 176 Nm
- Square drive sizes from 3/8" to 1/2"
- Free speeds up to 550 RPM
Product resources
Technical specifications
| Model number | Max. Torque (Nm) | Bolt Capacity (in) | Square Drive (in) | Free Speed RPM | Air Cons. (CFM) | Rec. Hose Size (in) | Air Inlet (in) | Vibration m/sec2 | Noise dBA | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 804 | 41 | 3/8 | 1/4 | 280 | 4 | 3/8 | 1/4 NPT | n/a | n/a | 0.70 |
| 808-15 | 41 | 1/2 | 3/8 | 200 | 4 | 3/8 | 1/4 NPT | 5.66 | 85.4 | 1.41 |

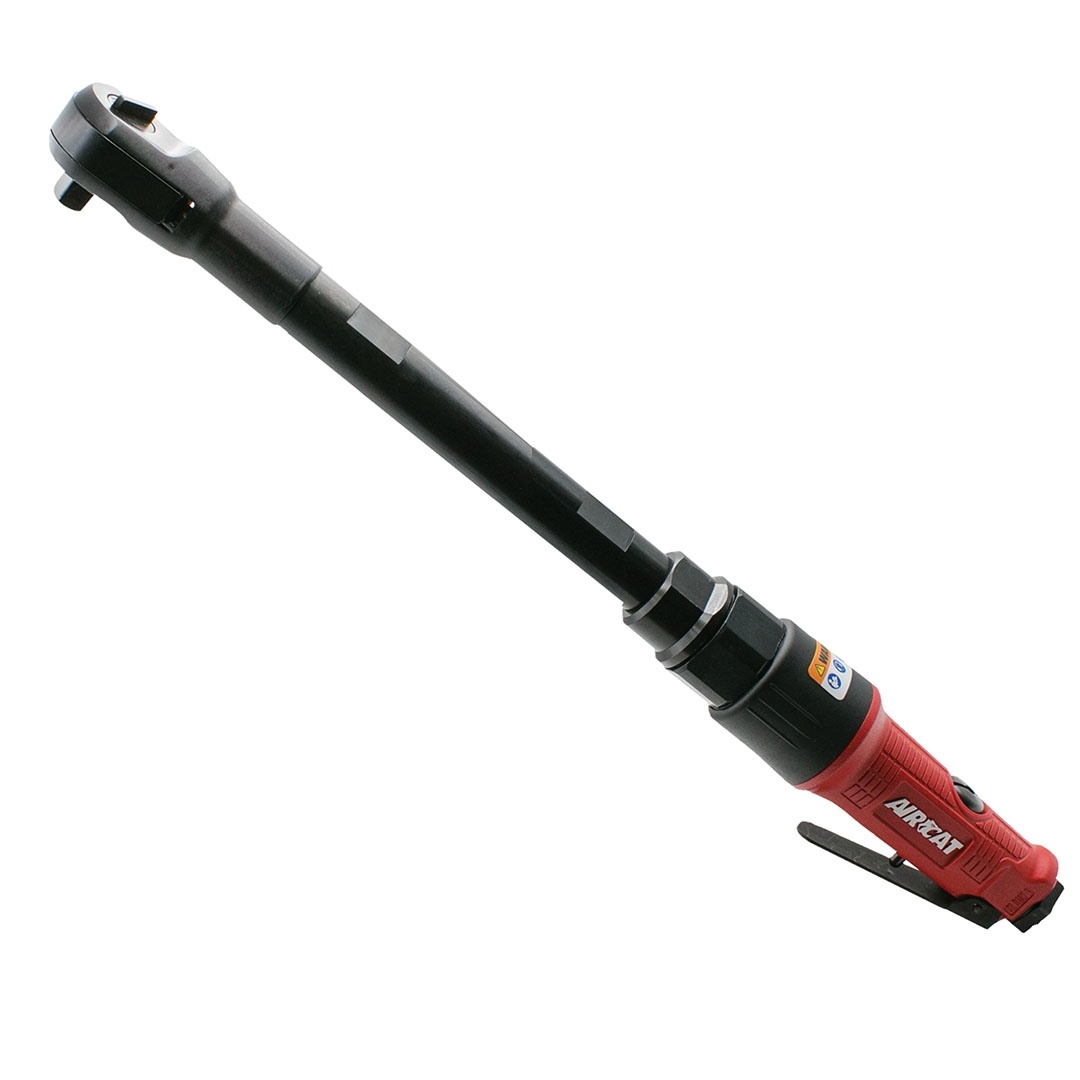

| 808-15-25 | 41 | 3/8 | 1/4 | 200 | 3 | 3/8 | 1/4 NPT | 5.66 | 85.4 | 1.41 |

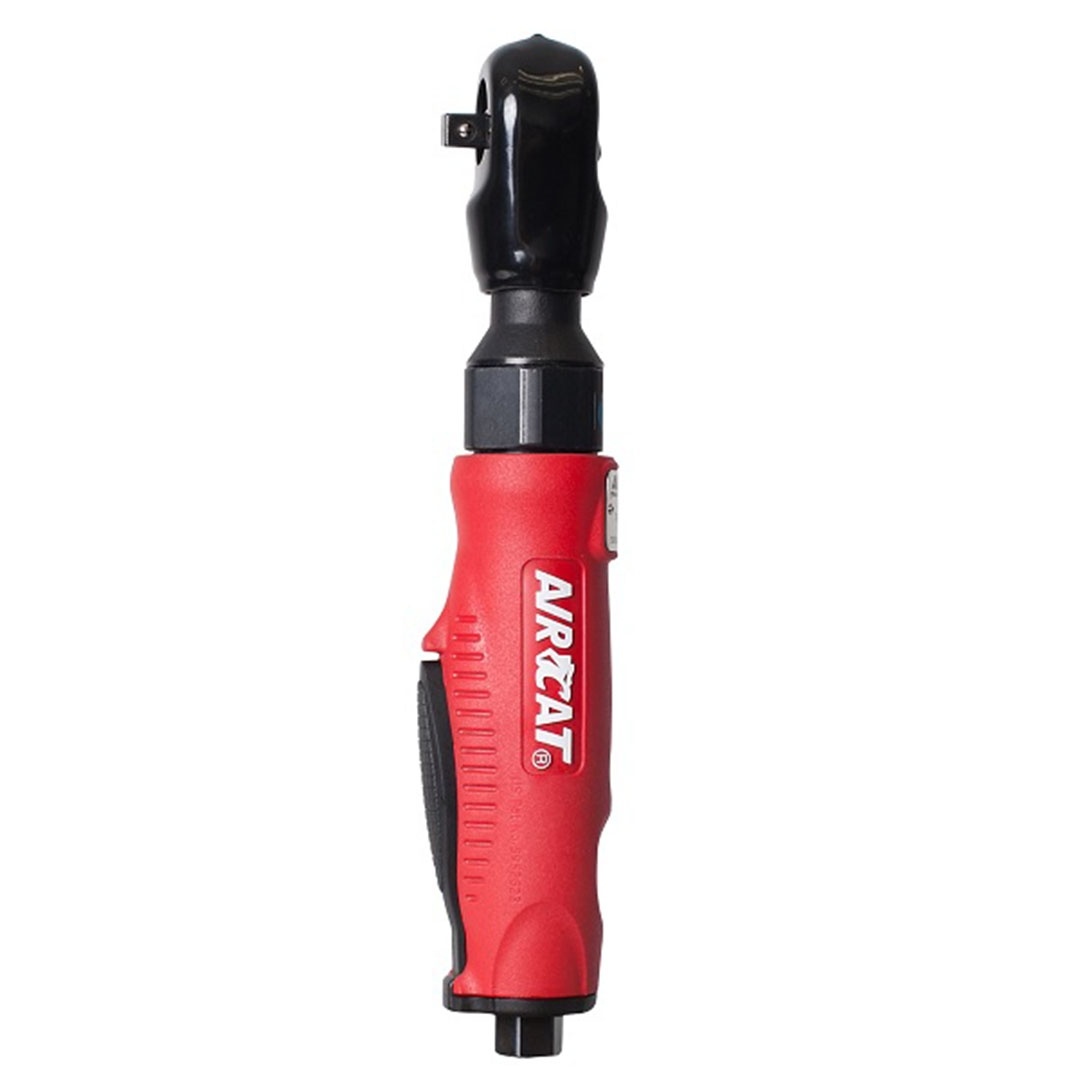

| 800 | 47 | 3/8 | 45383 | 320 | 4 | 3/8 | 1/4 NPT | 2.3 | 82.0 | 0.73 |
| 801 | 47 | 3/8 | 45507 | 320 | 4 | 3/8 | 1/4 NPT | 2.3 | 82.0 | 0.73 |
| 807 | 47 | 3/8 | 3/8 | 300 | 3 | 3/8 | 1/4 NPT | 5.7 | 81 | 0.50 |
| 807-25 | 47 | 3/8 | 1/4 | 300 | 3 | 3/8 | 1/4 NPT | 5.7 | 81 | 0.50 |
| 808-15-A | 47 | 1/2 | 3/8 | 200 | 3.5 | 3/8 | 1/4 NPT | 5.66 | 85.4 | 1.41 |
| 811 | 47 | 3/8 | 1/4 | 240 | 4 | 3/8 | 1/4 NPT | 2.3 | 76 | 0.83 |
| 810-RW | 68 | 3/8 | 3/8 | 550 | 4 | 3/8 | 1/4 NPT | 6.2 | 85 | 0.64 |
| 809-SH | 81 | 1/2 | 3/8 | 350 | 4 | 3/8 | 1/4 NPT | 3.2 | 89.3 | 1.50 |

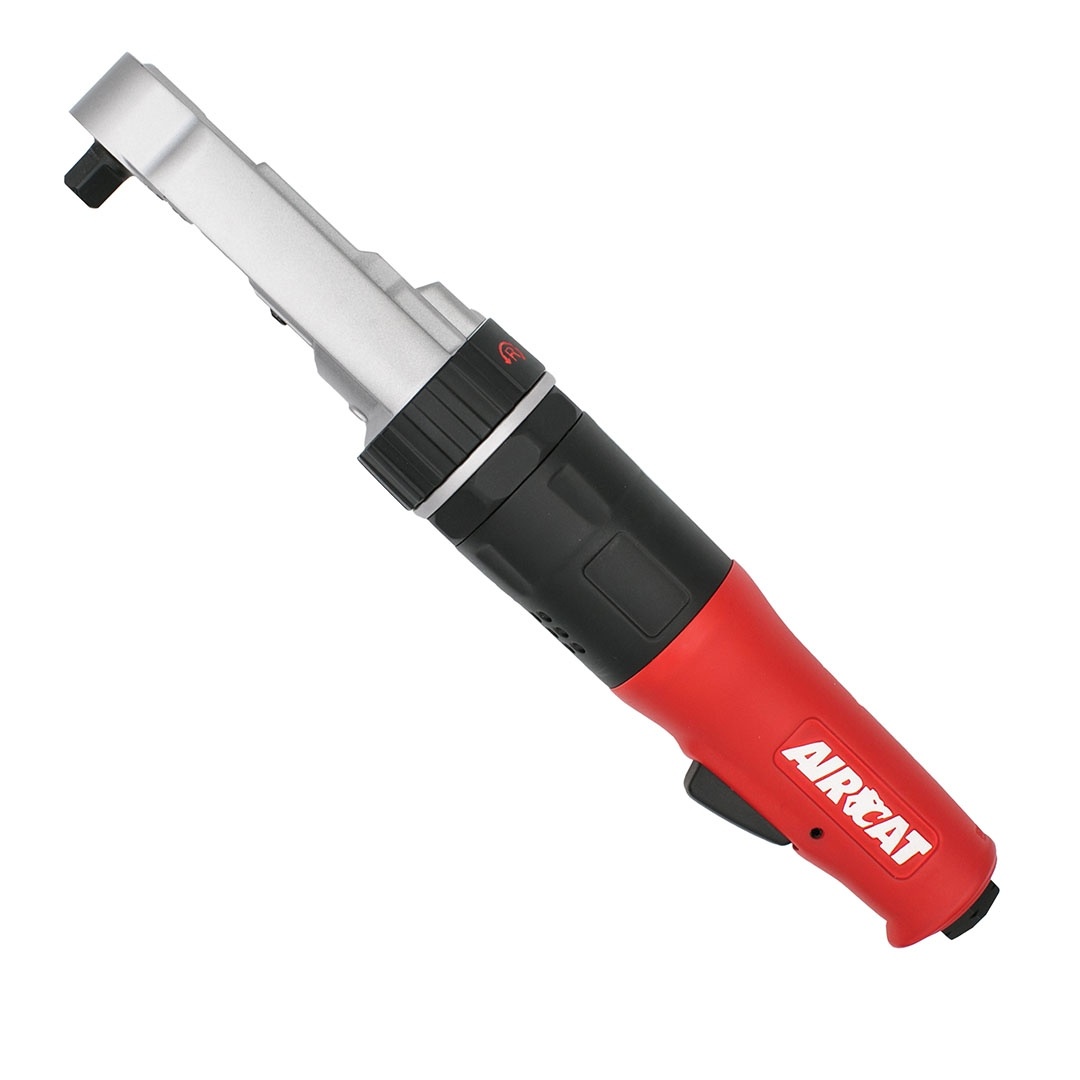

| 809-SH-5 | 81 | 1/2 | 1/2 | 350 | 4 | 3/8 | 1/4 NPT | 3.2 | 89.3 | 1.32 |
| 808-22 | 88 | 1/2 | 3/8 | 160 | 3 | 3/8 | 1/4 NPT | 6 | 92 | 2.06 |
| 802 | 95 | 3/8 | 3/8 | 280 | 4 | 3/8 | 1/4 NPT | 3.2 | 82 | 1.25 |
| 802-5 | 95 | 3/8 | 3/8 | 280 | 4 | 3/8 | 1/4 NPT | 3.2 | 82 | 1.18 |

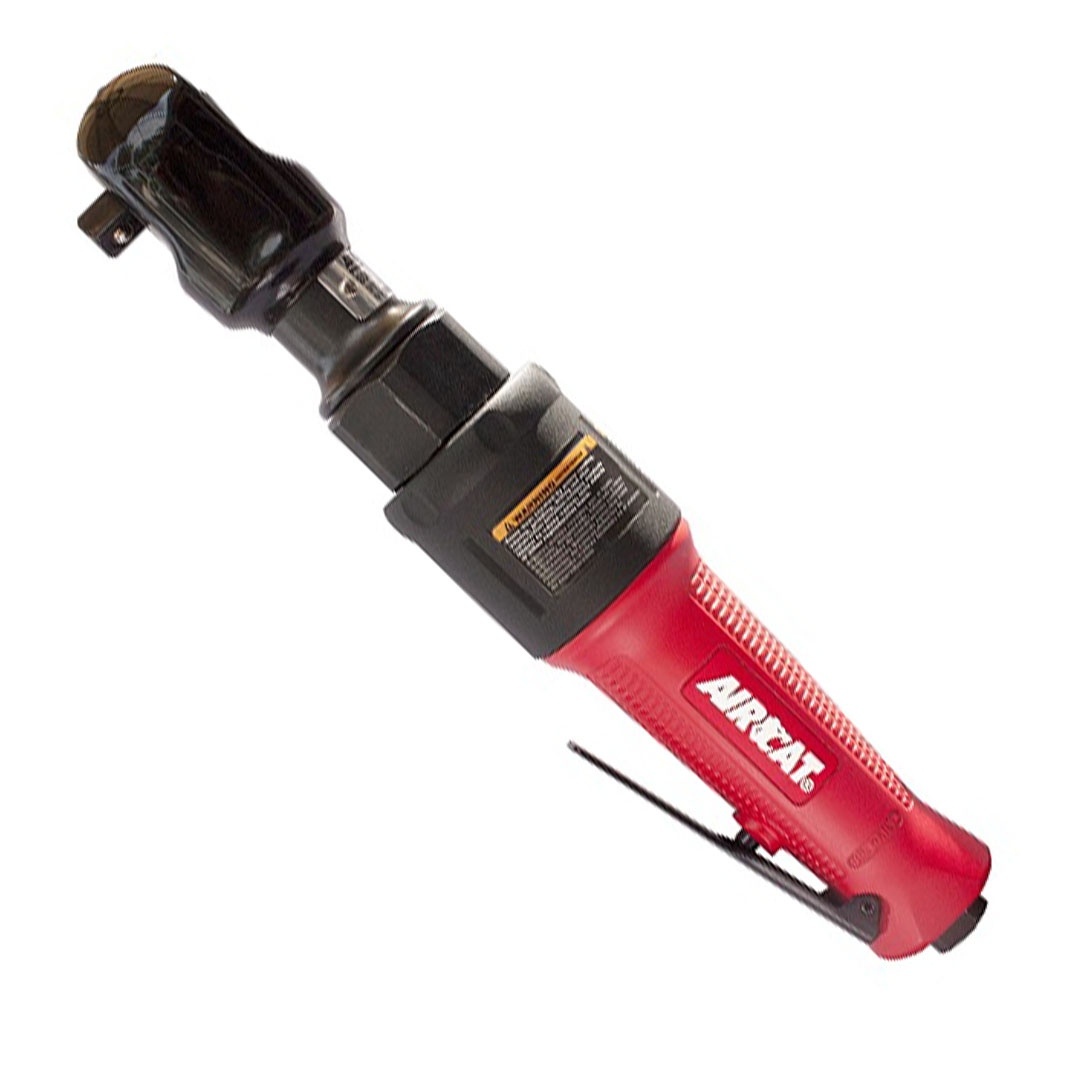

| 806 | 108 | 1/2 | 3/8 | 200 | 4 | 3/8 | 1/4 NPT | 5 | 88 | 1.14 |
| 805-HT | 176 | 5/8 | 3/8 | 180 | 6 | 3/8 | 1/4 NPT | 6.6 | 84 | 1.50 |

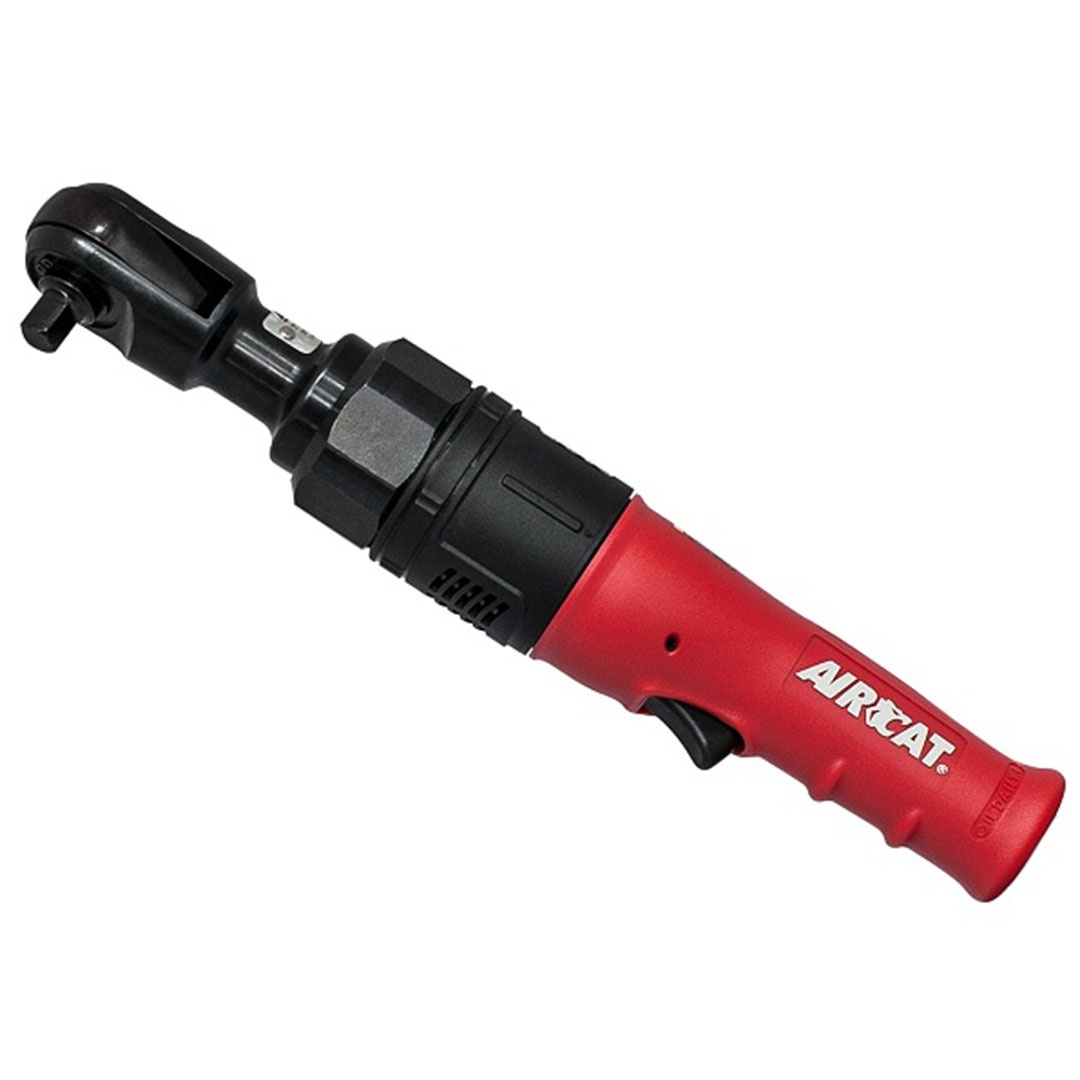

| 805-HT-5 | 176 | 1/2 | 1/2 | 180 | 6 | 3/8 | 1/4 NPT | 6.6 | 84 | 1.45 |
| 805-HT-22 | 176 | 5/8 | 3/8 | 200 | 4 | 3/8 | 1/4 NPT | 6.6 | 84 | 2.35 |
| 805-HT-22-5 | 176 | 1/2 | 1/2 | 200 | 4 | 3/8 | 1/4 NPT | 6.6 | 84 | 2.35 |
Dimension
Dimensions (mm)
| Model number | Length | Width | Height |
|---|---|---|---|
| 804 | 181.61 | 38.1 | 38.1 |
| 808-15 | 388.62 | 33.02 | 50.8 |
| 808-15-25 | 388.62 | 33.02 | 50.8 |
| 800 | 215.90 | 38.10 | 38.10 |
| 801 | 215.90 | 38.10 | 38.10 |
| 807 | 137.16 | 35.56 | 35.56 |
| 807-25 | 137.16 | 35.56 | 35.56 |
| 808-15-A | 388.62 | 33.02 | 50.8 |
| 811 | 246.126 | 43.18 | 43.18 |
| 810-RW | 160.02 | 36.83 | 39.37 |
| 809-SH | 316.23 | 45.72 | 45.72 |
| 809-SH-5 | 314.96 | 45.72 | 45.72 |
| 808-22 | 571.5 | 45.72 | 53.34 |
| 802 | 266.7 | 43.18 | 53.34 |
| 802-5 | 276.86 | 43.18 | 53.34 |
| 806 | 276.86 | 48.26 | 48.26 |
| 805-HT | 316.23 | 53.34 | 53.34 |
| 805-HT-5 | 320.04 | 53.34 | 53.34 |
| 805-HT-22 | 548.64 | 53.34 | 53.34 |
| 805-HT-22-5 | 548.64 | 53.34 | 53.34 |
