Aircat product
Sanders and Polishers
- Ergonomic composite grips and handles provide lower weight and added comfort for the operator
- Low profile design and patented anti-vibration motor reduces vibration levels
Product Overview
The AIRCAT® selection of sanders and polishers have been designed to meet the latest market requirements for ultra-fine paint finishing and spot repair work. These tools feature a patented motor design that is double-sealed to eliminate any dust contamination of internal parts and reduce vibration to 1.8 m/s2.
AIRCAT® sanders can be used lubrication-free, the first of its kind, eliminating any oil mist contamination of the work surface.
- Choice of pad sizes from 1 1/4" to 8"
- Free speed up to 16,000 RPM
- Low noise levels up to 88 dbA
Product resources
Technical specifications
| Modelnumber | Free Speed RPM | Pad Size (in) | Pad Thread (in.) | Exhaust | Orbit Off-set (in) | Air Consumption (CFM) | Rec. Hose Size (in) | Air Inlet (in) | Vibration m/sec2 | Noise dbA | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|

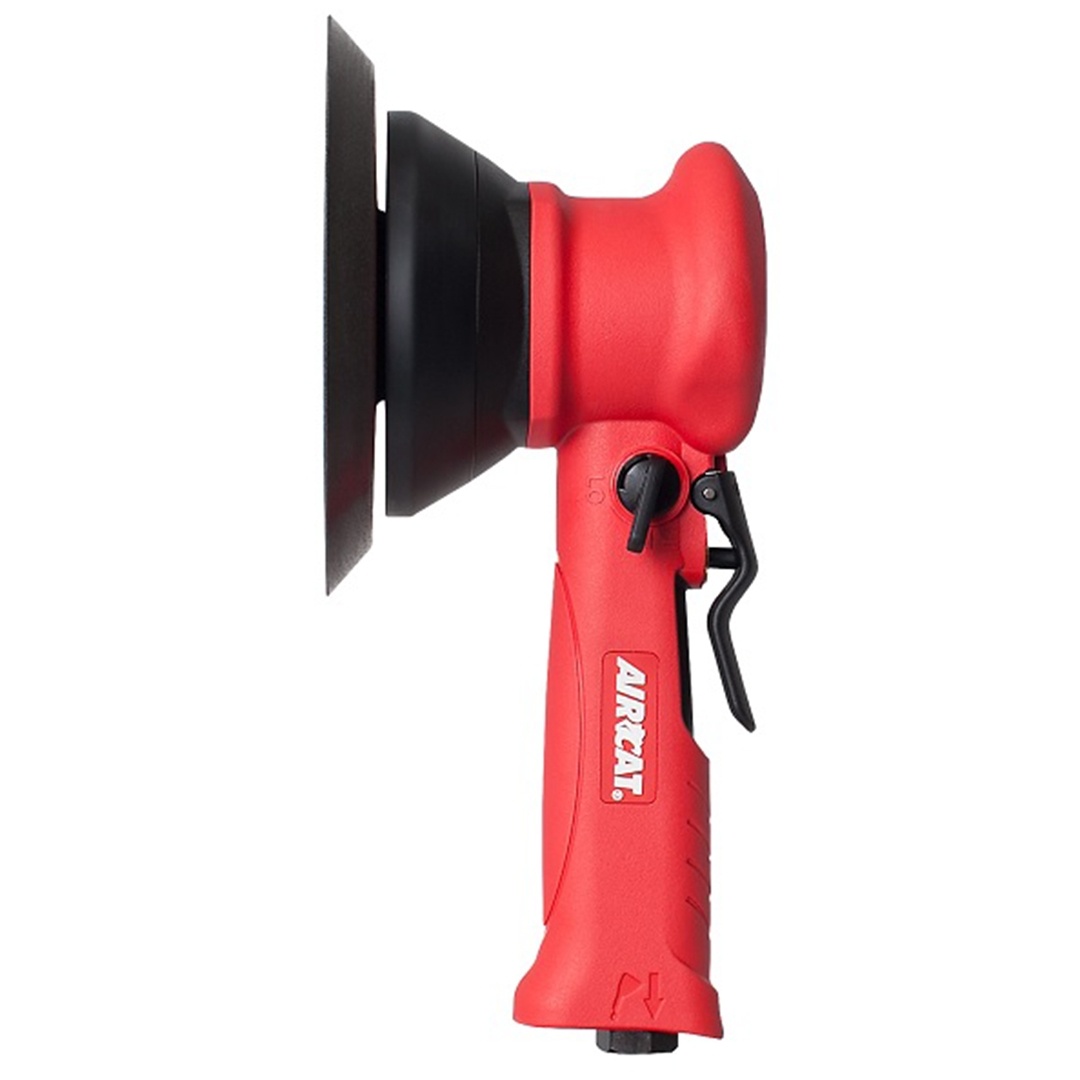

| 6310 | 10,000 | 6 | 5/16 - 24 | Rear | 3/16 | 2.5 | 3/8 | 1/4 NPT | 1.8 | 82.0 | 1.02 |
| 6315-K | 16,000 | 2" & 3" | 5/16 - 24 | Handle | N/A | 2.0 | 3/8 | 1/4 NPT | 3.3 | 88.0 | 0.72 |
| 6315 | 16,000 | 2" & 3" | 5/16 - 24 | Handle | N/A | 2.0 | 3/8 | 1/4 NPT | 3.3 | 88.0 | 0.72 |
| 6320 | 13,000 | 1-1/4, 2, Triangle | 1/4" | Rear | 1/8 | 2.5 | 3/8 | 1/4 NPT | 1.8 | 78.0 | 0.55 |
| 6700-JBS-332 | 10,000 | 7.75 x 2.75 | N/A | Rear | 3/32 | 9 | 3/8 | 1/4 NPT | 80 | 1.14 | |
| 6700-1-332 | 8,000 | 1 | 5/16 X 24 | Rear | 3/32" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.59 |
| 6700-5-336 | 11,000 | 5 | 5/16 X 24 | Rear | 3/16" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.82 |
| 6700-6-336 | 11,000 | 6 | 5/16 X 24 | Rear | 3/16" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.82 |

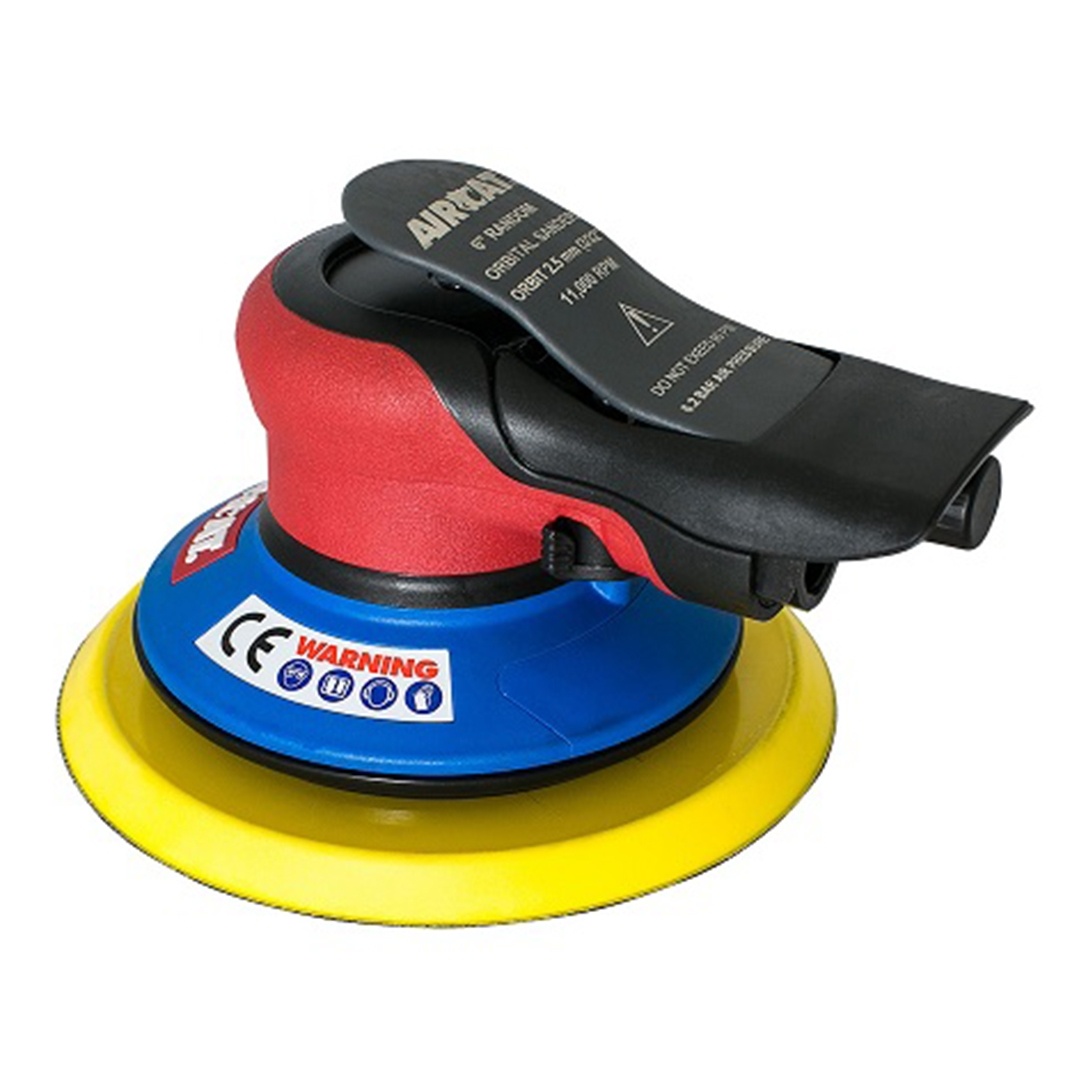

| 6700-6-332 | 11,000 | 6 | 5/16 X 24 | Rear | 3/32" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.82 |

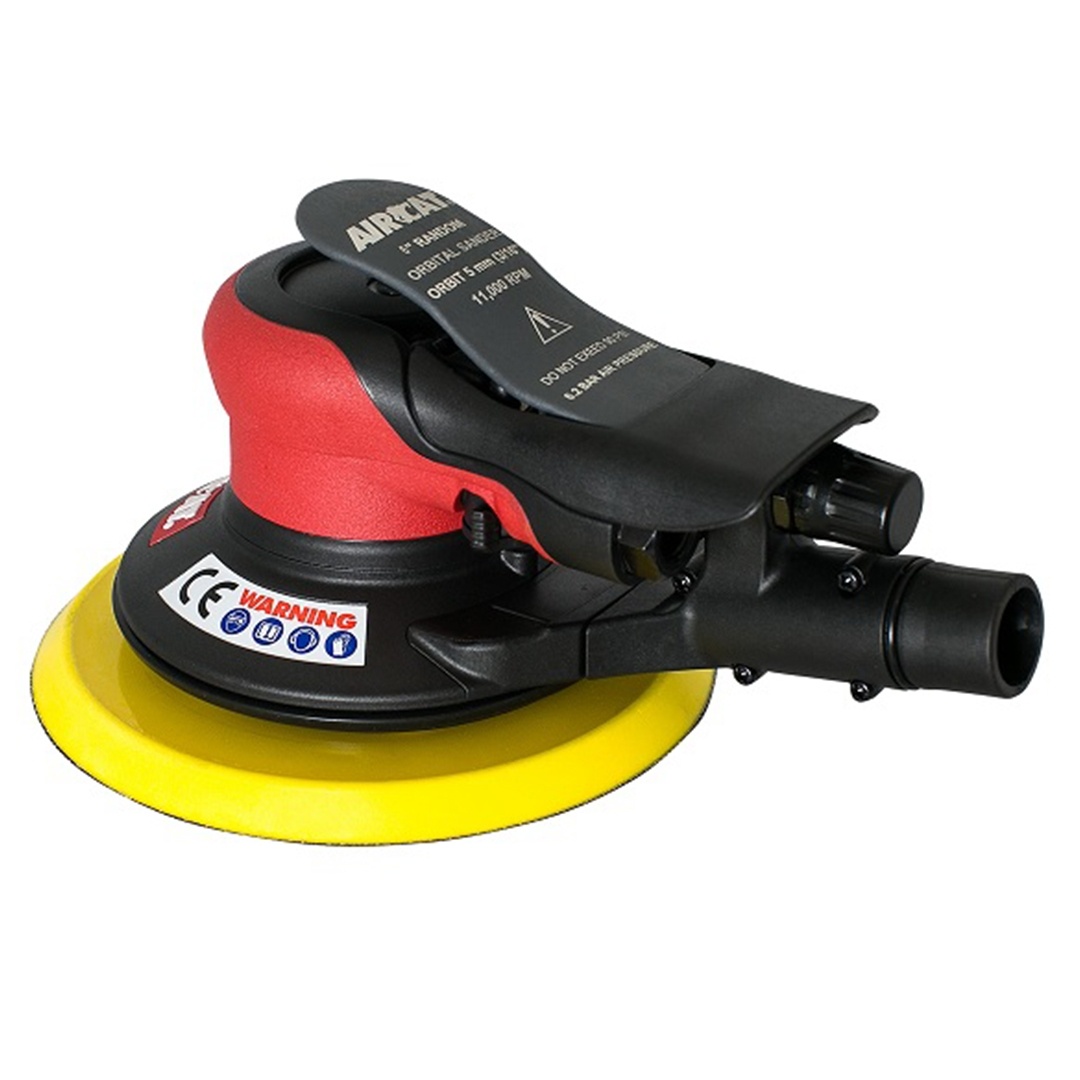

| 6700-5-336CV | 11,000 | 5 | 5/16 X 24 | Rear | 3/16" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.86 |
| 6700-6-336CV | 11,000 | 6 | 5/16 X 24 | Rear | 3/16" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.86 |
| 6700-6-332CV | 11,000 | 6 | 5/16 X 24 | Rear | 3/32" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.86 |
| 6700-6-336SV | 11,000 | 6 | 5/16 X 24 | Rear | 3/16" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.86 |
| 6700-6-332SV | 11,000 | 6 | 5/16 X 24 | Rear | 3/32" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.86 |
| 6700-3-336 | 11,000 | 3 | 5/16 X 24 | Rear | 3/32" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.59 |
| 6700-3-336CV | 11,000 | 3 | 5/16 X 24 | Rear | 3/32" | 1.6 | 3/8 | 1/4 NPT | 0.8 | 75 | 0.59 |

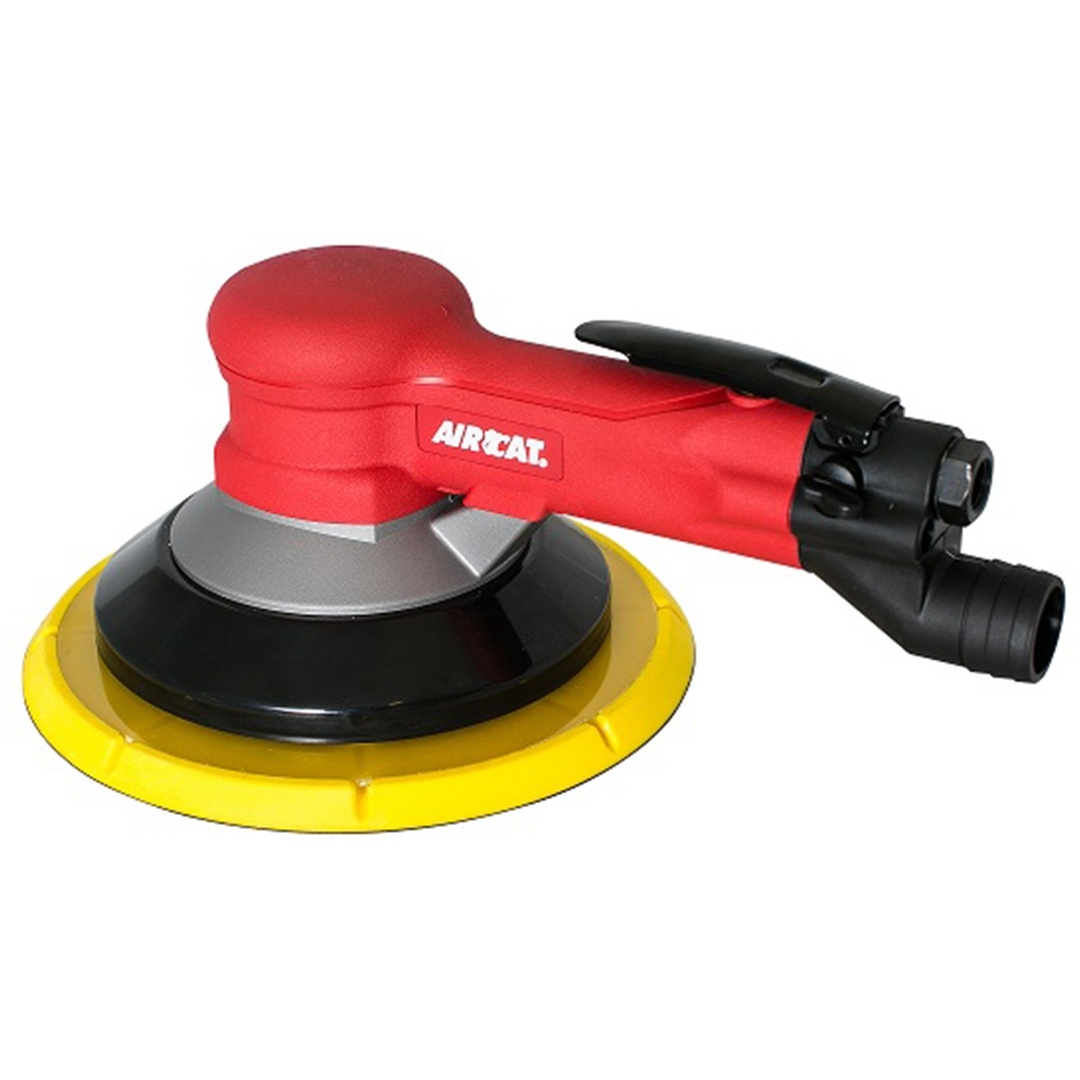

| 6700-8GCV | 900 | 8 | 5/16 X 24 | Rear | 3/16" | 3 | 3/8 | 1/4 NPT | 2.5 | 78 | 1.77 |
| 6700-6GCV | 900 | 6 | 5/16 X 24 | Rear | 3/16" | 3 | 3/8 | 1/4 NPT | 2.5 | 78 | 1.64 |
Dimension
Dimensions (mm)
| Model number | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|
| 6310 | 266.70 | 144.78 | 106.68 |
| 6315-K | 132.08 | 40.64 | 144.78 |
| 6315 | 132.08 | 40.64 | 144.78 |
| 6320 | 154.94 | 38.10 | 60.96 |
| 6700-JBS-332 | 196.85 | 73.66 | 105.41 |
| 6700-1-332 | 139.70 | 71.12 | 114.30 |
| 6700-5-336 | 160.02 | 124.46 | 114.30 |
| 6700-6-336 | 180.34 | 149.86 | 114.30 |
| 6700-6-332 | 180.34 | 149.86 | 114.30 |
| 6700-5-336CV | 210.82 | 124.46 | 114.30 |
| 6700-6-336CV | 226.06 | 149.86 | 114.30 |
| 6700-6-332CV | 226.06 | 149.86 | 114.30 |
| 6700-6-336SV | 226.06 | 149.86 | 114.30 |
| 6700-6-332SV | 226.06 | 149.86 | 114.30 |
| 6700-3-336 | 144.78 | 76.20 | 114.30 |
| 6700-3-336CV | 185.42 | 76.20 | 114.30 |
| 6700-8GCV | 284.48 | 200.66 | 114.30 |
| 6700-6GCV | 279.40 | 149.86 | 114.30 |
