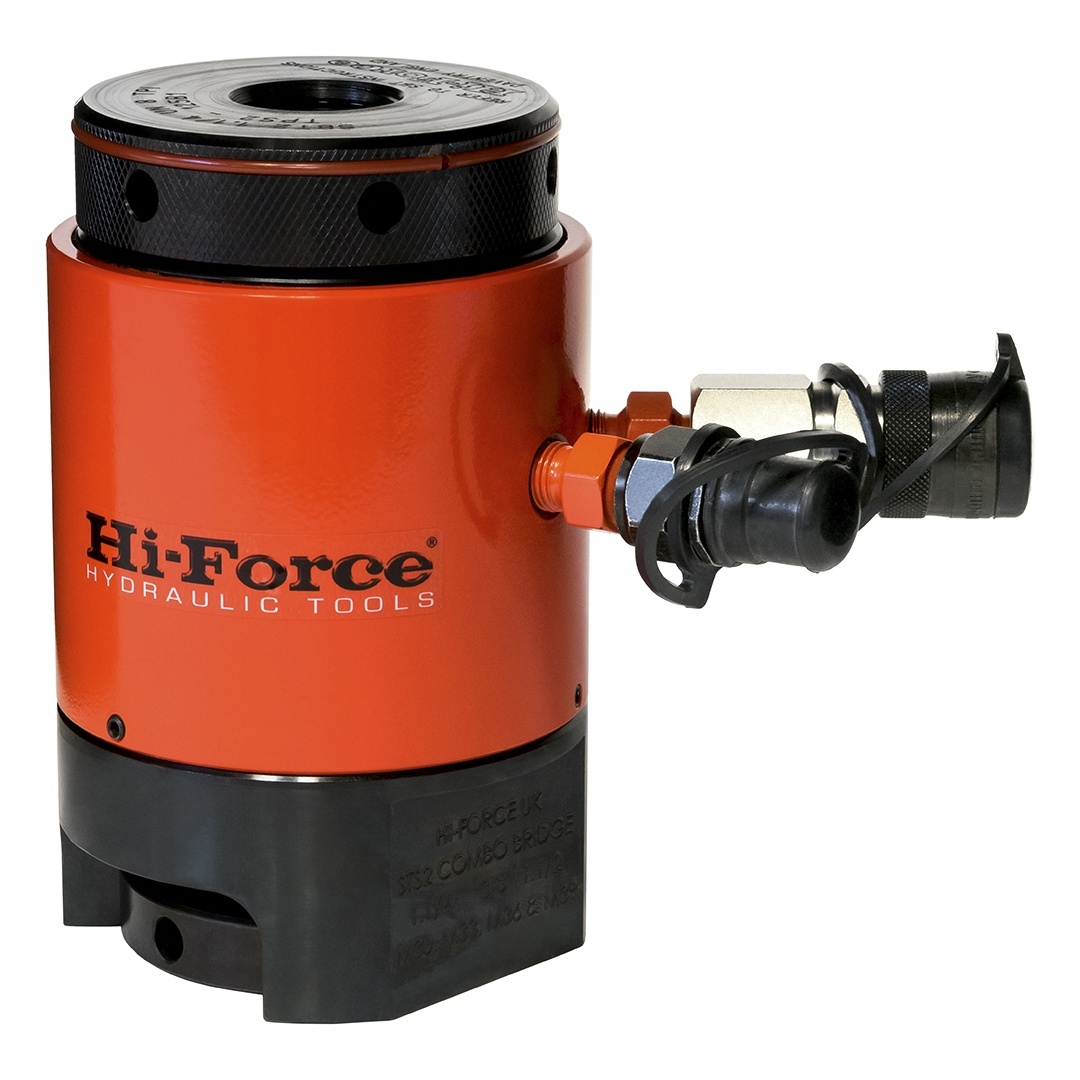

SBT Range - Imperial
Spring Return Topside Bolt Tensioners - Imperial
- Single acting design with spring assisted return
- High grade alloy steel construction
- Nitrocarburised piston
- Maximum piston stroke indicator
Product Overview
The SBT imperial range of hydraulic bolt tensioners is designed primarily for topside operations and features spring assisted return hydraulic piston which reduces bolt tensioning cycle times considerably. Once the hydraulic pressure is released, the tensioner piston automatically starts to retract, thus removing the need to manually wind down the threaded puller. The range currently comprises of 22 models, suitable for standard size bolts from 1¼” to 4” diameter.
- Capacities from 457 to 2649 kN
- Bolt sizes from 1¼" to 4" diameter
- Maximum working pressure 1500 bar
Product resources
Technical specifications
| Model Number | Bolt Thread Size | Threads per Inch | Capacity | Effective area cm2 | Stroke mm | Weight kg | |
|---|---|---|---|---|---|---|---|
| kN | tonnes | ||||||
| SBT2-125B1 | 1 1/4" | 8 | 457 | 46.6 | 30.5 | 15 | 4.0 |
| SBT2-137B1 | 1 3/8" | 8 | 457 | 46.6 | 30.5 | 15 | 4.0 |
| SBT2-150B1 | 1 1/2" | 8 | 457 | 46.6 | 30.5 | 15 | 4.0 |
| SBT3-162B1 | 1 5/8" | 8 | 822 | 83.8 | 54.8 | 15 | 6.7 |
| SBT3-175B1 | 1 3/4" | 8 | 822 | 83.8 | 54.8 | 15 | 6.7 |
| SBT3-175B2 | 1 3/4" | 8 | 822 | 83.8 | 54.8 | 15 | 6.7 |
| SBT3-187B1 | 1 7/8" | 8 | 822 | 83.8 | 54.8 | 15 | 6.7 |
| SBT3-187B2 | 1 7/8" | 8 | 822 | 83.8 | 54.8 | 15 | 6.7 |
| SBT3-200B2 | 2" | 8 | 822 | 83.8 | 54.8 | 15 | 6.7 |
| SBT4-187B1 | 1 7/8" | 8 | 1264 | 128.9 | 84.3 | 15 | 11.0 |
| SBT4-200B1 | 2" | 8 | 1264 | 128.9 | 84.3 | 15 | 11.0 |
| SBT4-200B2 | 2" | 8 | 1264 | 128.9 | 84.3 | 15 | 11.0 |
| SBT4-225B2 | 2 1/4" | 8 | 1264 | 128.9 | 84.3 | 15 | 11.0 |
| SBT4-250B2 | 2 1/2" | 8 | 1264 | 128.9 | 84.3 | 15 | 11.0 |
| SBT5-250B1 | 2 1/2" | 8 | 1833 | 186.9 | 122.2 | 15 | 16.5 |
| SBT5-275B1 | 2 3/4" | 8 | 1833 | 186.9 | 122.2 | 15 | 16.5 |
| SBT5-300B1 | 3" | 8 | 1833 | 186.9 | 122.2 | 15 | 16.5 |
| SBT6-300B1 | 3" | 8 | 2649 | 270 | 176.6 | 15 | 24.0 |
| SBT6-325B1 | 3 1/4" | 8 | 2649 | 270 | 176.6 | 15 | 24.0 |
| SBT6-350B1 | 3 1/2" | 8 | 2649 | 270 | 176.6 | 15 | 24.0 |
| SBT6-375B3 | 3 3/4" | 8 | 2649 | 270 | 176.6 | 15 | 24.0 |
| SBT6-400B3 | 4" | 8 | 2649 | 270 | 176.6 | 15 | 24.0 |
Note: Weight is for load cell and bridge only. Total weight of complete assembly depends on size of puller and nut rotating socket selected. Tommy bars are not included. Hi-Force recommends one tommy bar for every four tensioners.
Tommy Bar
| Tensioner Range | Tommy Bar |
|---|---|
| SBT2 | TTB08 |
| SBT3 | TTB10 |
| SBT4 | TTB10 |
| SBT5 | TTB14 |
| SBT6 | TTB14 |
Dimension
Dimesnions (mm)
| Model Number | ||||||
|---|---|---|---|---|---|---|
| A | B | C min | D | E | F | |
| SBT2-125B1 | 102 | 39 | 127 | 164 | 91 | 74 |
| SBT2-137B1 | 102 | 39 | 127 | 164 | 91 | 77 |
| SBT2-150B1 | 102 | 39 | 123 | 164 | 91 | 80 |
| SBT3-162B1 | 137 | 47 | 146 | 188 | 94 | 92 |
| SBT3-175B1 | 137 | 47 | 143 | 188 | 94 | 93 |
| SBT3-175B2 | 137 | 50 | 148 | 193 | 94 | 94 |
| SBT3-187B1 | 137 | 47 | 139 | 188 | 94 | 97 |
| SBT3-187B2 | 137 | 50 | 144 | 193 | 94 | 104 |
| SBT3-200B2 | 137 | 50 | 141 | 193 | 94 | 104 |
| SBT4-187B1 | 167 | 50 | 147 | 197 | 97 | 104 |
| SBT4-200B1 | 167 | 50 | 143 | 197 | 97 | 104 |
| SBT4-200B2 | 167 | 62 | 155 | 213 | 97 | 106 |
| SBT4-225B2 | 167 | 62 | 150 | 213 | 97 | 121 |
| SBT4-250B2 | 167 | 62 | 145 | 213 | 97 | 127 |
| SBT5-250B1 | 209 | 73 | 162 | 229 | 102 | 134 |
| SBT5-275B1 | 209 | 73 | 156 | 229 | 102 | 140 |
| SBT5-300B1 | 209 | 73 | 149 | 229 | 102 | 147 |
| SBT6-300B1 | 246 | 84 | 174 | 254 | 103 | 161 |
| SBT6-325B1 | 246 | 84 | 169 | 254 | 103 | 167 |
| SBT6-350B1 | 246 | 84 | 162 | 254 | 103 | 172 |
| SBT6-375B3 | 246 | 105 | 194 | 295 | 103 | 191 |
| SBT6-400B3 | 246 | 105 | 189 | 295 | 103 | 196 |
