Screwdrivers
- Choice of clutch mechanisms designed to cover a range of applications from high volume self-tapping assembly to general duty light assembly as well as torqueing of non-critical fasteners
- Speeds from 250 to 9500 RPM
Product Overview
The Universal Tool line of screwdrivers features a selection of automatic shut-off models, in-pistol, straight and "Air on Top" configurations; as well as pistol grip positive drive and direct drive models.
Featuring a precision ported throttle design for added control and the "Softouch" ergonomic coating for insulation and reduced vibration, the range covers the needs of high-volume continuous assembly processes, airframe and aerospace applications as well as intermittent MRO uses.
- 0.3 to 0.65 hp motor options for stall resistance and optimum torque
- Torque range from 0.3 to 271 Nm
- Chuck size 1/4" Hex Q.C.
Product resources
Technical specifications
| Model number | Torque (Nm) | Chuck Size (in.) | Avg Air Cons (CFM) | Motor (hp) | Speed (RPM) | Rec'd Hose Size (ID-in.) | Air Inlet (in.) | Weight (kg) |
| UT8931 | 0.3-2.5 | 1/4" Hex QC | 9 | 0.3 | 1700 | 3/8" | 1/4" | 0.8 |
| UT8932 | 0.5-3.0 | 1/4" Hex QC | 9 | 0.3 | 900 | 3/8" | 1/4" | 0.8 |

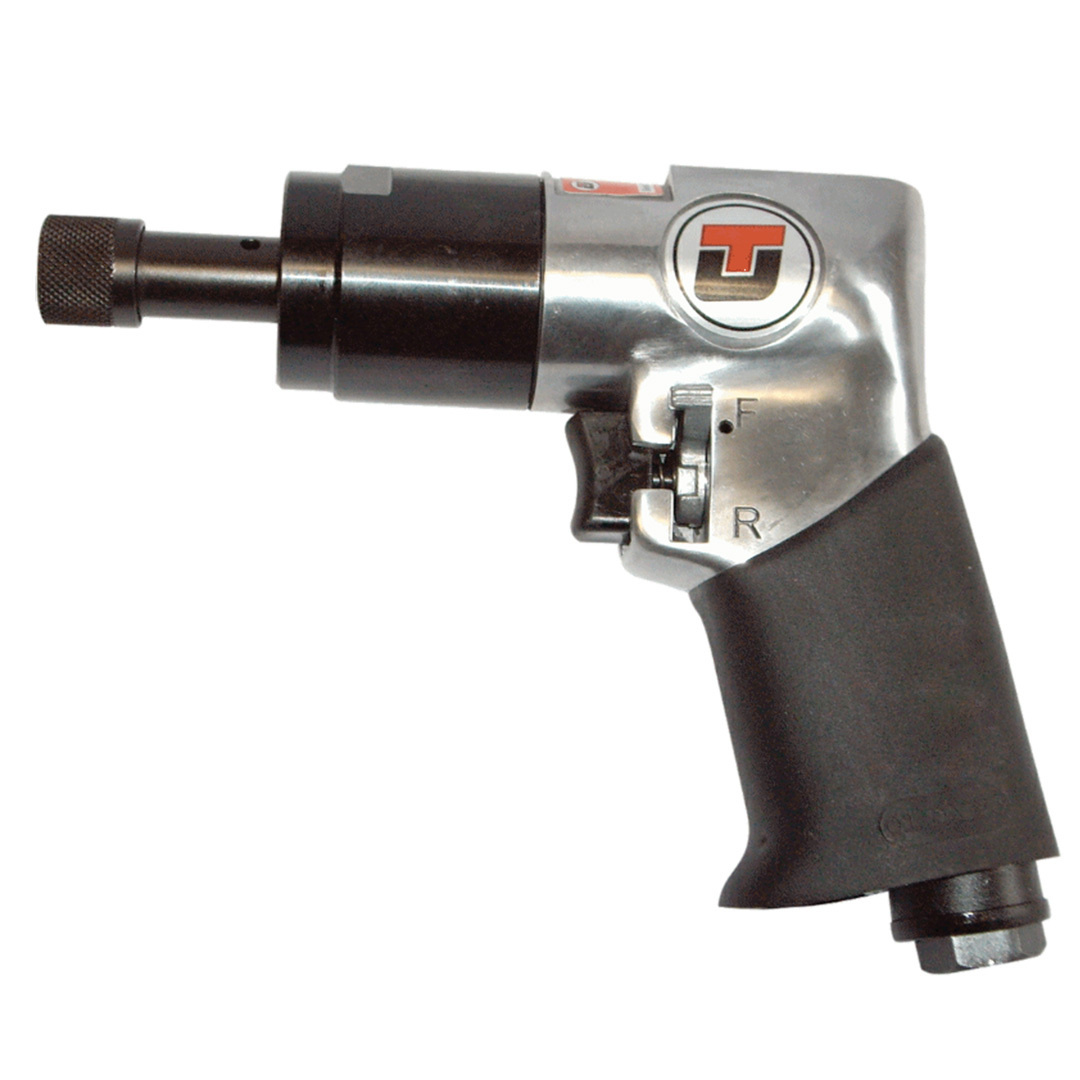

| UT5825-S | 3.4 | 1/4" Hex QC | 4 | - | 1800 | 3/8" | 1/4" | 1.2 |
| UT8941 | 0.5-4.0 | 1/4" Hex QC | 9 | 0.3 | 700 | 3/8" | 1/4" | 2 |
| UT8921 | 0.7-5 | 1/4" Hex QC | 9 | 0.5 | 1500 | 3/8" | 1/4" | 2 |
| UT8933 | 0.7-6.5 | 1/4" Hex QC | 9 | 0.5 | 900 | 3/8" | 1/4" | 0.8 |
| UT8942 | 0.7-6.5 | 1/4" Hex QC | 9 | 0.5 | 900 | 3/8" | 1/4" | 2 |
| UT8817-S | 7 | 1/4" Hex QC | 4 | - | 1700 | 3/8" | 1/4" | 1.1 |
| UT2964 | 3-8 | 1/4" Hex QC | 4 | 0.5 | 1800 | 3/8" | 1/4" | 1.4 |
| UT5964A | 8 | 1/4" Hex QC | 4 | - | 1800 | 3/8" | 1/4" | 1.6 |
| UT8934 | 1.5-10 | 1/4" Hex QC | 9 | 0.5 | 550 | 3/8" | 1/4" | 0.8 |
| UT8922 | 1.5-10 | 1/4" Hex QC | 9 | 0.5 | 550 | 3/8" | 1/4" | 2 |

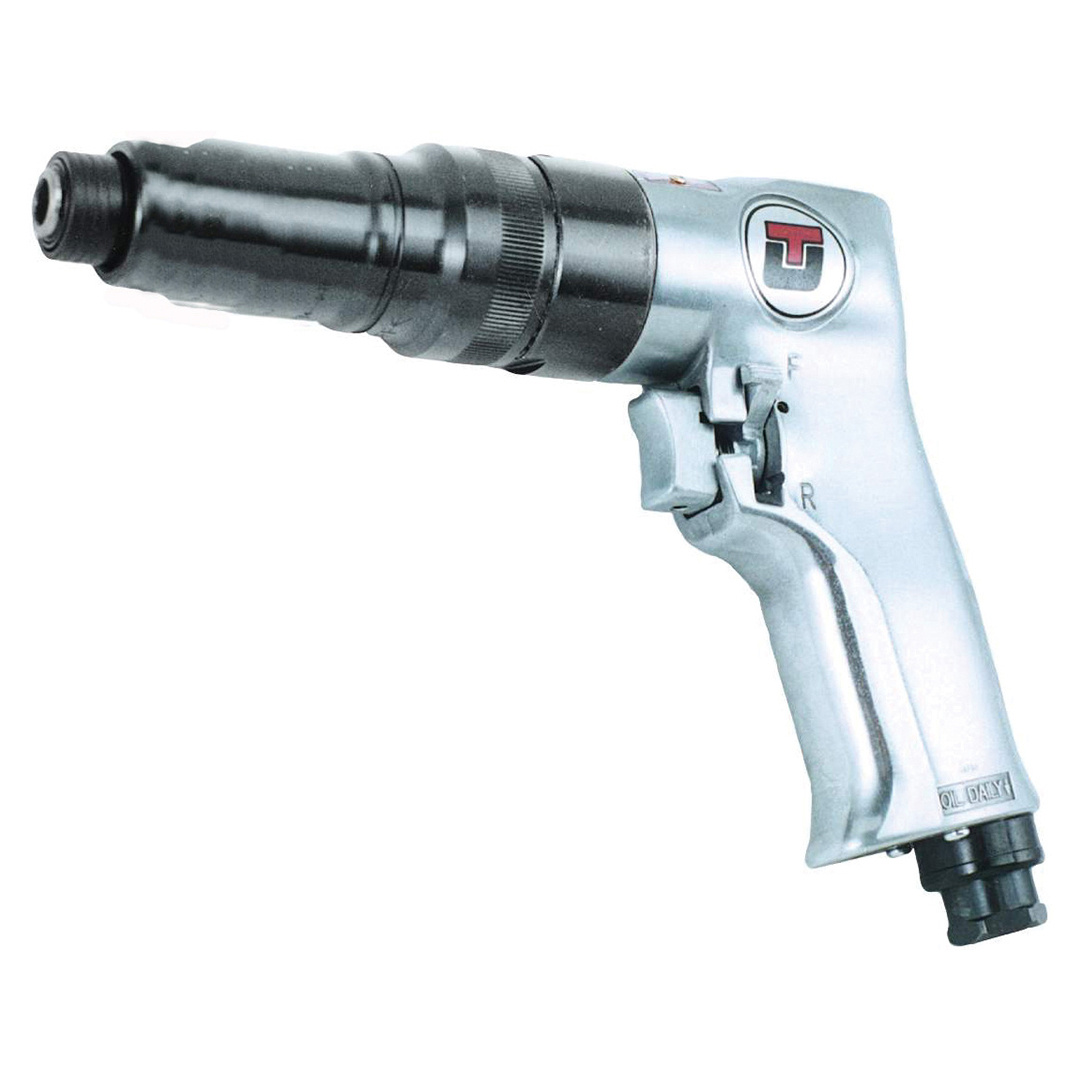

| UT2960 | 3-11 | 1/4" Hex QC | 4 | 0.5 | 800 | 3/8" | 1/4" | 1.5 |
| UT8964A | 5-12 | 1/4" Hex QC | 4 | 0.65 | 1800 | 3/8" | 1/4" | 1.3 |

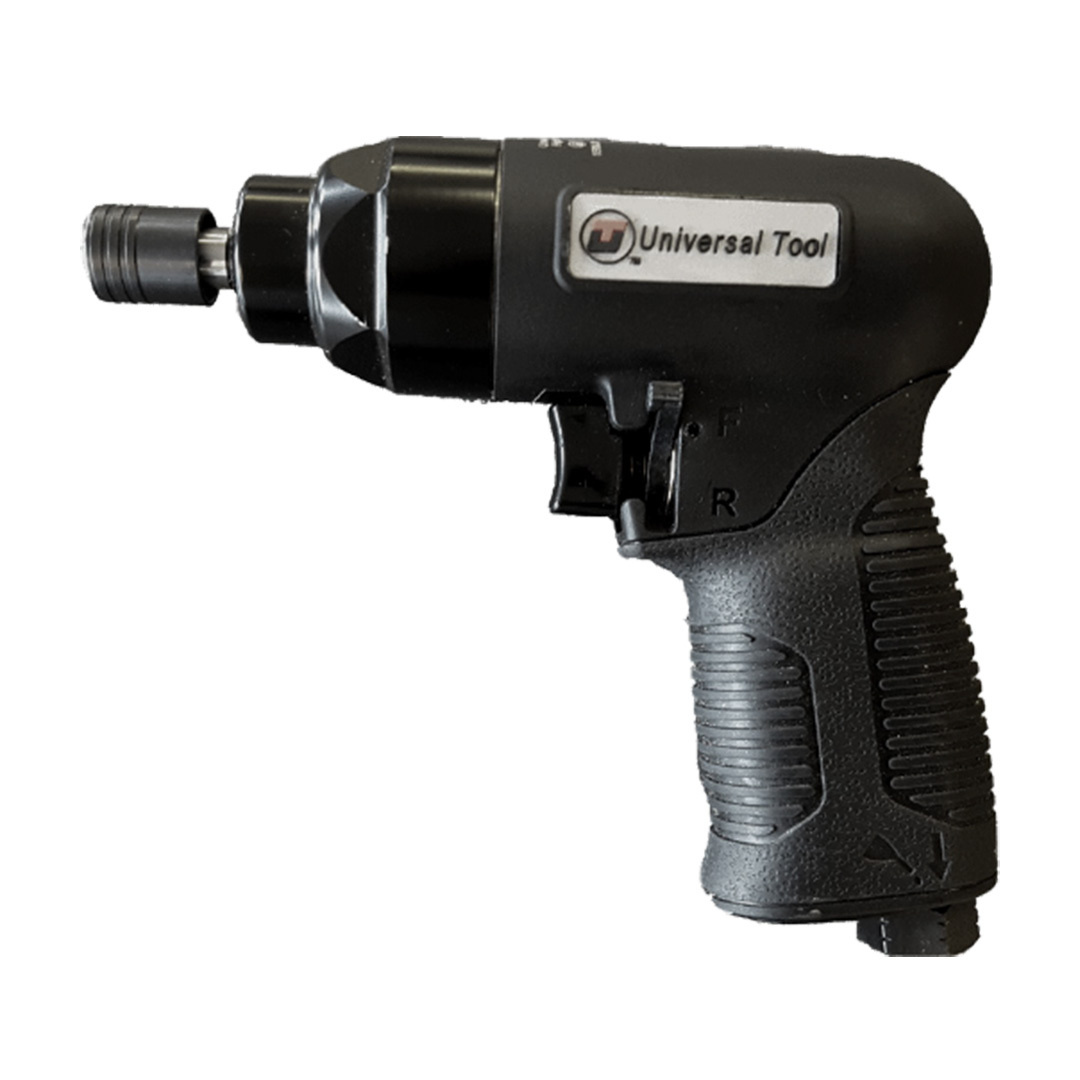

| UT8818-S | 13 | 1/4" Hex QC | 4 | - | 750 | 3/8" | 1/4" | 1.1 |
| UT8923 | 3.0-18.0 | 1/4" Hex QC | 9 | 0.5 | 300 | 3/8" | 1/4" | 2 |
| UT8943 | 3.0-18.0 | 1/4" Hex QC | 9 | 0.5 | 300 | 3/8" | 1/4" | 2 |
| UT8924 | 5.0-28.0 | 1/4" Hex QC | 9 | 0.5 | 250 | 3/8" | 1/4" | 2 |
| UT8944 | 5.0-28.0 | 1/4" Hex QC | 9 | 0.5 | 250 | 3/8" | 1/4" | 2 |

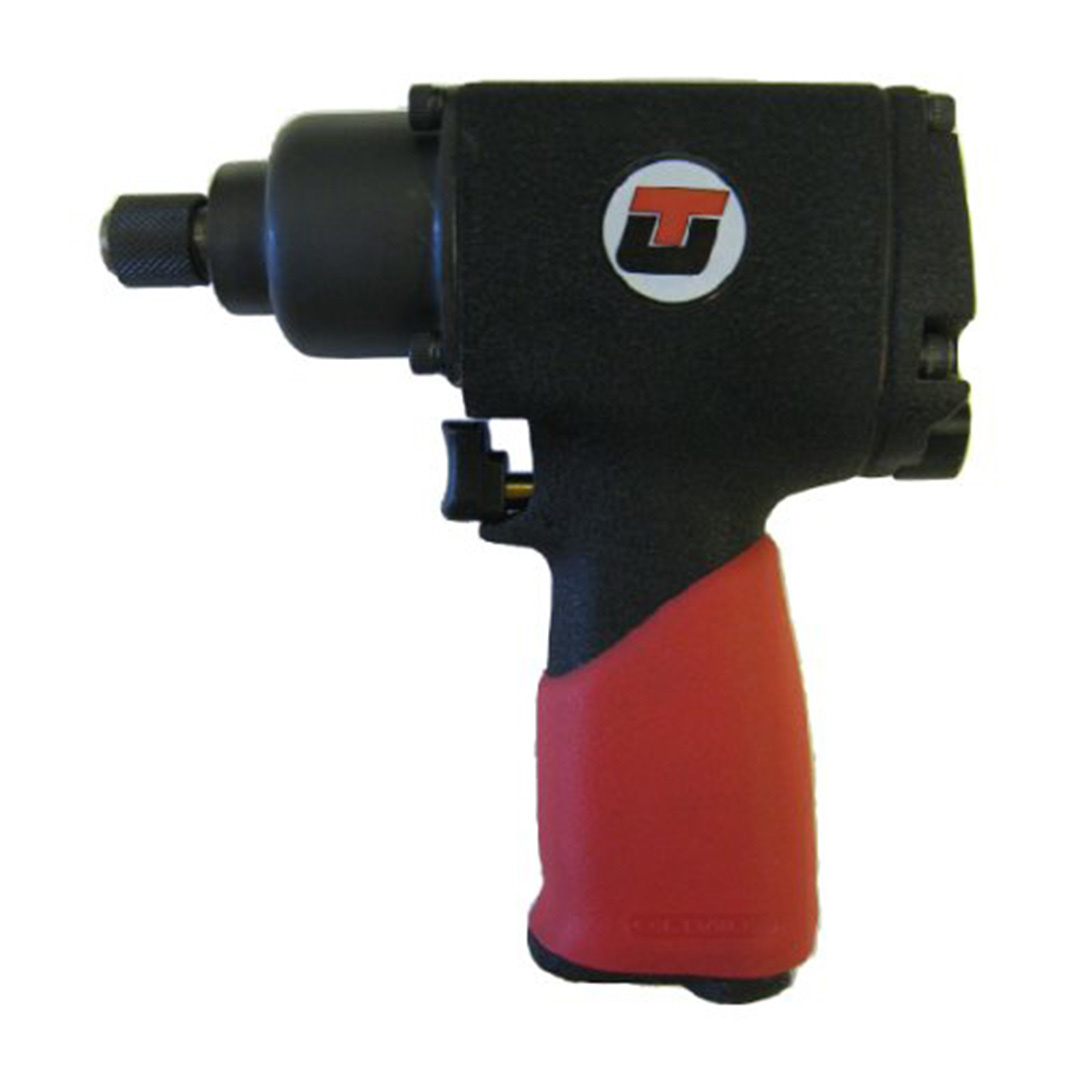

| UT8226 | 271 | 1/4" Hex QC | 3 | - | 9500 | 3/8" | 1/4" | 1.6 |
Dimension
Dimensions (mm)
| Model number | Length | Height | Width |
|---|---|---|---|
| UT8931 | 340 | 67 | 72 |
| UT8932 | 340 | 67 | 72 |
| UT5825-S | 225 | 50 | 170 |
| UT8941 | 287 | 52 | 170 |
| UT8921 | 412 | 55 | 90 |
| UT8933 | 340 | 67 | 72 |
| UT8942 | 287 | 52 | 170 |
| UT8817-S | 203 | 52 | 162 |
| UT2964 | 165 | 57 | 241 |
| UT5964A | 250 | 45 | 170 |
| UT8934 | 340 | 67 | 72 |
| UT8922 | 412 | 55 | 90 |
| UT2960 | 165 | 57 | 241 |
| UT8964A | 193 | 64 | 152 |
| UT8818-S | 203 | 52 | 162 |
| UT8923 | 412 | 55 | 90 |
| UT8943 | 287 | 52 | 170 |
| UT8924 | 412 | 55 | 90 |
| UT8944 | 287 | 52 | 170 |
| UT8226 | 195 | 60 | 195 |
