SLF Range
Synchronous Lifting System - Fixed Speed Drive
- High efficiency three phase motor
- Selection of outlet valves with options of 3-way and 4-way valve configurations
- 700 bar pressure transducers fitted as standard on each outlet
- Reservoir capacity of 100 litres on the 4-outlet pump and 200 litres on the 6-outlet and 8-outlet pumps
Product Overview

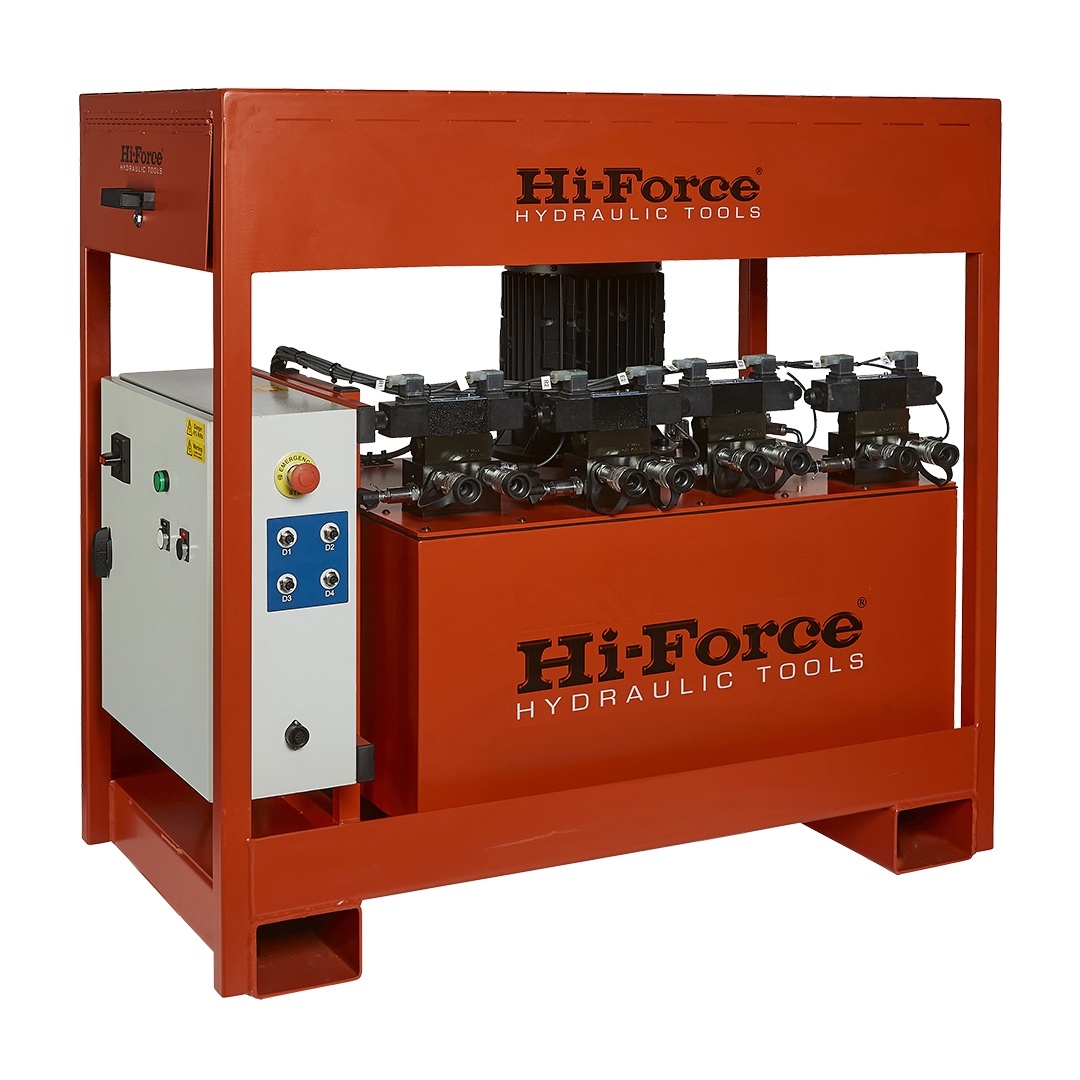

The SLF range has been designed for precise lifting and lowering of heavy loads using multiple synchronised hydraulic cylinders. The system comprises of a heavy duty three phase electric motor, operator control panel to monitor up to 8 channels and a robust framework for transportation and storage of the entire system.
The SLF allows control from 4 to 8 lifting points and the system can be adapted to suit customer's special lifting requirements. Customised systems can also be tailored for unique application requirements.
- Working pressure 700 bar
- Control from 4 to 8 lifting points
- For use with standard single or double acting cylinders
Product resources
Technical specifications
| Model Number | Number of outlets | Oil capacity litres | Oil flow per outlet l/min | Motor voltage |
|---|---|---|---|---|
| SLF4S | 4 | 100 | 1.1 | 400V 50 Hz/460V 60 Hz - 3Ph |
| SLF6S | 6 | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph |
| SLF8S | 8 | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph |
| SLF4D | 4 | 100 | 1.1 | 400V 50 Hz/460V 60 Hz - 3Ph |
| SLF6D | 6 | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph |
| SLF8D | 8 | 200 | 0.9 | 400V 50 Hz/460V 60 Hz - 3Ph |
Note: All models are suitable for operation at 50 Hz and 60 Hz. 60 Hz models deliver approximately 15-20% higher flow rate.
Mounting Kits
| Model Number | Mounting kit type | Applicable cylinder | Increase in cylinder height mm |
|---|---|---|---|
| SLMK-1 | 1 | HSS - 25T | +3.5 |
| 1 | HSS - 30T | +3.5 | |
| SLMK-2 | 2 | HAS - 30T | +10 |
| 2 | HRA - 30T | +10 | |
| SLMK-3 | 3 | HSS - 50T | +10 |
| 3 | HAS - 50T | +10 | |
| 3 | HRA - 50T; | +10 | |
| SLMK-4 | 4 | HSS - 75T | +10 |
| SLMK-5 | 5 | HSS - 100T | +10 |
| 5 | HAS - 100T | +10 | |
| 5 | HRA - 100T | +10 | |
| SLMK-6 | 6 | HDA - 25T | +11 |
| SLMK-7 | 7 | HDA - 50T | +10 |
| SLMK-8 | 8 | HDA - 100T | +10 |
| SLMK-9 | 9 | HDA - 150T | +10 |
| 9 | HDA - 200T | +10 | |
| SLMK-10 | 10 | HHS - 20T | +11 |
| SLMK-11 | 11 | HHS - 30T | +12 |
| 11 | HHR - 30T | +12 | |
| SLMK-12 | 12 | HHA - 37T | +1 |
| SLMK-13 | 13 | HHA - 50T | +1 |
| SLMK-14 | 14 | HHS - 60T | +12 |
| 14 | HHR - 60T | +12 | |
| SLMK-15 | 15 | HHS - 100T | +10 |
| 15 | HHR - 100T | +10 | |
| SLMK-16 | 16 | HHR - 150T | +10 |
| SLMK-17 | 17 | HHR - 250T | +10 |
| SLMK-18 | 18 | HFA - 30T | 0 |
| SLMK-19 | 19 | HFA - 50T | +8 |
| SLMK-20 | 20 | HFA - 100T | 0 |
| 20 | HGG - 150T | 0 | |
| SLMK-21 | 21 | HDA - 300T | 0 |
| SLMK-22 | 22 | HDA - 400T | 0 |
| 22 | HDA - 500T | 0 | |
| SLMK-23 | 23 | HDA - 800T | 0 |
| 23 | HDA - 1000T | 0 | |
| 23 | HFG - 800T | 0 | |
| SLMK-24 | 24 | HFL - 50T | +8 |
| 24 | HFG - 50T | +8 | |
| SLMK-25 | 25 | HFG - 400T | 0 |
| 25 | HFG - 500T | 0 | |
| 25 | HGG - 200T | 0 | |
| 25 | HSG - 200T | 0 | |
| SLMK-26 | 26 | HFL - 100T | +9 |
| 26 | HFG - 100T | +9 | |
| SLMK-27 | 27 | HFL - 150T | +8 |
| 27 | HFG - 150T | +8 | |
| 27 | HFG - 200T | +8 | |
| 27 | HSG - 150T | +8 | |
| SLMK-28 | 28 | HFG - 250T | 0 |
| 28 | HFG - 300T | 0 | |
| 28 | HGG - 300T | 0 | |
| SLMK-29 | 29 | HSG - 300T | 0 |
| SLMK-30 | 30 | HFL - 250T | +8 |
| SLMK-31 | 31 | HFL - 400T | +10 |
| SLMK-32 | 32 | HFL - 500T | +10 |
| SLMK-33 | 33 | HFG - 1000T | 0 |
Displacement Sensors
| Model Number | Type and Stroke (mm) |
|---|---|
| SLDS650 | 650 |
Sensor Cables and Hoses
| Cable Model Number | Hose Model Number | Length (m) |
|---|---|---|
| SLDC10 | HC10C | 10 |
| SLDC25 | HC25C | 25 |
| SLDC50 | HC50C | 50 |
| SLDC75 | HC75C | 75 |
| SLDC100 | HC100C | 100 |
Dimension
Dimensions (mm)
| Model number | A | B | C |
|---|---|---|---|
| SLF4S | 1275 | 1155 | 675 |
| SLF6S | 1550 | 1300 | 860 |
| SLF8S | 1550 | 1300 | 860 |
| SLF4D | 1275 | 1155 | 675 |
| SLF6D | 1550 | 1300 | 860 |
| SLF8D | 1550 | 1300 | 860 |
