Hi-Force product
SLV Range
Synchronous Lifting System - Variable Speed Drive
- High efficiency three phase variable speed drive motor
- Two stage pump delivering up to 19.6L in low pressure and up to 4.8L at 700 bar with option of reducing the flow rate using the variable speed drive controller
- Selection of outlet valves with single or double acting controls on each outlet
- 700 bar pressure transducers fitted as standard on each outlet
Product Overview

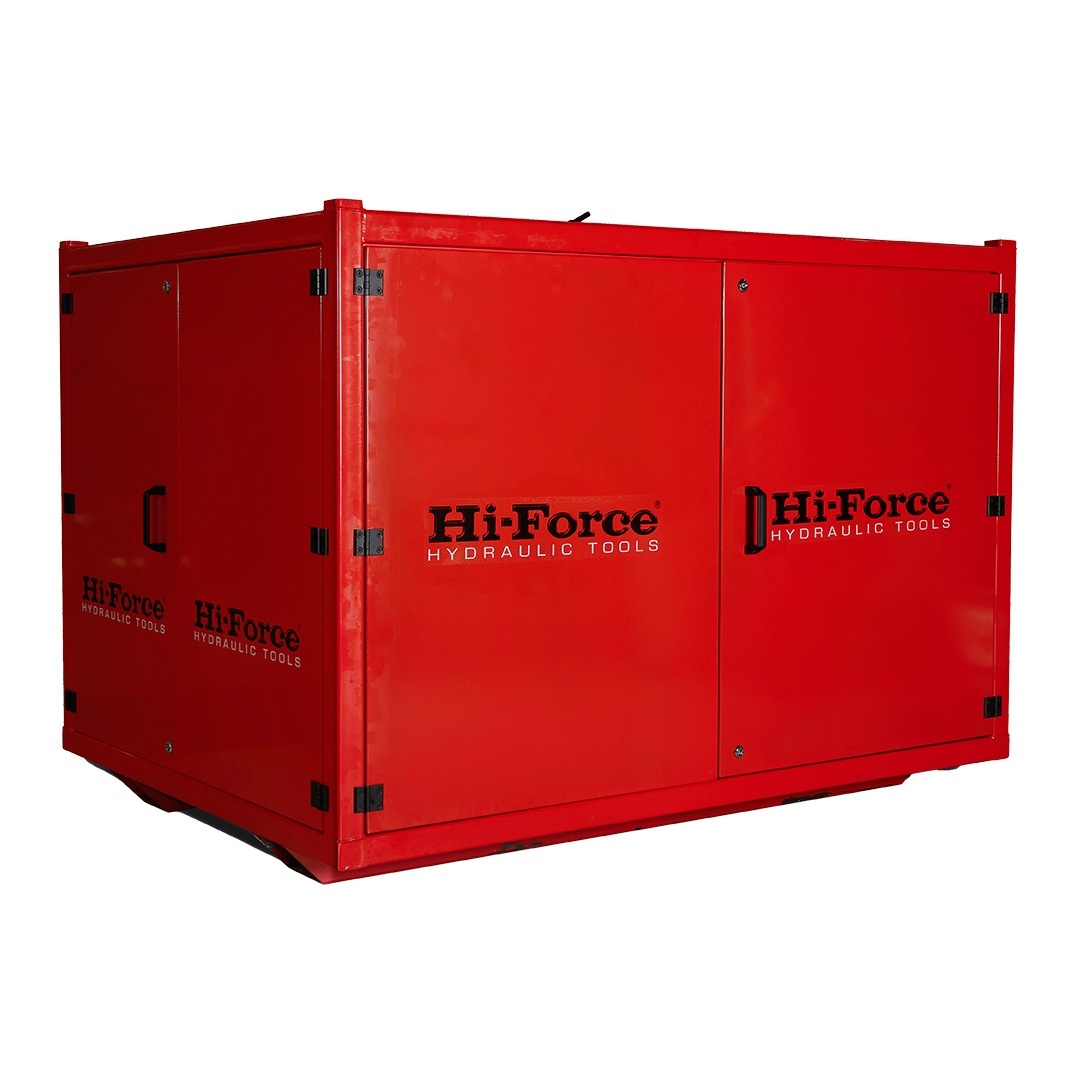

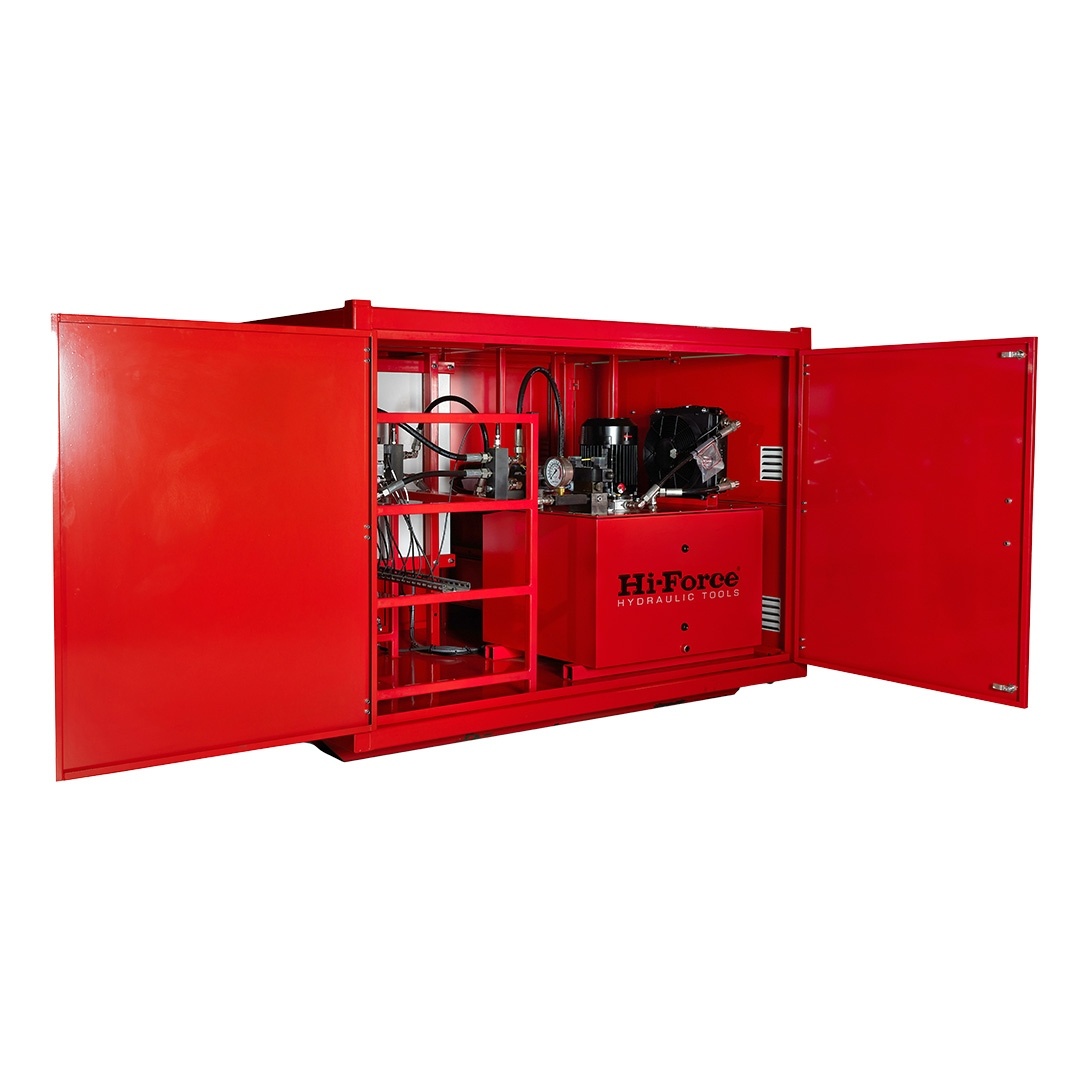

The SLV range has been designed for precise lifting and lowering of heavy loads using multiple synchronised hydraulic cylinders. The system comprises of a heavy duty three phase electric motor, operator control panel to monitor up to 32 channels and a robust framework for transportation and storage of the entire system.
- Working pressure 700 bar
- Control from 8 to 32 lifting points
- Variable speed control
Product resources
Technical specifications
| Model Number | No. of outlets | Oil Cap. (litres) | Total oil flow (litres/minute) | Supply voltage | |
|---|---|---|---|---|---|
| 1st stage | 2nd stage | ||||
| SLV82 | 8 | 200 | 19.6 | 4.8 | 380/480V (50/60 Hz) -3Ph |
| SLV122 | 12 | 200 | 19.6 | 4.8 | 380/480V (50/60 Hz) -3Ph |
| SLV162 | 16 | 200 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV202 | 20 | 200 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV242 | 24 | 200 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV282 | 28 | 200 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV322 | 32 | 200 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV84 | 8 | 400 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV124 | 12 | 400 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV164 | 16 | 400 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV204 | 20 | 400 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV244 | 24 | 400 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV284 | 28 | 400 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
| SLV324 | 32 | 400 | 19.6 | 4.8 | 380/480V (50/60 Hz) - 3Ph |
Note: All models are suitable for operation at 50 Hz and 60 Hz.
Mounting Kits
| Model Number | Mounting kit type | Applicable cylinder | Increase in cylinder height mm |
|---|---|---|---|
| SLMK-1 | 1 | HSS - 25T | +3.5 |
| 1 | HSS - 30T | +3.5 | |
| SLMK-2 | 2 | HAS - 30T | +10 |
| 2 | HRA - 30T | +10 | |
| SLMK-3 | 3 | HSS - 50T | +10 |
| 3 | HAS - 50T | +10 | |
| 3 | HRA - 50T; | +10 | |
| SLMK-4 | 4 | HSS - 75T | +10 |
| SLMK-5 | 5 | HSS - 100T | +10 |
| 5 | HAS - 100T | +10 | |
| 5 | HRA - 100T | +10 | |
| SLMK-6 | 6 | HDA - 25T | +11 |
| SLMK-7 | 7 | HDA - 50T | +10 |
| SLMK-8 | 8 | HDA - 100T | +10 |
| SLMK-9 | 9 | HDA - 150T | +10 |
| 9 | HDA - 200T | +10 | |
| SLMK-10 | 10 | HHS - 20T | +11 |
| SLMK-11 | 11 | HHS - 30T | +12 |
| 11 | HHR - 30T | +12 | |
| SLMK-12 | 12 | HHA - 37T | +1 |
| SLMK-13 | 13 | HHA - 50T | +1 |
| SLMK-14 | 14 | HHS - 60T | +12 |
| 14 | HHR - 60T | +12 | |
| SLMK-15 | 15 | HHS - 100T | +10 |
| 15 | HHR - 100T | +10 | |
| SLMK-16 | 16 | HHR - 150T | +10 |
| SLMK-17 | 17 | HHR - 250T | +10 |
| SLMK-18 | 18 | HFA - 30T | 0 |
| SLMK-19 | 19 | HFA - 50T | +8 |
| SLMK-20 | 20 | HFA - 100T | 0 |
| 20 | HGG - 150T | 0 | |
| SLMK-21 | 21 | HDA - 300T | 0 |
| SLMK-22 | 22 | HDA - 400T | 0 |
| 22 | HDA - 500T | 0 | |
| SLMK-23 | 23 | HDA - 800T | 0 |
| 23 | HDA - 1000T | 0 | |
| 23 | HFG - 800T | 0 | |
| SLMK-24 | 24 | HFL - 50T | +8 |
| 24 | HFG - 50T | +8 | |
| SLMK-25 | 25 | HFG - 400T | 0 |
| 25 | HFG - 500T | 0 | |
| 25 | HGG - 200T | 0 | |
| 25 | HSG - 200T | 0 | |
| SLMK-26 | 26 | HFL - 100T | +9 |
| 26 | HFG - 100T | +9 | |
| SLMK-27 | 27 | HFL - 150T | +8 |
| 27 | HFG - 150T | +8 | |
| 27 | HFG - 200T | +8 | |
| 27 | HSG - 150T | +8 | |
| SLMK-28 | 28 | HFG - 250T | 0 |
| 28 | HFG - 300T | 0 | |
| 28 | HGG - 300T | 0 | |
| SLMK-29 | 29 | HSG - 300T | 0 |
| SLMK-30 | 30 | HFL - 250T | +8 |
| SLMK-31 | 31 | HFL - 400T | +10 |
| SLMK-32 | 32 | HFL - 500T | +10 |
| SLMK-33 | 33 | HFG - 1000T | 0 |
Displacement Sensors
| Model Number | Type and Stroke (mm) |
|---|---|
| SLDS650 | 650 |
Sensor Cables
| Cable Model Number | Hose Model Number | Length (m) |
|---|---|---|
| SLDC10 | HC10C | 10 |
| SLDC25 | HC25C | 25 |
| SLDC50 | HC50C | 50 |
| SLDC75 | HC75C | 75 |
| SLDC100 | HC100C | 100 |
Dimension
