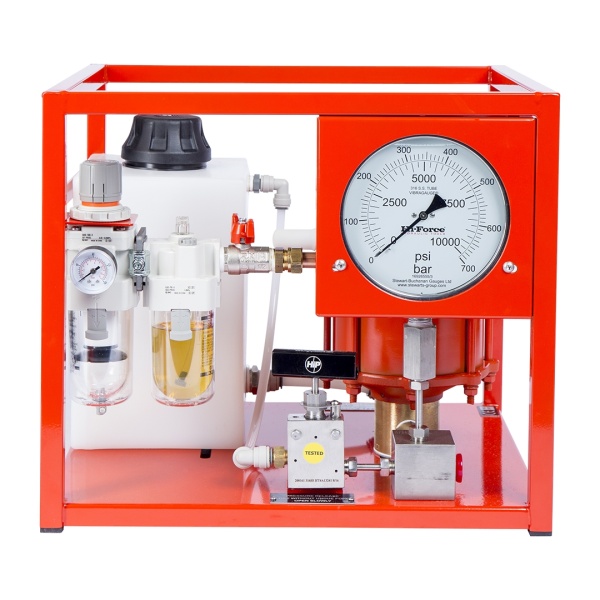

AHP2-CR Range
Air Driven Hydrotest Pumps - Medium flow with chart recorder
- Infinitely variable output pressure and fluid displacement speed
- Airline regulator for easy setting of input air and output hydraulic pressure
- Air consumption 56 scfm (1.59 m3 / minute) at 7 bar
- 7.5 litre reservoir capacity
Product Overview

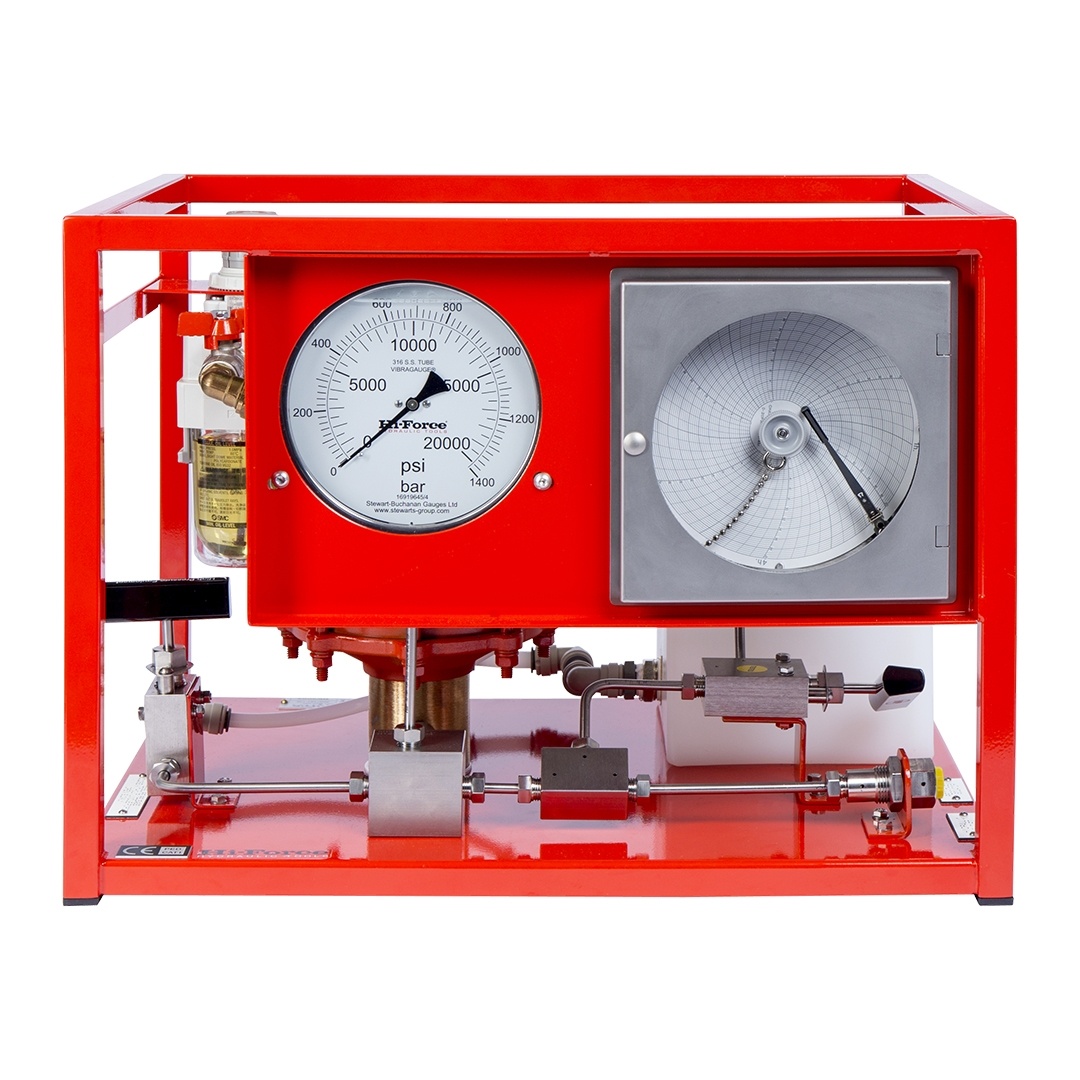

The Hi-Force AHP2-CR series of air driven hydrostatic pressure testing pumps offer a choice of 5 models with output pressure capacities ranging from 17 bar (246 psi) to 1634 bar (23700 psi) all fitted with on board, 4 hour, single pen chart recorder as standard. All models are compact design and suitable for use with various fluids including water and are supplied with a 150 mm diameter glycerine filled hydraulic pressure gauge (calibrated on request), inlet airline filter, lubricator and pressure regulator unit, lightweight fluid reservoir, pump start/stop valve and a robust stainless steel skid mounted framework.
- Output pressures up to 1634 bar
- Suitable for use with various fluids
- 150 mm dual scale vibra pressure gauge
Product resources
Technical specifications
| Model Number | Max Output Pressure (bar) at airline input pressure | Fluid Volume Displacement per Stroke (cm3) | Outlet Port Thread | Weight kg | |||||
|---|---|---|---|---|---|---|---|---|---|
| 10 psi 0.69 bar | 50 psi 3.45 bar | 100 psi 6.9 bar | |||||||
| AHP2-036CR | 17.2 | 124.1 | 248.2 | 40.8 | 1/2" NPT | 32 | |||
| AHP2-060CR | 31 | 199.9 | 413.7 | 24.6 | 1/2" NPT | 32 | |||
| AHP2-097CR | 51.7 | 327.5 | 668.8 | 15.2 | 1/2" NPT | 32 | |||
| AHP2-144CR | 75.8 | 489.5 | 992.8 | 10.2 | 1/2" NPT | 32 | |||
| AHP2-237CR | 131 | 799.8 | 1634.1 | 6.1 | 9/16"-18UNF | 32 | |||
Hydraulic Pressure
| Hydraulic Pressure | Approximate Rate of Discharge (litres/min) at air input pressure 100 psi (7 bar) | |||||
|---|---|---|---|---|---|---|
| psi | bar | AHP2-036CR | AHP2-060CR | AHP2-097CR | AHP2-144CR | AHP2-237CR |
| 0 | 0 | 10.2 | 6.2 | 3.9 | 2.7 | 1.57 |
| 500 | 35 | 8.6 | 5.5 | 3.55 | 2.5 | 1.52 |
| 1000 | 69 | 7.25 | 4.8 | 3.19 | 2.35 | 1.47 |
| 1500 | 104 | 6.15 | 4.5 | 3 | 2.16 | 1.42 |
| 2000 | 138 | 5.4 | 4.2 | 2.87 | 2.15 | 1.38 |
| 3000 | 207 | 3.05 | 3.5 | 2.55 | 1.88 | 1.29 |
| 4000 | 276 | * | 2.75 | 2.28 | 1.75 | 1.22 |
| 5000 | 345 | * | 2.16 | 2.1 | 1.64 | 1.2 |
| 7500 | 517 | * | * | 1.45 | 1.35 | 1.1 |
| 10000 | 690 | * | * | * | 1.15 | 0.98 |
| 15000 | 1034 | * | * | * | * | 0.78 |
| 20000 | 1379 | * | * | * | * | 0.51 |
| 23700 | 1634 | * | * | * | * | 0.34 |
Note: *Pressure exceeds pump capacity

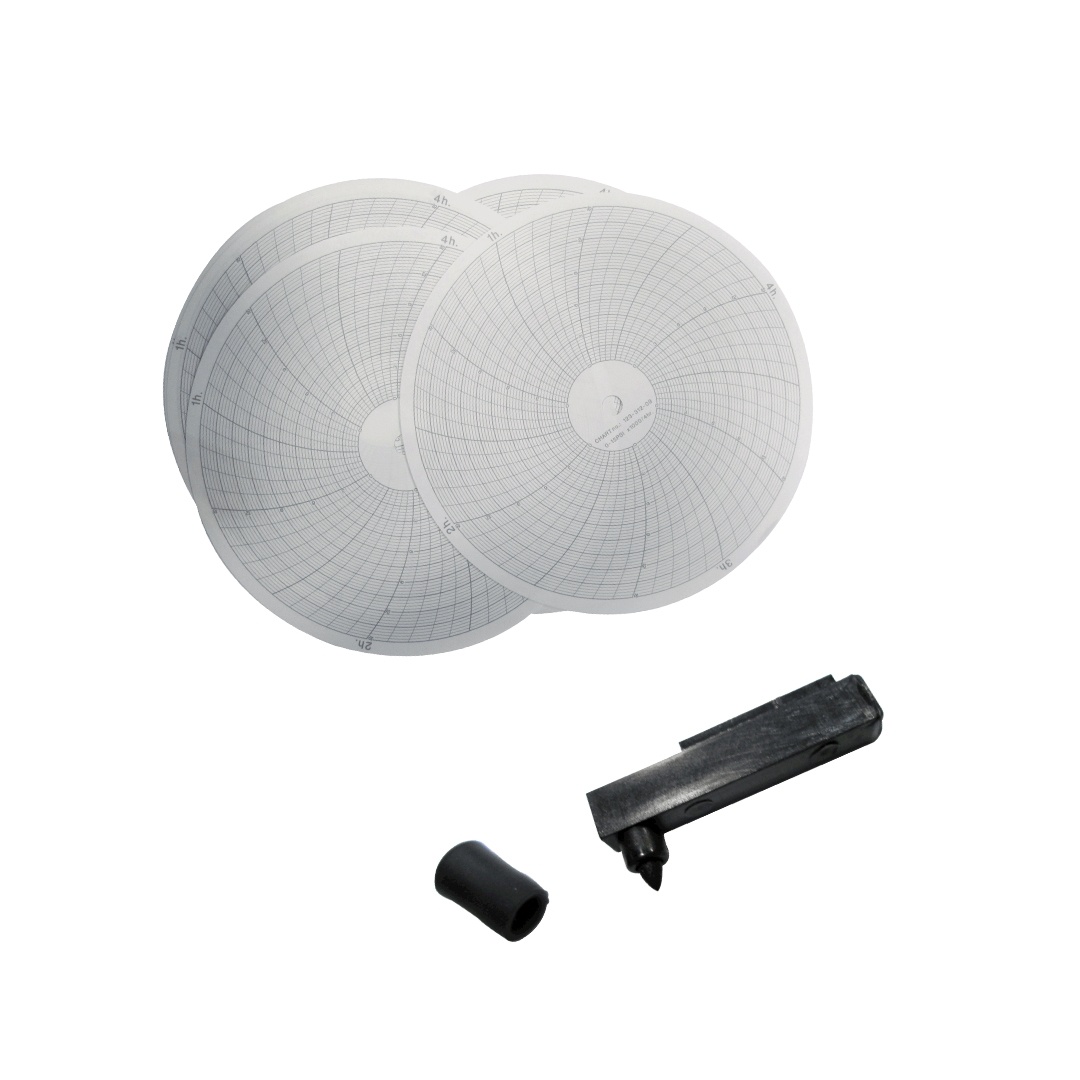

Spare Charts
| Model Number | Chart Reading psi | Suitable for Hydrotest Pump unit |
|---|---|---|
| AHP-C05 | 0 - 5000 | AHP2-036CR |
| AHP-C10 | 0 - 10000 | AHP2-060CR |
| AHP-C15 | 0 - 15000 | AHP2-097CR |
| AHP-C20 | 0 - 20000 | AHP2-144CR |
| AHP-C30 | 0 - 30000 | AHP2-237CR |
*Pack of 100 spare charts, diameter 163 mm, 4 hour time scale
Replacement Pen
| Model Number | Colour | Description |
|---|---|---|
| AHP-PB | Black | Suitable for pressure recording on all Hi-Force AHP pumps with chart recorder |
Dimension
Dimensions (mm)
| Model Number | Length | Width | Height |
|---|---|---|---|
| AHP2-036CR | 555 | 390 | 465 |
| AHP2-060CR | 555 | 390 | 465 |
| AHP2-097CR | 555 | 390 | 465 |
| AHP2-144CR | 555 | 390 | 465 |
| AHP2-237CR | 555 | 390 | 465 |
