Hi-Force product

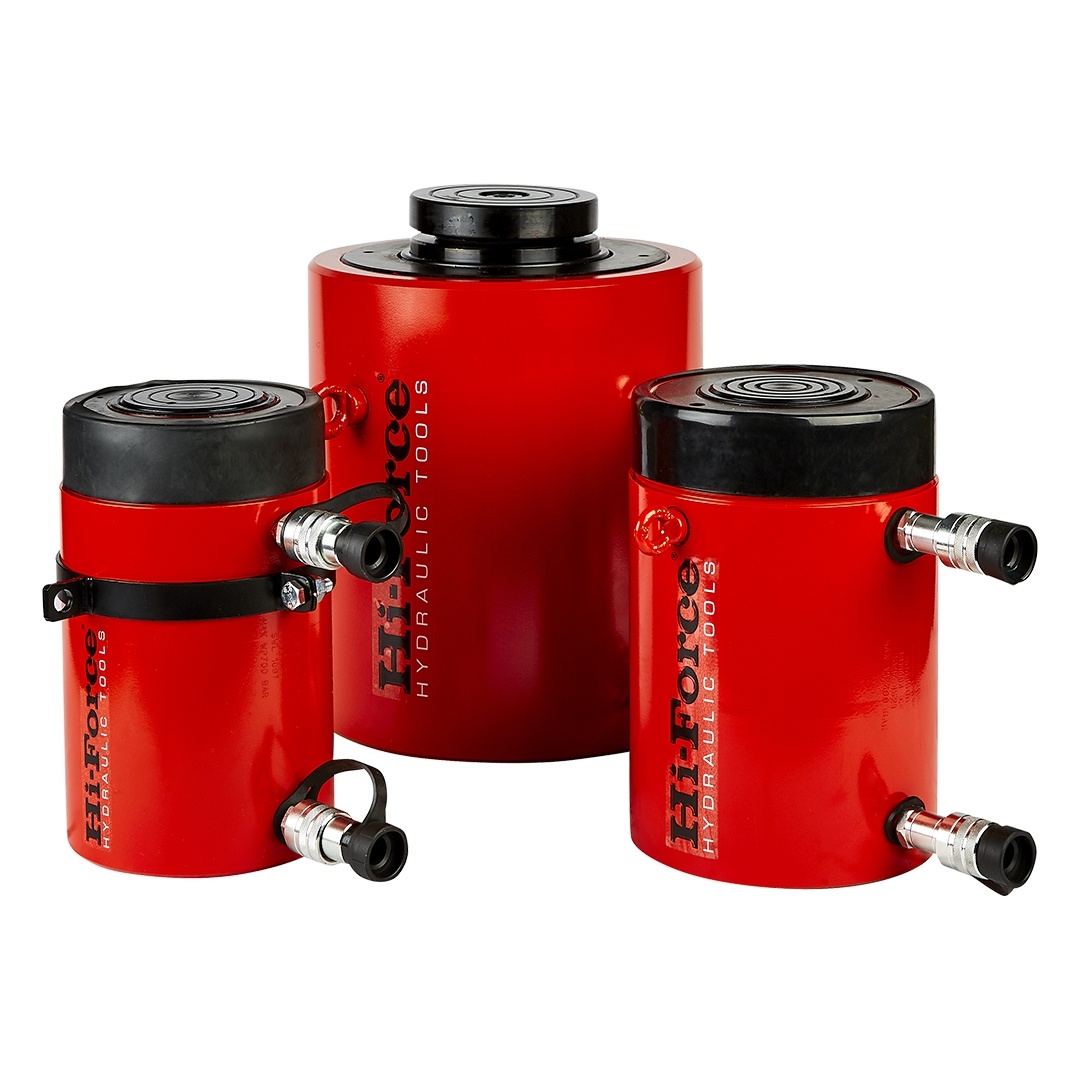

HDA Range
Double acting high tonnage cylinders
- Lifting ring as standard on models from 50 to 109 tonnes
- Eyebolts as standard on models from 152 to 1012 tonnes
- Base mounting holes* (*Base mounting holes are for location of cylinder only. They are not designed to resist the full capacity of the cylinder)
- Customised and special design cylinders are available on request
Product Overview
The HDA double acting cylinder range offers the utmost in versatility and durability. Specifically designed for heavy duty lifting, construction and maintenance applications as well as presswork and industrial production, the double acting design provides substantial pulling force in the piston retraction mode as well as providing fast, controlled retraction for continuous duty cycle operation.
- Capacities from 25 to 1012 tonnes
- Stroke lengths from 152 to 508 mm
- Working pressure 700 bar
Product resources
More Product resources
Technical specifications
| Model Number | Capacity Tonnes | Stroke mm | Oil Cap. Litres | Cyl. Eff. Area cm2 | Weight Kg | |
|---|---|---|---|---|---|---|
| Push | Pull | |||||
| HDA256 | 25 | 10 | 152 | 0.53 | 34.9 | 15.0 |
| HDA506 | 50 | 15 | 152 | 1.08 | 71.3 | 28.4 |
| HDA5013 | 50 | 15 | 330 | 2.35 | 71.3 | 42.6 |
| HDA5020 | 50 | 15 | 508 | 3.62 | 71.3 | 62.8 |

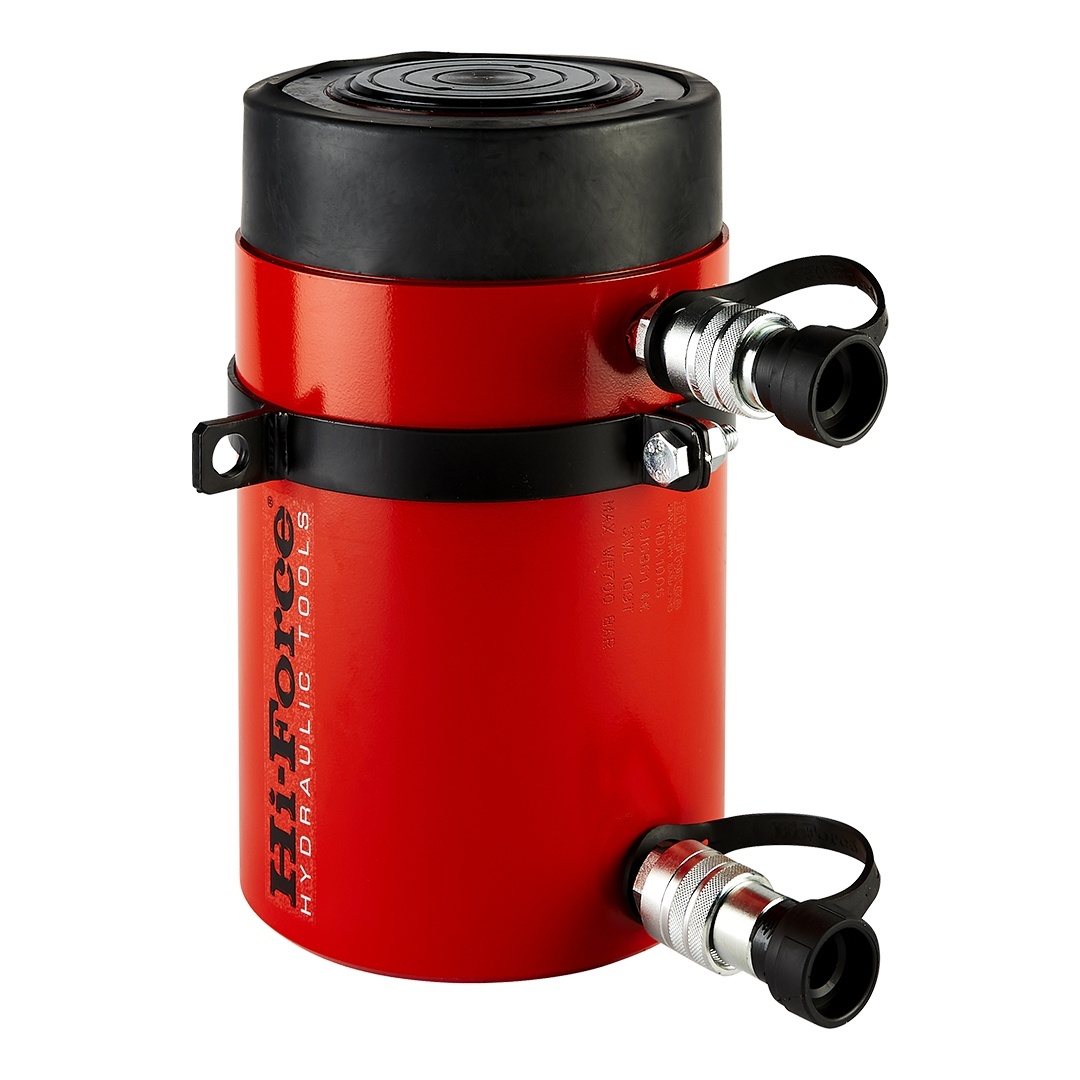

| HDA1006 | 109 | 36 | 152 | 2.33 | 153.3 | 64.5 |
| HDA10013 | 109 | 36 | 330 | 5.06 | 153.3 | 89.0 |
| HDA1506 | 152 | 79 | 152 | 3.26 | 214.2 | 90.0 |
| HDA15012 | 152 | 79 | 305 | 6.53 | 214.2 | 120.5 |
| HDA2006 | 203 | 94 | 152 | 4.33 | 285.2 | 129.8 |
| HDA20012 | 203 | 94 | 305 | 8.69 | 285.2 | 167.4 |
| HDA3006 | 326 | - | 152 | 6.95 | 457.4 | 193.0 |
| HDA30012 | 326 | - | 305 | 13.95 | 457.4 | 250.0 |
| HDA4006 | 398 | - | 152 | 8.49 | 558.9 | 286.0 |
| HDA40012 | 398 | - | 305 | 17.04 | 558.9 | 387.0 |
| HDA5006 | 520 | - | 152 | 11.09 | 729.9 | 372.0 |
| HDA50012 | 520 | - | 305 | 22.26 | 729.9 | 473.0 |
| HDA8006 | 809 | - | 152 | 17.28 | 1134.1 | 650.0 |
| HDA10006 | 1012 | - | 152 | 21.62 | 1419.3 | 900.0 |
Dimension
Dimensions (mm)
| Model Number | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| HDA256 | 287 | 92 | 50 | 3 5/16"-12un | 53 | M10 | 60 | 30 | 212 | 40° |
| HDA506 | 295 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 20 | 216 | 30° |
| HDA5013 | 473 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 20 | 394 | 30° |
| HDA5020 | 730 | 127 | 79 | 5"-12un | 55 | M12 | 85 | 68 | 636 | 30° |
| HDA1006 | 304 | 185 | 114 | 6 7/8"-12un | 51 | M12 | 146 | 30 | 226 | 30° |
| HDA10013 | 482 | 185 | 114 | 6 7/8"-12un | 51 | M12 | 146 | 30 | 404 | 30° |
| HDA1506 | 310 | 210 | 114 | 8"-12un | 55 | M16 | 160 | 35 | 231 | 30° |
| HDA15012 | 463 | 210 | 114 | 8"-12un | 55 | M16 | 160 | 35 | 384 | 30° |
| HDA2006 | 327 | 254 | 140 | 9 3/4"-12un | 65 | M20 | 185 | 43 | 238 | 30° |
| HDA20012 | 480 | 254 | 140 | 9 3/4"-12un | 65 | M20 | 185 | 43 | 391 | 30° |
| HDA3006 | 409 | 312 | 165 | optional | optional | M20 | 158 | 50 | 262 | 30° |
| HDA30012 | 562 | 312 | 165 | optional | optional | M20 | 158 | 50 | 415 | 30° |
| HDA4006 | 431 | 360 | 216 | optional | optional | M24 | 203 | 55 | 277 | 30° |
| HDA40012 | 584 | 360 | 216 | optional | optional | M24 | 203 | 55 | 430 | 30° |
| HDA5006 | 470 | 397 | 203 | optional | optional | M24 | 203 | 65 | 300 | 30° |
| HDA50012 | 623 | 398 | 203 | optional | optional | M24 | 203 | 65 | 453 | 30° |
| HDA8006 | 535 | 500 | 300 | optional | optional | optional | optional | 70 | 318 | 30° |
| HDA10006 | 590 | 540 | 320 | optional | optional | optional | optional | 99 | 357 | 30° |
