SC Range
Self-Contained Cable Crimping Tools
- Model SC18X is suitable for crimping non-insulated terminals up to 185 mm²
- Model SC21 is suitable for crimping connectors up to 240 mm²
- Models SC30, SC32 & SC40 are suitable for crimping connectors up to 400 mm²
- Model SC60 is suitable for crimping non-insulated terminals up to 630 mm²
Product Overview

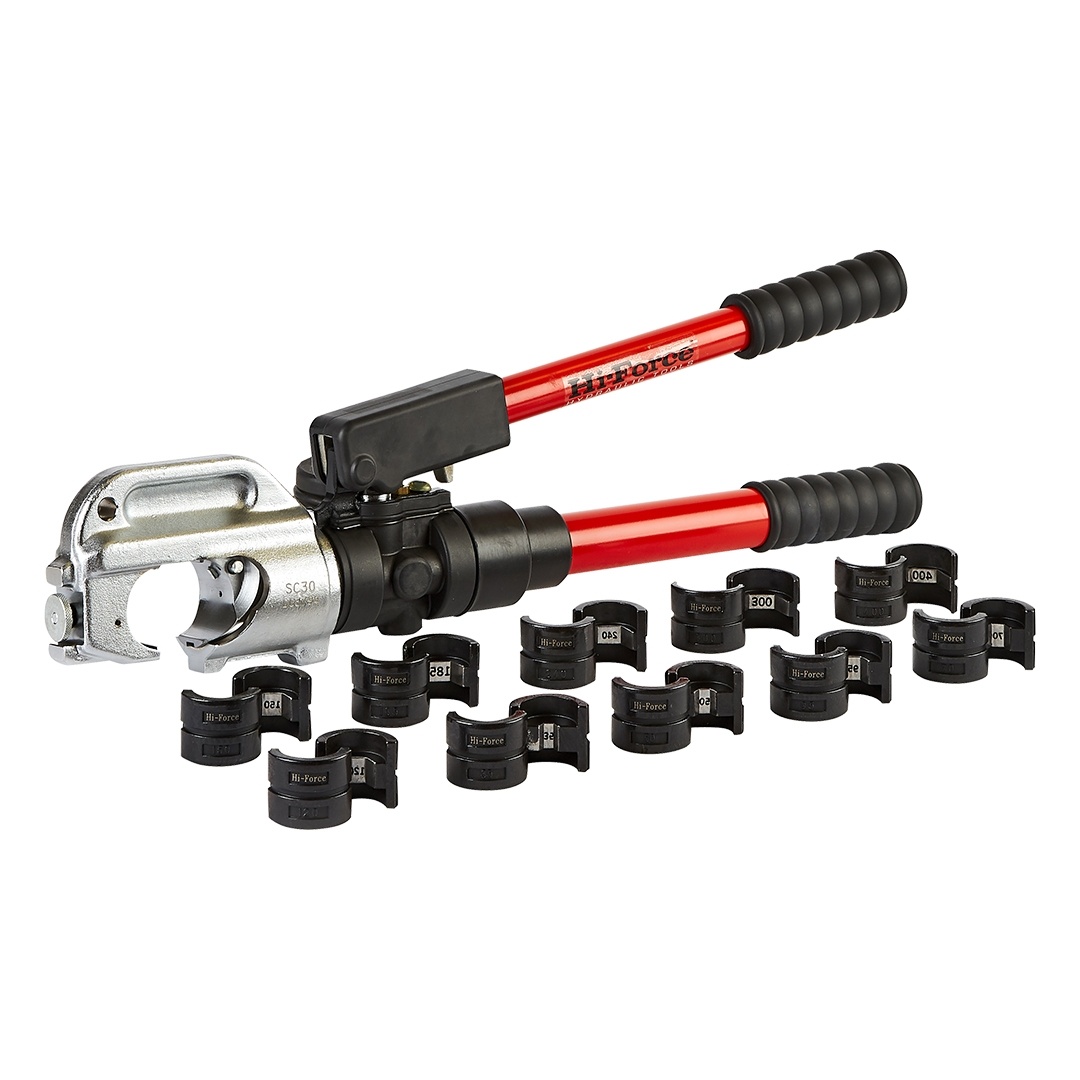

The SC self-contained hydraulic cable crimping tool range offers 6 models with a choice of open “C” jaw or parallel guide design. All models are fitted with an automatic pressure release valve and are supplied complete with standard die sets and a carrying case. Models with 180° rotating head are designed for easy access into confined spaces.
- Choice of 6 models available
- Supplied complete with die sets
- Choice of open jaw or parallel guide design
Product resources
More Product resources
Technical specifications
| Model Number | Output Tonnes | C-Jaw Opening | Applicable Range DIN mm2 | Standard Dies mm2 | Length mm | Weight kg |
|---|---|---|---|---|---|---|
| SC18X | 5 | not applicable | 10-185 | With die 10-16, 25-35, 50-70, 95-120, 150, 185 | 370 | 2.0 |
| SC21 | 10 | not applicable | 25-240 | With die (4pcs) 16-25, 35-70, 70-185, 240 | 528 | 5.2 |
| 10 | not applicable | 25-240 | Female die (1pc) 25-35, 50-70, 95-120, 150-185, 240 | 528 | 5.2 | |
| SC30 | 10 | 30 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 610 | 6.3 |
| SC32 | 16 | not applicable | 16-400 | With die (4pcs) 16, 25-35, 50-120, 150-400 | 650 | 6.2 |
| 16 | not applicable | 16-400 | Female die (8pcs) 16-25, 35-70, 95-120, 150, 185, 240, 300, 400 | 650 | 6.2 | |
| SC40 | 10 | 42 mm | 35-400 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 | 636 | 7.7 |
| SC60 | 16 | not applicable | 35-630 | With die 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630 | 650 | 6.5 |
Note: Models SC21 & SC32 are supplied with single indent dies, all other models are supplied with hexagonal dies.
Optional Die Sets
| Model Number | Description |
|---|---|
| CD10 | Optional die set 10 mm2, suitable for crimping tool SC30, SC40 & SC60 |
| CD16 | Optional die set 16 mm2, suitable for crimping tool SC30, SC40 & SC60 |
| CD25 | Optional die set 25 mm2, suitable for crimping tool SC30, SC40 & SC60 |

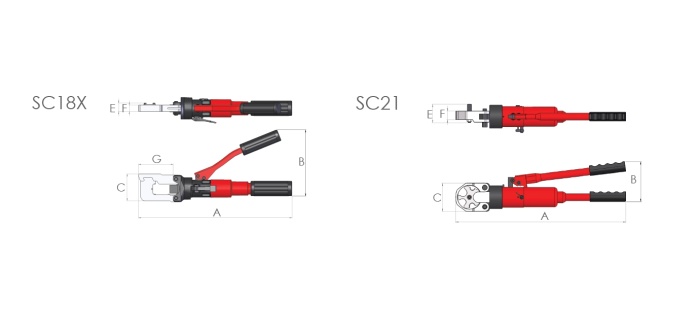

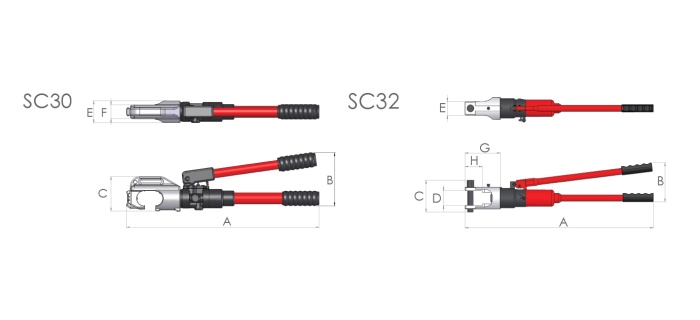

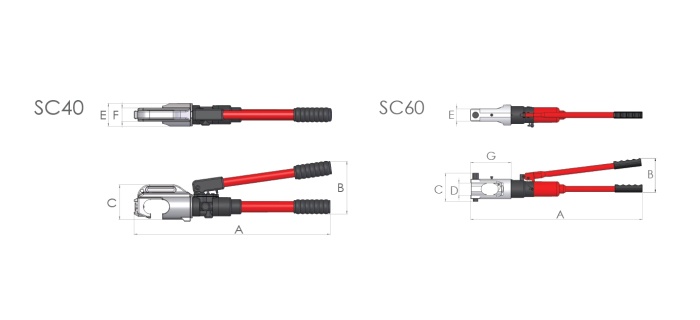

Dimension
Dimensions (mm)
| Model Number | ||||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| SC18X | 380 | 142 | 70 | - | 21 | 16 | 86 | - |
| SC21 | 520 | 122 | 86 | - | 57 | 27 | - | - |
| SC30 | 602 | 166 | 116 | - | 68 | 43 | - | - |
| SC32 | 680 | 137 | 116 | 52 | 50 | - | 128 | 63 |
| SC40 | 630 | 166 | 113 | - | 74 | 48 | - | - |
| SC60 | 690 | 140 | 116 | 52 | 50 | - | 163 | - |
