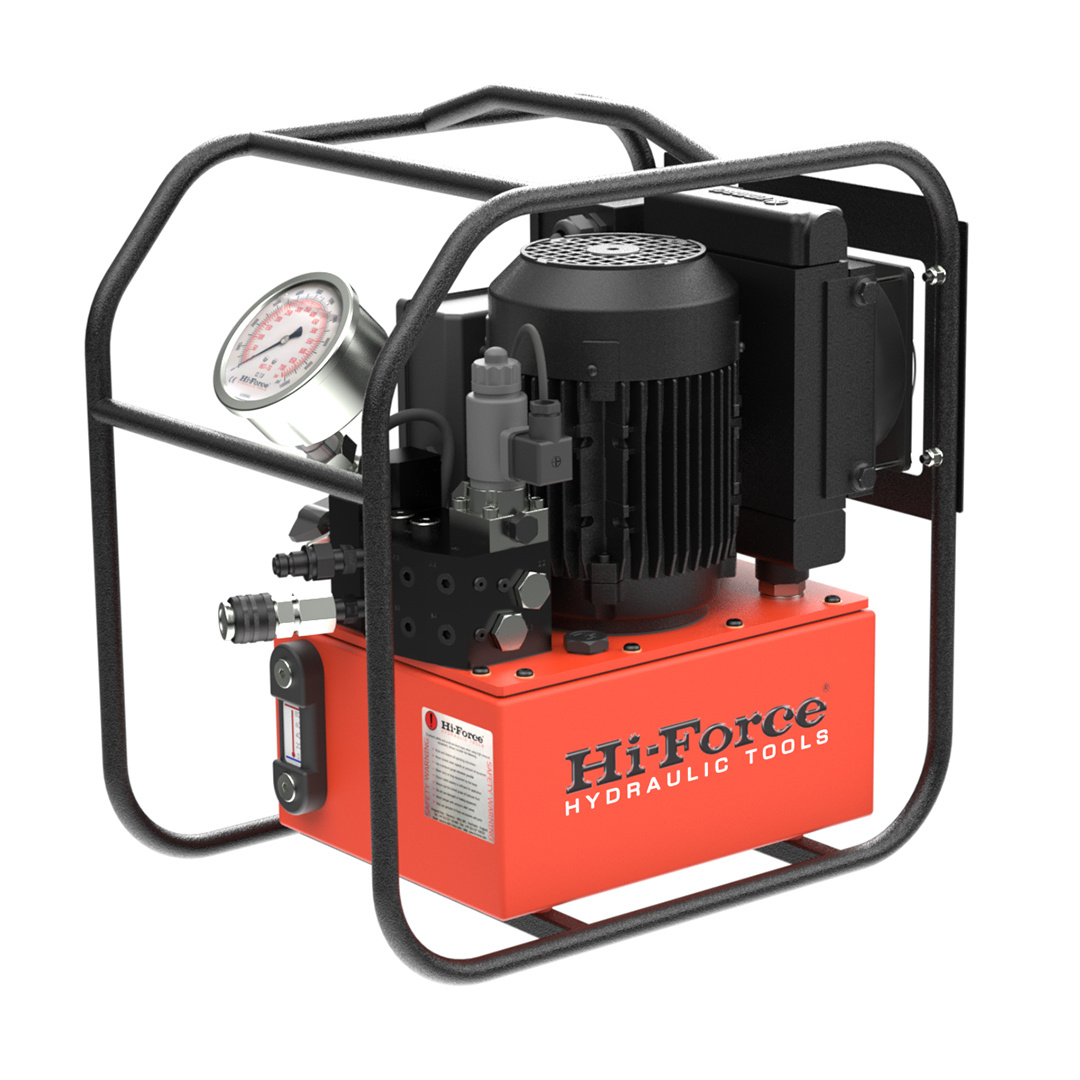

TPE-M Range
Electric Driven Torque Wrench Pumps - Manual Cycle
- Automatically activated oil cooling heat exchanger
- Adjustable torque setting pressure relief valve with locking nut
- Single button remote operation hand pendant with e-stop and 5 metres cable
- Multi-outlet 4-way split block for simultaneous operation of up to 4 torque wrenches
Product Overview
Hi-Force TPE-M electric torque wrench pumps have been engineered to deliver power and precision in demanding industrial torque applications requiring manual cycle operation. Powered by a single-phase electric motor with voltage options of 110V, 120V, and 230V at 50Hz or 60Hz, these pumps are 700 bar working pressure and used to operate double-acting hydraulic torque wrenches.
All models operate at low noise levels of less than 88dB, minimising disruption in the work environment and improving user comfort.
- Working pressure 700 bar
- High flow 3-stage pump unit
- Adjustable torque setting pressure relief valve with locking nut
Product resources
Technical specifications
| Model Number | Power Supply | Pressure Gauge | Gauge Reading | Flow rate l/min | Oil cap. litres | Max. oil temp | Weight incl. oil kg | ||
|---|---|---|---|---|---|---|---|---|---|
| 1st stage 0-65 bar | 2nd stage 65-325 bar | 3rd stage 325-700 bar | |||||||
| TPE15AM | 110V-1Ph-50 Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE16AM | 120V-1Ph-60 Hz | analogue | bar/psi | 7.8 | 1.8 | 0.9 | 7 | 80°C | 39 |
| TPE25AM | 230V-1Ph-50 Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39 |
| TPE26AM | 230V-1Ph-60 Hz | analogue | bar/psi | 7.8 | 1.8 | 0.9 | 7 | 80°C | 39 |
Optional Coupler Sets
| Model Number | Description |
|---|---|
| TP-CS1 | Single set of male/female flat face couplers for simultaneous operation of two hydraulic wrenches |
| TP-CS2 | Double set of male/female flat face couplers for simultaneous operation of three hydraulic wrenches |
| TP-CS3 | Triple set of male/female flat face couplers for simultaneous operation of four hydraulic wrenches |
Dimension
| Model Number | Dimensions (mm) | ||
|---|---|---|---|
| A | B | C | |
| TPE15AM | 471 | 311 | 501 |
| TPE16AM | 471 | 311 | 501 |
| TPE25AM | 471 | 311 | 501 |
| TPE26AM | 471 | 311 | 501 |
