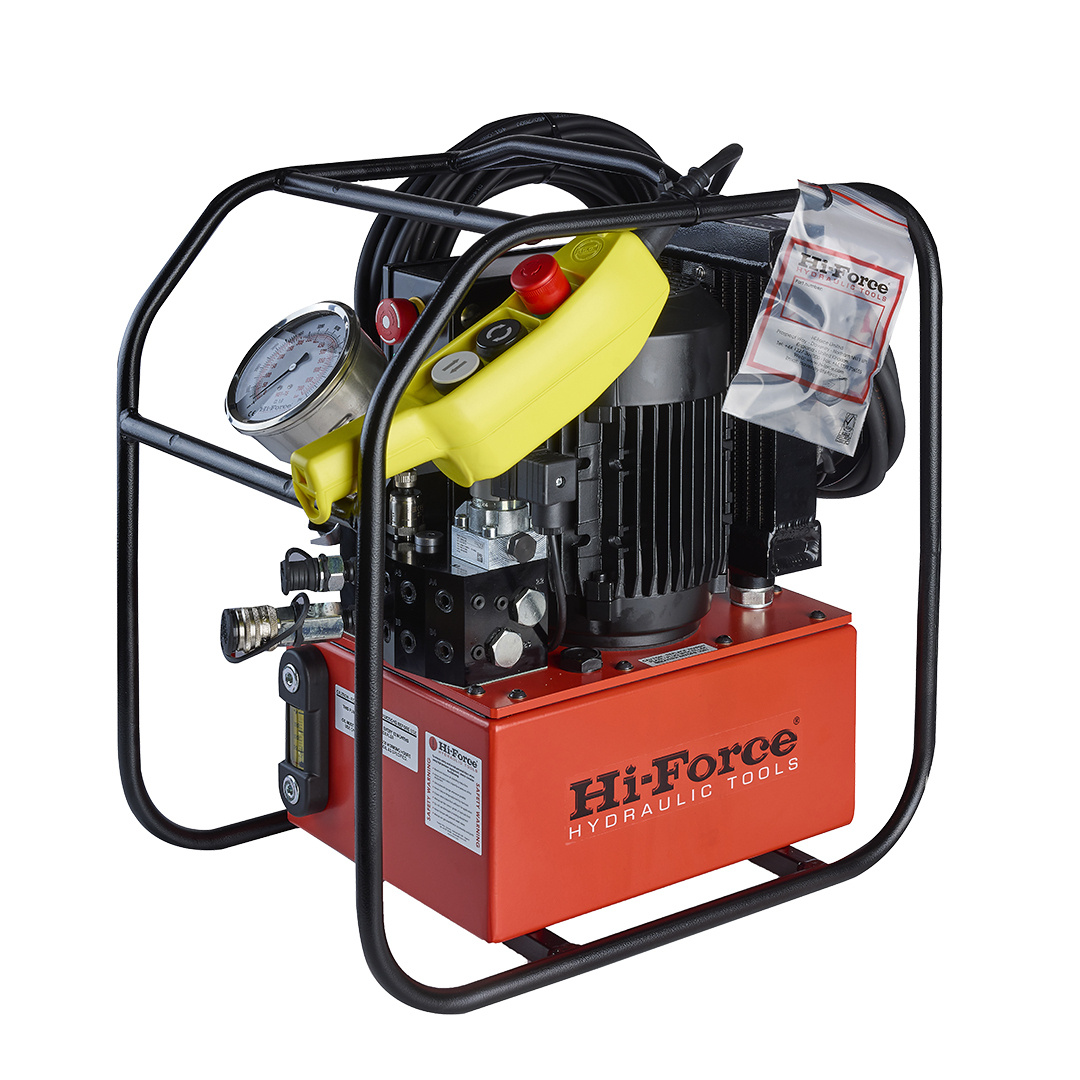

TPE Range
Electric Driven Torque Wrench Pumps - Auto Cycle
- Low noise operation (<88 db)
- Supplied fitted with one set of quick connect couplings
- Automatically activated oil cooling heat exchanger
- Adjustable torque setting pressure relief valve with locking nut
Product Overview
The TPE range of electric-driven hydraulic torque wrench pumps provides a powerful and user-friendly solution for industrial bolting operations. Featuring a 3-stage, high-flow design, these pumps deliver faster flow rates at mid-range pressures, enabling even the most challenging projects to be completed safely and efficiently. Users can choose between manual operation with auto-retract or fully automatic operation to meet specific needs. Analogue or digital gauges fitted on the pump models allow for precise pressure monitoring.
Compatible for use with Hi-Force TWS-N square drive and TWH-N low profile hexagon torque wrenches, each pump comes with a remote push-button hand pendant controller and a 5-meter control cable, ensuring safe and convenient operation.
- Working pressure 700 bar
- High flow 3-stage pump
- Compact and lightweight
Product resources
Technical specifications
| Model Number | Power Supply | Pressure Gauge | Gauge Reading | Flow rate l/min | Oil cap. litres | Max. oil temp | Weight incl. oil kg | ||
|---|---|---|---|---|---|---|---|---|---|
| 1st stage 0-65 bar | 2nd stage 65-325 bar | 3rd stage 325-700 bar | |||||||
| TPE15A | 110V-1Ph-50Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39.0 |
| TPE15D | 110V-1Ph-50Hz | digital | bar/psi/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39.0 |
| TPE16A | 120V-1Ph-60Hz | analogue | bar/psi | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39.0 |
| TPE16D | 120V-1Ph-60Hz | digital | bar/psi/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39.0 |
| TPE25A | 230V-1Ph-50Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39.0 |
| TPE25D | 230V-1Ph-50Hz | digital | bar/psi/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39.0 |
| TPE26A | 230V-1Ph-60Hz | analogue | bar/psi | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39.0 |
| TPE26D | 230V-1Ph-60Hz | digital | bar/psi/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39.0 |
| TPE45A | 400V-3Ph-50Hz | analogue | bar/psi | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39.0 |
| TPE45D | 400V-3Ph-50Hz | digital | bar/psi/Nm/lbf.ft | 6.5 | 1.5 | 0.75 | 7 | 80°C | 39.0 |
| TPE46A | 480V-3Ph-60Hz | analogue | bar/psi | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39.0 |
| TPE46D | 480V-3Ph-60Hz | digital | bar/psi/Nm/lbf.ft | 7.8 | 1.8 | 0.90 | 7 | 80°C | 39.0 |
Optional Coupler Sets
| Model Number | Description |
|---|---|
| TP-CS1 | Single set of male / female flat face couplers for simultaneous operation of two hydraulic wrenches |
| TP-CS2 | Double set of male / female flat face couplers for simultaneous operation of three hydraulic wrenches |
| TP-CS3 | Triple set of male / female flat face couplers for simultaneous operation of four hydraulic wrenches |
Dimension
Dimensions (mm)
| Model Number | A | B | C |
|---|---|---|---|
| TPE15A | 466 | 311 | 501 |
| TPE15D | 466 | 311 | 501 |
| TPE16A | 466 | 311 | 501 |
| TPE16D | 466 | 311 | 501 |
| TPE25A | 466 | 311 | 501 |
| TPE25D | 466 | 311 | 501 |
| TPE26A | 466 | 311 | 501 |
| TPE26D | 466 | 311 | 501 |
| TPE45A | 466 | 311 | 501 |
| TPE45D | 466 | 311 | 501 |
| TPE46A | 466 | 311 | 501 |
| TPE46D | 466 | 311 | 501 |
