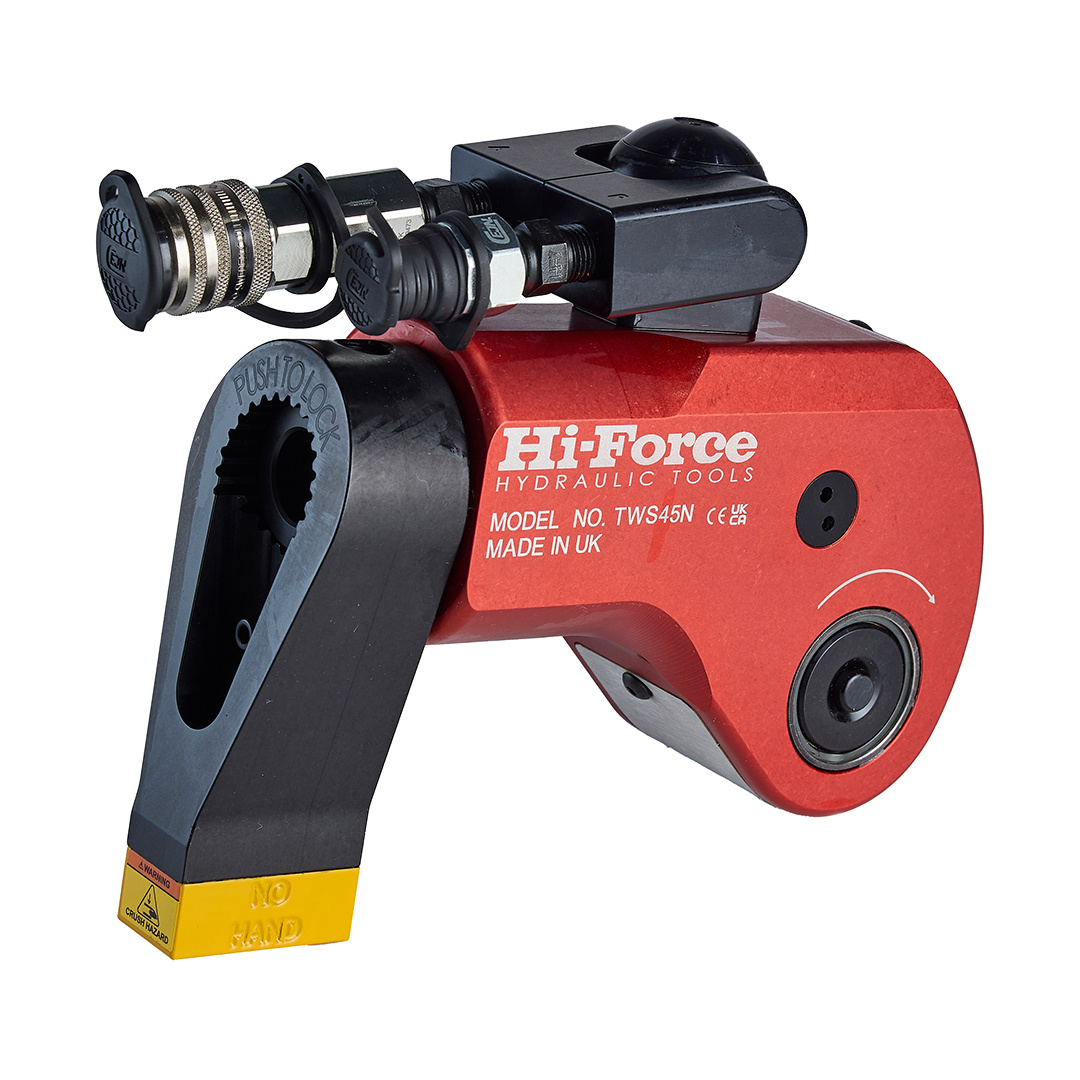

TWS-N Range
Hydraulic Torque Wrenches - Square drive
- Compact lightweight aluminium construction
- Multi-purpose reaction arm with safety lock feature
- Reversible square drive for tightening and loosening applications
- All models are fitted with a multi-directional 360° x 180° swivel with quick release couplings. The multi-directional feature enables easy positioning of hydraulic hoses during operation, preventing damage from pinching or kinking.
Product Overview
Hi-Force TWS-N series lightweight aluminium hydraulic torque wrenches are designed to handle the toughest bolting jobs accurately and quickly. All models provide a torque accuracy of +/- 3%. The internal reaction arm spline allows the operator to easily position the tool and, if necessary, react directly off the tool body in very confined access applications.
- Torque capacities up to 36992 Nm
- Torque accuracy of +/- 3%
- Working pressure 700 bar
Product resources
More Product resources
Technical specifications
| Model Number | Torque Capacity | Square Drive Size | Weight incl. reaction foot kg | |
|---|---|---|---|---|
| Nm at 700 bar | lbf.ft at 10,000 psi | |||
| TWS17N | 1727 | 1254 | 3/4" | 1.9 |
| TWS45N | 4529 | 3289 | 1" | 4.8 |
| TWS100N | 10064 | 7527 | 1 1/2" | 9.0 |
| TWS150N | 14974 | 10873 | 1 1/2" | 15.0 |
| TWS370N | 36992 | 26860 | 2 1/2" | 32.5 |

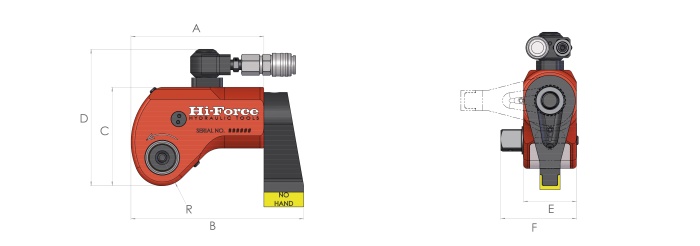

Dimension
Dimensions (mm)
| Model Number | |||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | R | |
| TWS17N | 129 | 167 | 90 | 141 | 51 | 73 | 25 |
| TWS45N | 167 | 218 | 121 | 175 | 68 | 98 | 34 |
| TWS100N | 223 | 293 | 163 | 211 | 92 | 135 | 46 |
| TWS150N | 247 | 323 | 192 | 237 | 100 | 141 | 54 |
| TWS370N | 329 | 432 | 240 | 288 | 137 | 204 | 66 |
