HPS Range

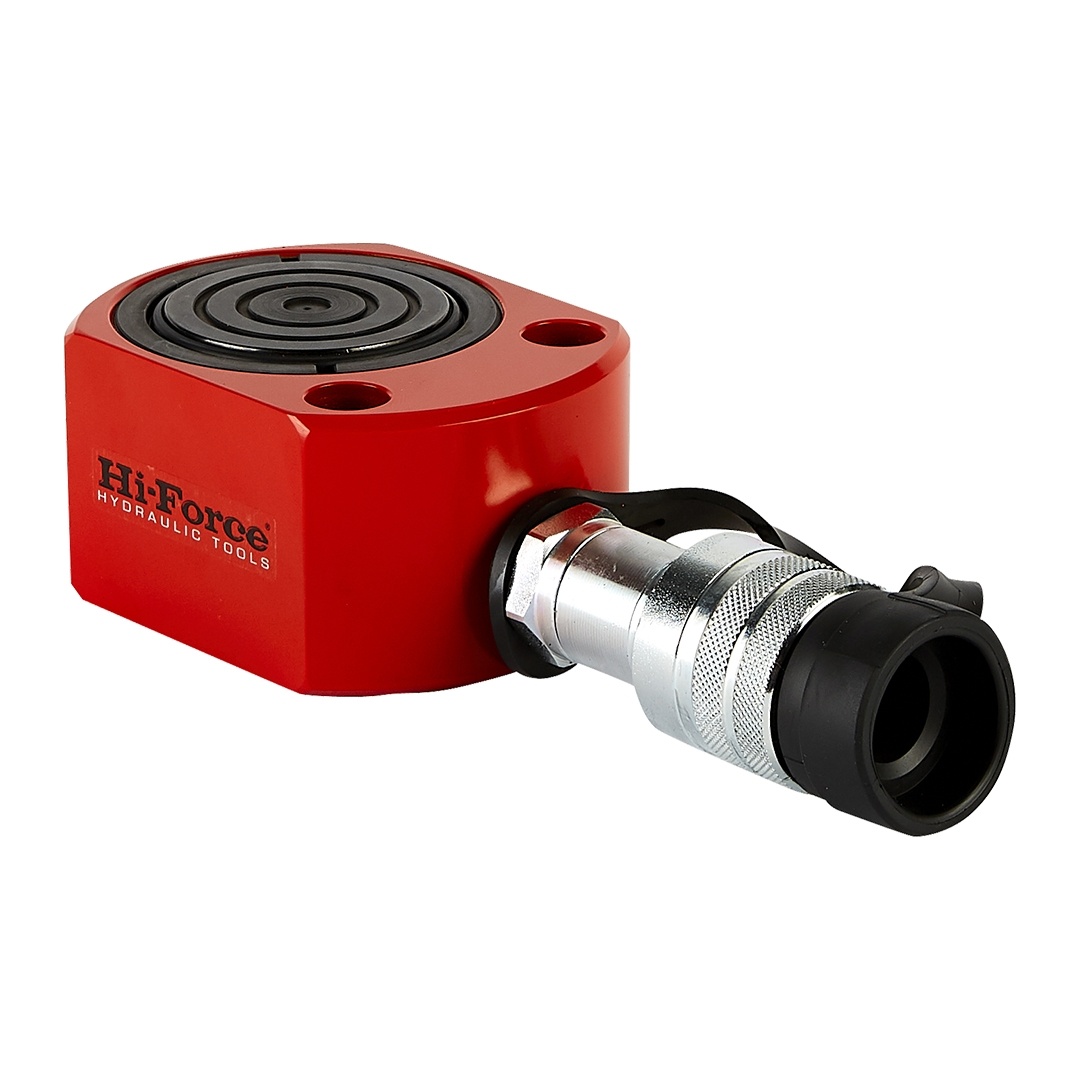

Single acting low height pad cylinders
- Single acting, spring assisted return
- Nitrocarburised piston rod, low friction bearing surfaces
- Anti-extrusion seals
- Customised and special design cylinders are available on request
Product Overview

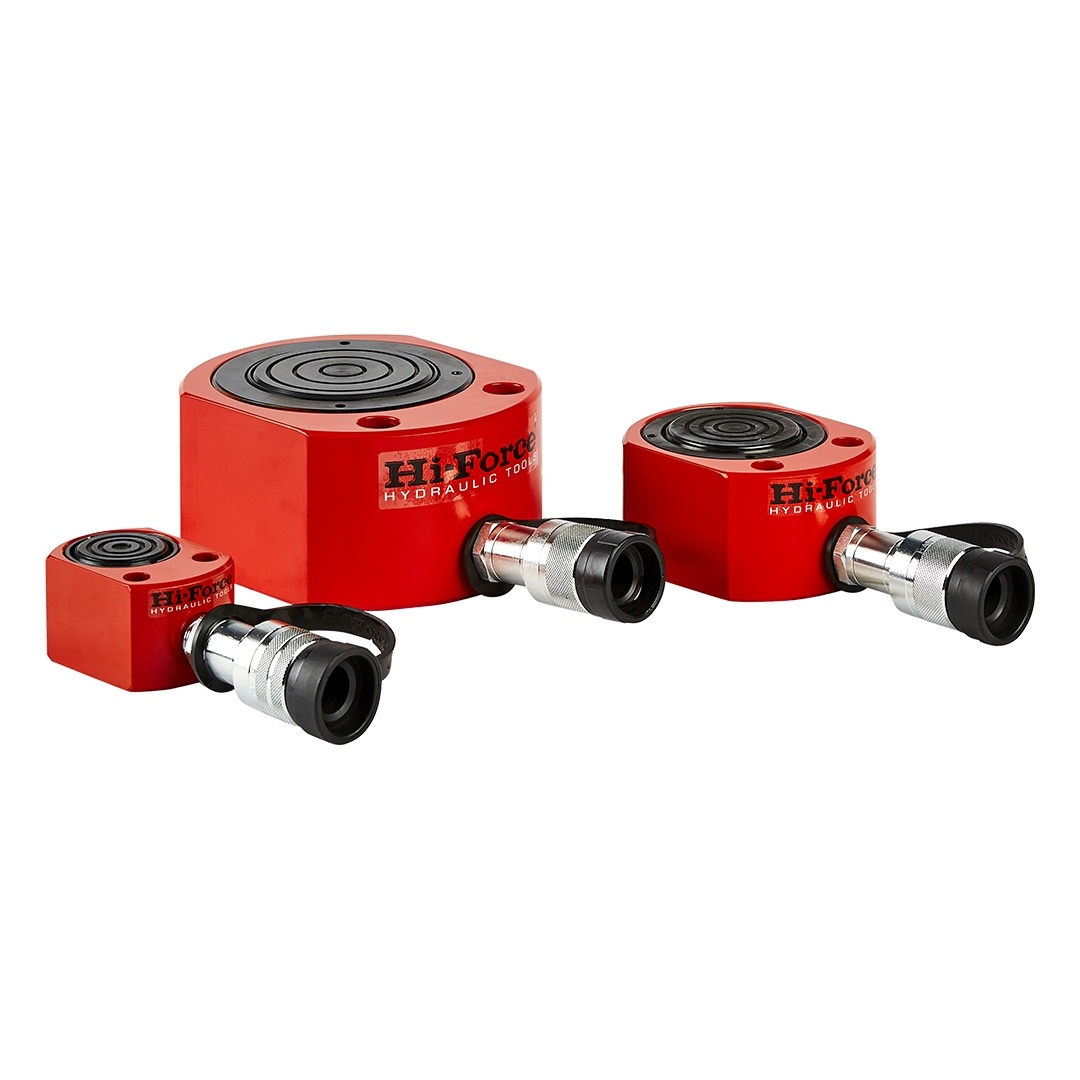

The HPS pad cylinder range offers the best capacity, closed height and stroke length combination, spring assisted return cylinders in the industry. Ideally suited for applications where a low closed height and maximum possible stroke is of prime importance, these highly versatile cylinders are extensively used for maintenance, structural weld positioning, rigging, flange separating and many other applications.
- Capacities from 4.5 to 147 tonnes
- Stroke lengths from 6 to 16 mm
- Working pressure 700 bar
Product resources
More Product resources
Technical specifications
| Model Number | Capacity tonnes | Stroke mm | Oil cap. cm3 | Cyl.eff. area cm2 | Weight kg |
|---|---|---|---|---|---|
| HPS50 | 4.5 | 6 | 4 | 6.4 | 0.8 |
| HPS51 | 4.5 | 16 | 10 | 6.4 | 0.9 |
| HPS100 | 10 | 10 | 14 | 14.4 | 1.6 |
| HPS200 | 20 | 11 | 31 | 28.6 | 2.6 |
| HPS300 | 32 | 12 | 55 | 45.6 | 4.2 |
| HPS500 | 50 | 15 | 107 | 71.3 | 6.6 |
| HPS750 | 73 | 16 | 164 | 102.7 | 10.4 |
| HPS1000 | 109 | 16 | 245 | 153.4 | 23.2 |
| HPS1500 | 147 | 16 | 330 | 206.2 | 28.5 |
Dimension
Dimensions (mm)
| Model number | A | B | C | D | E | F | G1 | G2 | H | I |
|---|---|---|---|---|---|---|---|---|---|---|
| HPS50 | 32 | 60 | 38 | 24 | 20 | 19 | 5.6 | 9.8 | 26 | 19 |
| HPS51 | 42 | 60 | 38 | 24 | 20 | 19 | 5.6 | 9.8 | 26 | 19 |
| HPS100 | 46 | 81 | 56 | 38 | 34 | 28 | 6.8 | 11.3 | 37 | 19 |
| HPS200 | 52 | 100 | 76 | 51 | 40 | 39 | 8.8 | 14.3 | 50 | 19 |
| HPS300 | 59 | 115 | 95 | 60 | 46 | 48 | 8.8 | 14.3 | 52 | 19 |
| HPS500 | 67 | 140 | 114 | 70 | 54 | 60 | 10.8 | 17.3 | 67 | 20 |
| HPS750 | 81 | 165 | 140 | 82 | 67 | 70 | 13 | 19 | 76 | 21 |
| HPS1000 | 91 | 215 | 180 | 114 | 75 | 90 | 12.8 | 19 | 130 | 29 |
| HPS1500 | 100 | 215 | 191 | 114 | 83 | 95 | 13 | 19 | 117 | 29 |
