TWS-N Accessories
Allen Hexagon Drive Adaptors, Extended Reaction Arms and Removable Handles
- Imperial allen hex drives from 1/2" to 2 1/4" and metric allen hex drives from 14 to 60 mm
- Extended reaction length arms with choice of length
- Handle kits for TWS-N to allow user to better support the tools during operation
Product Overview

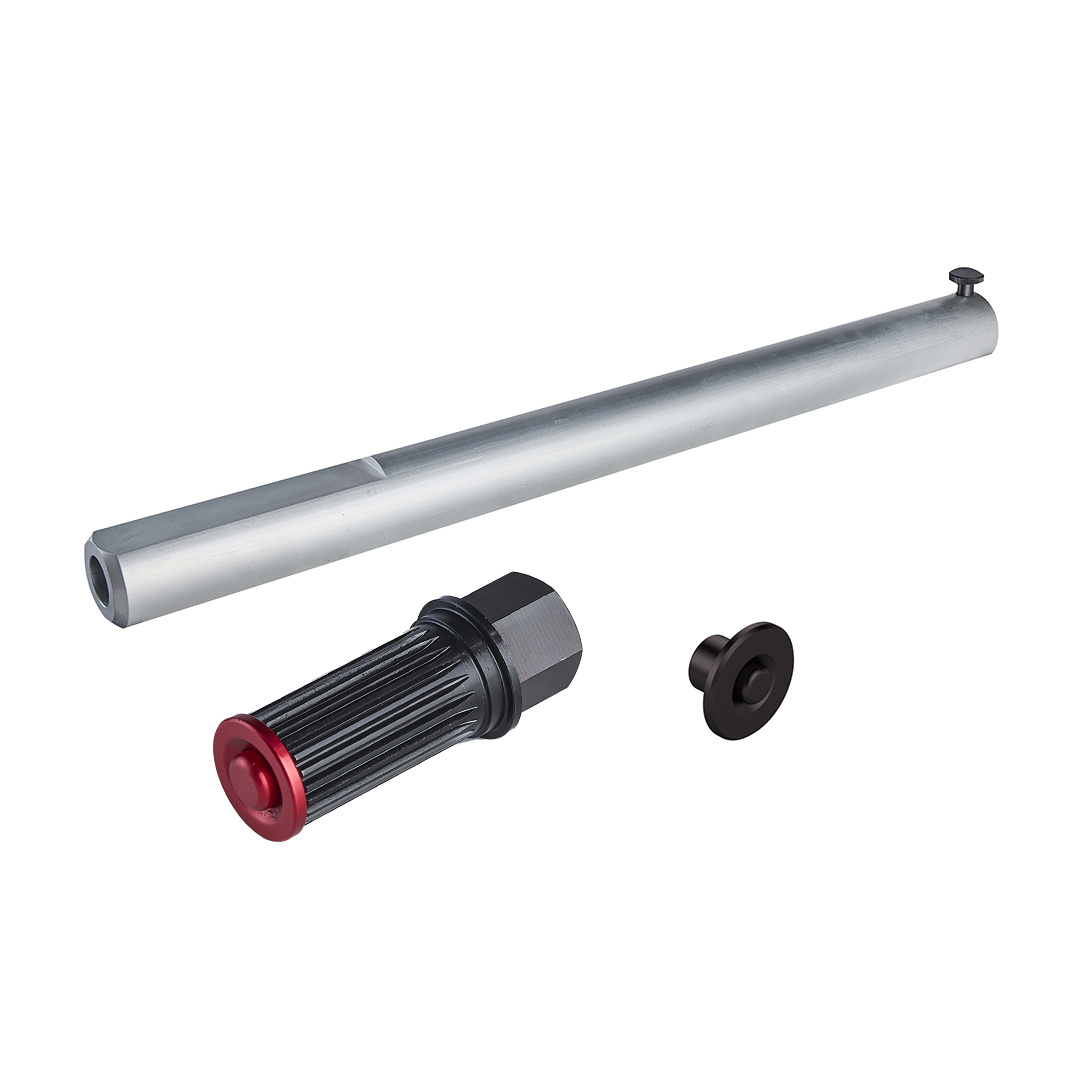

Accessory items are available for use with the TWS-N hydraulic torque wrenches, including extended hydraulic wrench reaction arms, imperial and metric allen hexagon drive adaptors and removable handle kits. These accessories enhance versatility for users and expand the application range of the TWS-N torque wrenches.
- Imperial allen hex drives from 1/2" to 2 1/4" and metric allen hex drives from 14 to 60 mm
- Extended reaction length arms with choice of length
- Handle kits for TWS-N to allow user to better support the tools during operation
Product resources
Technical specifications
Hexagon Drive Adaptors - Imperial
| For Tool Model No. | |||
|---|---|---|---|
| Model Number | Hexagon Size | Maximum Torque load Nm | |
| TWS17N | IH17N-008 | 1/2" | 470 |
| IH17N-010 | 5/8" | 930 | |
| IH17N-012 | 3/4" | 1600 | |
| IH17N-014 | 7/8" | 1700 | |
| IH17N-100 | 1" | 1700 | |
| TWS45N | IH45N-010 | 5/8" | 930 |
| IH45N-012 | 3/4" | 1600 | |
| IH45N-014 | 7/8" | 2550 | |
| IH45N-100 | 1" | 3800 | |
| IH45N-102 | 1 1/8" | 4500 | |
| IH45N-104 | 1 1/4" | 4500 | |
| TWS100N | IH100N-014 | 7/8" | 1890 |
| IH100N-100 | 1" | 3800 | |
| IH100N-102 | 1 1/8" | 5440 | |
| IH100N-104 | 1 1/4" | 7400 | |
| IH100N-106 | 1 3/8" | 9920 | |
| IH100N-108 | 1 1/2" | 10000 | |
| TWS150N | IH150N-104 | 1 1/4" | 7400 |
| IH150N-106 | 1 3/8" | 9900 | |
| IH150N-108 | 1 1/2" | 15000 | |
| IH150N-110 | 1 5/8" | 15000 | |
| IH150N-112 | 1 3/4" | 15000 | |
| TWS370N | IH370N-108 | 1 1/2" | 12900 |
| IH370N-110 | 1 5/8" | 16300 | |
| IH370N-112 | 1 3/4" | 20400 | |
| IH370N-114 | 1 7/8" | 25100 | |
| IH370N-200 | 2" | 30600 | |
| IH370N-204 | 2 1/4" | 37000 | |
Hexagon Drive Adaptors - Metric
| For Tool Model No. | |||
|---|---|---|---|
| Model Number | Hexagon Size | Maximum Torque load Nm | |
| TWS17N | MH17N-14 | 14mm | 740 |
| MH17N-17 | 17mm | 1350 | |
| MH17N-19 | 19mm | 1612 | |
| MH17N-22 | 22mm | 1700 | |
| MH17N-24 | 24mm | 1700 | |
| TWS45N | MH45N-17 | 17mm | 1100 |
| MH45N-19 | 19mm | 1600 | |
| MH45N-22 | 22mm | 2550 | |
| MH45N-24 | 24mm | 3700 | |
| MH45N-27 | 27mm | 3900 | |
| MH45N-32 | 32mm | 4500 | |
| TWS100N | MH100N-22 | 22mm | 2480 |
| MH100N-24 | 24mm | 3700 | |
| MH100N-27 | 27mm | 4650 | |
| MH100N-30 | 30mm | 6380 | |
| MH100N-32 | 32mm | 7625 | |
| MH100N-36 | 36mm | 10000 | |
| TWS150N | MH150N-30 | 30mm | 7000 |
| MH150N-32 | 32mm | 7500 | |
| MH150N-36 | 36mm | 10900 | |
| MH150N-41 | 41mm | 15000 | |
| MH150N-46 | 46mm | 15000 | |
| TWS370N | MH370N-36 | 36mm | 10000 |
| MH370N-41 | 41mm | 16300 | |
| MH370N-46 | 46mm | 22500 | |
| MH370N-50 | 50mm | 30600 | |
| MH370N-55 | 55mm | 37000 | |
| MH370N-60 | 60mm | 37000 | |

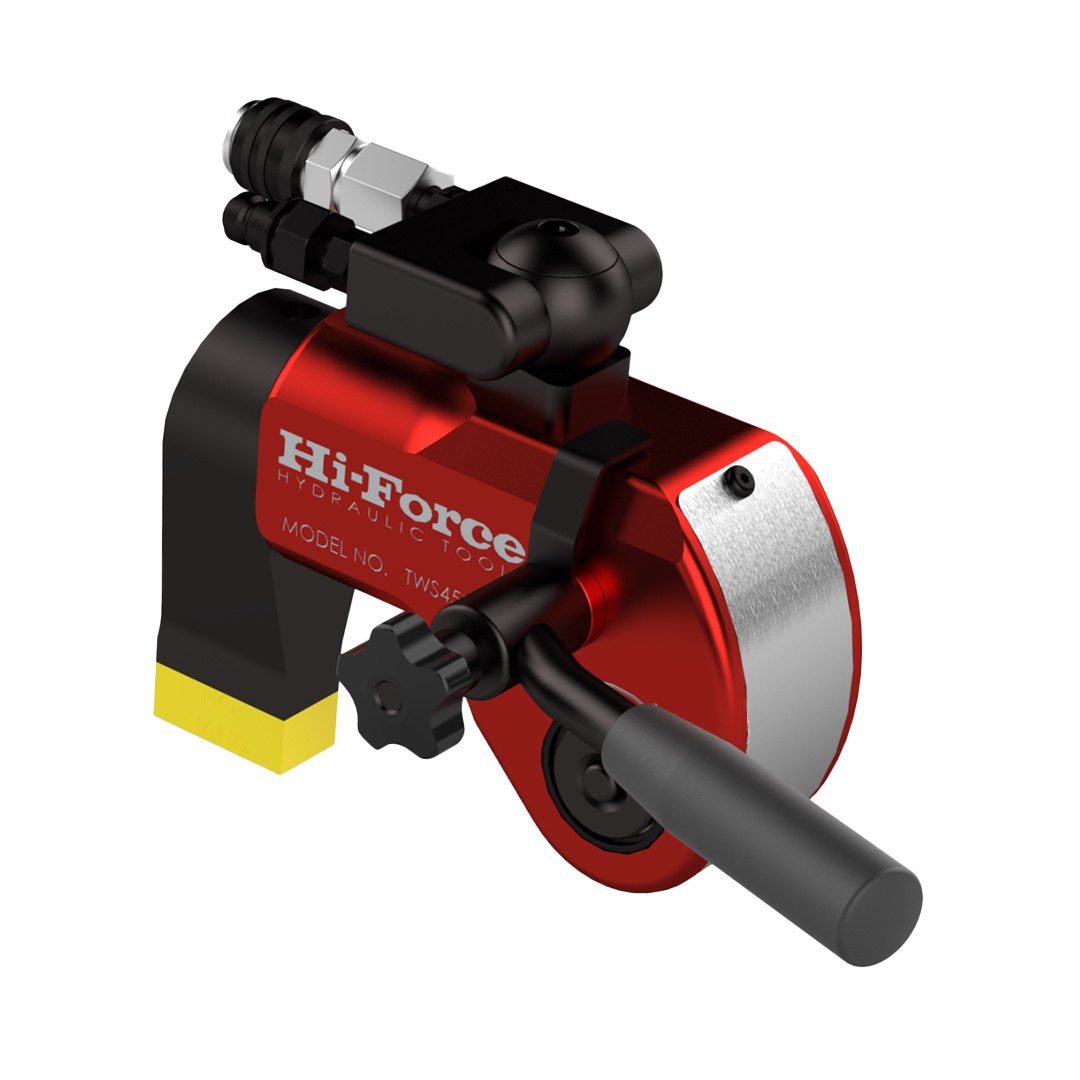

Removable Handle Kits
| For tool model number | Model number |
|---|---|
| TWS17N | TSH17 |
| TWS45N | TSH45 |
| TWS100N | TSH100 |
| TWS150N | TSH150 |
| TWS370N | TSH370 |
Note: Standard circlip pliers are required to fit the handle kits
Dimension
Extended Reaction Arms
| For Tool Model Number | Model Number | Length A | Diameter B | ||
|---|---|---|---|---|---|
| inch | mm | inch | mm | ||
| TWS17N | ERA17-21 | 21" | 533 | 1 ¾" | 44.5 |
| ERA17-24 | 24" | 610 | 1 ¾" | 44.5 | |
| ERA17-36 | 36" | 914 | 1 ¾" | 44.5 | |
| TWS45N | ERA45-21 | 21" | 533 | 2 ½" | 63.5 |
| ERA45-24 | 24" | 610 | 2 ½" | 63.5 | |
| ERA45-36 | 36" | 914 | 2 ½" | 63.5 | |
| TWS100N | ERA100-21 | 21" | 533 | 3 ½" | 88.9 |
| ERA100-24 | 24" | 610 | 3 ½" | 88.9 | |
| ERA100-36 | 36" | 914 | 3 ½" | 88.9 | |
| TWS150N | ERA150-21 | 21" | 533 | 3 ½" | 88.9 |
| ERA150-24 | 24" | 610 | 3 ½" | 88.9 | |
| ERA150-36 | 36" | 914 | 3 ½" | 88.9 | |
| TWS370N | ERA370-21 | 21" | 533 | 4 ¾" | 120.6 |
| ERA370-24 | 24" | 610 | 4 ¾" | 120.6 | |
| ERA370-36 | 36" | 914 | 4 ¾" | 120.6 | |
